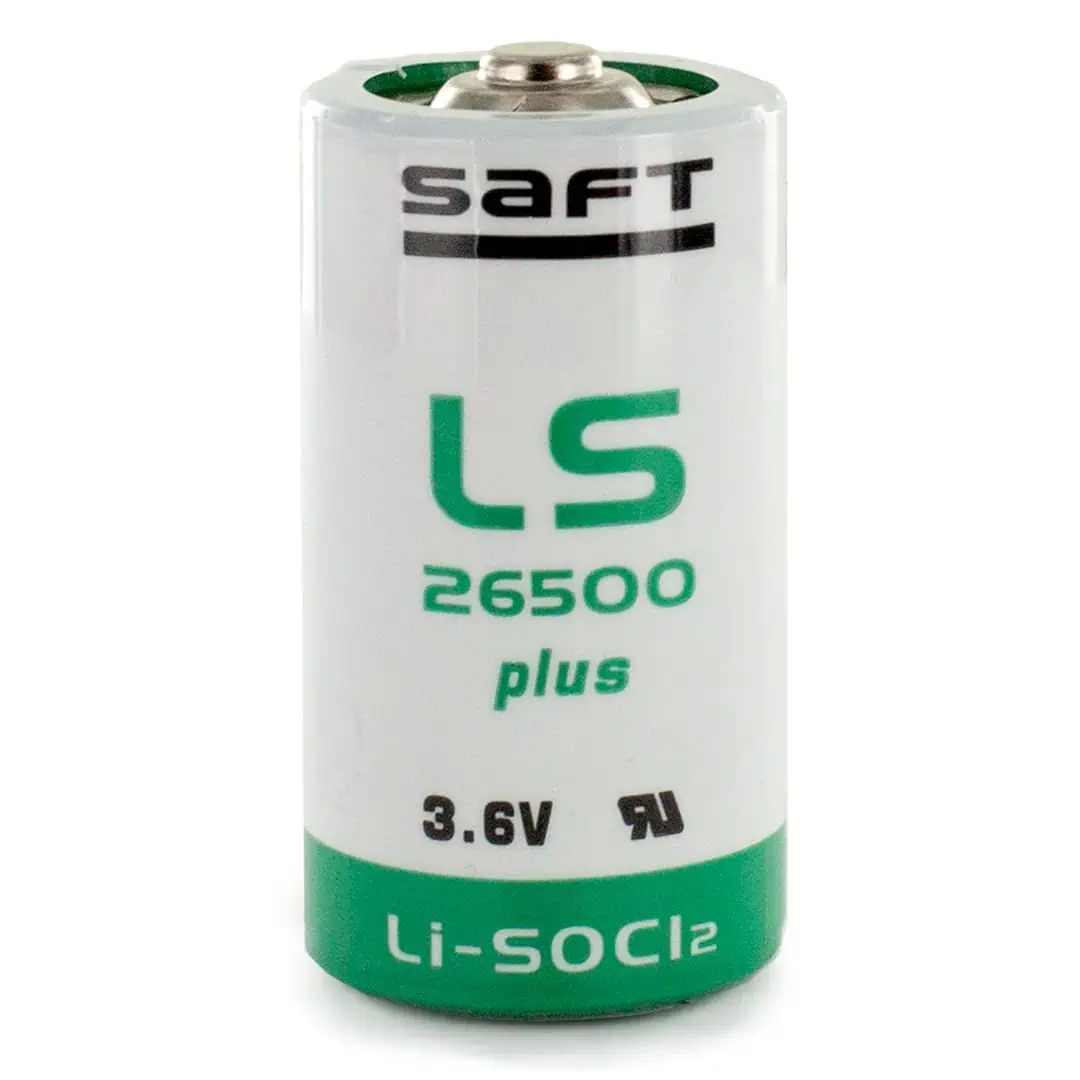

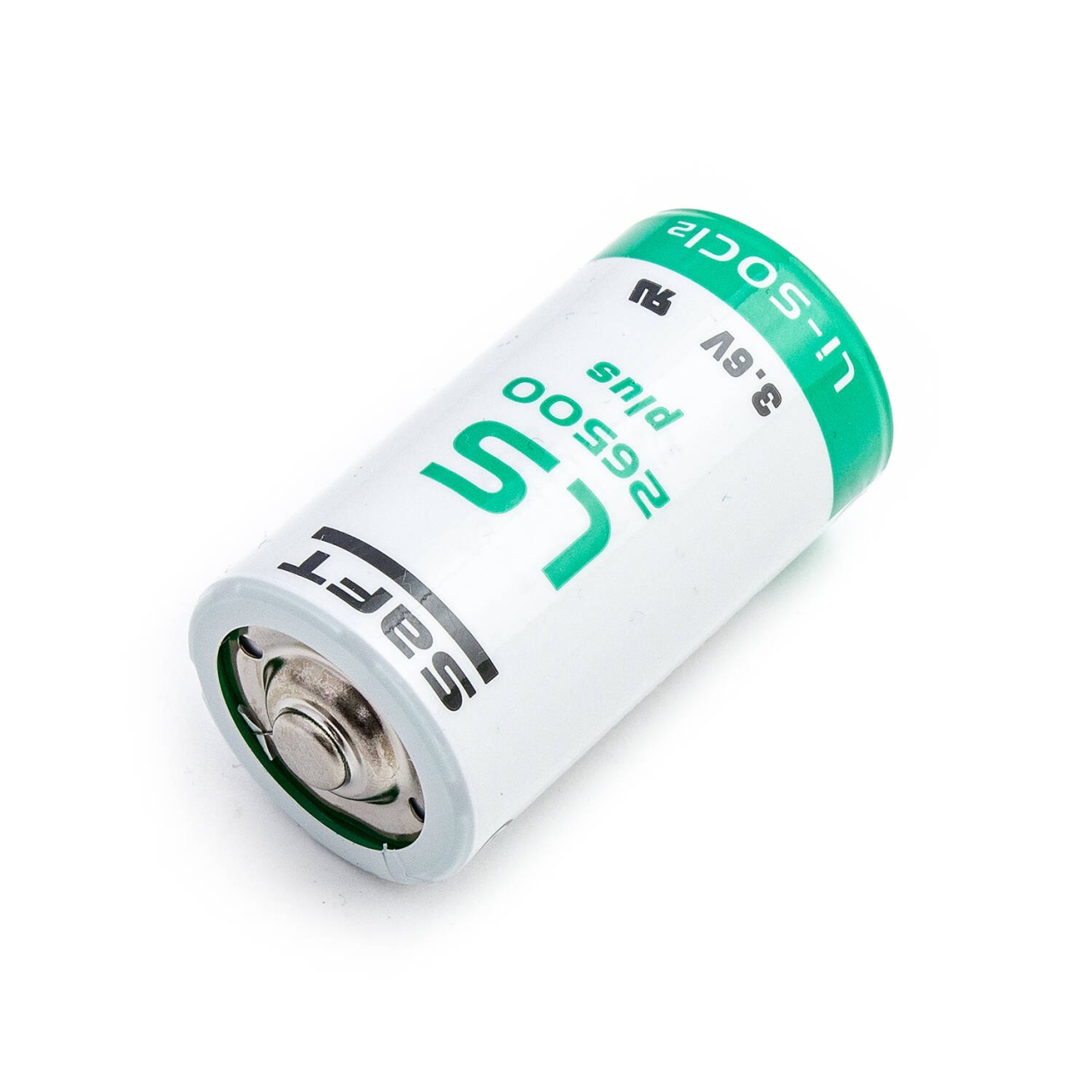

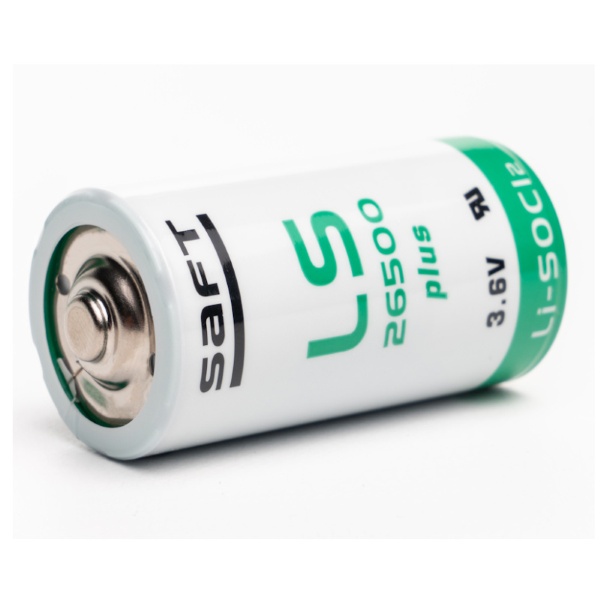

Lithium battery SAFT LS26500Plus type C 3.6V 8500mAh

Description

NEW: Lithium battery (lithium-thionyl or LiSOCl2) brand SAFT- France, usually used in digital meters, now in the Plus version, with extended autonomy of 8500mAh (replaced the Saft LS26500 version of 7700mAh). It stands out for the extremely wide temperature range at which it can be used, especially in applications with slow discharges (<150mA).

The LS cell product range has been independently assessed and tested to the relevant parts of IEC 60086-4 and ATEX IEC 60079-11 part 10.5 in the IECEx system. This allows them to be considered for applications in hazardous locations and potentially explosive atmospheres. The electrolyte is non-flammable, they have excellent corrosion resistance and the magnetic signature is very low.

LS coil cells are specifically designed for long-term applications (5 to 20+ years), having a few μA base currents and periodic pulses, typically in the range of 5 - 150 mA.

PRODUCT SPECIFICATION:

Brand/Manufacturer: SAFT - France

Product type: Battery (NOT rechargeable)

Technology: LiSOCl2 (or Lithium-Thionyl) - high capacity non-rechargeable batteries with very long service life

Use: low current applications (digital meters, memory battery, etc.)

Battery code: LS26500Plus

Format: C / R14

Nominal voltage: 3.6 V (3.67 V open circuit at +20°C)

Nominal capacity: 8500 mAh, at 4 mA +20°C, cut-off voltage 2 V.

Nominal energy: 30.6 Wh (compared to 27.72Wh for the standard LS26500)

Recommended maximum continuous discharge: 150 mA

Max. pulse discharge rate: 300 mA

Recommended temperature: Storage at maximum +30°C / Operation at -60°C...+85°C.

ATEX use: IEC 60079-11 part 10.5: temperature class T4, up to +40°C

Dimensions: Lmax = 50.4 mm (high terminal version), Diameter max = 26 mm (similar to C or R14 batteries)

Rechargeable: NO

Self-discharge: very low, <1% discharge after one year storage at +20°C

Terminals: button type (plus max. 2mm rise)

Optional available terminals/suffix: CNR - radial blades / 3PF or 3PF RP - 3 pins / CNA - axial terminals / 2PF RP - 2 pins, etc. Optional terminals incur additional cost.

Weight: 47 g, lithium content approx. 2.2 g

Shelf life: 10 years from date of manufacture

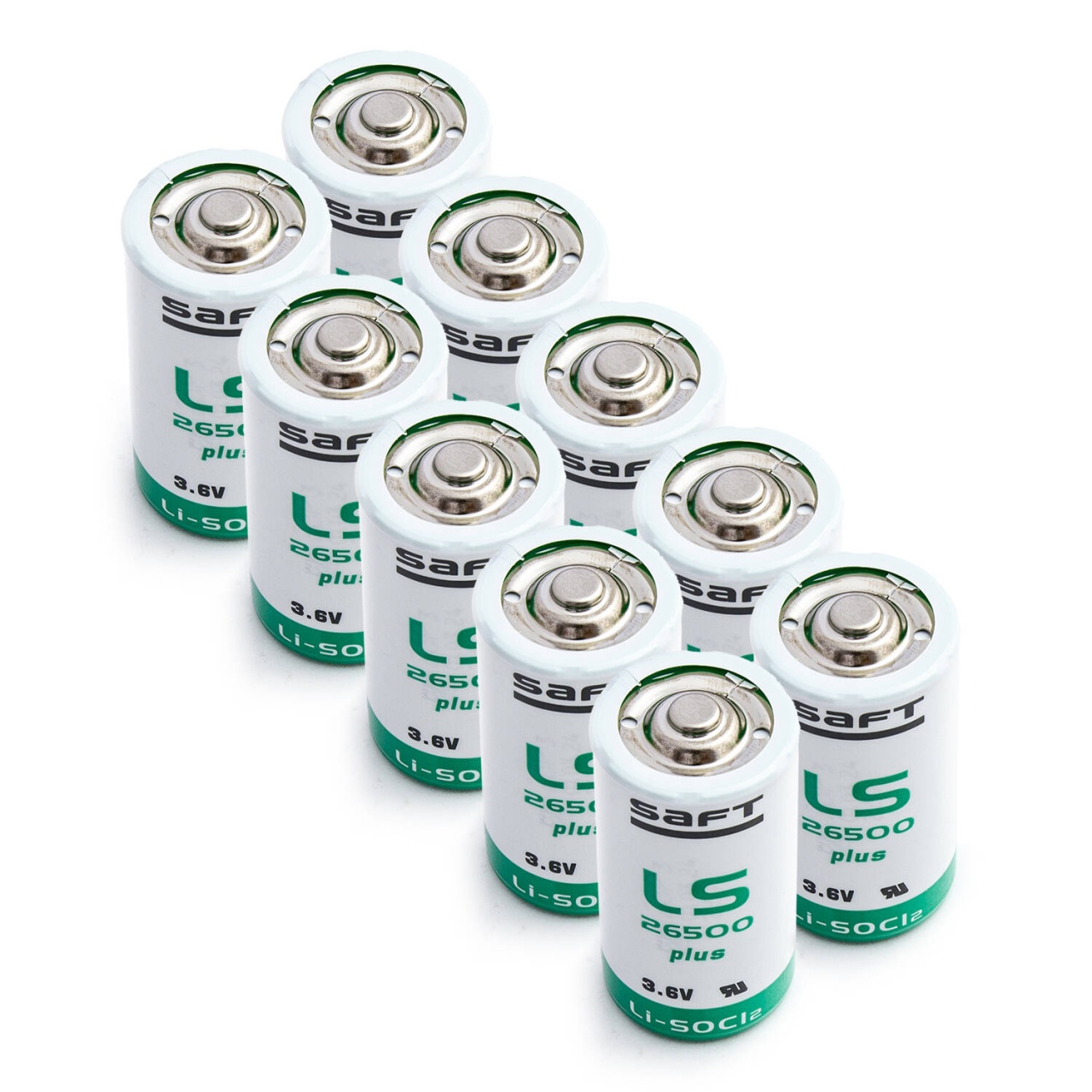

Packaging: Bulk (industrial batteries, without individual packaging)

Applicable standards: Safety: IEC 60086-4 and UL 1642 / ATEX: IEC 60079-11 part 10.5 / Transport: UN 3090 and UN 3091 / Quality: ISO 9001 (manufacturer and distributor!)

Transport restrictions: yes - class 9

At the customer's request, we can weld nickel strips with a welding machine in various spots, install wires or plugs (quality work, perfect contacts). Request a quote and execution time for such work here.

 Do not throw away used batteries. Hand them over to authorized collection centers (such as CCR Rebat containers located in large stores).
