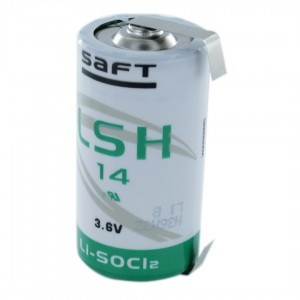

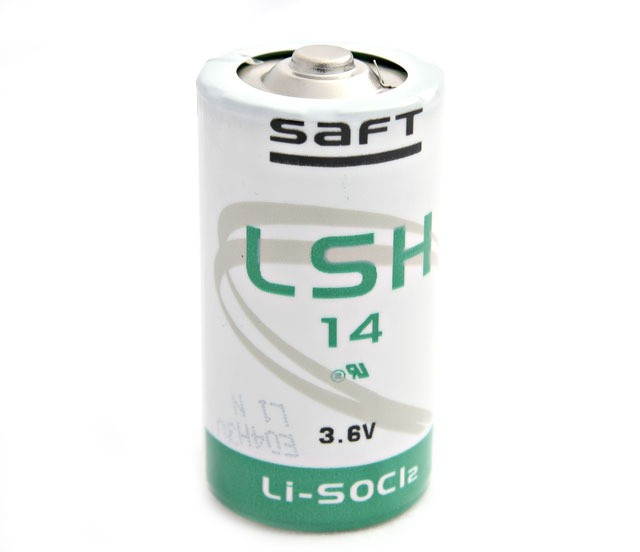

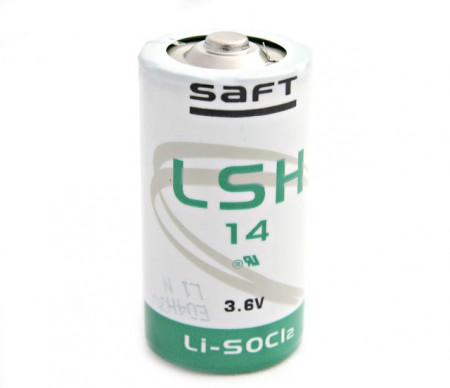

Lithium SAFT battery LSH14 type C (R14) 3.6V 5200mAh

Description

Lithium battery (lithium-thionyl or LiSOCl₂) brand SAFT - France, is used in long-term applications that require high pulse currents and operation in a very wide temperature range, from minus 60 to +85°C (ideal for outdoor operation throughout the year), such as Data Logger and other similar devices.

Upon request, various battery assemblies or batteries with ultra-capacitors can be made. It can also be delivered with other types of terminals (blades, cables, plugs, pins) - request a quote and delivery time here.

TECHNICAL SPECIFICATION:

Manufacturer: Saft - France (member of the Total group)

Country of origin: France

Battery type: Lithium, non-rechargeable (LiSOCl₂)

Battery code: LSH14 (type C format)

Construction: Spiral

Nominal voltage: 3.6V

Nominal capacity: 5200mAh

Maximum current - continuous: 1.3A

Maximum current - pulse: 2.0A

Temperature range: -60°C...+85°C

Terminals: welded nickel strips (wires can be soldered directly to these strips)

Dimensions: L=50.4mm, Diameter = 26mm (similar to C or R14 batteries)

Weight: ~51 g

Packaging: industrial batteries, delivered in bulk (without individual packaging)

 Do not throw away used batteries. Hand them over to authorized collection centers (such as CCR Rebat containers located in large stores).
