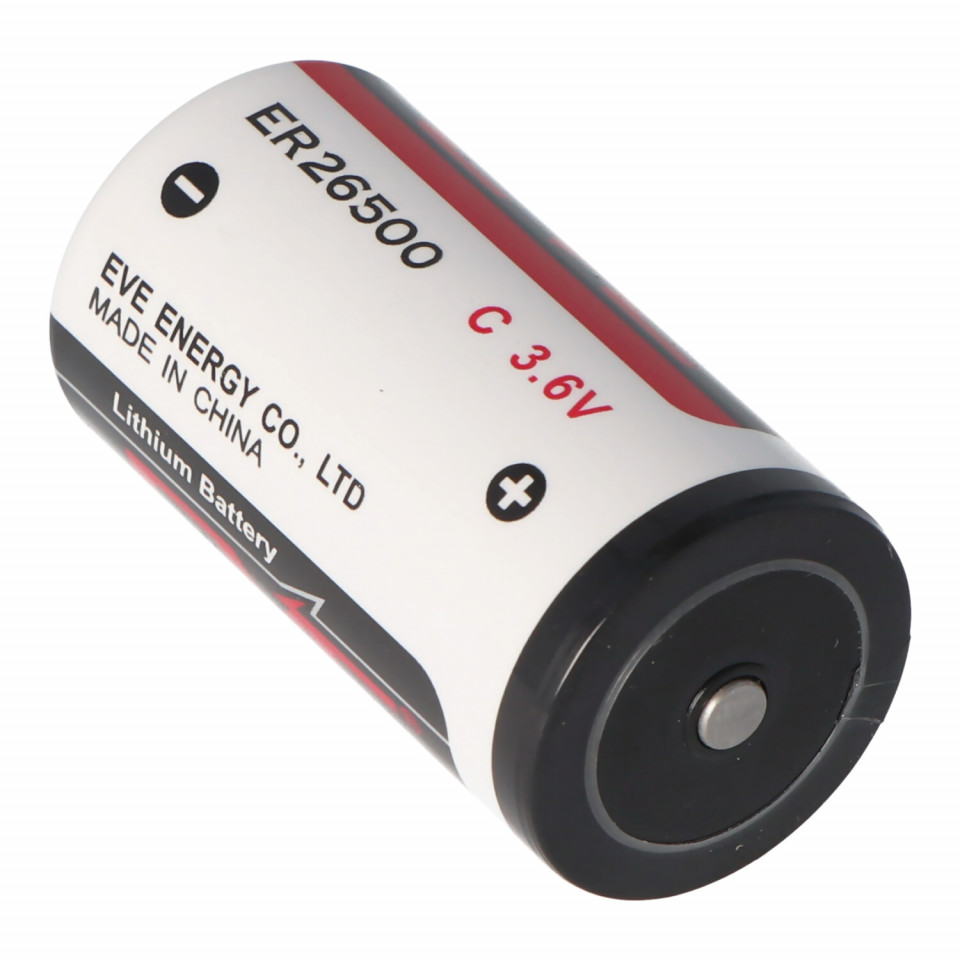

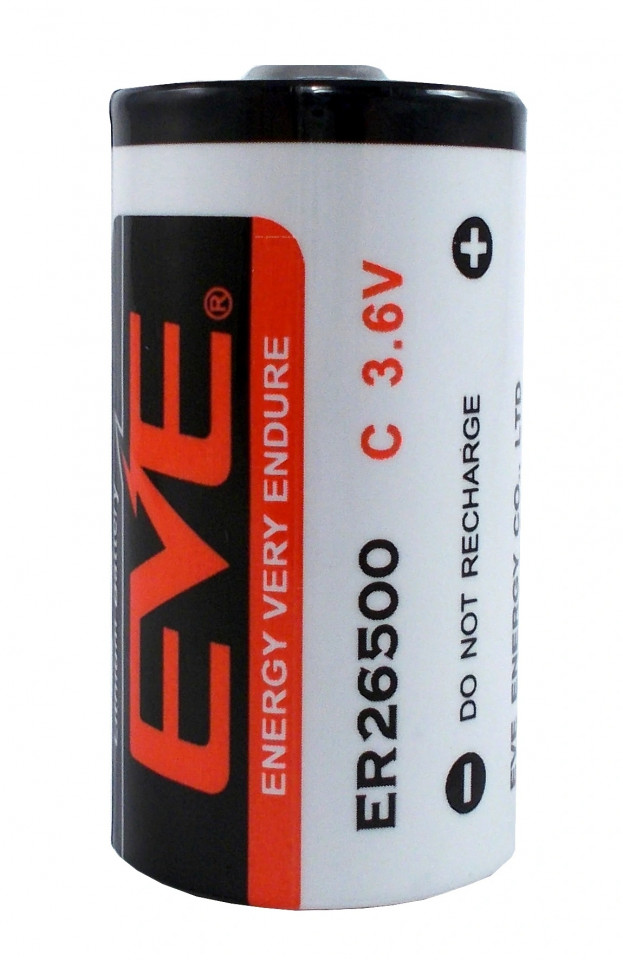

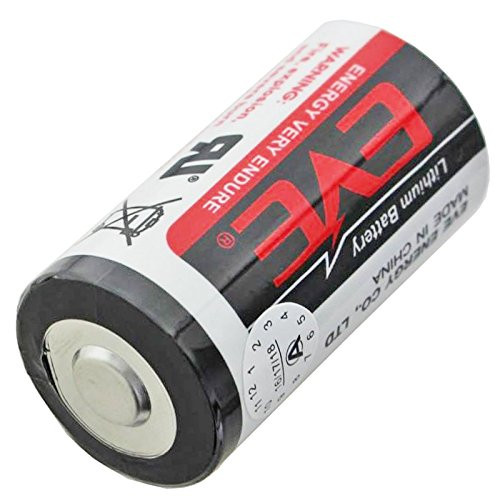

Lithium Battery EVE ER26500FL C 3.6V 8500mAh

Description

Lithium battery (lithium-thionyl or LiSOCl2), EVE brand, usually used in GPS tracking/locator systems, digital meters, CNC memory, etc. where it offers very high autonomy in low current applications, thanks to its 8500 mAh capacity.

It is also notable for its very wide temperature range at which it can be used (withstands extreme temperatures).

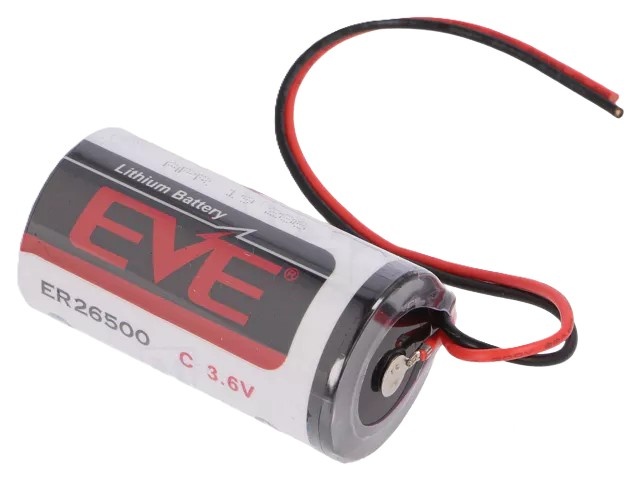

This version comes equipped with red/black wires for easier connection.

PRODUCT SPECIFICATION:

Brand/Manufacturer: Eve Energy (China)

Technology: LiSOCl2

Rechargeable: NO

Battery code: ER26500FL (Saft LS26500FL equivalent)

Nominal voltage: 3.6 V

Nominal capacity: 8500 mAh (8.5 Ah), at 1.2kΩ/3mA load, 2V cut off, +20°C

Maximum current - pulse: 200 mA

Maximum current - continuous: 150 mA

Self-discharge: very low - less than 1% after one year at +25°C

Recommended temperature: storage at max.30°C / operation from -55°C to +85°C

Connectors: red/black cables

Maximum dimensions: L = 51 mm, Diameter = 26.5 mm (similar to C or R14 batteries)

Weight: 52 g

Packaging: bulk - industrial batteries (without individual packaging)

Standards and certifications: IEC 60086-4 (safety standard) / UL Component Recognition (MH 28717)

Upon request, it can be delivered with various terminals: spot-welded nickel blades, 2-color LIY wires, 2 pins, 3 pins, 4 pins. Request a quote and lead time for such terminals here.

 WARNINGS:

• Do not recharge! Do not disassemble, do not expose to temperatures above 100°C, do not throw into fire or liquids - risk of explosion!
• Do not solder cables or other terminals directly to the cells - danger of perforation and fire! Request batteries with welded blades if you wish to connect them this way.
• Do not throw away used batteries. Hand them over to authorized collection centers (such as CCR Rebat containers located in large stores).
