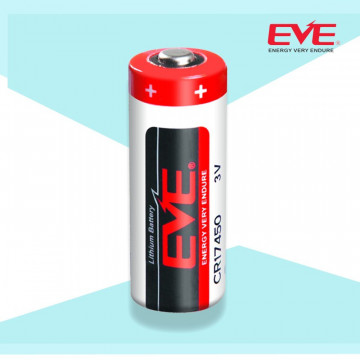

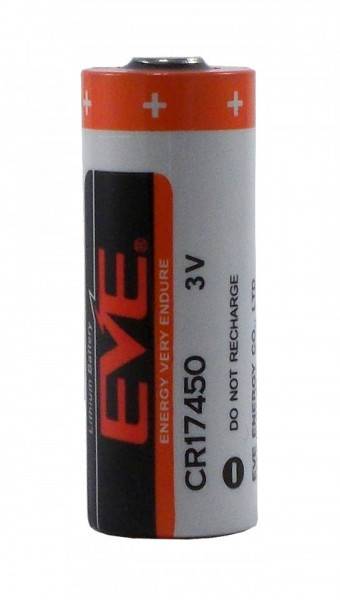

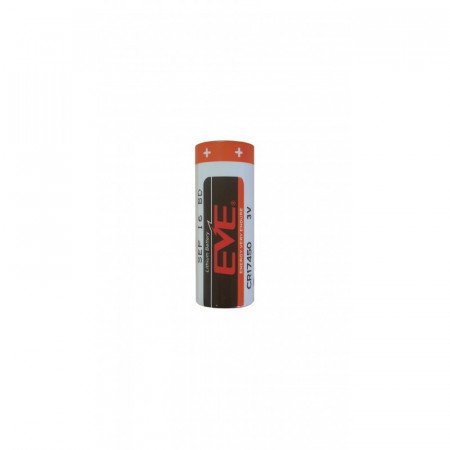

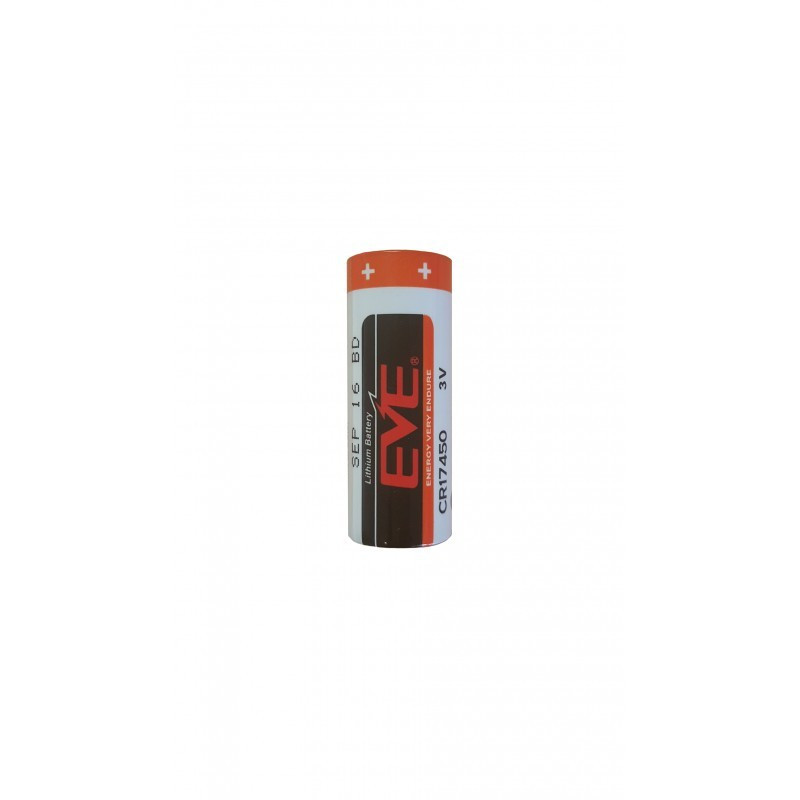

Lithium battery Eve 4/5A CR17450 3V 2400mAh

Description

Lithium battery (lithium-manganese or Li-MnO₂) from Eve Energy. It is widely used as a memory battery, for example in CNC machines, smoke sensors, etc.

TECHNICAL SPECIFICATION:

Brand/Manufacturer: Eve Energy (China)

Product Type: Battery, Non-Rechargeable

Chemistry: LiMnO₂ (Lithium-Manganese)

Battery Code/Model: CR 17450 (4/5A Equivalent)

Voltage: 3 V

Nominal Capacity: 2400 mAh (at 10 mA 2.0 V off)

Terminals: Standard button type. If you want the version with blades/ears for soldering wires, you can find it here.

Maximum constant current: 1500 mA

Maximum pulse current: 3000mA

Dimensions: L = 45 mm, Diameter = 17 mm (similar to type 4/5A batteries)

Operating temperature range: -40°C ... +85°C

Rechargeable: No

Weight: 26 grams

Packaging: bulk (without individual packaging), industrial batteries, plastic tray with 6 pcs.

WARNINGS: Do not short-circuit. DO NOT RECHARGE, disassemble or throw into fire, even after use. Hand over used batteries only at authorized collection centers or in the collection bins located in large stores.

The image is for presentation. The price is for a single battery. For the welding of nickel coses/terminals or wires, please request the offer and execution time here.
