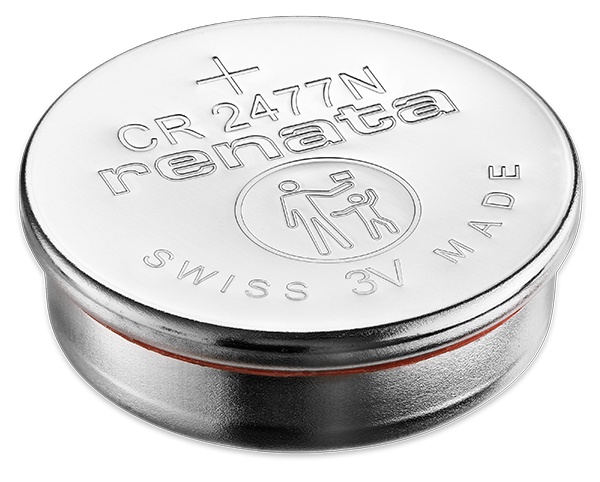

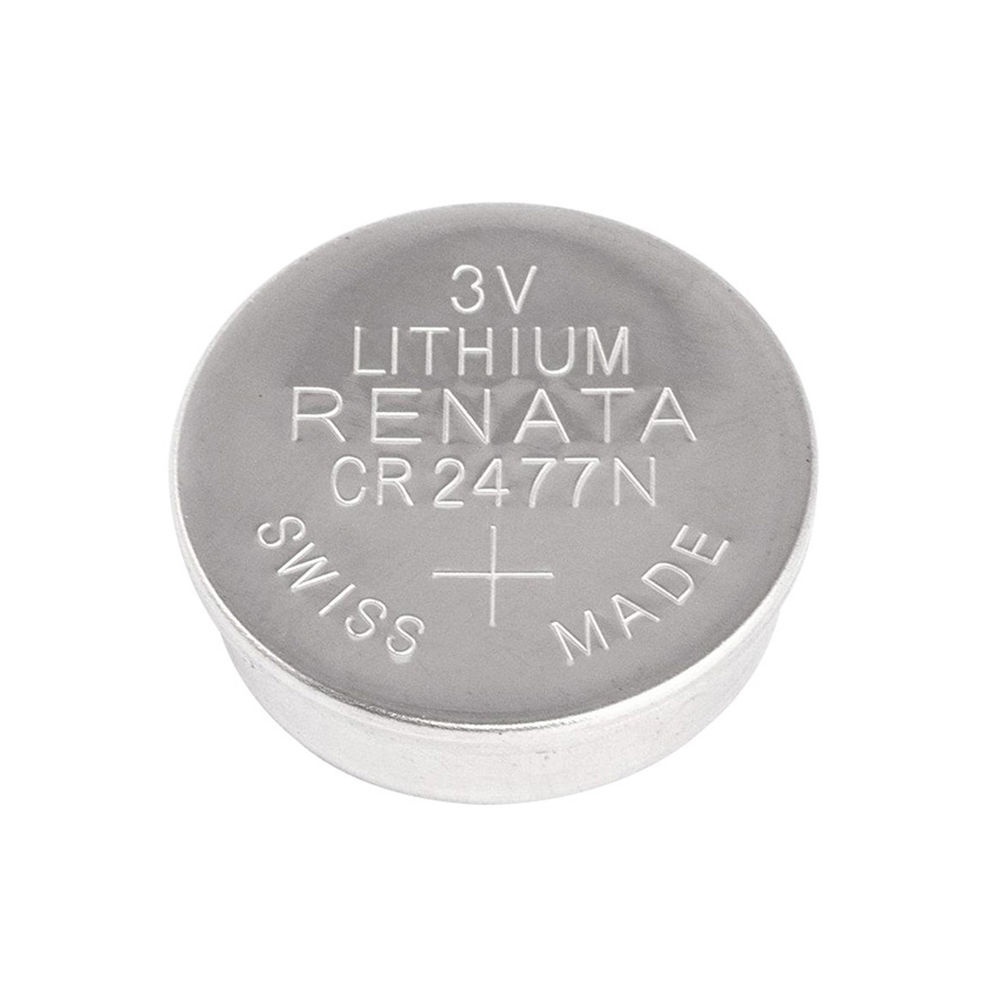

Lithium Battery Renata CR2477N 3V 950mAh

Description

Button cell battery, Lithium, Renata brand - Switzerland, model CR2477N, in individual blister packaging. The battery withstands extreme temperatures, has extremely low self-discharge and is suitable for industrial and outdoor applications with discharge currents of up to 2.5mA (continuous).

TECHNICAL SPECIFICATION:

Brand: Renata® Switzerland (Swatch Group)

Product country of origin: Switzerland

Battery code and equivalent codes: CR2477N / CR2477N B1 / BAT-CR2477N/RE-B

Type: Lithium (LiMnO₂), non-rechargeable

Nominal voltage: 3V

Size: CR2477N, diameter 24.5mm, thickness 7.7mm (of which 2.4 mm is the thickness of the "collar" protruding from the positive pole)

Capacity: 950 mAh

Discharge current: Standard 1mA / Maximum 2.5mA (continuous)

Self-discharge: very low, less than 1% per year at +23°C

Terminals: normal, button type (without pins or welded blades)

For: medical equipment, testers and other electronic equipment, memory battery, lathes and CNC machines, etc.

Working temperature: -40°C...+85°C

Approximate weight: ~8.3 grams

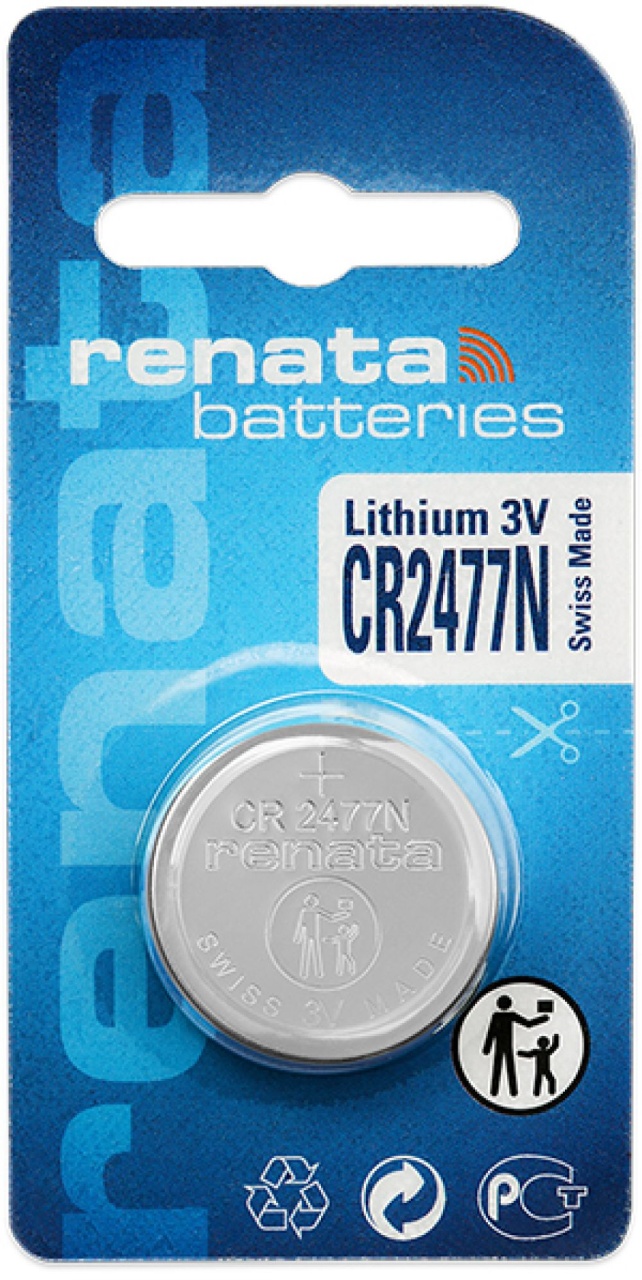

Packaging: Transparent blister

 Do not throw away used batteries. Hand them over to authorized collection centers (such as containers in large stores).
