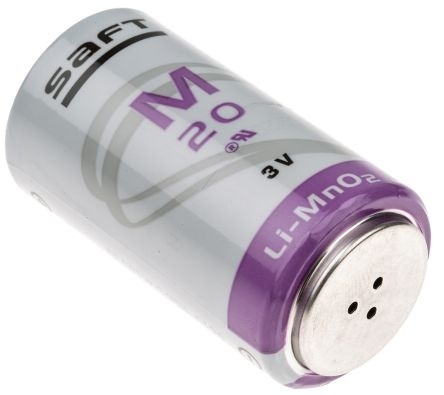

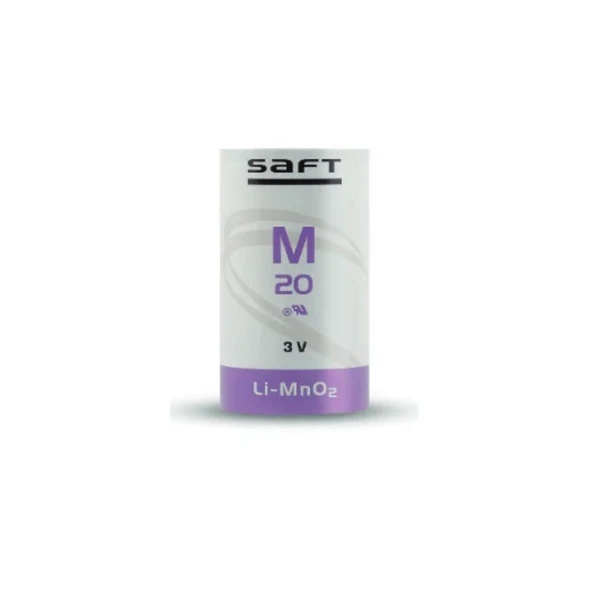

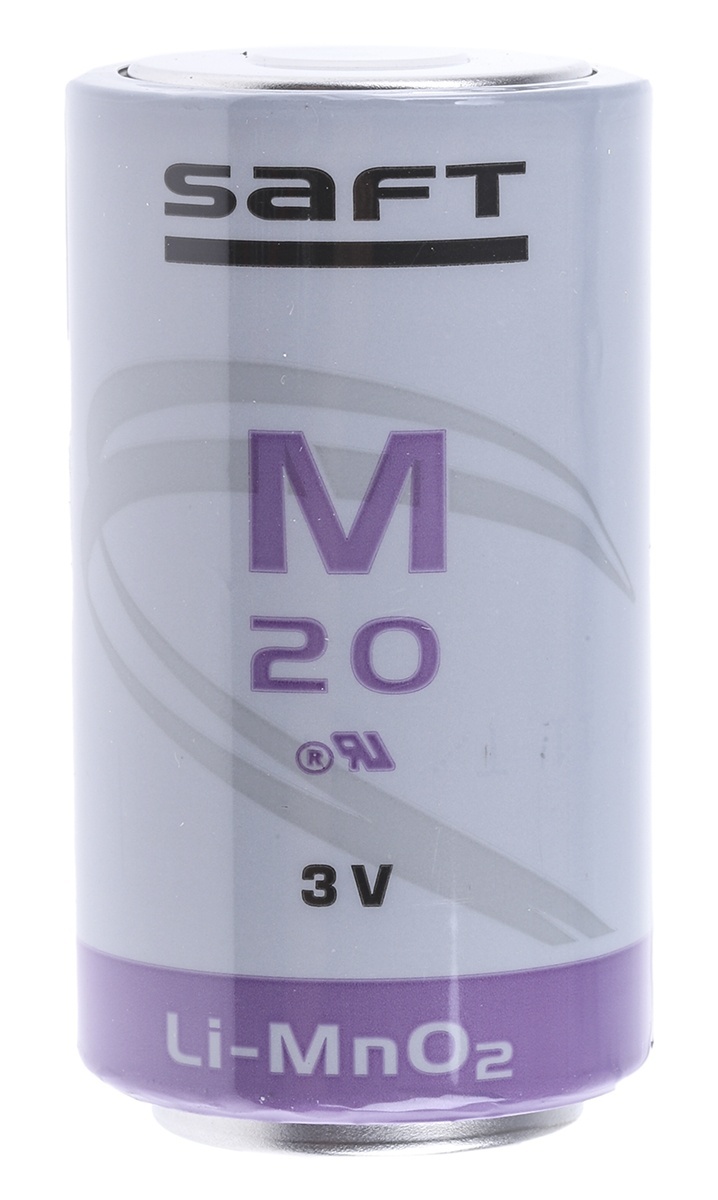

Lithium Battery Saft M20 3V 12600mAh

Description

Lithium battery (lithium-manganese or Li-MnO₂) brand Saft France. In this range there are batteries for high power and high energy without passivation, with high pulse capacity, minimal voltage delay and high current even at very low temperatures. The range also stands out for its very low self-discharge during long-term storage.

It is generally used as a memory battery, especially in the field of gas and energy transportation, having a very wide operating temperature range. It is most often used as a cell in the recloser battery assembly.

If you need higher capacity and better resistance to high temperatures, you can choose the Saft LM33600 variant - find the full specification of this variant here.

PRODUCT SPECIFICATION:

Manufacturer/Country of Origin: Saft - France (member of the Total group)

Product Type: Battery (non-rechargeable)

Chemistry: LiMnO₂

Battery Code: M20

Equivalent Codes: M20HR / M 20 HR / LM33600 (LM33600 is a higher capacity variant, supports higher temperatures, but is recommended for slightly lower pulse currents; also, M20HR has lower capacity, but supports higher currents)

Cell Construction: Spiral

Nominal Voltage: 3V (3.2V in open circuit at +20°C)

Nominal Capacity: 12600 mAh (12.6 Ah)

Nominal Energy: 36 Wh at 0.15A +20°C and 2 V cut-off

Maximum Continuous Current: 3.5 A

Maximum Pulse Discharge Rate: 8 A

Dimensions: Standard battery D / R20, respectively L = 61.5 mm, Diameter = 34.2 mm

Terminals: Low plus terminal (flat)

Operating temperature range: -40°C ... +72°C

Storage temperature: Accepted -55°C ... 90°C / Recommended up to +30°C

Rechargeable: NO

Unit weight: 117 grams

Packaging: Bulk - industrial batteries, without individual packaging, 180 batteries/box. The price is for one battery.

 WARNINGS: Do not short-circuit. DO NOT RECHARGE, disassemble or throw into fire, even after use. Dispose of used batteries only at authorized collection centers or in collection bins located in large stores.
