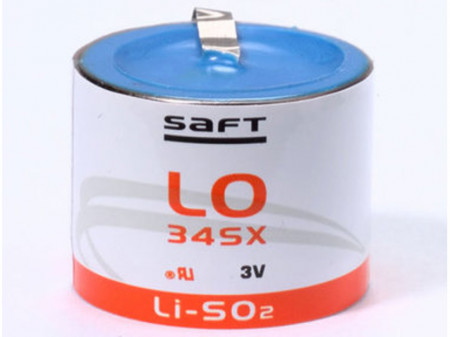

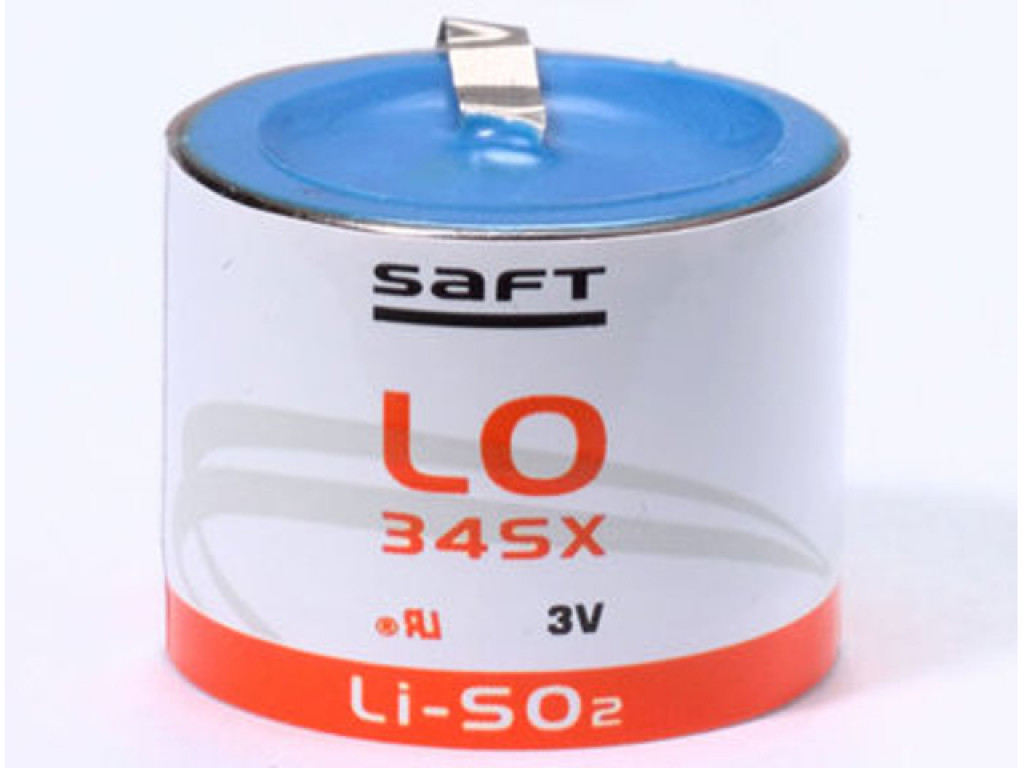

Lithium battery SAFT BA 5567 A/U LO34SX type 1/3C 3V 1Ah

Description

Lithium battery (lithium-sulfur dioxide or Li-SO2), SAFT brand (Group Total), with high discharge capacity and standard size 1/3C or 1/3 R14 spiral cell. It is most commonly used in night vision applications, which require stable voltage, high performance independent of cell orientation, long-term storage (without use, self-discharges less than 5% per year at 21°C) and, especially, operation at extreme temperatures. The main applications are: night vision cameras, radio communications and other military applications, but it is also used in medical equipment. Made in the United States of America.

PRODUCT SPECIFICATION:

Brand: Saft, Group Total

Product made in: U.S.A.

Battery code/equivalent codes: 1 LO 34 SX ; BA 5567 A/U ; 1/3um2 ; 1/3 R14 ; 1/3 C

P/N: 5567/AU

NSN Code: 6135014475082

Product Type: Primary Battery, Non-Rechargeable

Chemistry: Lithium (Li-SO2)

Voltage: 3 V open circuit at +21°C

Nominal voltage: 2.8 V at 0.28mA at +21°C

Nominal capacity: 1000 mAh (1 Ah) at 28mA and +21°C / 600mAh (0.6Ah) at 28mA and -29°C

Maximum recommended continuous current: 0.5 A

Pulse capability: typical up to 0.5 A

Storage temperature: -60°C... +71°C (optimum +21°C)

Operating temperature: -40°C... +71°C (optimum +21°C)

Dimensions: h = 19.02 mm, Diameter = 26.04 mm (similar thickness to C/R14 format batteries, length 1/3 of C/R14 format)

Rechargeable: NO

Packaging: bulk - industrial batteries, without individual packaging

Weight: 20 grams (of which 0.35 grams Lithium content)

Terminals: Standard, button type (without attached blades).

Technical specification available upon request.

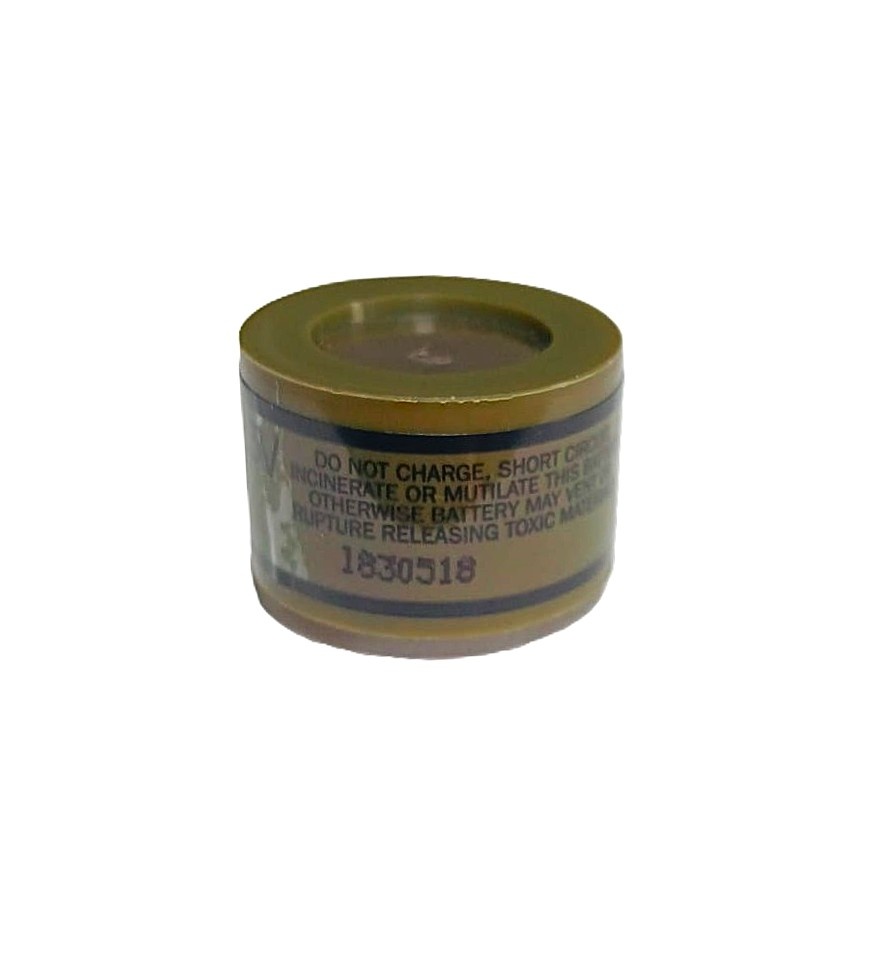

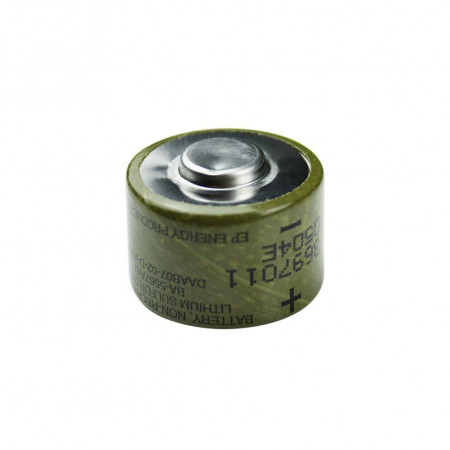

 Exemplary photos. Labeling may vary over time, but the technical specification will be as above.

Do not throw away used batteries. Hand them over to authorized collection centers (such as CCR Rebat containers located in large stores).
