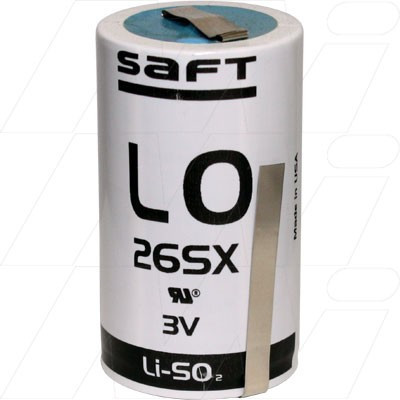

Lithium battery SAFT LO26SX type D 3V 7.75Ah

Description

Lithium battery (lithium-sulphur dioxide or Li-SO2) brand SAFT - FRANCE, with high discharge capacity and spiral cell of standard size D or R20. It is used in applications that require large discharges and stable voltage, high performance regardless of cell orientation, long storage period (without use, it self-discharges less than 3% per year at 20°C), operation at extreme temperatures. The main applications are: radio communications and other military applications, but it is also used in medical equipment (such as in Defibrillator Responder AED 9142). Produced in the United States of America.

TECHNICAL SPECIFICATION:

Brand: Saft (France)

Battery code: LO 26 SX

Product type: non-rechargeable battery

Voltage: 3 V in open circuit at +20°C

Nominal voltage: 2.8 V at 0.5 A at +20°C

Nominal capacity: 7750 mAh (7.75 Ah)

Maximum recommended continuous current: 2.5 A

Pulse capability: typical up to 0.5 A

Storage temperature: -60°C... +85°C (recommended up to max. +30°C)

Operating temperature: -60°C... +70°C

Dimensions: L = 59.3 mm, Diameter = 34.2 mm (similar to D or R20 batteries) ± 0.4 mm

Rechargeable: NO

Packaging: bulk - industrial batteries without individual packaging

Weight: 85 grams (of which 2.4 grams Lithium content)

Terminals: Standard, button type (without attached blades).

Technical specification available upon request.

Note: the product will only be offered to legal entities and information regarding its use will be requested. We reserve the right not to offer or to honor orders for this product if the requested questionnaire is not properly completed or we have any suspicion regarding the correctness of the data received.
Do not throw away used batteries. Hand over to authorized collection centers (such as the CCR Rebat containers found in large stores)
