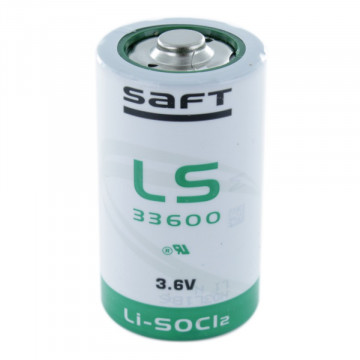

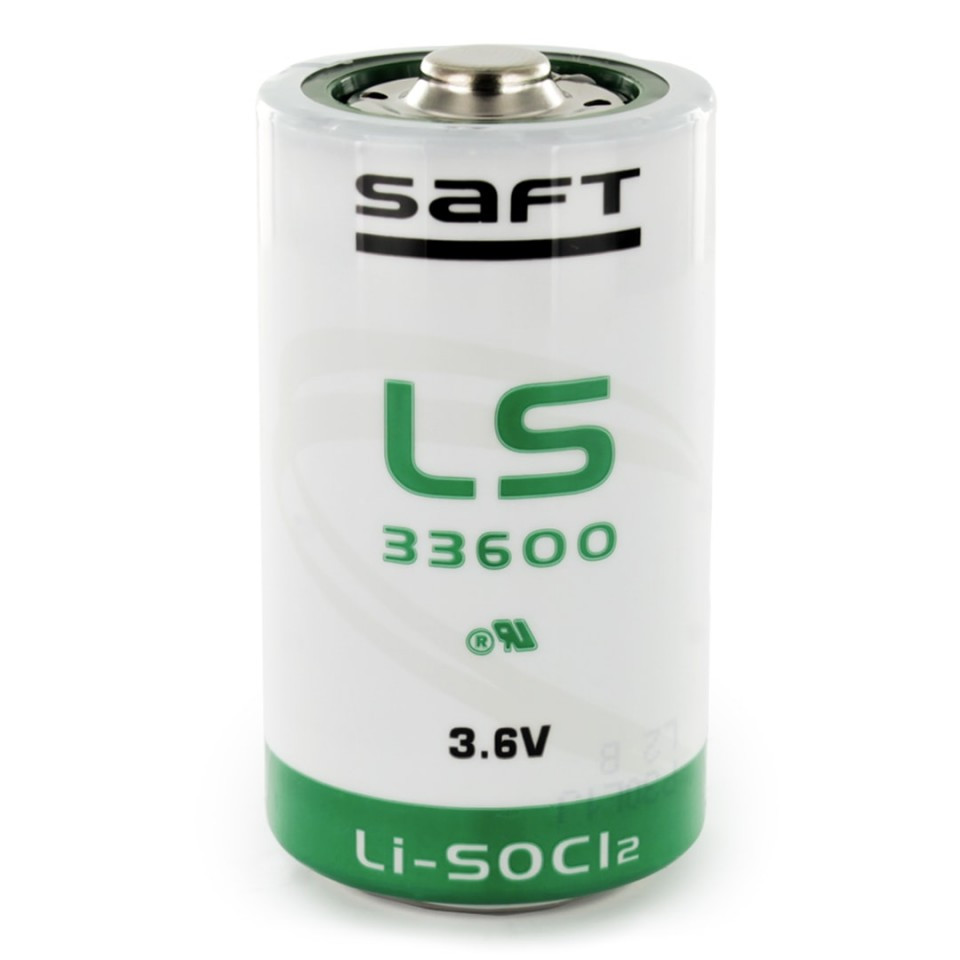

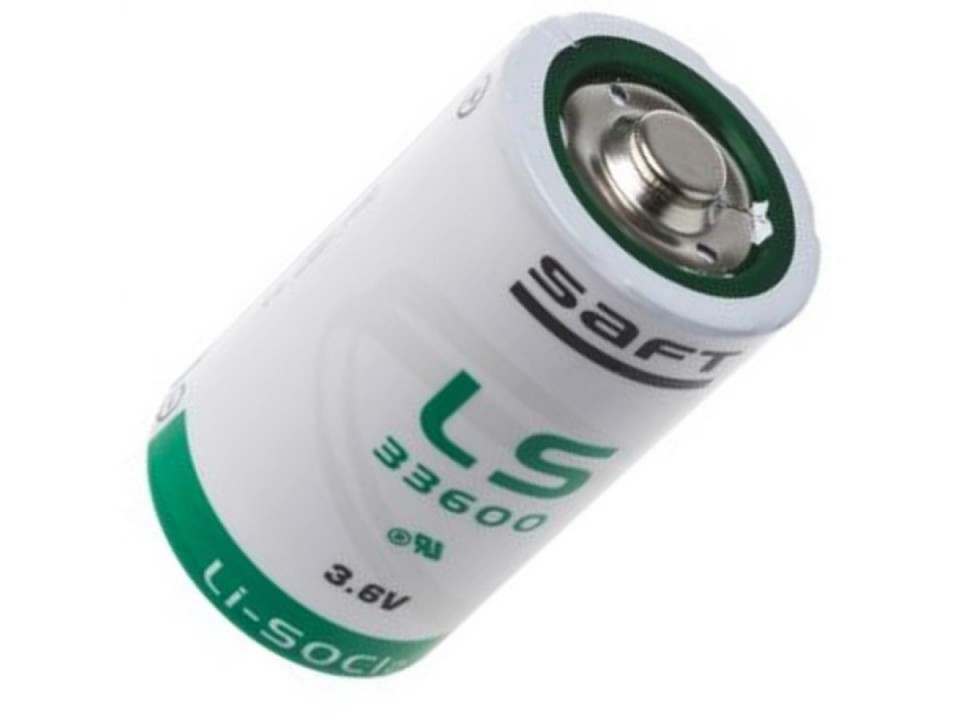

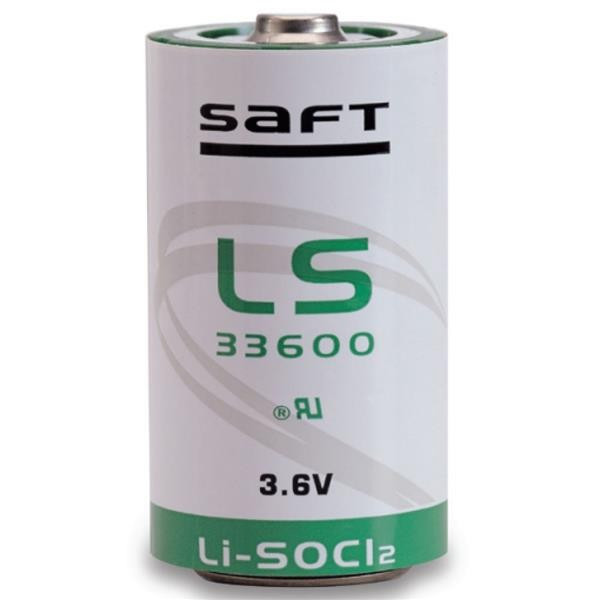

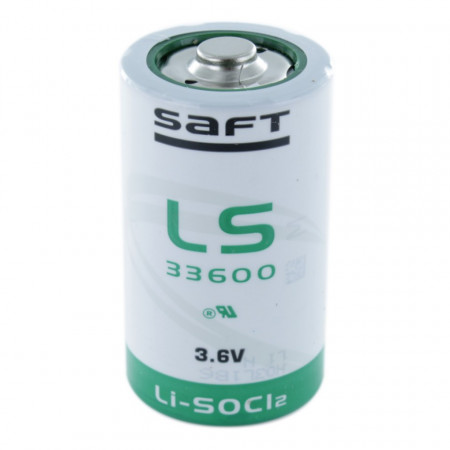

SAFT LS33600 3.6V 17000mAh Lithium Battery

Description

Lithium Batterys (Lithium - thionyl or LiSOCl₂) Saft - FRANCE, typically used in digital meters, providing very high autonomy due to its 17000mAh capacity.

The LS cell product range has been independently assessed and tested in accordance with the relevant parts of IEC 60079-0 and IEC 60079-11 within the IECEx system. This allows them to be considered for applications in hazardous locations and potentially explosive atmospheres. The electrolyte is non-flammable, they have excellent corrosion resistance and the magnetic signature is very low.

LS coil cells are specifically designed for long-term applications (5 to 20+ years), having a few μA base currents and periodic pulses, typically in the range of 5 - 150 mA.

TECHNICAL SPECIFICATION:

Brand and manufacturer: Saft - France (member of the Total group)

Battery type and chemistry: LiSOCl₂ - non-rechargeable high capacity battery with very long service life

Battery code: LS33600

Cell construction: Coil

Nominal voltage: 3.6 V

Nominal capacity: 17000 mAh (17 Ah)

Maximum continuous current: 250 mA

Maximum pulse discharge rate: 0.4 A

Operating temperatures: -60 ... +85°C

Dimensions: Standard size D / R20, L = 61.6 mm, Diameter = 33.4 mm

Unit weight: 90 g

Packaging: bulk - industrial batteries without individual packaging

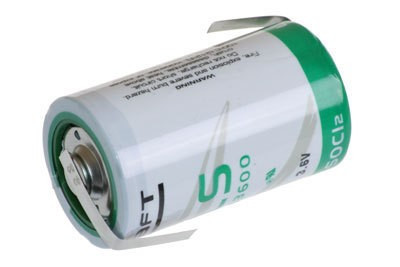

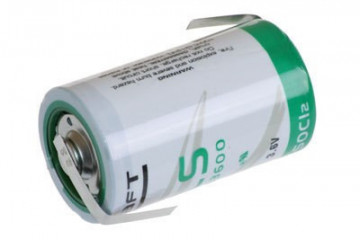

At the customer's request, we can weld nickel strips with a welding machine in various spots, install wires or plugs (quality work, perfect contacts). Request a quote and execution time for such work here.
