Battery LS33600 (Saft) 3.6V 17Ah for Corus Gas Corrector

Description

Assembly of lithium battery (lithium-thionyl or LiSOCl₂) model LS33600 brand Saft - France, used in CORUS gas correctors. The assembly is carried out by us in Brasov, with cells from our own import (Registration number in the Register of Battery Manufacturers RO-2009-09-B&A-0073).

LS coil cells are specifically designed for long-term applications (5 to 20+ years), having a few μA base currents and periodic pulses, typically in the range of 5 - 150 mA.

TECHNICAL SPECIFICATION:

Battery brand and manufacturer (cell): Saft - France

Assembled in: Romania, by Sprinter2000.

Battery type and chemistry: LiSOCl₂ - high capacity non-rechargeable battery, with very long service life

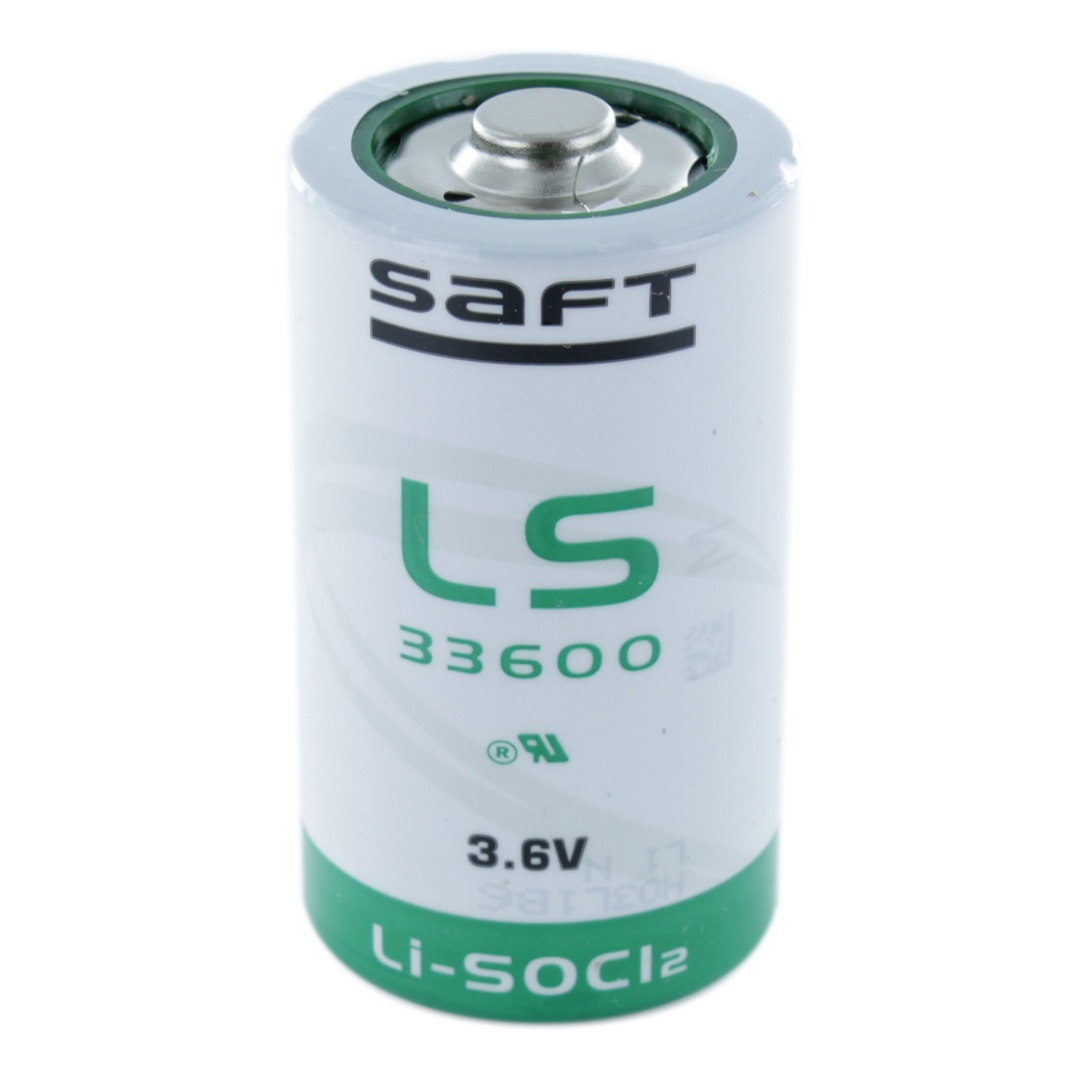

Battery cell code: LS33600 (equivalent code ER34615)

Equivalent product codes: LS33600B-ACT / A111472

Cell construction: Coil

Nominal voltage: 3.6 V (3.67V open circuit voltage)

Nominal capacity: 17000 mAh (17 Ah) / 61.2 Wh

Maximum recommended continuous current: 250 mA

Maximum pulse discharge rate: 0.4 A

Operating temperatures: -60°C ... +85°C

Recommended storage temperature: +30°C

Battery dimensions: Standard size D / R20, L = 61.5 mm, Diameter = 33.3 mm (dimensions refer strictly to the battery, without connectors and additional foil)

Connectors: LIY 1x0.25 wires and AMP MODU 280 358-0 connector (for connection to CORUS)

Protection: With a 3.9Ω 5W resistor

Battery unit weight: ~90 g

Packaging: bulk - industrial batteries without individual packaging

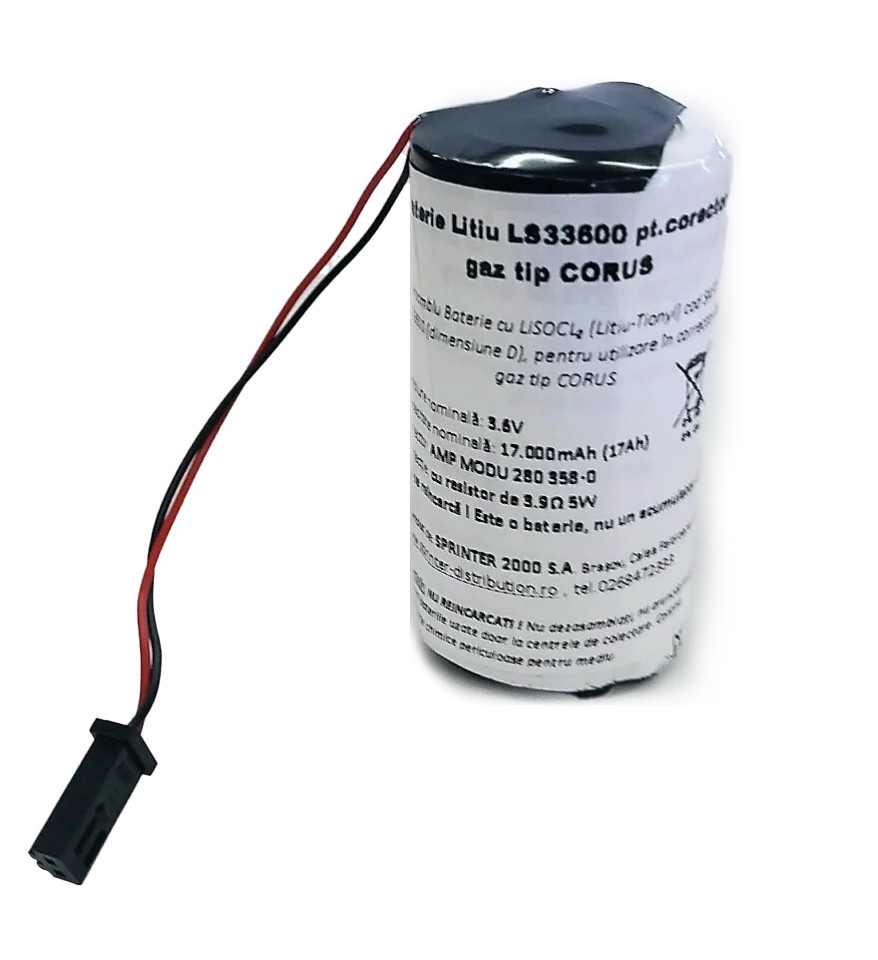

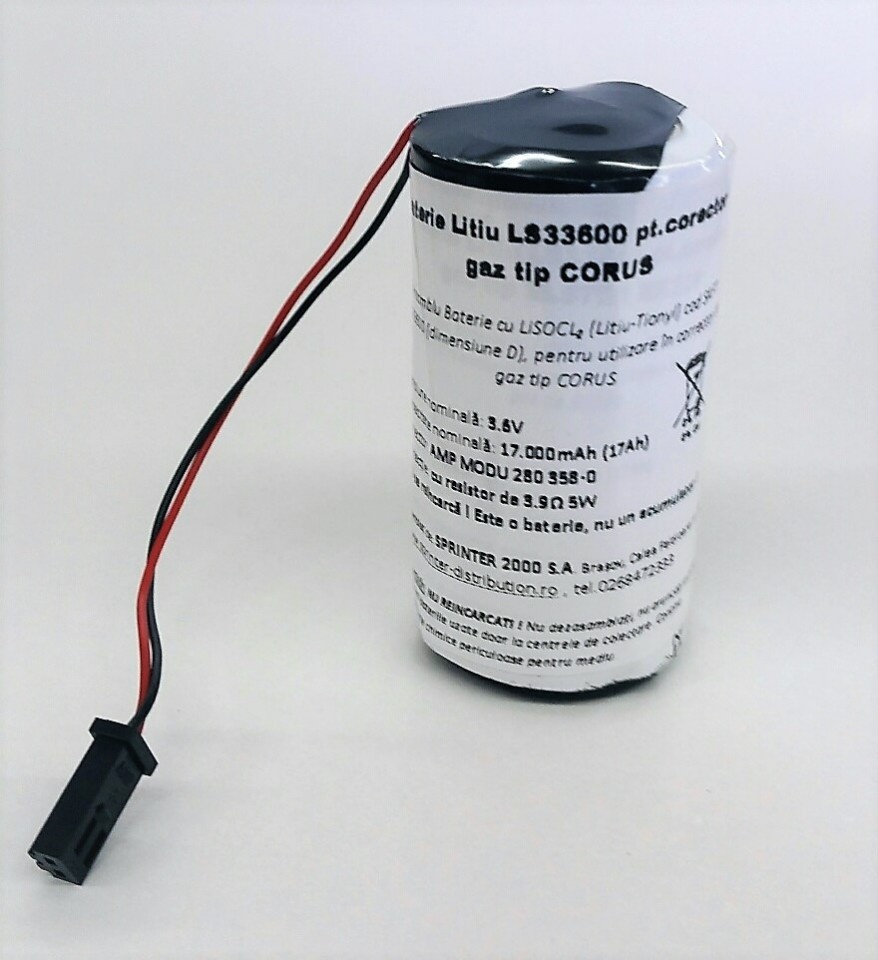

 Exemplary photos for format, cables and plugs. Colors and labeling may vary depending on batch and cell model, but respecting all technical specifications above.

 Do not throw away used batteries. Hand them over to authorized collection centers (such as the RLG Rebat containers found in large stores).
