Lithium battery LS33600 for gas corrector EK220

Description

Assembly of lithium battery (lithium-thionyl or LiSOCl₂) brand SAFT - FRANCE, used in ELSTER EK220 gas correctors. The assembly is carried out by us in Brasov, with SAFT cells from our own import (Registration number in the Register of Battery Manufacturers RO-2009-09-B&A-0073).

The range of products with LS cells has been independently assessed and tested in accordance with the relevant parts of IEC 60079-0 and IEC 60079-11 in the IECEx system. This allows them to be considered for applications in hazardous locations and potentially explosive atmospheres. The electrolyte is non-flammable, they have excellent corrosion resistance and the magnetic signature is very low.

LS coil cells are specifically designed for long-term applications (5 to 20+ years), having a few μA base currents and periodic pulses, typically in the range of 5 - 150 mA.

TECHNICAL SPECIFICATION:

Brand and manufacturer: Saft - France (member of the Total group)

Battery type and chemistry: LiSOCl₂ - non-rechargeable high-capacity battery with very long service life

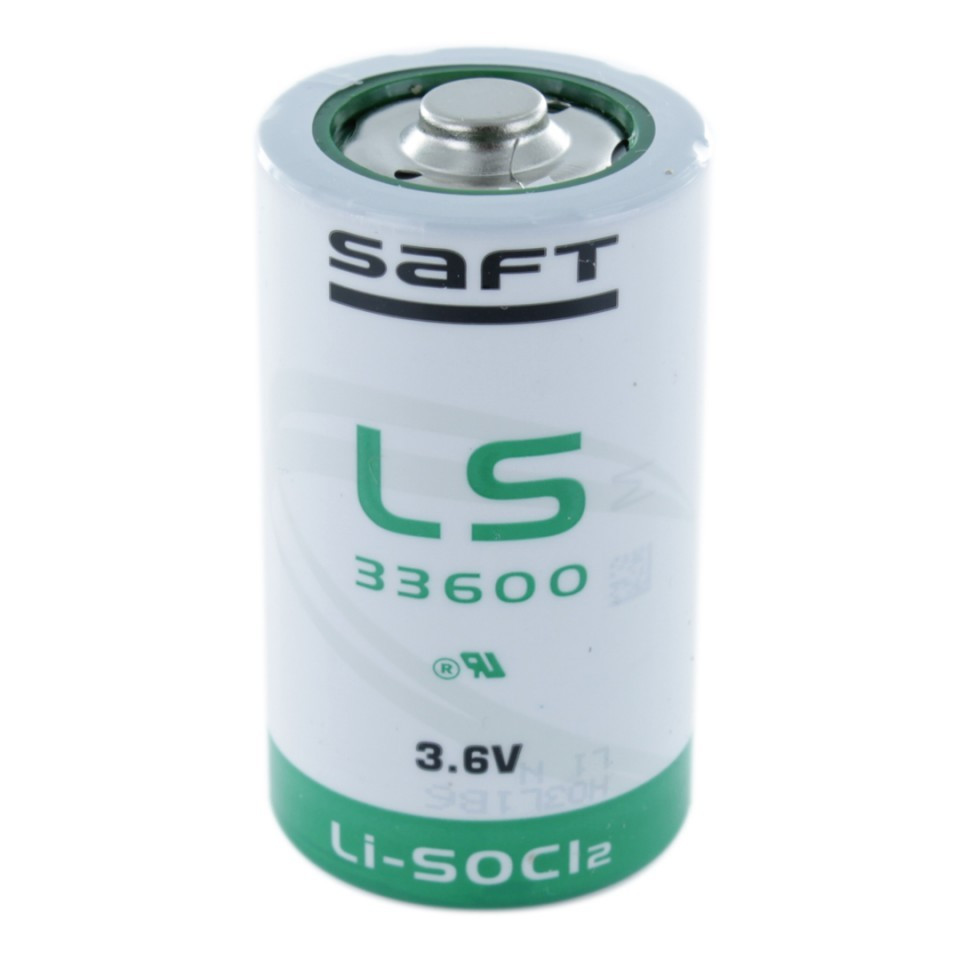

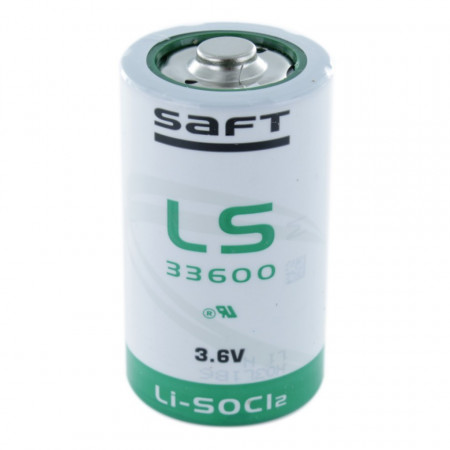

Battery code: LS33600

Cell construction: Coil

Nominal voltage: 3.6 V

Nominal capacity: 17000 mAh (17 Ah)

Maximum continuous current: 250 mA

Maximum pulse discharge rate: 0.4 A

Operating temperatures: -60 ... +85°C

Battery dimensions: Standard size D / R20, L = 61.6 mm, Diameter = 33.4 mm (dimensions refer strictly to the battery, without connectors and additional foil)

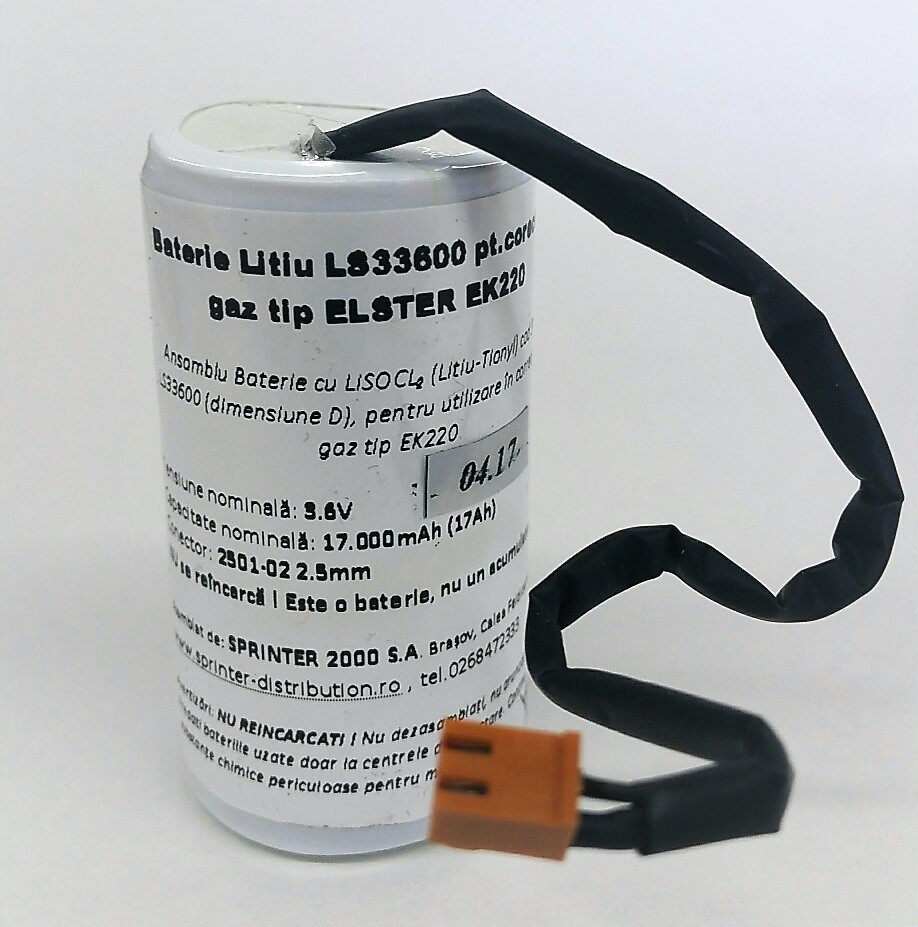

Connectors: LIY 1x0.14 wires and 2501-02 2.5mm connector (for connection to Elster EK220)

Unit weight: 90 g

Packaging: bulk - industrial batteries without individual packaging

At the customer's request, we can weld nickel strips with a welding machine in various spots, install wires or plugs (quality work, perfect contacts). Request a quote and execution time for such work here.

 Do not throw away used batteries. Hand over to authorized collection centers (such as the CCR Rebat containers found in large stores)
