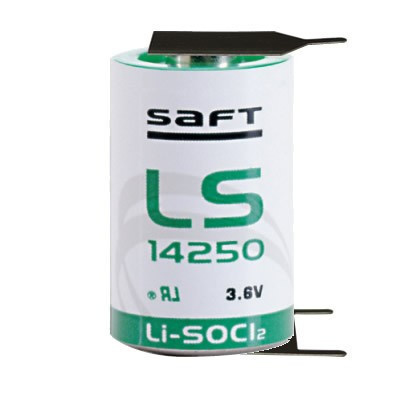

Lithium battery SAFT LS14250 3PF RP terminals

Description

Lithium battery (lithium-thionyl or LiSOCl₂) brand SAFT - FRANCE, usually used as a memory battery in CNC lathes, digital counters, temperature recorders, etc., where it offers very high autonomy due to the 1200mAh capacity . Delivered with 3PF RP nickel cose type terminals (1 pin + 2 pins).

TECHNICAL SPECIFICATION:

Battery brand and manufacturer: Saft - France. The pins are welded on a spot welding machine in Romania by Sprinter2000.

Battery code: LS14250 format 1/2 AA 3PF RP finish

Cell construction: Coil

Nominal voltage: 3.6 V (0.1 mA at +20°C)

Open circuit voltage: 3.67V at +20°C

Nominal capacity: 1200 mAh (1.2 Ah) @ 1mA +20°C 2.0V cut-off

Maximum recommended continuous current: 35 mA

Maximum pulse current: 100mA / 0.1 seconds, one pulse every 2 minutes at +20°C

Max. pulse discharge rate: 0.1 A

Operating temperatures: -60 ... +85°C

Maximum storage temperature: +30°C

Dimensions: Standard size 1/2 AA or 1/2 R6, Length = 25.15 mm, Diameter = 14.55 mm

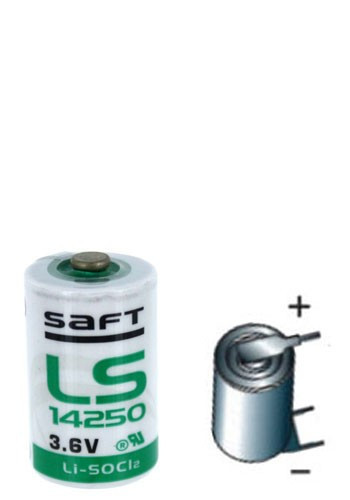

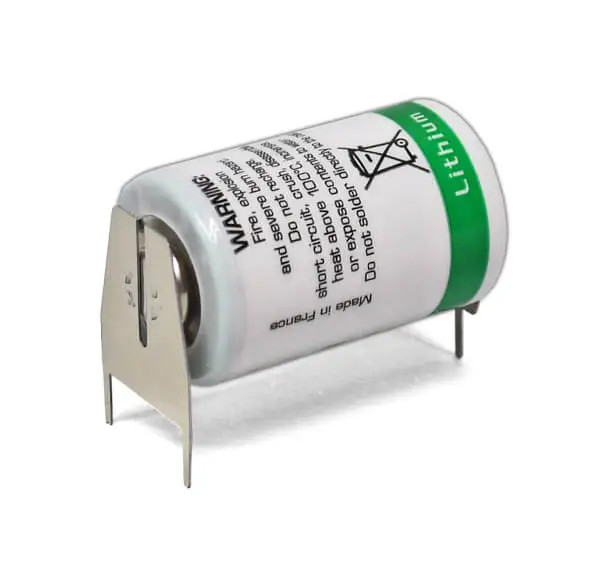

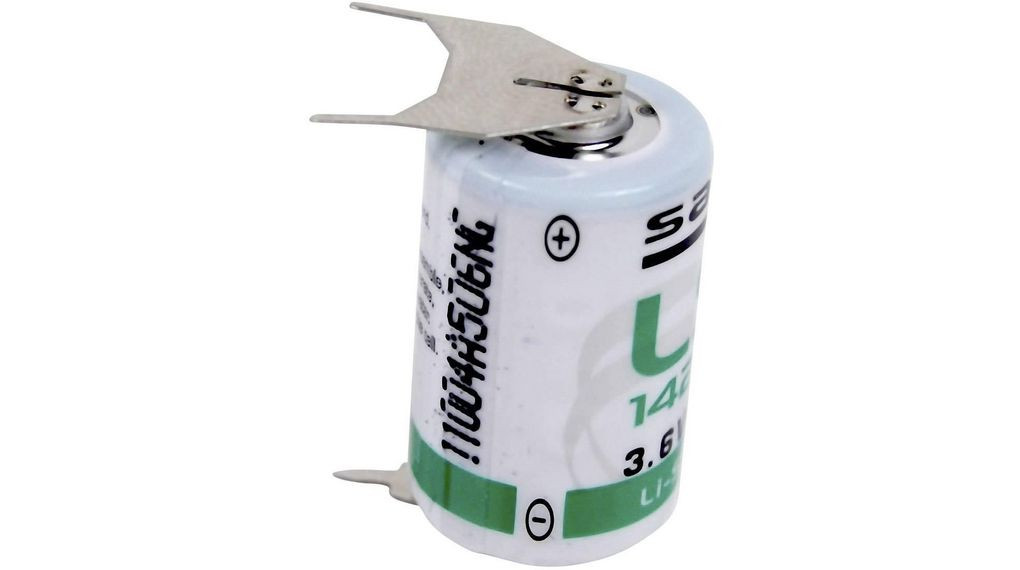

Terminals: code 3PF RP = one plus pin and two minus pins, for fixing on the electronic board.

Available variants: attention - this product can be ordered in several terminal variants (price and availability may differ). The displayed price is automatically updated depending on the selected variant:

• Variant 1a: 1 pin  / 2 pins . The 2-pin strip has a pin spacing of 6.2mm (±0.5mm). Overall dimensions of the strip: 17.5x8.2x0.2 mm (lengthxwidthxthickness)
• Variant 1b: 2 pins  / 1 pin . The 2-pin strip has a pin spacing of 6.2mm (±0.5mm). Overall dimensions of the strip: 17.5x8.2x0.2 mm (lengthxwidthxthickness)
• Variant 2a: 1 pin  / 2 pins . The 2-pin strip has a pin spacing of 9mm (±0.5mm). Overall dimensions of the strip: 15x11x0.2 mm (lengthxwidthxthickness)
• Variant 2b: 2 pins  / 1 pin . The 2-pin blade has a pin spacing of 9 mm (±0.5mm). Overall blade dimensions: 15x11x0.2 mm (lengthxwidthxthickness)

Unit weight: 8.9 g

Packaging: bulk - industrial batteries without individual packaging

Note: For quantities greater than 200pcs, delivery time increases due to the labor of welding the terminals on spot welding machines.

Do not throw away used batteries. Hand over to authorized collection centers (such as the CCR Rebat containers found in large stores)
