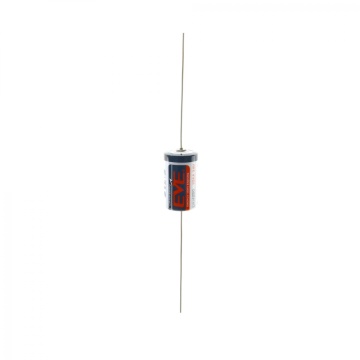

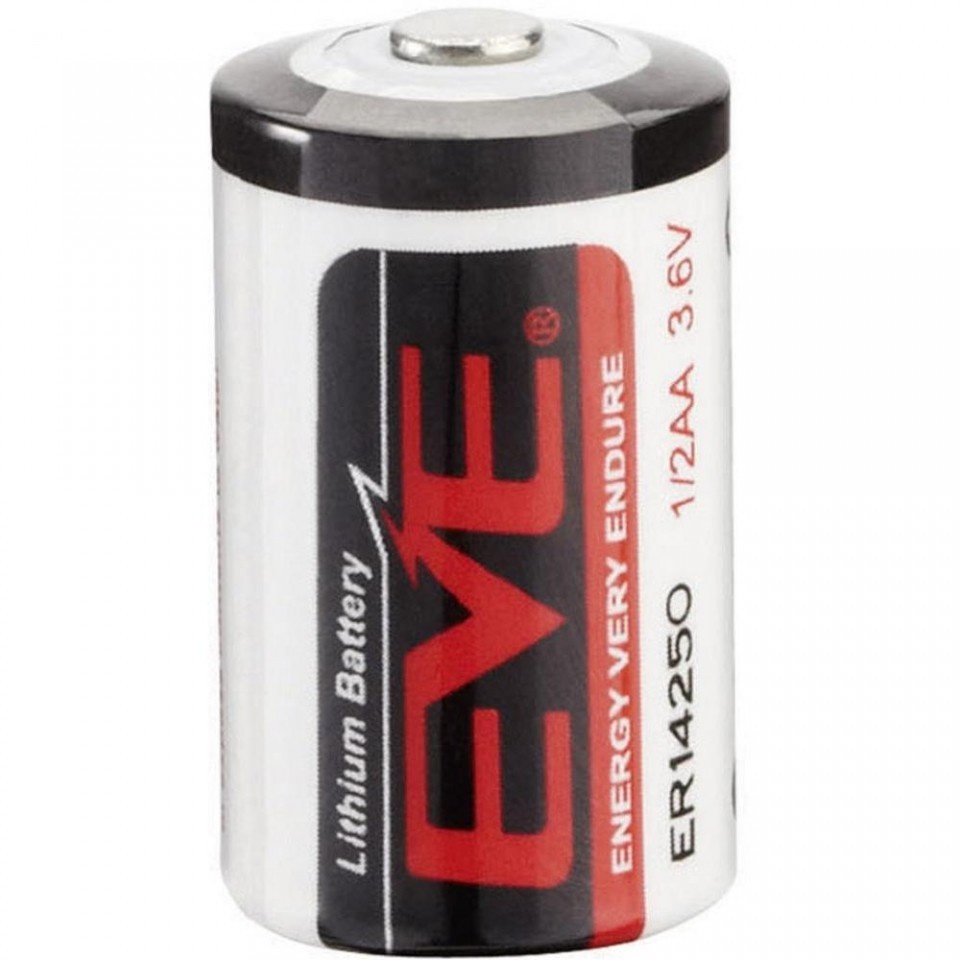

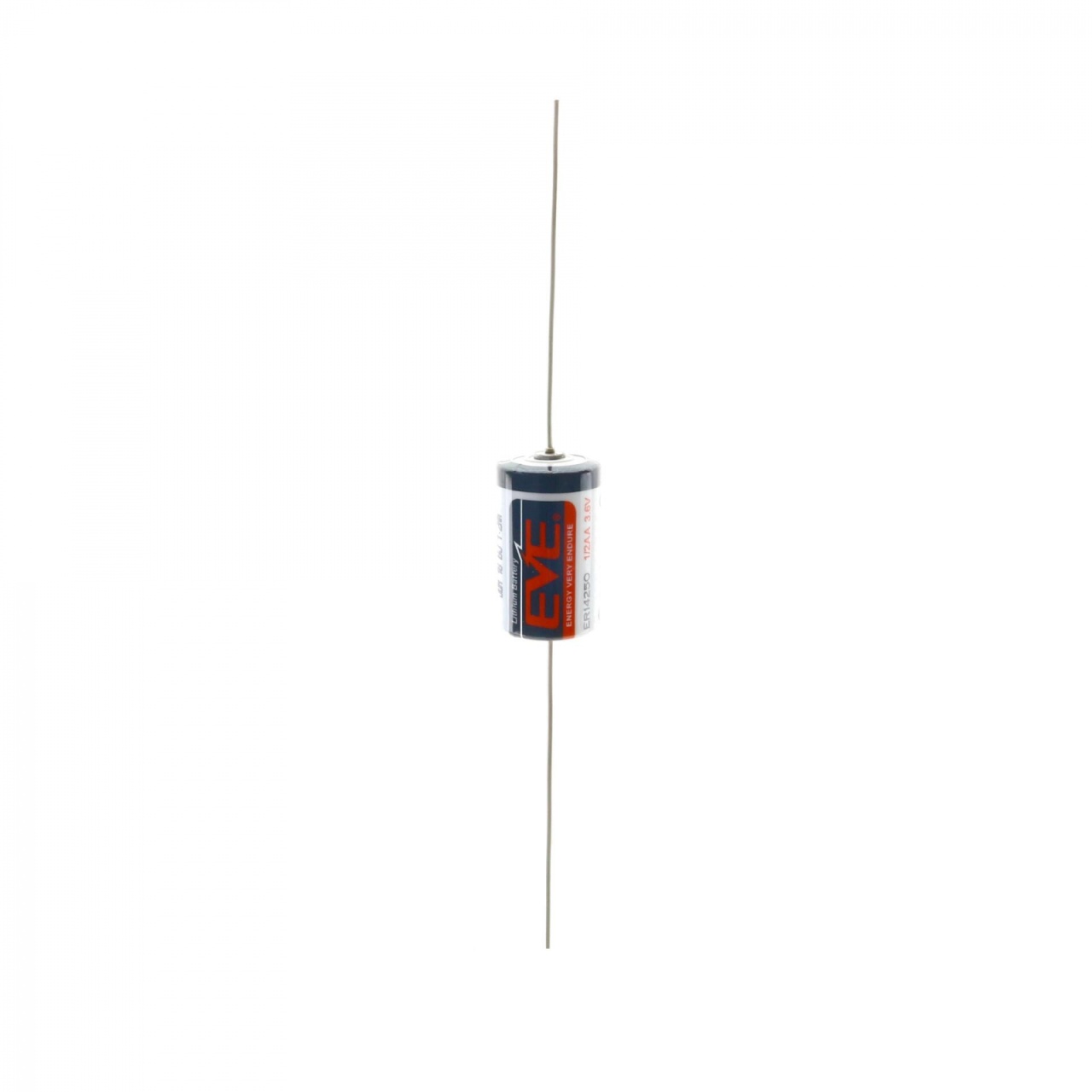

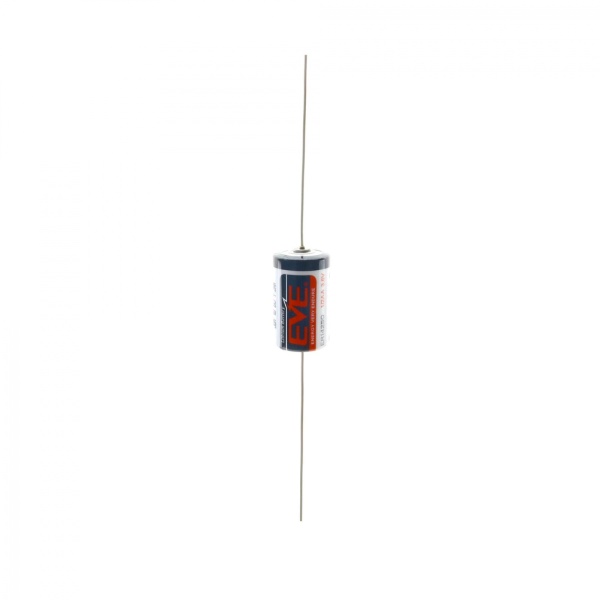

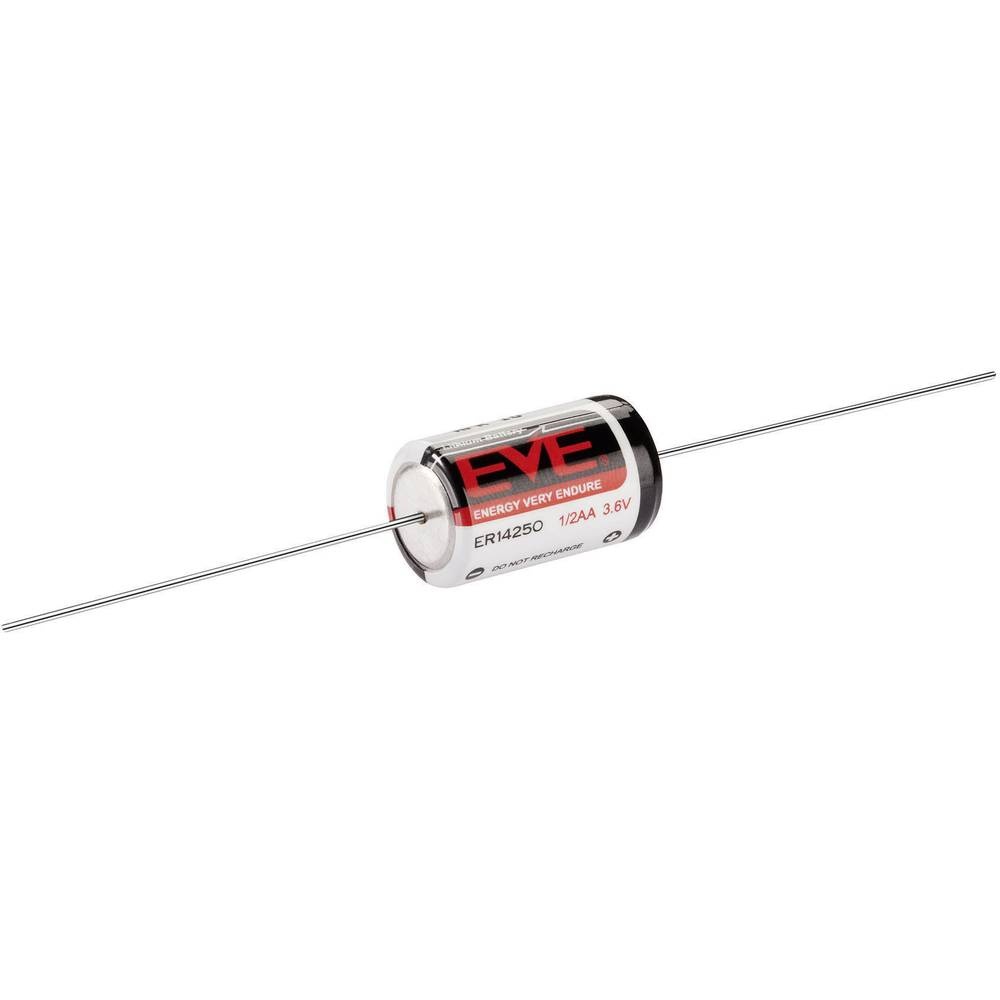

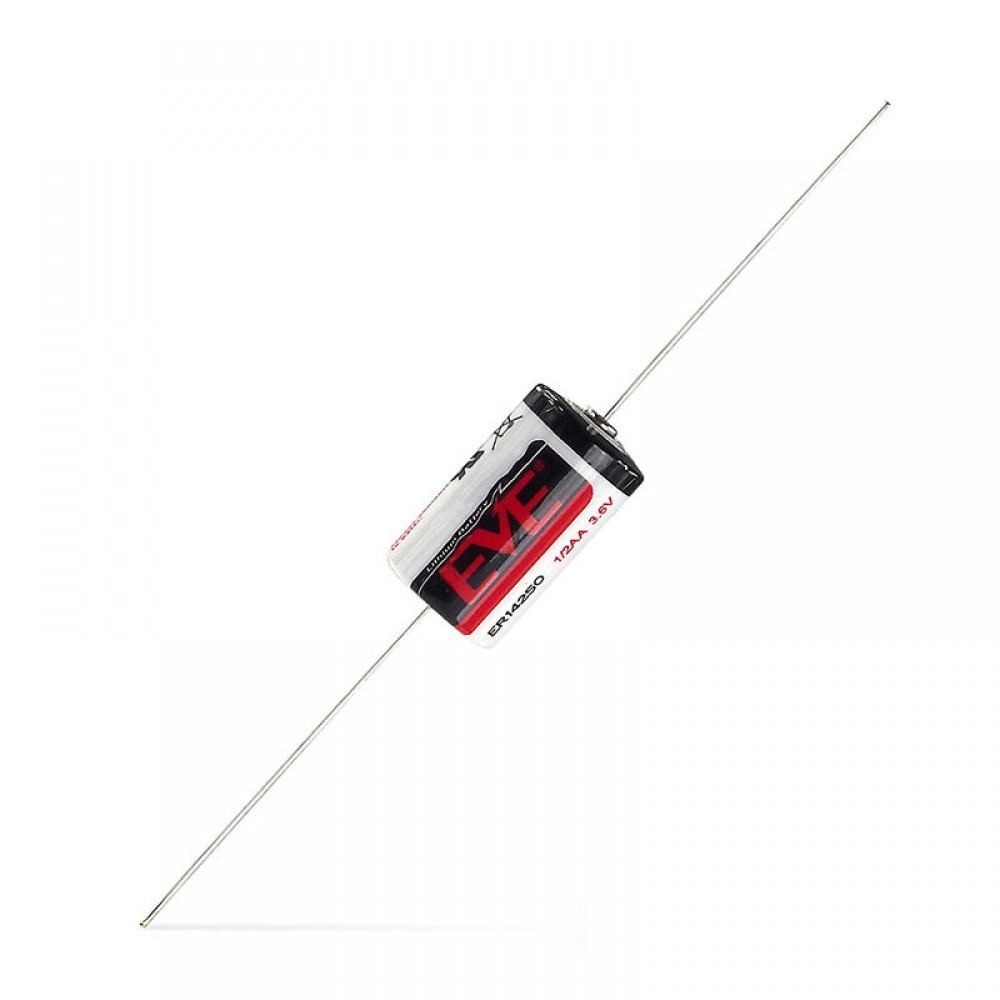

Eve ER14250CNA (LS14250) 3.6V Lithium Battery with Axial Pins

Description

Lithium battery (lithium-thionyl or LiSOCl₂) from Eve Energy, usually used in digital meters, where it offers very high autonomy due to its 1200mAh capacity, in the Datalogger ADL5-USB-TC temperature recorder and in other devices.

TECHNICAL SPECIFICATION:

Battery code: ER14250CNA (equivalent to Saft France LS14250CNA)

Voltage: 3.6V

Connectors: With 2 axial pins

Nominal capacity: 1200 mAh

Maximum recommended continuous discharge current: 15 mA

Maximum recommended storage temperature: 30°C

Operating temperature: -60°C ... +85°C

Dimensions: L=25.4 mm, Diameter = 14.5 mm (similar to 1/2AA or 1/2R6 batteries)

Rechargeable: NO

Weight: 10 grams

Packaging: industrial batteries, bulk (without individual packaging), usually packed in plastic trays

 Technical specification in pdf format can be found below, under "Specifications and downloadable materials".

 Do not throw away used batteries. Hand them over to authorized collection centers (such as CCR Rebat containers located in large stores).
