Lithium Battery with PTZ plug SAFT LS14500

Description

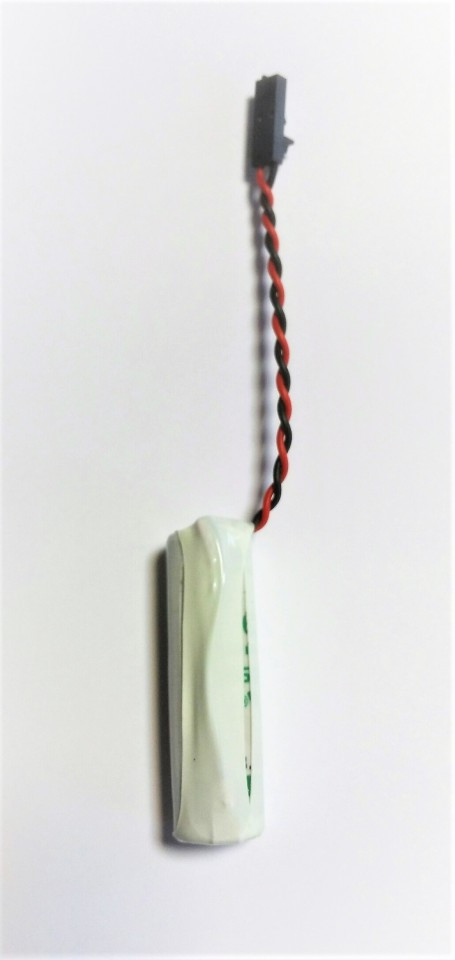

Lithium battery (lithium-thionyl or LiSOCl₂) brand SAFT - FRANCE, usually used in numerical control machines and other equipment, where it offers very high autonomy due to its 2600mAh capacity. It is delivered with PTZ plug terminals for mounting on the machine motherboards.

Assembly made to order by Sprinter2000 in Brasov/Romania - spot-welded nickel blades. The execution and delivery time is 1-2 working days from the time of order (but for large quantities the time increases accordingly).

TECHNICAL SPECIFICATION:

Assembled at: Sprinter2000, Brasov, Romania

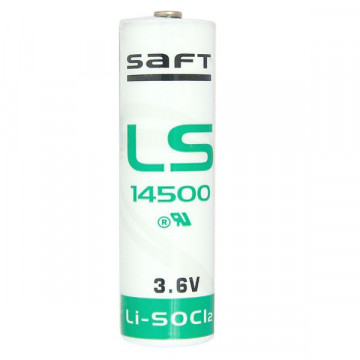

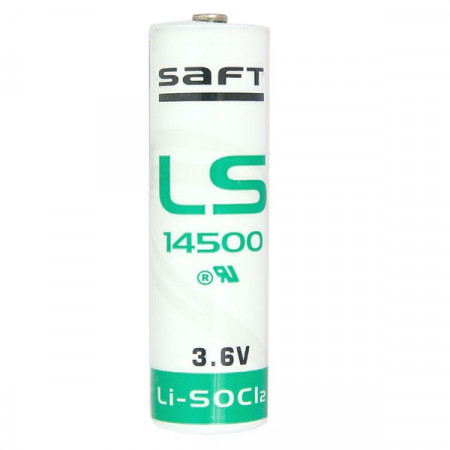

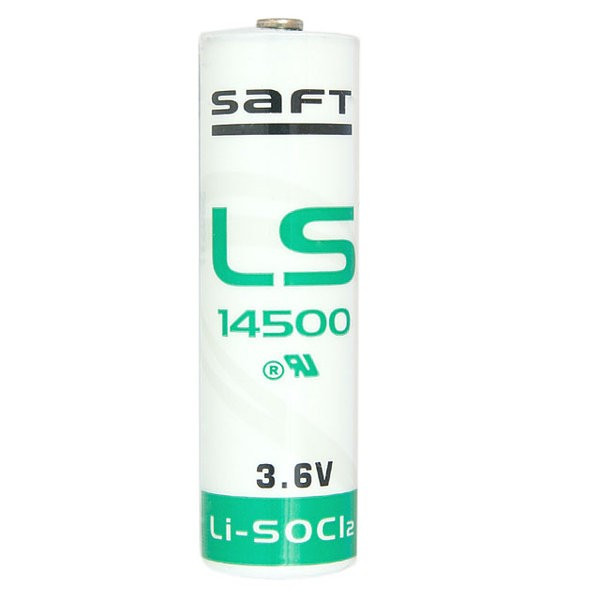

Cell: Saft Battery (France) type LS14500

Battery technology: LiSOCl₂ - lithium thionyl, non-rechargeable battery for very long use in low current applications

Battery code: LS14500 PTZ

Voltage: 3.6V

Nominal capacity: 2600mAh

Dimensions: L=50mm, Diameter = 14.5mm (similar to AA or R6 batteries)

Rechargeable: NO

Connector/plug code: 2023-02 or PHR-2

Use: Uniflo 1000 TCE gas meter (Delgaz type), etc. In case the plug does not fit, it can be replaced by the user with the plug from the old battery, if it had exactly the same specification.

Packaging: bulk - industrial batteries, without individual packaging

Technical specification available upon request.

 Do not throw away used batteries. Hand over to authorized collection centers (such as the CCR Rebat containers found in large stores)
