Battery LS33600 for Corus gas corrector

Description

Assembly of lithium battery (lithium-thionyl or LiSOCl₂) brand Saft- France, used in CORUS gas correctors. The assembly is carried out by us in Brasov, with Saft cells from our own import (Registration number in the Register of Battery Manufacturers RO-2009-09-B&A-0073).

The LS cell product range has been independently assessed and tested in accordance with the relevant parts of IEC 60079-0 and IEC 60079-11 in the IECEx system. This allows them to be considered for applications in hazardous locations and potentially explosive atmospheres. The electrolyte is non-flammable, they have excellent corrosion resistance and the magnetic signature is very low.

LS coil cells are specially designed for long-term applications (5 to 20+ years), with a few μA base currents and periodic pulses, usually in the range of 5 - 150 mA.

TECHNICAL SPECIFICATION:

Battery brand and manufacturer: Saft - France (member of the Total group)

Assembled in: Romania, by Sprinter2000, with Saft France cell.

Battery type and chemistry: LiSOCl₂ - high capacity, long life, non-rechargeable battery

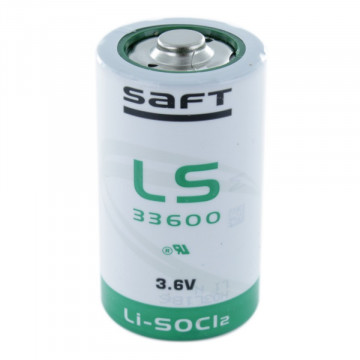

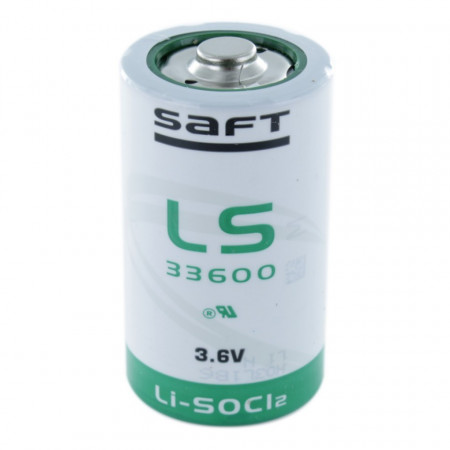

Battery cell code: LS33600

Equivalent product codes: LS33600B-ACT / A111472

Cell construction: Coil

Nominal voltage: 3.6 V

Nominal capacity: 17000 mAh (17 Ah)

Maximum continuous current: 250 mA

Maximum pulse discharge rate: 0.4 A

Operating temperatures: -60 ... +85°C

Battery dimensions: Standard size D / R20, L = 61.6 mm, Diameter = 33.4 mm (dimensions refer strictly to the battery, without connectors and additional foil)

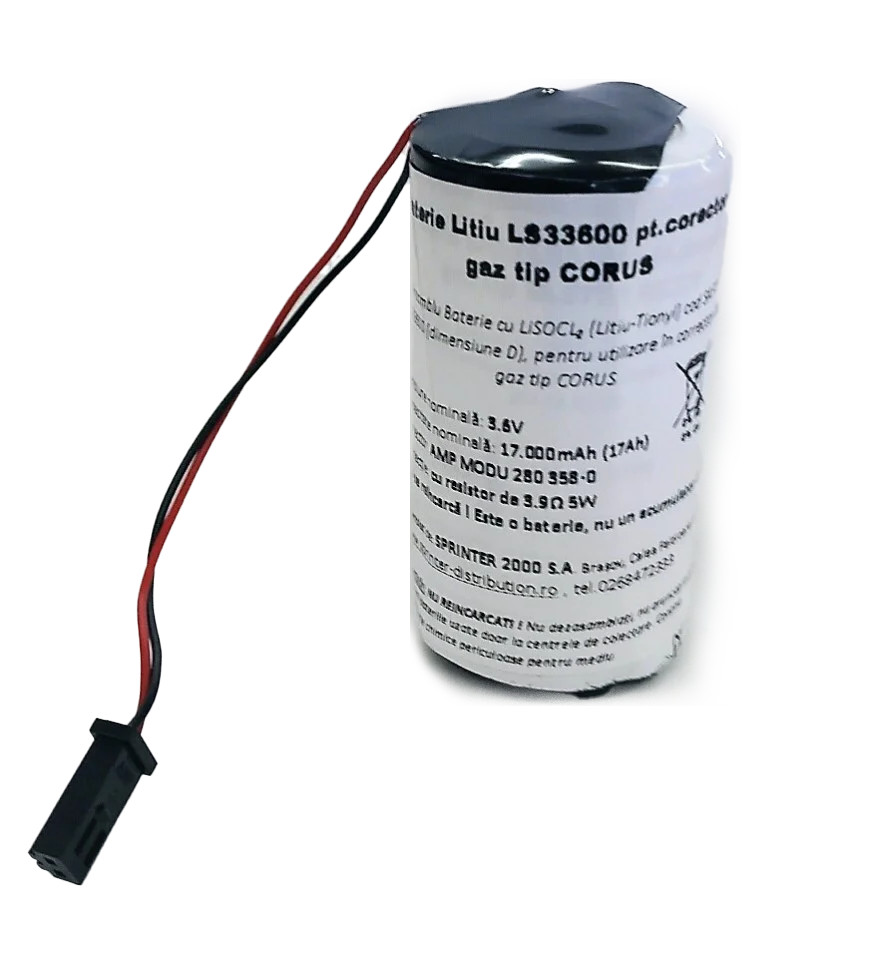

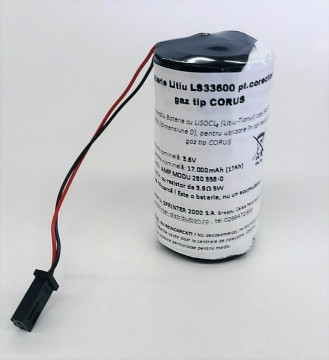

Connectors: LIY 1x0.25 wires and AMP MODU 280 358-0 connector (for connection to CORUS)

Protection: With a 3.9Ω 5W resistor

Battery unit weight: 90 g

Packaging: bulk - industrial batteries without individual packaging

 Do not throw away used batteries. Hand over to authorized collection centers (such as the CCR Rebat containers found in large stores)
