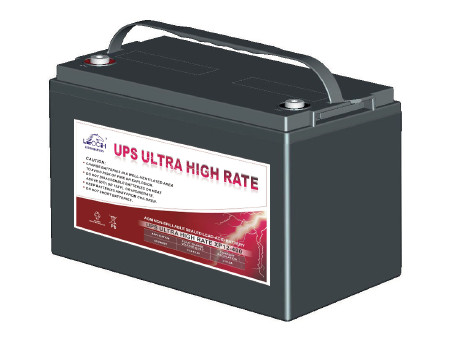

VRLA battery Leoch XP12-400 of 12V 400W 101.6Ah

Description

Lead-acid battery (lead-acid or VRLA) Leoch, 12 V 101.6 Ah Ultra High Rate - mainly used in UPS, medical and laboratory equipment, building alarms, surveillance systems, telecommunications and data centers and in other applications where you need energy backup in a compact format.

The XP Series - Ultra High Rate range from Leoch lends itself much better to applications with high discharge currents for relatively short periods of time, such as in high-power UPS sources, having a specially designed grid optimized for high currents. Classified "Long Life" according to Eurobat norms, CE and UL certified and complies with IEC 60896 standards.

Brand: Leoch®

Range: UHR - Ultra high rate, for applications with high discharge currents for short periods of time

Manufacturer coding: XP12-400 / equivalent to Foton® FH12-100

Case material: ABS

Technology: AGM VRLA HR (ultra high rate)

Voltage: 12 V

Nominal power: 422 W/cell W₁₅ up to 1.67 V/cell

Nominal capacity: 101.6 Ah. C₂₀ up to 1.8 V/cell

Maximum discharge current: 1655 A (very short term - a few seconds)

Maximum charging current: 30 A at 25°C

Charging: 13.5 V (float), voltage correction with temperature -3 mV/cell/°C, equalization 14.1-14.4 V

Internal resistance: approx. 3.6 mΩ

Operating temperature: Discharge -15°C...+50°C / Charging 0°C...+40°C / Storage -15°C...+40°C

Ideal/nominal temperature for use: +25°C ± 3°C

Influence of temperature on capacity: 103% of capacity at +40°C / 100% of capacity at +25°C / 86% of capacity at 0°C

Self-discharge at 25°C: ≤ 3 %/month at 25°C

Eurobat classification / Projected average life span: Long Life / 10 years

Terminals: M6 (metric screw 6)

Standards and certifications: CE / UL / IATF16949 / OHSAS 18001 / ISO 9001 / ISO 14001

Dimensions: 325 x 170 x 213 mm (L x W x H) ± 2 mm tolerance. The height with terminals is 216 mm.

Weight: 31.6 kg

Do not throw in the trash after use - hand it over only to authorized collection centers
