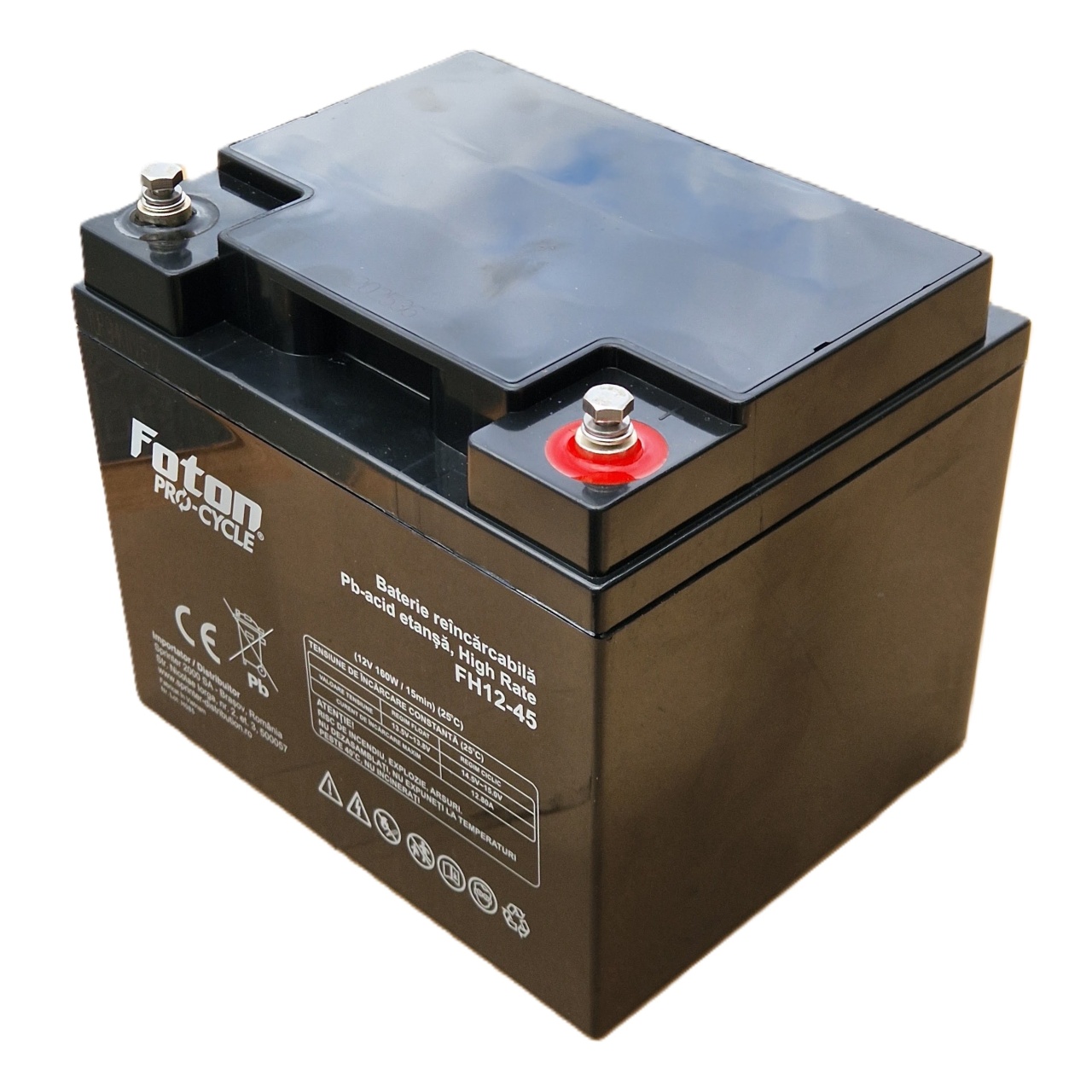

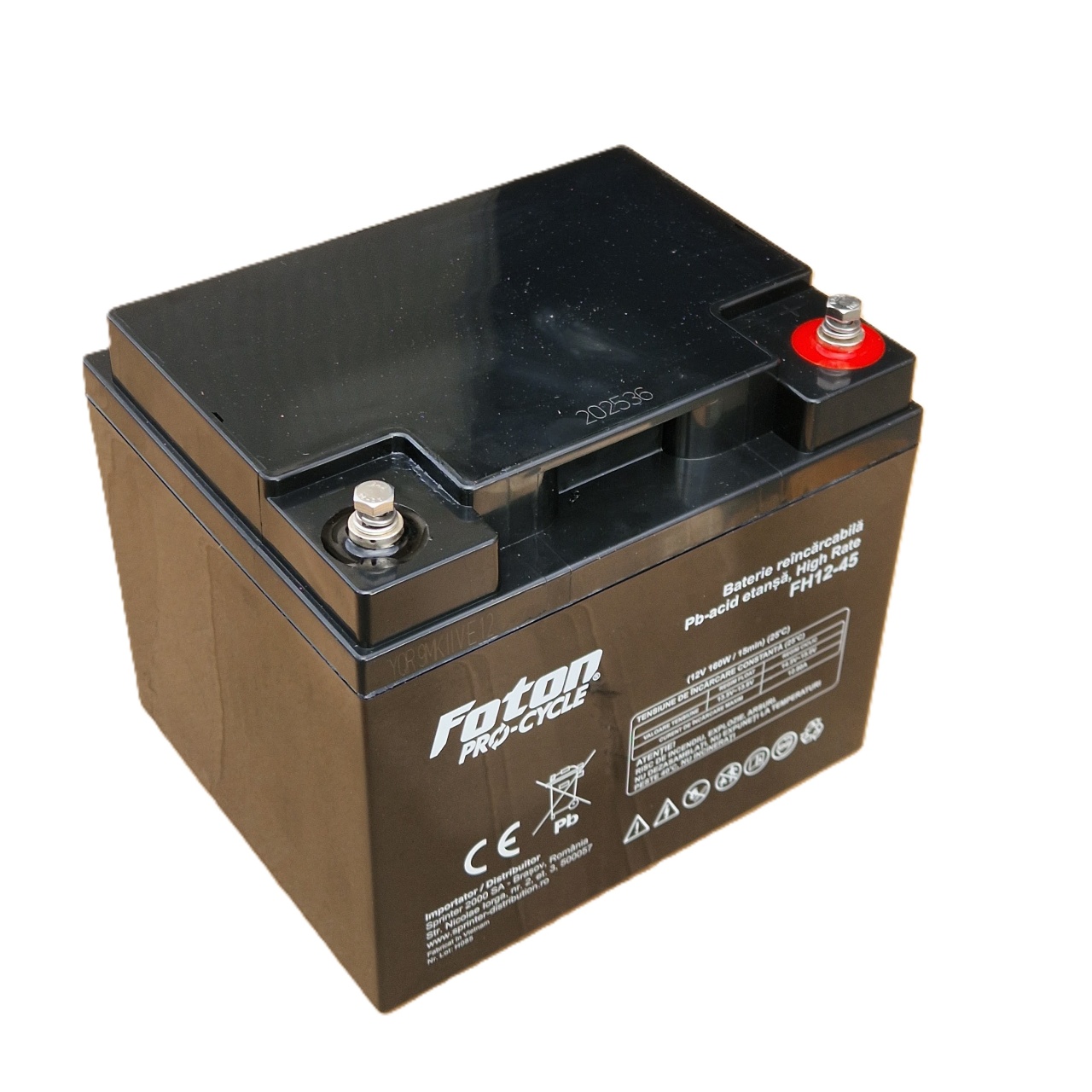

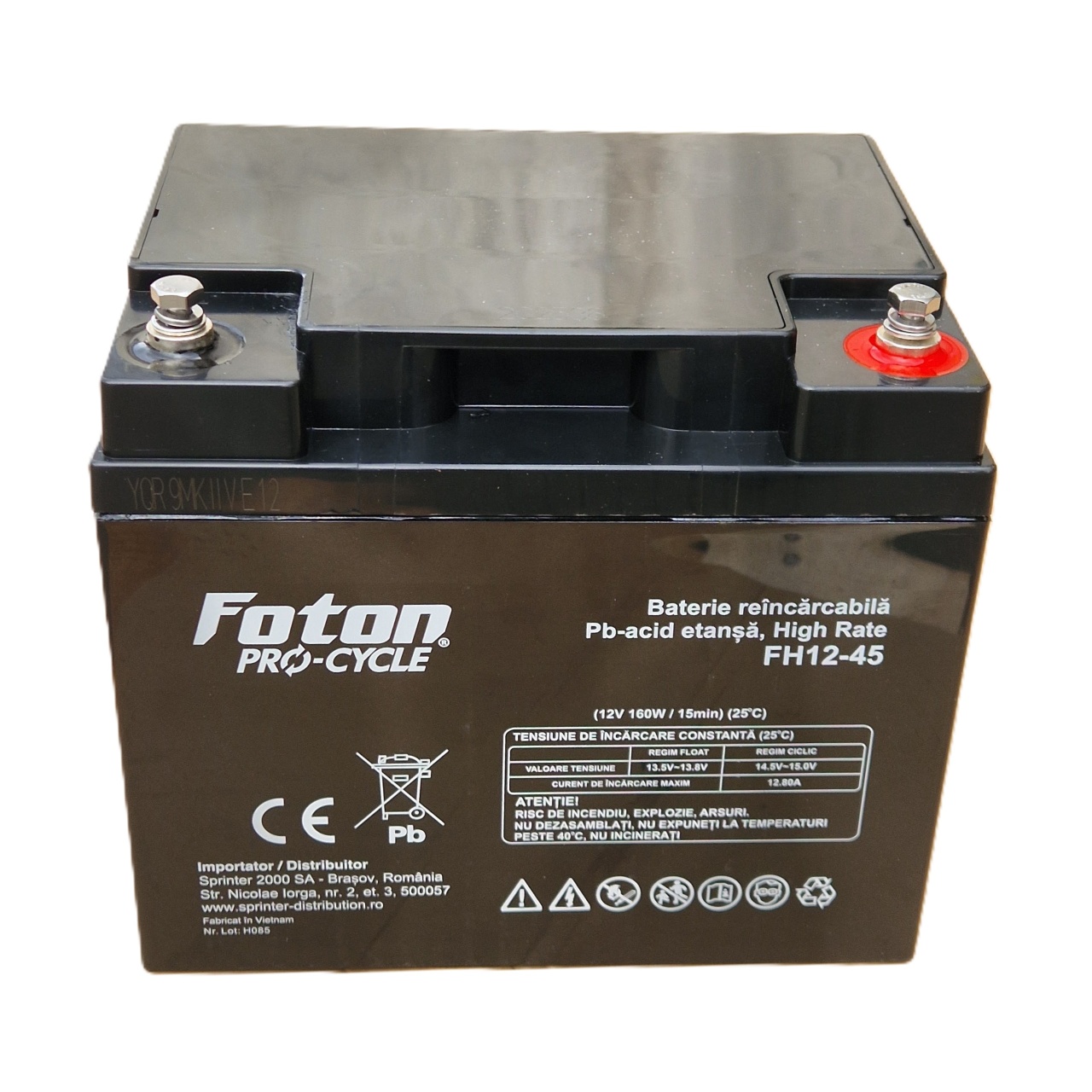

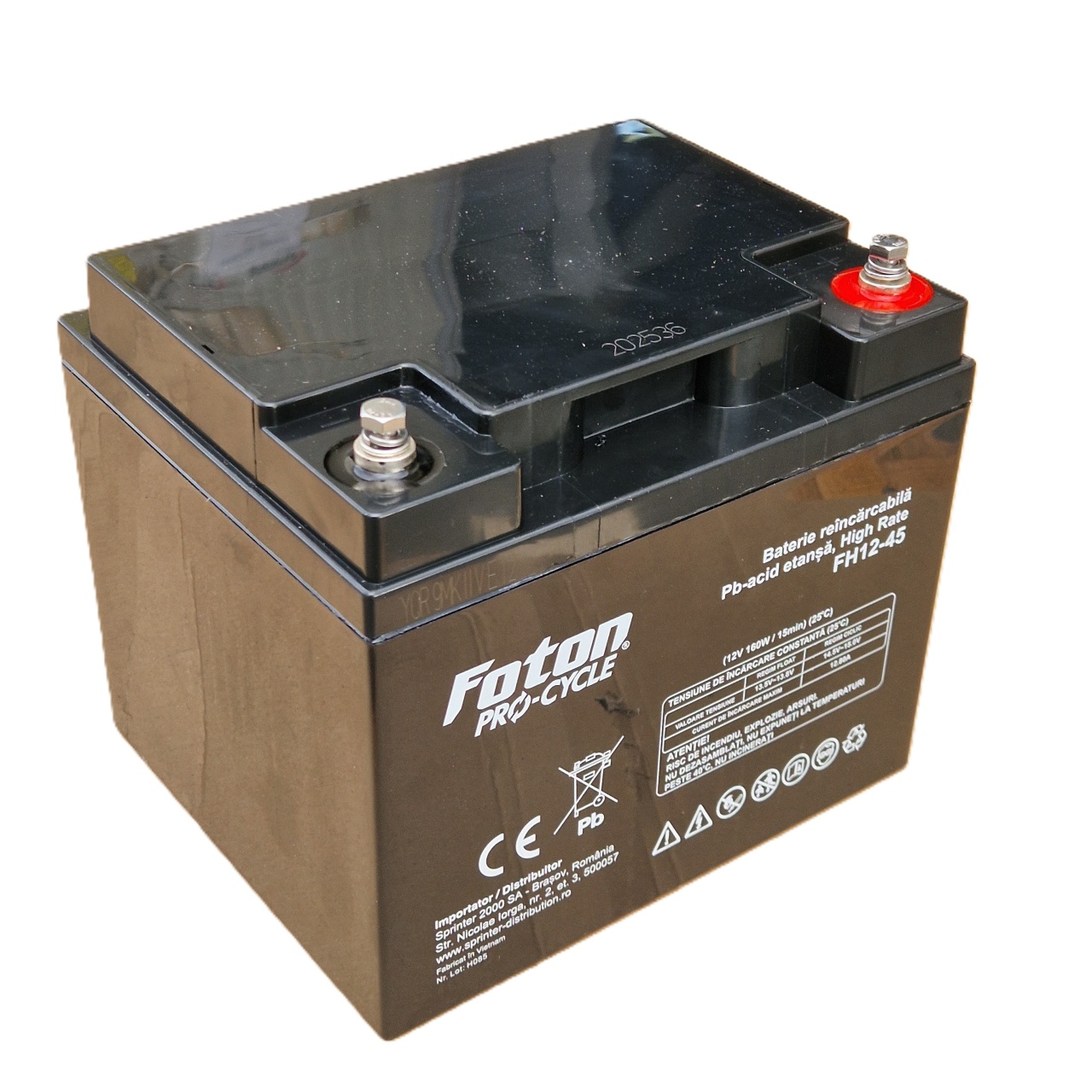

Foton battery FH12-45 High Rate 12V 45Ah VRLA AGM

Description

Foton® Pro-Cycle® High-Rate lead-acid battery (VRLA) (high current version) FH12-45, 12V 45Ah - is mainly used as a high-capacity backup battery in UPS, boats and caravans, surveillance systems, signaling systems and other applications where you need a large amount of energy, higher currents and/or long autonomy time.

The FH model is a "High-Rate" range, which allows higher currents compared to FS/FL and offers an extended lifespan in standard applications, but is not recommended for deep discharge applications (where a battery from the FD - DeepCycle range is recommended).

TECHNICAL SPECIFICATION:

Brand: Foton® Pro-Cycle® (Foton and Pro-Cycle are registered trademarks of Sprinter 2000 S.A.)

Manufacturer: NPP Power (Vietnam) Co.,Ltd, Lot A22.3, Road C4, Thanh Thanh Cong Industrial Zone, An Hoa Village, Trang Bang District, Tay Ninh Province, Vietnam

EU Responsible Entity: Sprinter 2000 S.A., Brasov, str.N. Iorga nr. 2, et.III, Romania, email comenzi@sprinter2000.ro

Country of origin: Vietnam (possibly China, depending on the batch)

Technology: AGM VRLA

Housing: ABS UL94-HB

Range: FH - Foton High Rate. For high current applications.

Coding: FH12-45 (equivalent codes HR12160W, etc.)

Recommended applications: UPS and data centers / telecommunications / backup and emergency lighting systems / signaling / other similar

Nominal voltage: 12 V

Nominal capacity: 45 Ah @10Hr up to 1.8 V/cell at 25°C / 39.3Ah @5Hr 1.8V/cell at 25°C

Nominal capacity (15 min.): 160W/cell @15 min. 1.67V/cell at 25°C

Maximum discharge current: 400A (maximum 5 seconds)

Internal resistance: ~7.0 mΩ

Charging voltage (stand-by or buffer): 13.5V...13.8V at +25°C. Coef. temperature correction coefficient: -18mV/°C

Charging voltage (cyclic use): 14.5V...15V at +25°C. Temperature correction coefficient: -30mV/°C

Initial charging current: max.12.8 A

Temperature influence on capacity: 102% of capacity at +40°C / 100% of capacity at +25°C / 85% of capacity at 0°C

Operating temperatures: Discharge -15°C...+50°C / Charge -10°C...+50°C / Storage -20°C...+50°C

Self-discharge: ~9% in 3 months of storage / ~18% in 6 months of storage / ~35% in 12 months of storage. It is recommended to recharge for refreshment once every 6 months, if not used.

Design life (in stand-by mode!): 10-12 years according to EUROBAT standards at 20°C / 10 years according to JIS standards at 25°C

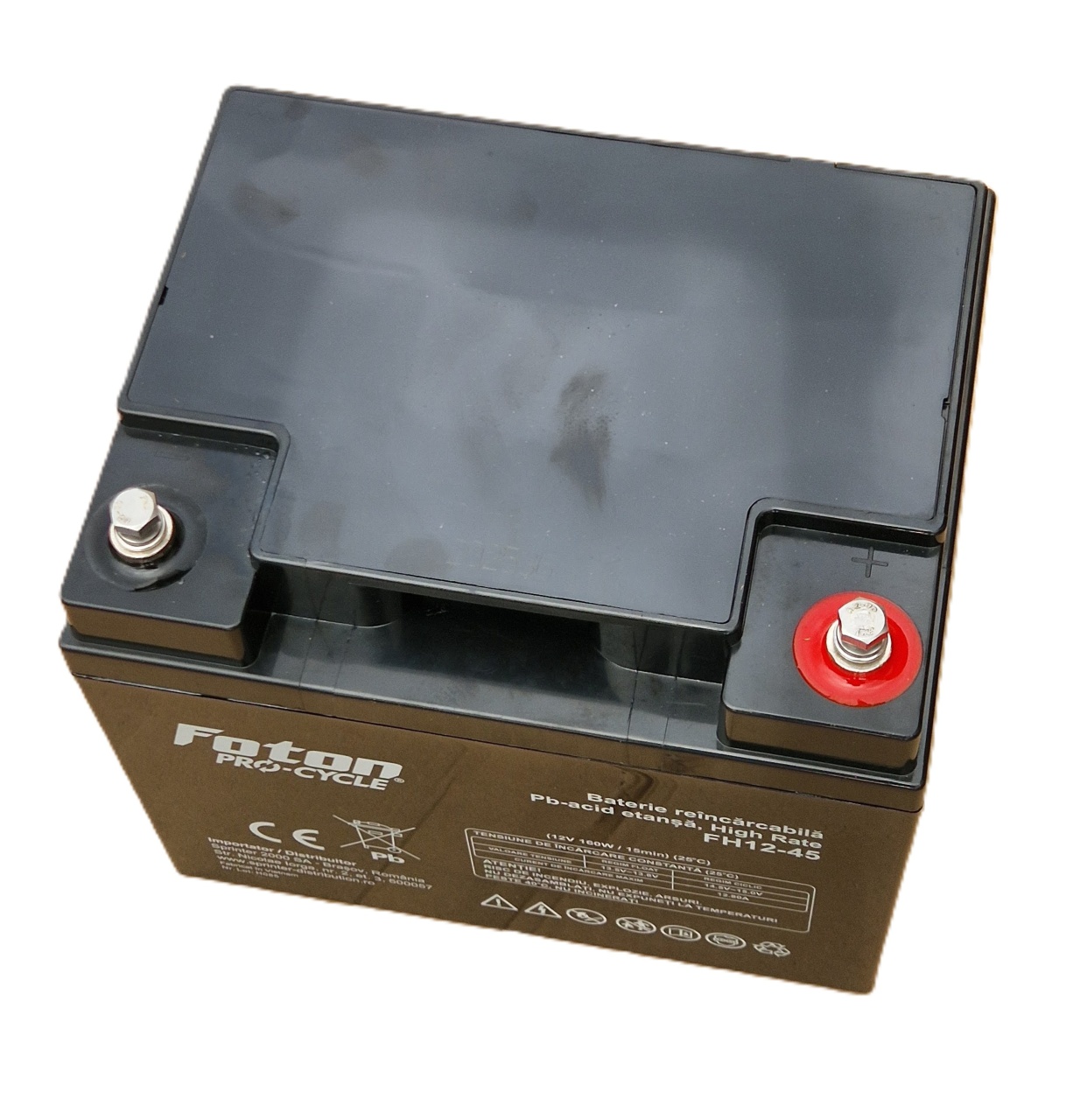

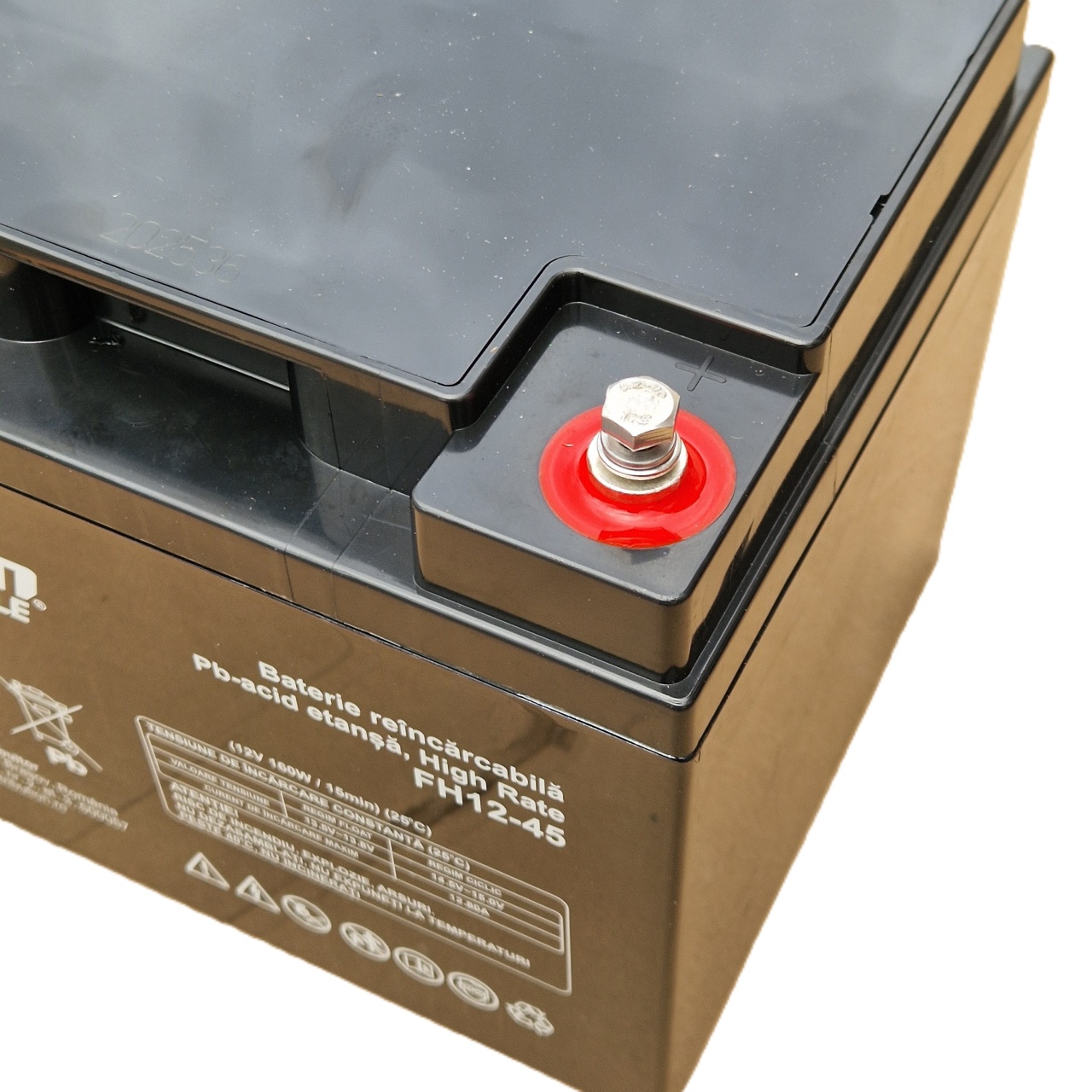

Terminals: FM6-T14, with screws included. Terminals positioned on the cover, terminal positioning side:

Approx. dimensions: 197 x 165 x 170 mm (L x W x h); height including terminals 170 mm; dimensional tolerance ± 2 mm

Weight: ~32.7 kg

Applicable standards and certifications: EN 60896-21,-22 / EUROBAT / RoHS / WEEE's and REACH / ISO 9001 / ISO 14001 / OHSAS 18001 / UL / IEC / CQC / TLC

 Do not throw away after use - only hand over to authorized collection centers.
