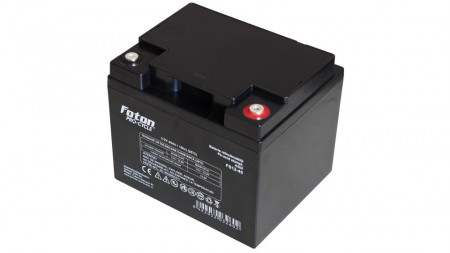

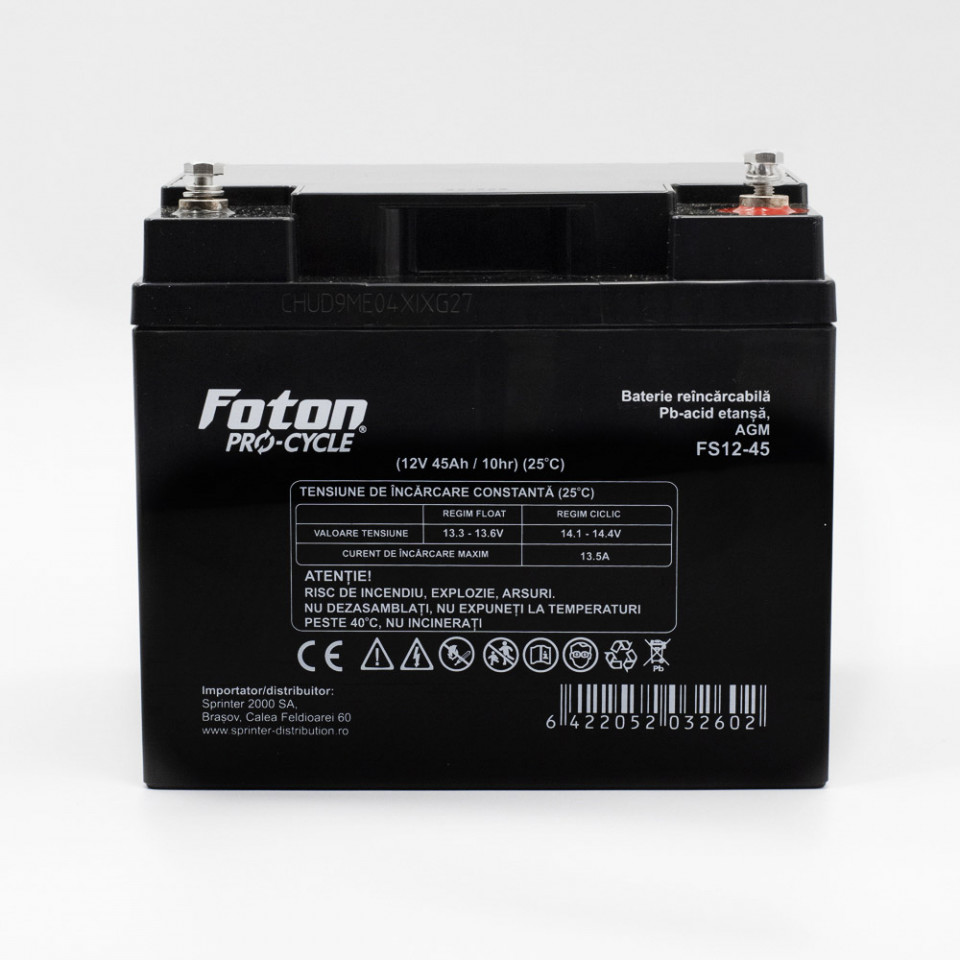

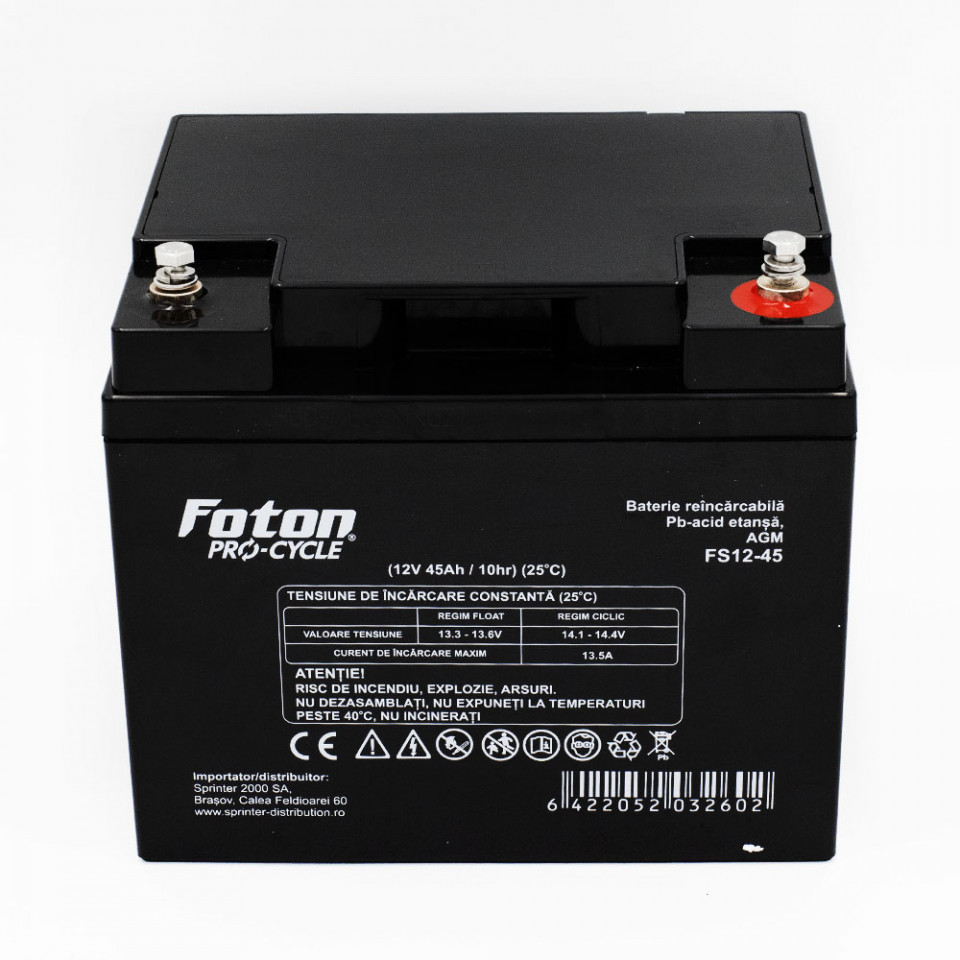

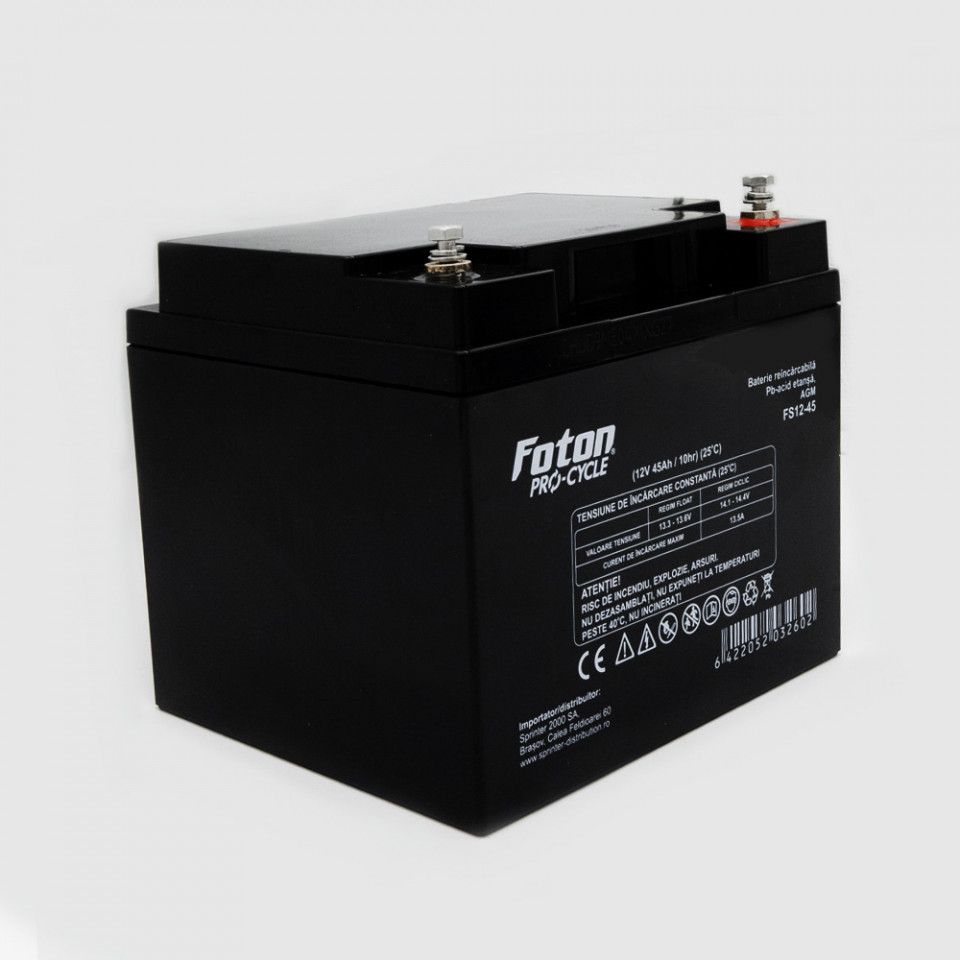

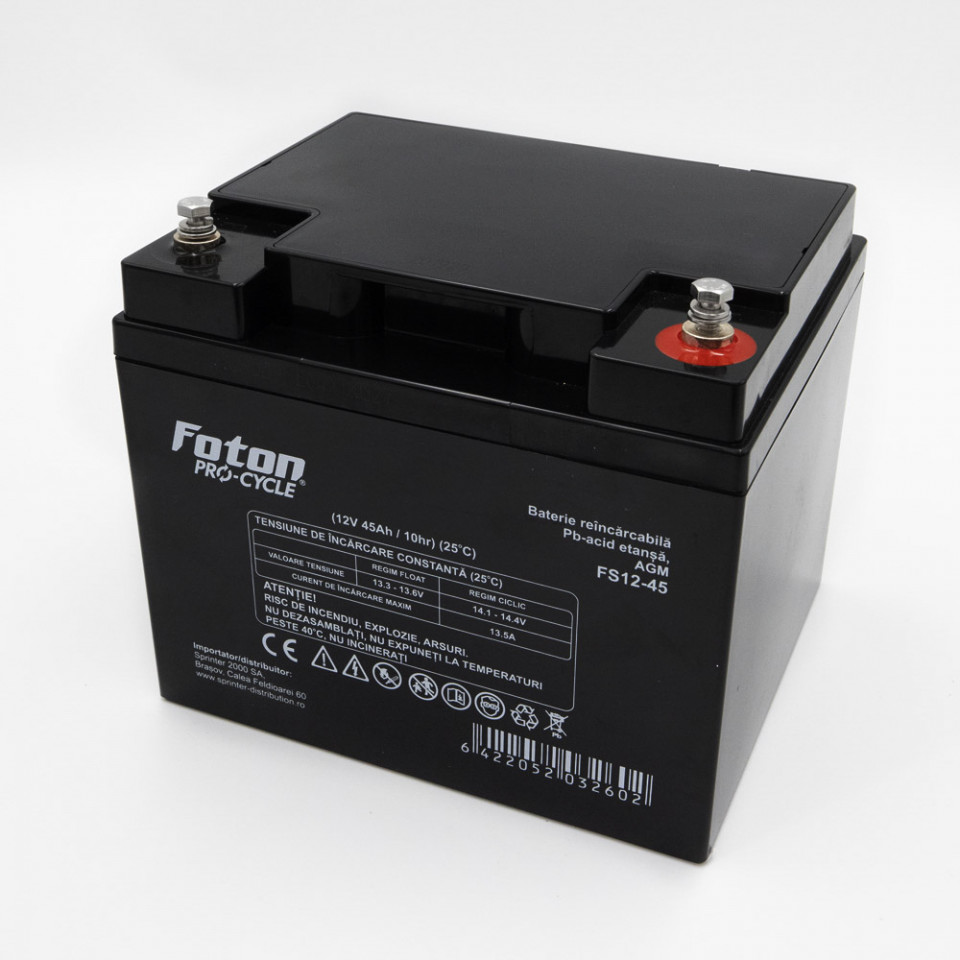

Stationary battery Foton FS of 12V and 45Ah

Description

Lead-acid battery (lead-acid or VRLA) Foton® Pro-Cycle® FS12-45, 12V 45Ah - it is mainly used in UPS, building alarms, surveillance systems and in other applications where you need energy backup .

TECHNICAL SPECIFICATION:

Brand: Foton® Pro-Cycle® (Foton and Pro-Cycle are registered trademarks of Sprinter 2000 S.A.)

Technology: AGM VRLA

Uses: energy backup in UPS, alarms, lighting systems, etc. It is not intended for photovoltaic or wind systems and traction or engine starting applications.

Coding: FS12-45

Voltage: 12V

Nominal capacity: 45Ah/ 4.5A 10Hr, at 1.8V/cell, 25°C

Maximum discharge current: 400A (maximum 5 seconds)

Internal resistance: 7.5 mΩ

Temperature range: discharge -15°C...+50°C / charging -10°C...+50°C / storage -20°C...+50°C

Optimum temperature of use: +25°C ± 3°C

Charging current: Cyclic use: <13.5A, U 14.5V...15V at 25°C. Temperature correction -30mV/°C / Buffer use: <13.5A, U 13.5V...13.8V at 25°C. Temperature correction -18mV.

Influence of temperature on capacity: 102% of capacity at 40°C / 100% of capacity at 25°C / 85% of capacity at 0°C

Self-discharge: 9% after 3 months of storage / 18% after 6 months of storage / 35% after 12 months of storage

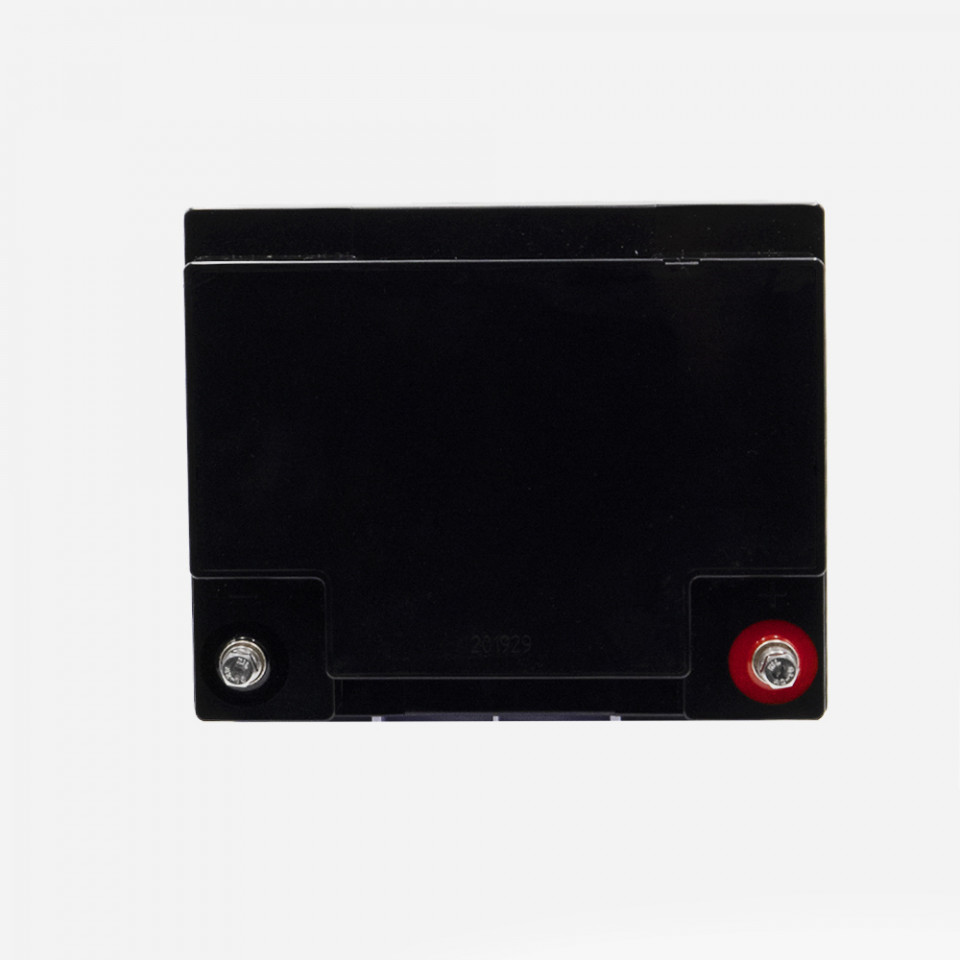

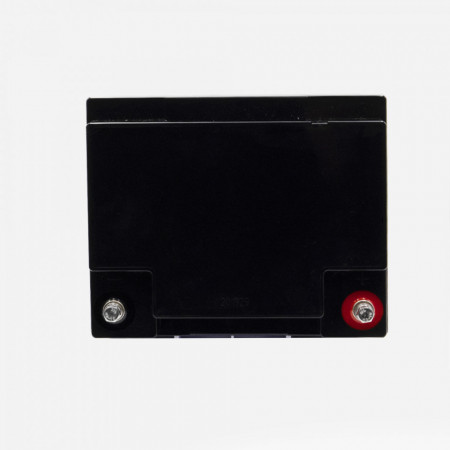

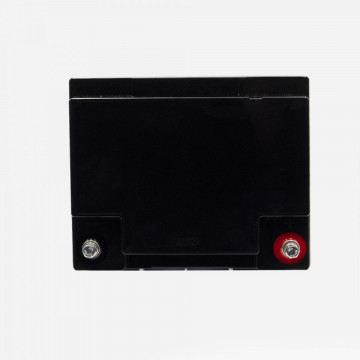

Terminal type: FM6, on the long side

Dimensions: 197x165x170 mm (LxWxh), tolerance ± 2 mm

Weight: 13.8 kg

 Do not throw in the trash after use - hand it over only to authorized collection centers.
