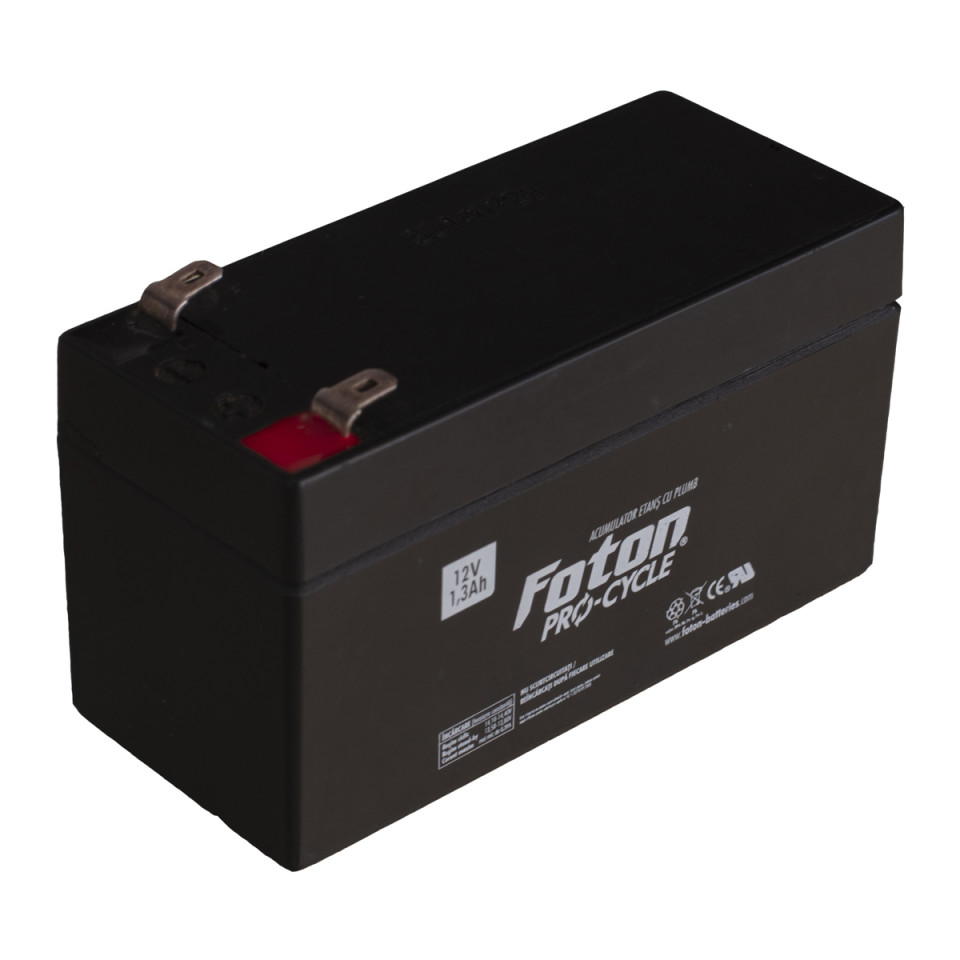

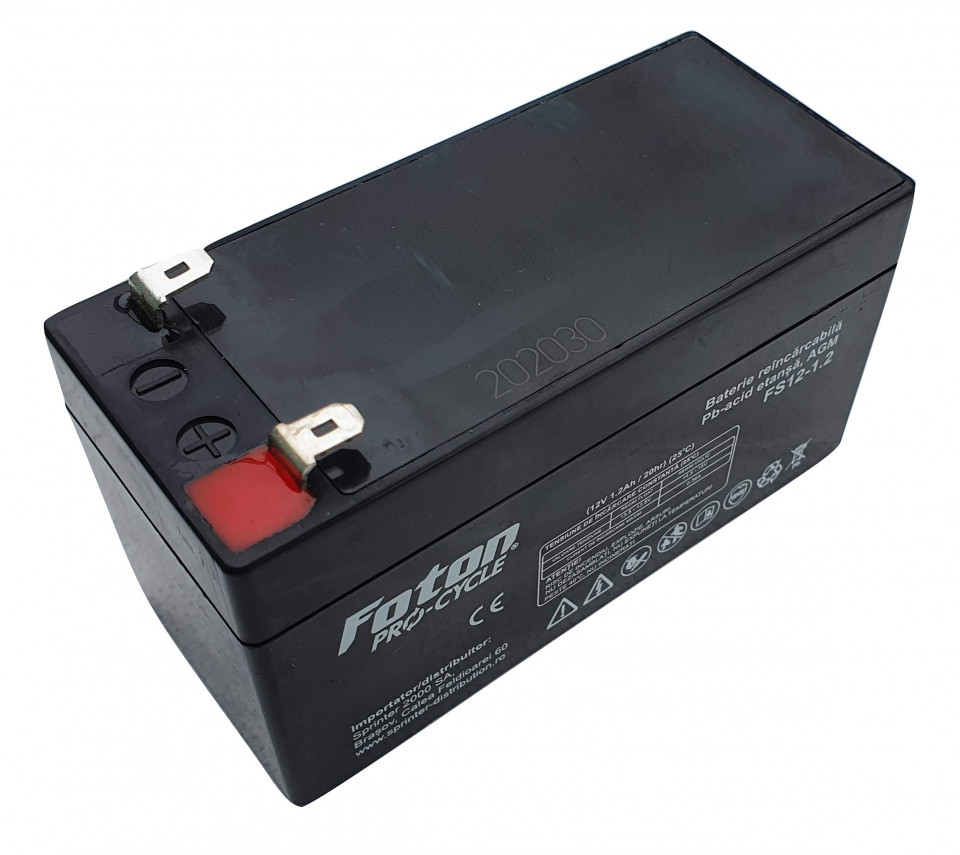

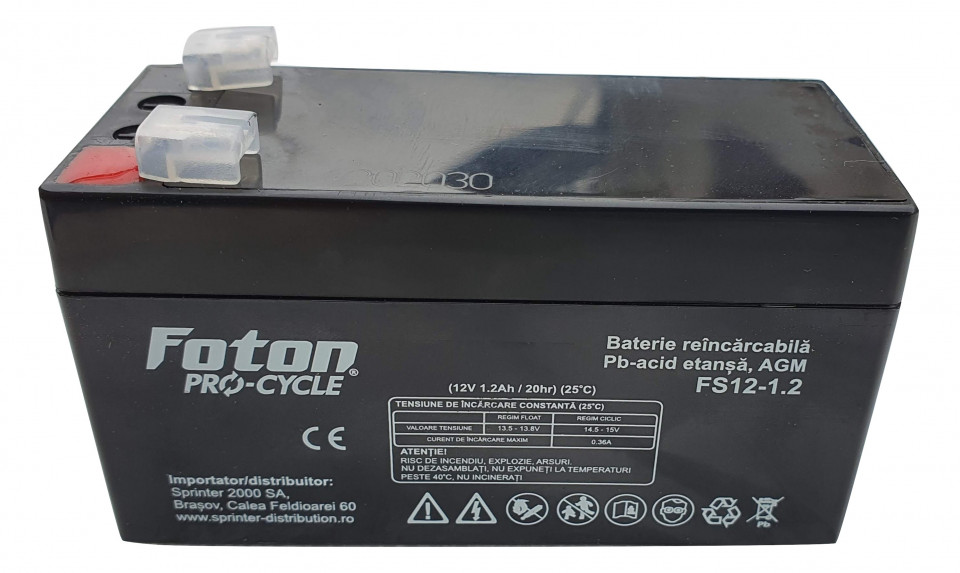

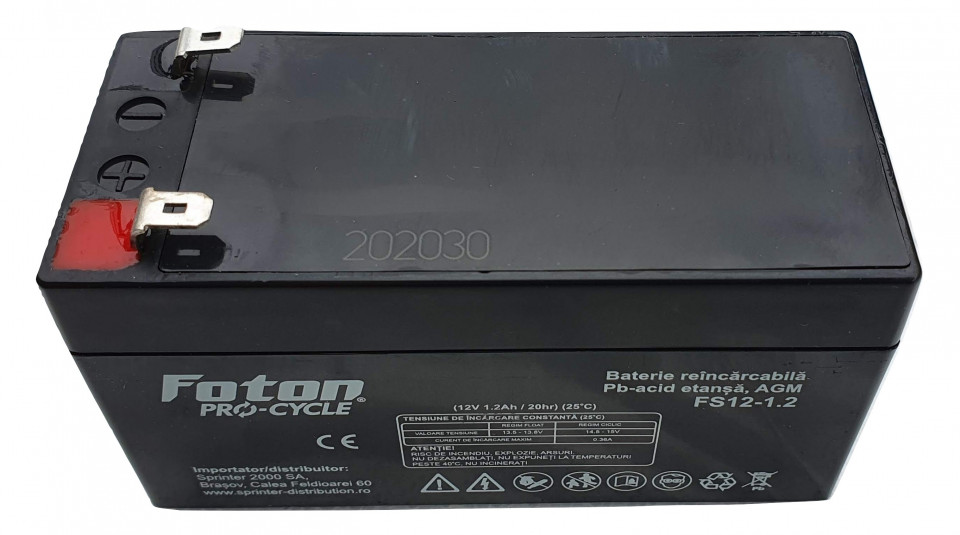

VRLA Foton battery FS12-1.2 of 12V and 1.2Ah

Description

The Foton® Pro-Cycle® lead-acid (lead-acid or VRLA) FS12-1.2 12V 1.2Ah battery is a sealed battery used for backup in alarms, surveillance systems, medical equipment, electronic scales and homes tax stamp.

TECHNICAL SPECIFICATION:

Brand: Foton® Pro-Cycle® (Foton and Pro-Cycle are registered trademarks of Sprinter 2000 S.A.)

Technology: VRLA (sealed Pb-acid battery)

Manufacturer coding: FS12-1.2

Equivalent codes: 41201 / 12V-1.3Ah / LC-R121R3PG (Panasonic) / ACCU-HP1.2-12 / similar...

Voltage: 12V

Nominal capacity: 1.2Ah / 0.06A 20Hr at 1.75V/cell at +25°C

Maximum discharge current: 18A (maximum 5 seconds)

Internal resistance: approx. 90mΩ

Charging voltage: 13.5-13.8V in buffer mode at +25°C (-18mV/°C) / 14.5-15V in cyclic mode at +25°C (-30mV/°C)

Charging current: Maximum 0.36A

Number of cycles: 300-500

Operating temperature range: Discharge -15°C...+50°C / Charging -10°C...+50°C / Storage -20°C...+50°C

Ideal temperature for use: +25°C ± 3°C

Influence of temperature on capacity: 102% of capacity at +40°C / 100% of capacity at +25°C / 85% of capacity at 0°C / 65% of capacity at -15°C

Self-discharge: self-discharges to 65% of capacity in 12 months of storage at +25°C / 82% after 6 months / 91% after 3 months

Terminals: T1 (blades)

Dimensions: 98x45x52(59*) mm (LxWxH), *including terminals; size tolerance ±1.5mm

Weight: 0.54kg

 Do not throw away used batteries, only hand them over to collection centers or bins in large stores.
