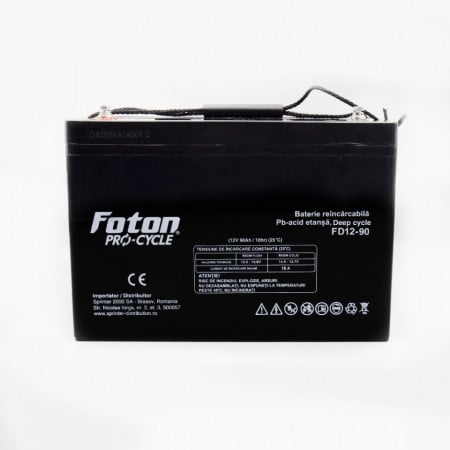

Battery AGM VRLA Foton FD12-90 of 12V 90Ah

Description

Lead-acid battery (lead-acid or VRLA) Foton® Pro-Cycle® FD12-90, 12V 95Ah - battery from the deep-cycle range, which supports deeper discharges and more discharge-charge cycles, which mainly used as a high-capacity backup battery in UPS, building alarms, boats and caravans, solar and photovoltaic systems, surveillance systems and in other applications with cyclical operation, where you need a large amount of energy and/or time long autonomy.

TECHNICAL SPECIFICATION:

Brand: Foton® Pro-Cycle® (Foton and Pro-Cycle are registered trademarks of Sprinter 2000 S.A.)

Technology: AGM VRLA

Uses: energy backup in photovoltaic or wind systems, UPS, alarms, lighting systems, traction and semi-traction (trolleys for disabled people, electric vehicles), etc.

Coding: FD12-90

Nominal voltage: 12V

Nominal capacity: 95Ah /9.5A 10Hr up to 1.8V/cell at 25°C; 100.8Ah / 5.04A 20Hr up to 1.8V/cell at 25°C; 83.5A / 16.7A 5Hr up to 1.8V/cell at 25°C

Maximum discharge current: 800A (maximum 5 seconds)

Internal resistance: ~5 mΩ

Charging voltage: 13.5-13.8V in buffer mode at 25°C, correction -18mV per °C / 14.5-15V in cyclic mode at 25°C, correction -30mV per °C

Charging current: <27A

Influence of temperature on capacity: 102% of capacity at +40°C / 100% of capacity at +25°C / 85% of capacity at 0°C

Self-discharge: 9% in 3 months of storage / 18% in 6 months of storage / 35% in 12 months of storage

Projected life span: 10-12 years

Terminals: FM6, with screws

Dimensions: 306x169x211mm (LxWxh); height including terminals 215mm; size tolerance ± 2mm

Weight: 28.5 kg

Warranty: Legal warranty (compliance) 24 months. Commercial warranty (durability) 12 months from the date of purchase. Service requests during the warranty period are submitted here.

 Do not throw in the trash after use - hand it over only to authorized collection centers.
