Transformer Wolf ATEX 250VA High Temp

Description

The Wolf ATEX 250VA transformer is CE marked according to the ATEX and IECEx Directives, offering a maximum power of 250VA in an ambient temperature of up to +55°C and is certified for use in Zones 1 and 2, Group II, Category 2, in environments with potentially explosive gases, vapors and mists, where temperature class T4 is permitted and Zones 21 and 22 potentially explosive dust where maximum surface temperatures of up to 130°C are permitted.

Operating from 230V or 110V to 24V and from 230V to 110V, the transformers are intended for use with a range of temporary portable lamps and auxiliary equipment for maintenance tasks.

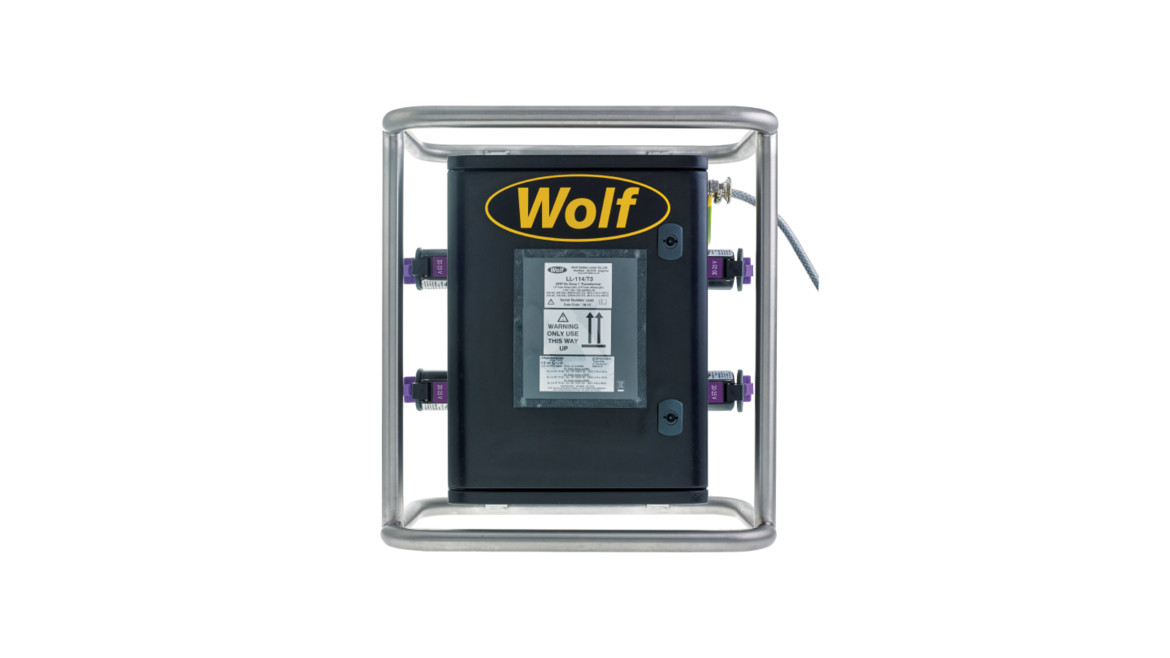

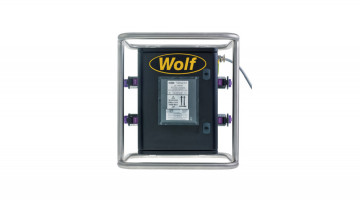

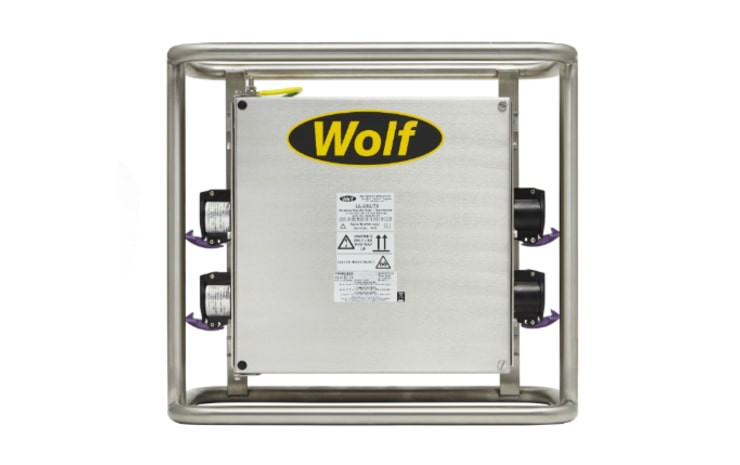

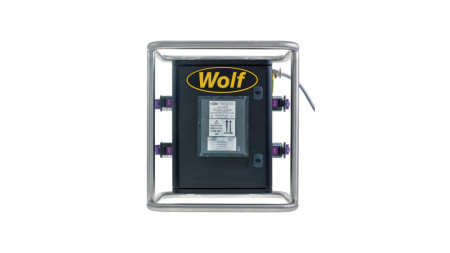

As standard, the transformers are supplied with a 15-meter input cable fitted with an ATX plug and four ATX output sockets fitted to the case. The transformers are available in either GRP or stainless steel housing, sealed to IP66, allowing use in wet and dusty conditions. Additionally, a protective stainless steel exterior bracket makes the unit more durable and easier to handle for temporary installations, ensuring it can withstand the harshest environments.

PRODUCT SPECIFICATION:

Manufacturer: Wolf Safety Lamp Company - United Kingdom

Product type: ATEX transformer for use in explosive environments

Available models: 230 to 24V in stainless steel or GRP housing

Product code: LL-233/T4 (steel housing) / LL-214/T4 (GRP housing)

Materials: Stainless steel or GRP- glass reinforced polyester housing (depending on model, price varies)

Code: Ex d e IIC T4 Gb - Ex t IIIC T130°C Db (-20°C ≤ Ta ≤ +55°C)

Protection type: 'e' increased safety, 'd' flameproof

Classification zone (gas): Zone 1 and 2, Gas Groups IIA, IIB and IIC

Classification zone (dust): Zone 21 and 22, Dust Groups IIIA, IIIB and IIIC

Temperature class: T4

Maximum surface temperature: +130°C

Ambient operating temperature: From -20°C to +55°C

Certificate: ATEX-LCIE02ATEX6118X and IECEX - LCI 11.008X (stainless steel housing model) / ATEX - LCIE02ATEX6248X and IECEX - LCI 04.0016X (GRP housing model)

Input voltage: 230 Vac +6% -10%

Input cable: 15 m SY cable of 2.5 mm² with ATX 230V 2P+E plug

Output voltage: 24 V

Output sockets: 4 x ATX 24 V 2P+E sockets (2 sockets on each side)

Power: 250VA

Water and dust protection/Sealing rating: IP66

Product sizes: 512 x 562 x 260 (h) mm - stainless steel / 504 x 465 x 285 (h) mm - GRP

Product weight: 28 kg stainless steel version / 21 kg GRP version

Product certifications: ATEX Z1 and Z2 EX / IP66 / CE
