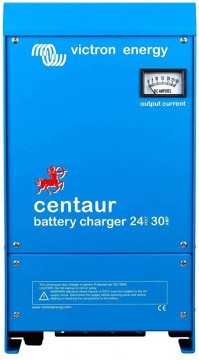

Rectifier Victron Centaur 12V 60A / 24V 30A

Description

Professional, compact, flexible DC power supply rectifier!

Rectifier (battery charger) in the case covered with aluminum epoxy powder and steel fasteners. Equipped with temperature sensors, it reduces the output current if this is necessary. Universal input voltage range of 90-265 V AC and also suitable for direct current supply (AC-DC and DC-DC operation).
All models in this range will operate without any adjustment required within an input voltage range of 90 to 265 volts, regardless of whether it is at 50 Hz or 60 Hz.

The chargers also accept a 90-400 V DC source.
Three outputs that can supply each full output current.
Three isolated outputs to charge 3 batteries simultaneously.
Each output is capable of supplying the full rated current.
Charging in three stages, with temperature compensation.
An internal temperature sensor is used to compensate the charging voltage by – 2 mV / ºC per cell.
A DIP switch is available to select optimal charge/float voltages for lead-acid, gel or AGM.

TECHNICAL SPECIFICATIONS:

Manufacturer/Brand: Victron Energy

Product type: Professional rectifier - lead battery charger with continuous operation (float)

Product range: Centaur Chargers

Model: CCH024030000 / VE Centaur Charger 24/30(3) 120-240V

Housing/Color: Aluminum / Blue RAL 5012

AC input: 90 - 265 Vac

Direct current input: 90 - 400 Vdc

Input frequency: 45 - 65 Hz

Power factor: 1

THDi: <5%

Output voltage - absorption mode: 14.3 Vcc / 28.5 Vcc

Output voltage - float mode: 13.5 Vdc / 27.0 Vdc

Type of batteries it can work with: Lead-acid (SLA, VRLA, EFB, FLA), AGM, GEL

Number of outputs/charging ports: For 3 batteries simultaneously

Battery connection: M8 (screws)

AC connection: clamps 4 mm2 (AWG 6)

Maximum charging current: 60 A for 12 V batteries / 30 A for 24 V batteries

Charging feature: IUoU (3-stage charging)

Recommended battery capacity: 12 V 240-600 Ah / 24 V 120 - 300 Ah

Battery protections: At high temperature and short circuit

Temperature sensor: Internal, voltage adaptation with -2mV / °C per cell

V/temp compensation: Yes, automatic

Anti-ignition protection: Yes

Degree of protection: IP20

Cooling: Forced, built-in fan with automatic operation

Alerts: Yes - visual and audible alarm if the battery is excessively charged or discharged

Operating temperature: -20°C ÷ +60°C

Relative humidity: up to 95%, without condensation

Display: Yes

Standards: safety EN 60335-1, EN 60335-2-29, UL 1236; emissions EN 55014-1, EN 61000-3-2; automotive directives EN 55014-2, EN 61000-3-3

Own weight: 5 kg

Product dimensions: 426 x 239 x 135 mm
