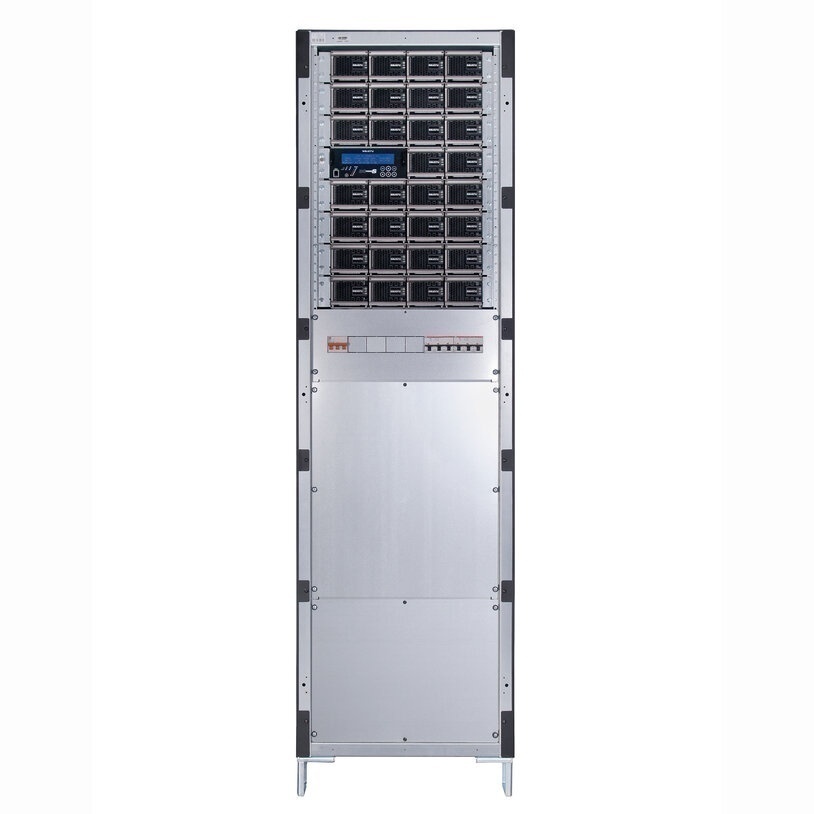

Salicru DC Power-S DC-15-S Modular Rectifier

Description

Salicru's DC Power-S power systems include the following components: DC-S modular rectifiers, subracks, a control and monitoring system, a communications module, and a DC distribution unit, all located in a closed cabinet, with the possibility of including batteries.

The DC Power-S modular rectifiers are available in power ratings of 1000, 2000 and 2700 W and output voltages of 24, 48, 60, 110, 125 and 220 Vdc. Its modular design allows the installation of up to 4 modules in a 19” 2U subrack, achieving very high power density.

The control and monitoring system manages the entire system: input and output measurements, battery charging currents (batteries are not supported for the 60V output voltage option), priority and non-priority load control and external communication channels. The maximum number of rectifiers controlled by a control system is 30, allowing systems to reach nominal powers of up to 81 kW with N+n redundant configuration options.

The basic version of the communication module has: three programmable relays, a battery temperature sensor and an RS-232/485 channel. The extended version has a slot for a Nimbus Ethernet/SNMP adapter, an input for detecting the NiCd electrolyte level and six additional relays.

Applications

Redundant protection for critical applications

Salicru's DC Power-S power systems provide high-performance power supply for ever-critical telecommunications systems, ensuring excellent operation without unexpected interruptions. Due to their modular nature, they can also be expanded according to needs, thus optimizing the investment. Typical applications include: fixed and mobile communication networks, broadband access networks, data and telecommunications networks and railway infrastructures.

Performances

SMART Mode

The DC POWER-S rectifier has an intelligent module rotation system that offers two simultaneous advantages, depending on the load volume:

Optimizing equipment life. Modules are sequentially shut down to reduce their usage, thus extending the overall life of the system.
Improved performance and reduced energy costs. The performance curve of the rectified modules is improved at higher load percentages. By reducing the number of modules in operation, each of them is assigned a higher load, thus achieving optimal levels of energy efficiency.

Communications:

RS-232 interface slot.
RS-485 serial ports. MODBUS communication protocol.
Programmable relay interface (x6).
Input for battery temperature measurement.
Input for NiCd electrolyte level detection.

Optionals:

Overvoltage protection.
Output voltage drop diodes.
Positive, negative or isolated output voltages.
Sealed or open PbCa batteries, NiCd, etc.
Extended communication module.
Other IP protection degrees.
Separator for non-priority loads.

CONNECTIONS:

Rectifier Module
Centralized Control
Input Protection
Output Distribution
Battery Protection (Batteries are not supported for 60V output voltage option)
Batteries
Extended Communication
Overvoltage Protection
Input Terminals
Output Terminals

TECHNICAL SPECIFICATION:

Code: 6A2ZY999997

Power per module (W): 2000

DC output voltage (V): 125

Current per module (A): 15

Nominal voltage: 120 / 127 / 220 / 230 / 240 V; 3x208 / 220 / 380 / 400 / 415 V (3P+PE)

Voltage range: 90 ÷ 290 Vac

Nominal frequency: 50/60 Hz

Total harmonic distortion (THDi): <5%

Power factor: >0.99 (PFC)

Performance: up to 95.5%

Accuracy: ±1%

Output voltage setting: -15% +25%

Psophometric noise: <2 mV

Load sharing between modules: Active parallel

Maximum number of parallel modules: 30

Battery type: PbCa or NiCd

Charging type: Constant I/U according to DIN 41773

Charging current: 0.1C to 0.3C adjustable

Recharge time: up to 80% in 4 hours (0.2C)

Voltage/temperature compensation: Yes, customizable (mV/°C)

Ports: RS-232/485 - 7 relays

Smart slot: Yes, one / Optional

Indicator type: LCD

Operating temperature: -20ºC ÷ +55ºC

Storage temperature: -40ºC ÷ +70ºC

Relative humidity: up to 95%, non-condensing

Maximum operating altitude: 3,000 m

Protection degree: IP20

Cooling: Forced

Acoustic noise at 1 meter: <55 dB(A)

Mean time between failures (MTBF): 250,000 hours

Mean time to repair (MTTR): 27 minutes

Safety standard: EN IEC 61204-7

Compatibility Electromagnetic Compatibility (EMC): EN IEC 61204-3

Certification: ISO 9001, ISO 14001, ISO 45001

Dimensions: Depth (mm): 600, Width (mm): 600, Height (mm): 1210

Weight: n/a
