Portable stackable fan ATEX Ramfan VF-EFi150 40cm

Description

The Ramfan™ (USA) range of fans, ducts and venturi units for hazardous areas is ATEX and IECEx certified for use in hazardous areas and is available in 115V (on request) or 230 volt versions. They are PORTABLE professional ventilators, intended especially for the fields: interventions in emergency situations (firemen / ISU), petrochemical industry, flour mills and silos, cement factories, interventions in underground utility networks (gas, sewage, water, energy , underground optical fiber), etc.

Ramfan™ is the world's largest manufacturer of fans for hazardous areas.

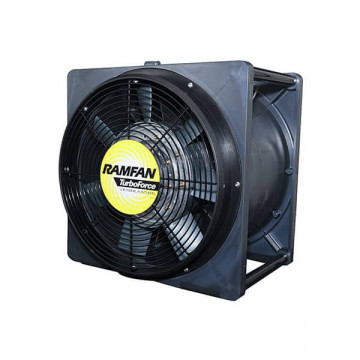

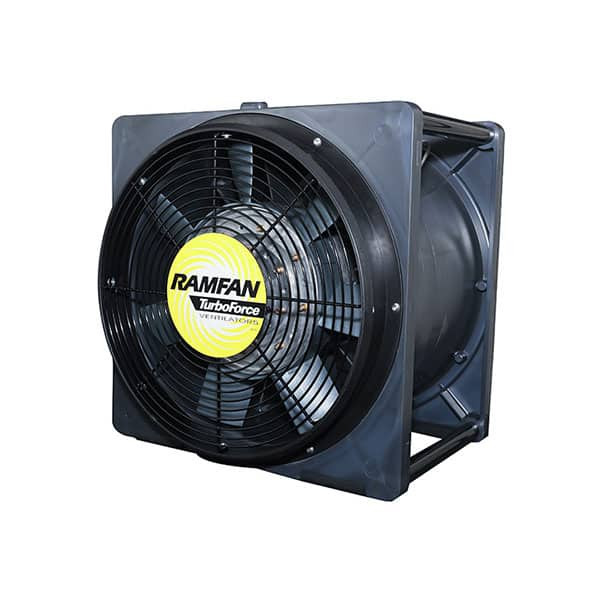

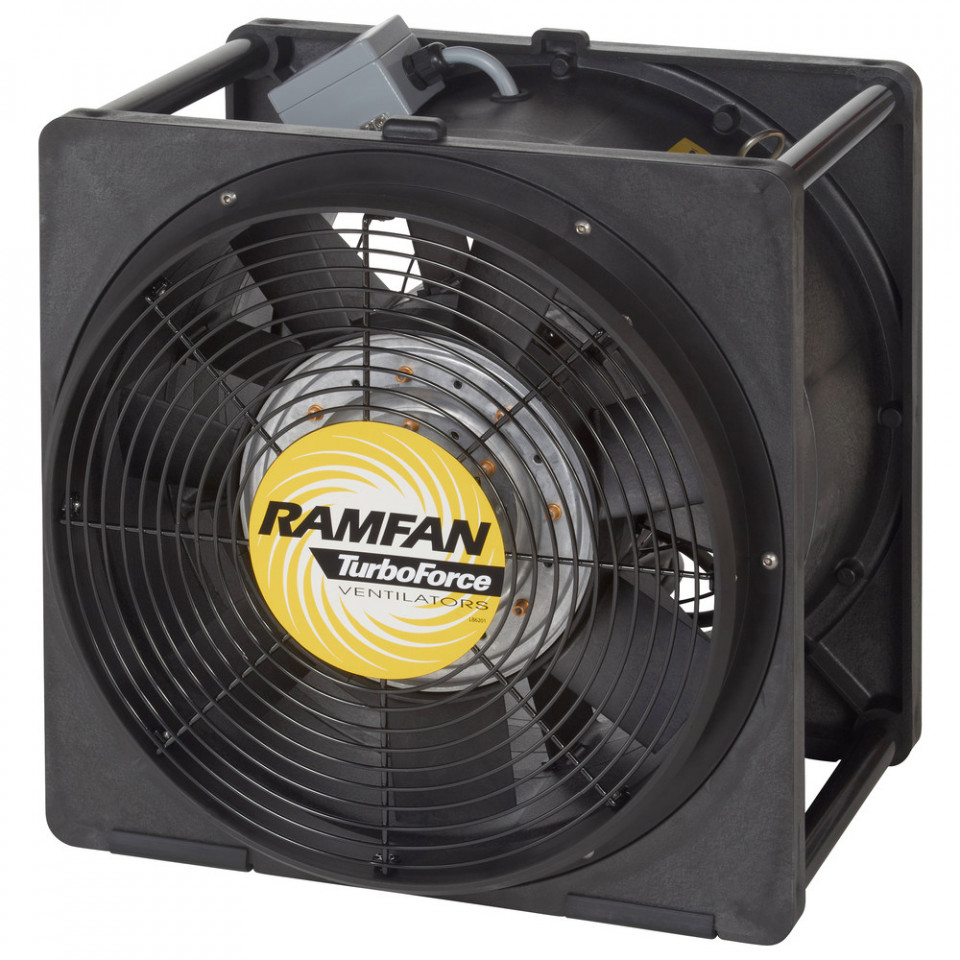

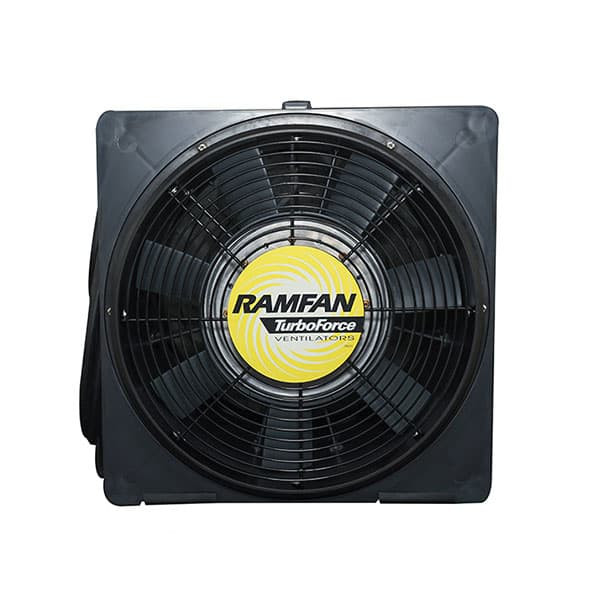

Professional portable fan VF-EFi150xx (40cm) - is the largest in the range and produces a peak airflow of up to 4,459 cfm (7,580 m³/h). The fan is stackable, which allows a combination of units to further increase the airflow if needed, as well as reduce the space required for storage. The fans are ATEX and IECEx certified for use in areas 1 and 2 and have IP55 sealing. The 2 pipe adapters allow different pipes to be attached as needed.

TECHNICAL SPECIFICATION:

Brand and model: Ramfan VF-EFi150xx (40cm, 230VAC)

IMPA code: 591507

Model description: 40 cm professional portable fan for hazardous areas

Protection coding: II 2 G Ex db eb IIB T6 Gb / II 2 G Ex h IIB T6 Gb

Risk zone (gas): Z1 / Zones 1 and 2, Gas Groups IIA and IIB

Temperature class (gas): T6

Operating temperature (gas): -20°C... +40°C

Sealing against water and dust: IP55 (resistant to rain)

Protection type/class: 'db' - fire-resistant housing / 'eb' - increased safety / 'h' - non-electrical equipment

Material: Durable anti-static PC/ABS housing - weatherproof, smudge-proof, v0 fireproof and chemical-resistant

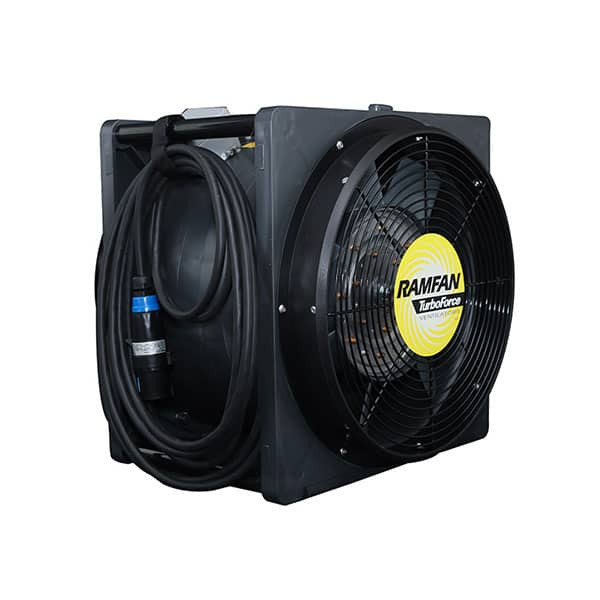

Supply voltage: 230Vac 50/60Hz, power cable 7.6m long

Current (start/work): 40A / 8A

Engine: 1.5HP / 1.1kW

Noise level: 90.2 dB at 1 m distance

Airflow: Free air through duct 4,459 cfm (7,580 m3/h) / through 4.6m duct with a 90° angle 3,179 cfm (4,404 m3/h)

Dimensions: 48 x 46 x 41 cm

Pipe adapters: 2

Pipe included: 4.6m

Container: Not included with this model

Certificates: DEMKO 09 ATEX 0926969X / IECEx UL 13.0062X

Weight: 28 kg
