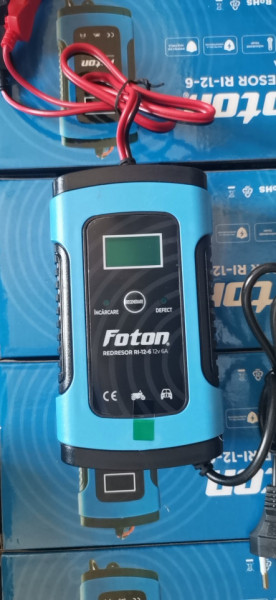

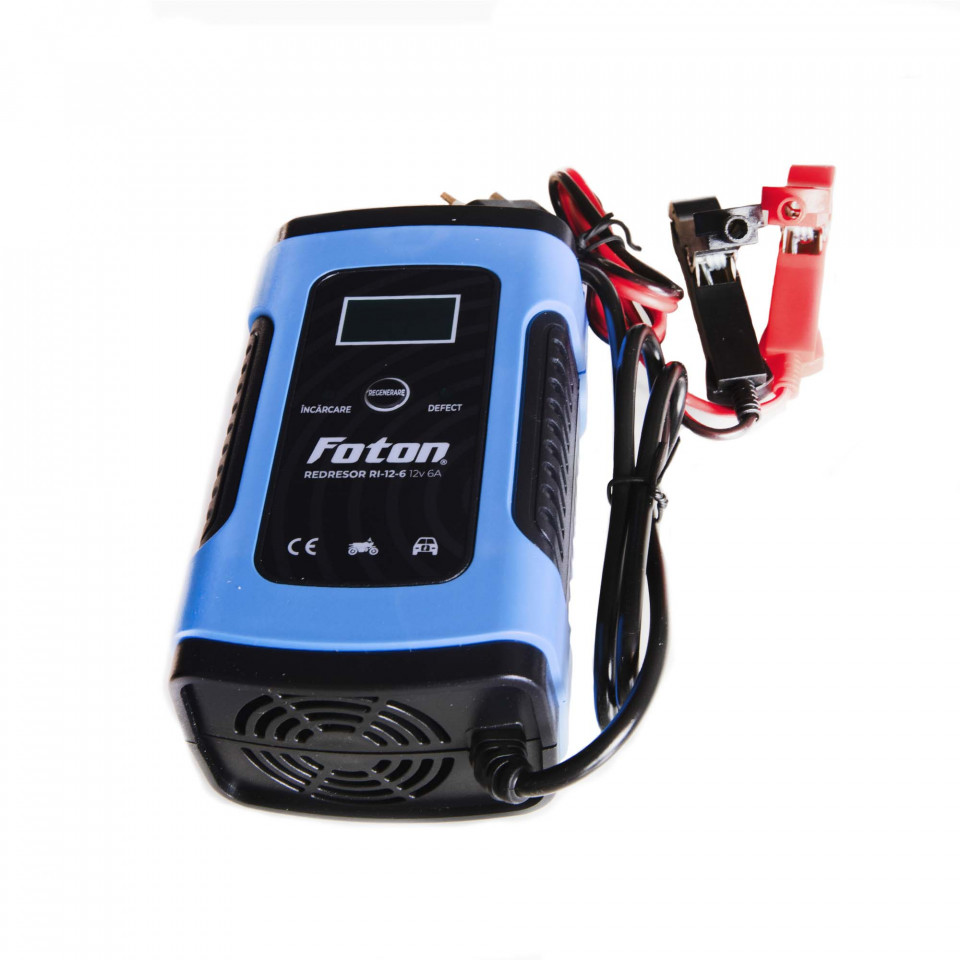

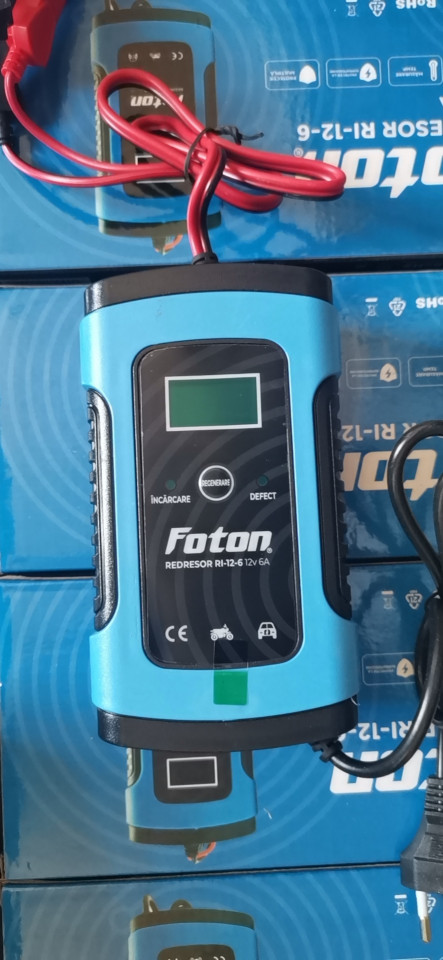

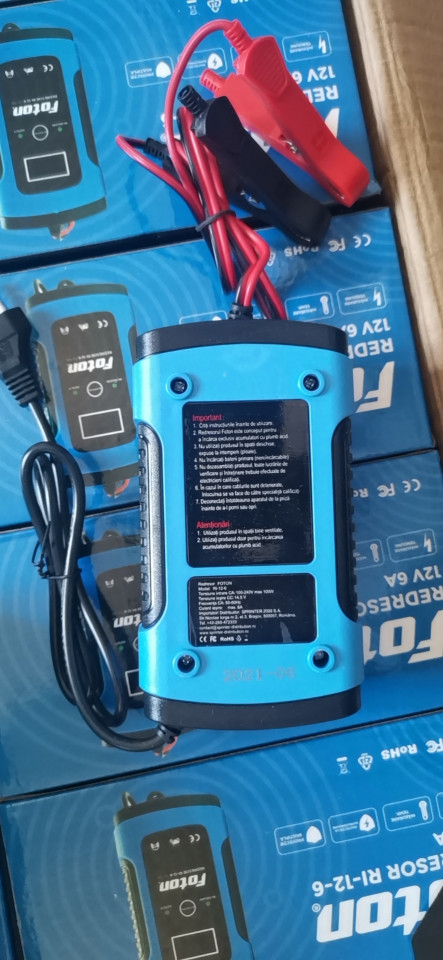

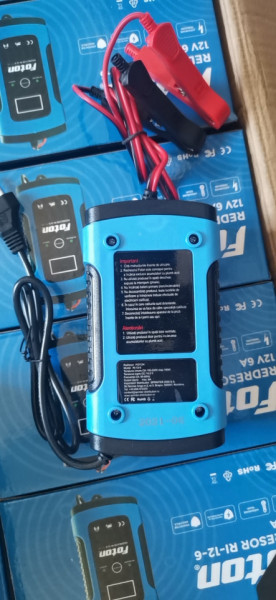

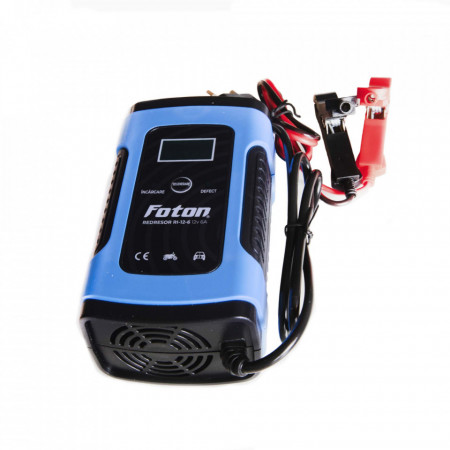

Smart rectifier with desulfation Foton RI-12-6

Description

Fully automatic - you only have to connect the cables and everything is controlled by the microprocessor!

Smart rectifier (charger), with automated microprocessor operation and battery regeneration/repair function (with pulse charging) for car batteries or sealed 12V lead batteries, charging with a current of up to 6A. Compact and with a modern design, it is equipped with an illuminated LED display, indicating charging parameters (voltage, current, ambient temperature). It is recommended for 12V lead batteries, including EFB and AGM batteries (for cars with Start&Stop function).

Being completely automated, it is very easy to use, even by people without specialized training!

Also measuring the ambient temperature, the rectifier has a function of fine adaptation of the charging voltage, applying a correction coefficient of the output voltage depending on the external temperature! Thus, an optimized charge is obtained and the battery life can be extended by charging with the optimal voltage. For this reason, it is also recommended for charging stationary lead accumulators.

It also has the possibility of charging in pulses (extended program of about 18 hours), which performs desulfation, with the help of which you can recondition and use even damaged (sulfated) batteries for a longer period of time.

TECHNICAL SPECIFICATION:

Product type: Smart rectifier/charger with microprocessor and with charging function including pulses (regeneration of sulphated batteries)

Model: Foton™ RI-12-6 (Foton is a registered trademark, all rights reserved)

Country of origin: China

Use: Charging lead batteries / regenerating (or repairing) sulfated batteries, unused for long periods of time.

Functions: Intelligent charging in 3 stages / Charging in pulses for desulfation (repair or regeneration of sulfated batteries)

Type of compatible batteries: with lead (car, motorcycle, VRLA/stationary), with liquid electrolyte (SLI, EFB) but also with AGM or Gel. It is NOT intended for lithium (or lithium-iron-phosphate) batteries.

Recommended capacity: 4-150 Ah. It can also charge batteries larger than 150Ah (charging time will be longer). Do not charge batteries smaller than 4 Ah

Battery voltage: 12 Vdc

Supply voltage: 100-240 V / 50-60 Hz

Charging/output voltage: nominal 13.8Vdc, with voltage correction depending on ambient temperature and battery type.

Nominal charging current: maximum 6A

Charging time: about 10-12 h for a 60 Ah battery / about 16 h for the pulse repair function

Display: Led, illuminated; indicate voltage, charging current, temperature, selected mode; indicator for wrong connection or defective battery

Charge completion indicator: FUL = battery charged/regenerated / PUL = regeneration in progress or battery that could not be recovered (defective)

Keys: A single key, tactile, for selection

Wrong connection protection: Yes, short circuit/wrong connection protection and signaling.

Overcharge protection: Yes (the battery can remain connected indefinitely, without the risk of overcharging)

Over-voltage protection in the network: Yes

High temperature protection: Yes (includes cooling fan), protection threshold +65°C (±5°C)

Automatic operation: Yes.

Efficiency: approx. 85%

Ambient temperature for use: -20°C... +40°C

Cables: includes cables with pliers (65cm, red/black) and mains power cable

Fan: Yes (rectifier cooling during charging - automatic operation)

Color: Black/blue

Item dimensions: 22 x 11 x 4.5 cm

Weight: 0.49 Kg

Applicable standards: CB, CE, IEC60335, EN61000, EN55014

Commercial guarantee for natural persons: 12 months from the date of purchase.
