Smart rectifier with desulphation Foton RI-12-7

Description

Automatic rectifier - connect the cables, select the desired charging mode and then everything is controlled by the microprocessor!

Intelligent rectifier (charger), with automated operation via microprocessor and battery regeneration/repair function (with pulse charging) for car batteries or 12V sealed lead-acid batteries, with charging current up to 7A. Compact and with a modern design, it is equipped with an LED display, indicating charging parameters (voltage, current, charge status). It is recommended for 12V lead-acid batteries, including EFB and AGM batteries (for cars with Start&Stop function) or for motorcycle and VRLA batteries.

Being automated, it is very easy to use, even by people without specialized training!

It also has the possibility of pulse charging (extended program of about 18 hours), which performs desulfation, with which you can recondition and use even damaged (sulfated) batteries for a longer period of time.

TECHNICAL SPECIFICATION:

Product type: Intelligent rectifier/charger with microprocessor and charging function including pulses (regeneration of sulfated batteries)

Model: Foton™ RI-12-7 (Foton is a registered trademark, all rights reserved)

Country of origin: China

Usage: Charging lead-acid or LiFePO4 batteries / regenerating (or repairing) sulfated batteries, unused for long periods of time.

Functions: Intelligent 3-stage charging / Pulse charging for desulphation (repairing or regenerating sulfated batteries)

Compatible battery types: lead (auto, motorcycle, VRLA/stationary), with liquid electrolyte (SLI, EFB) but also with AGM or Gel. It is also intended for lithium-iron-phosphate batteries with a nominal voltage of 12-14V.

Recommended capacity: 4-140 Ah. Can also charge batteries larger than 140Ah (but charging time will be longer). Does not charge batteries smaller than 4 Ah

Compatible battery nominal voltage: 12 Vdc

Power supply voltage: 100-240 V / 50/60 Hz / 90W

No-load input power (standby): 2.5W

Charging/output voltage: 14.8Vcc in Auto mode / 14.6V in AGM/Moto/LiFePO4 mode (±0.3V)

Input current: 0.4A @230Vac / 0.8A @110Vac

Nominal charging current: maximum 7A

Charging time: about 8-10 h for a 60 Ah battery / about 16-18 h pulse repair function

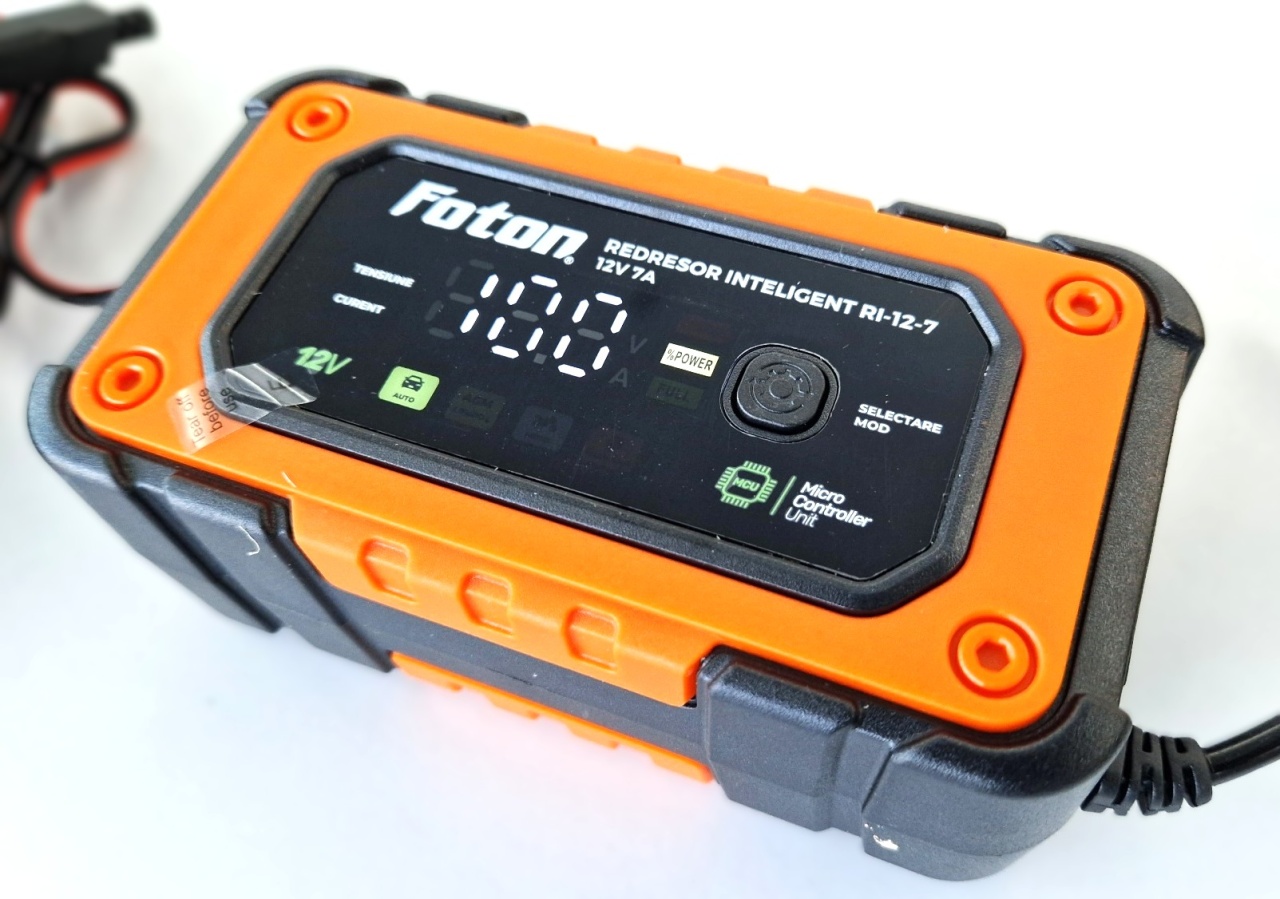

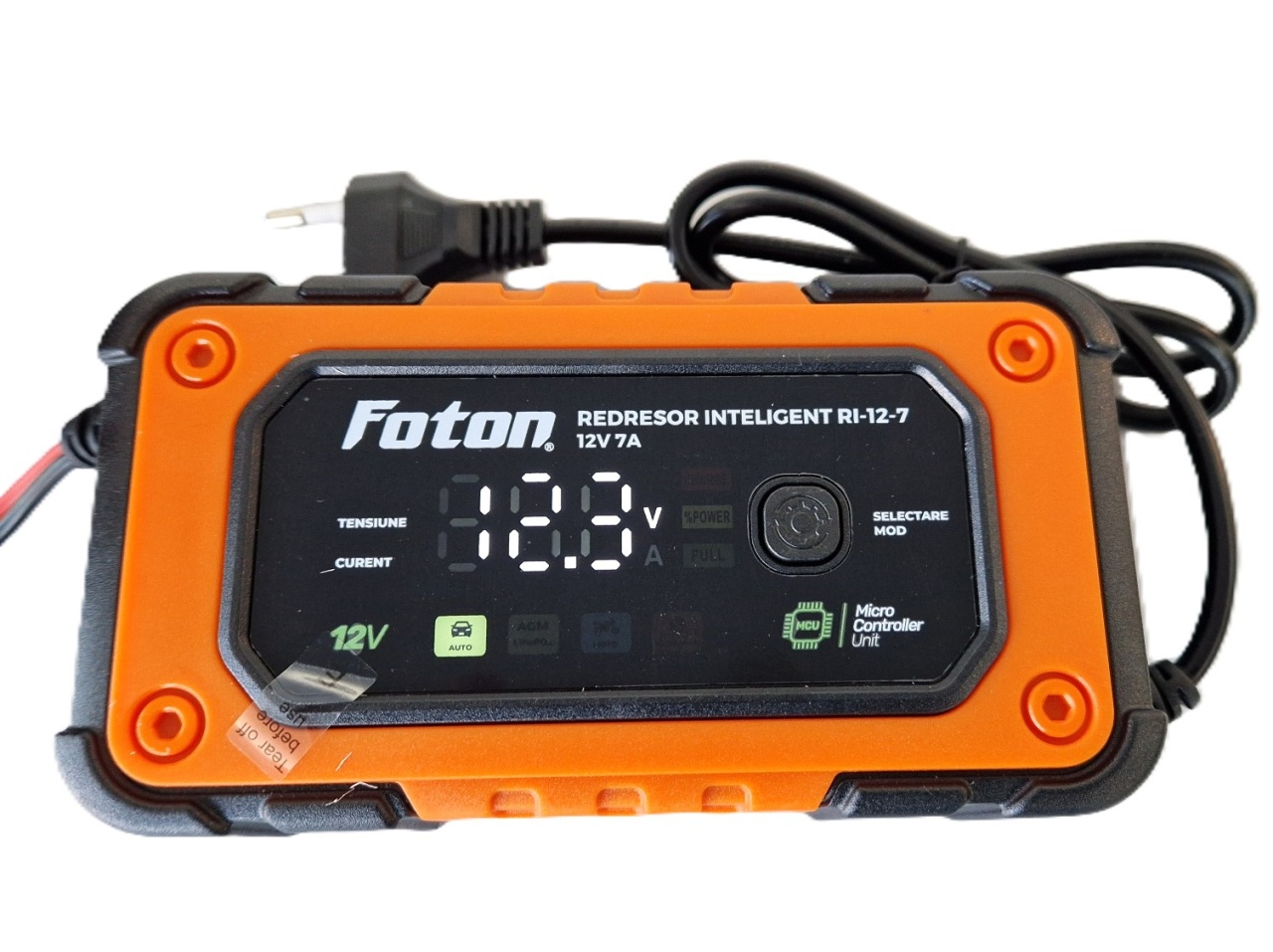

Display: LED, illuminated; indicates voltage, charging current, estimated percentage of battery power; ERROR display for incorrect connection or charging status

Charging completion indicator and other displayed indications: FUL = battery charged/regenerated / PUL = regeneration/desulphation in progress / OFF = standby / ERO = wrong polarity

Keys: Single key for charging mode selection (Auto / AGM+LiFePO4 / Moto / Regeneration

Wrong connection protection: Yes, short circuit/wrong connection protection and signaling.

Overcharge protection: Yes (the battery can remain connected indefinitely, without risk of overcharging, in maintenance charging mode; standby power 2.5W)

Network overvoltage protection: Yes

High temperature protection: Yes (including cooling fan), protection threshold +65°C (±5°C)

Automatic operation: Yes.

Efficiency: approx. 85%

Ambient temperature for use: -20°C... +45°C

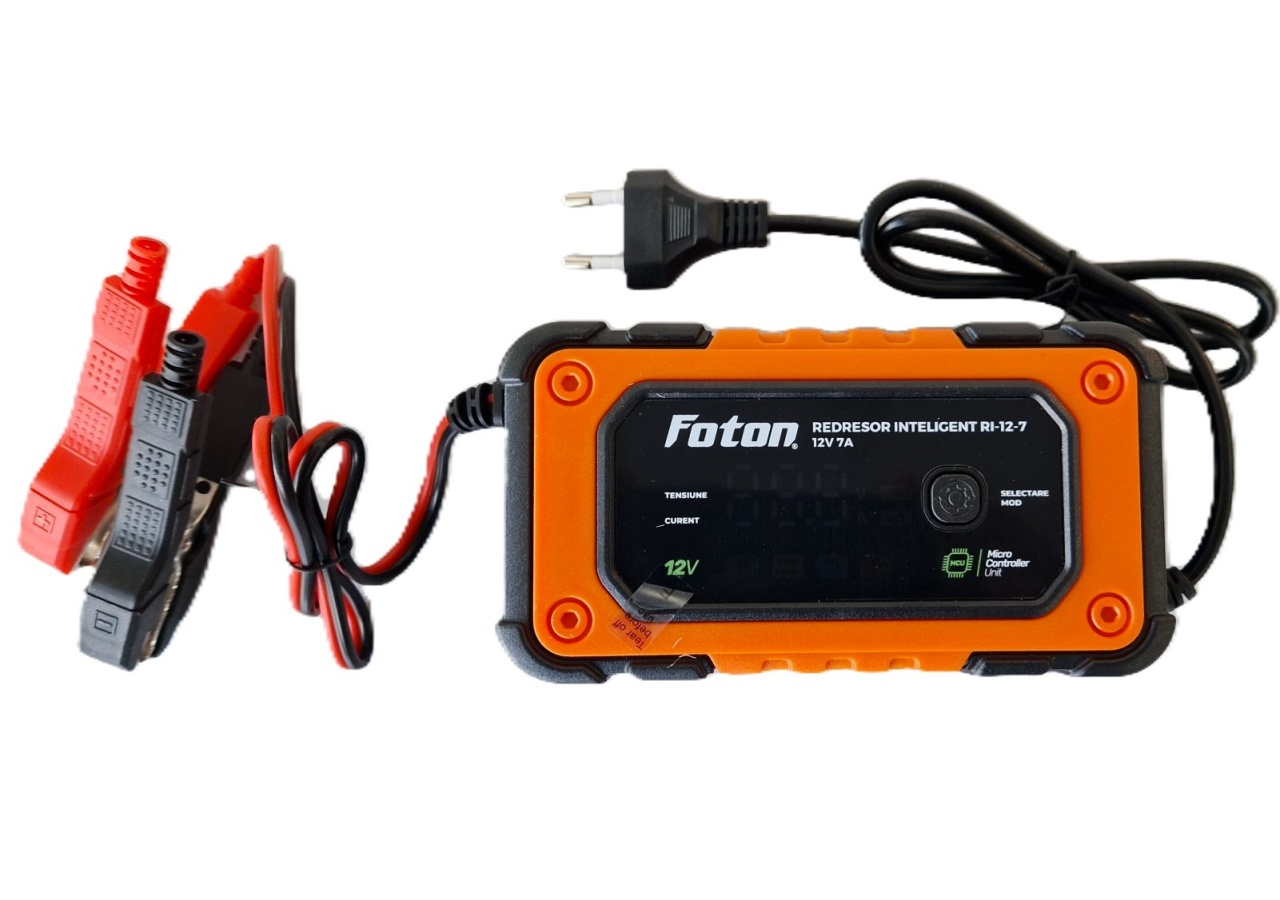

Cables: includes cables with clamps (length 60 cm including clamps, red/black) and mains power cable (length 70 cm including plug)

Fan: Yes (cooling the rectifier during charging - automatic operation)

Color: Black/Orange

Item Dimensions: 15 x 8.5 x 6 cm

Packaging: Glossy cardboard box with premium look and information exclusively in Romanian, box dimensions 23 x 11.7 x 7 cm

Weight: 0.44 Kg net / 0.56 kg gross (with packaging included)

Applicable standards: CE, FCC, RoHS

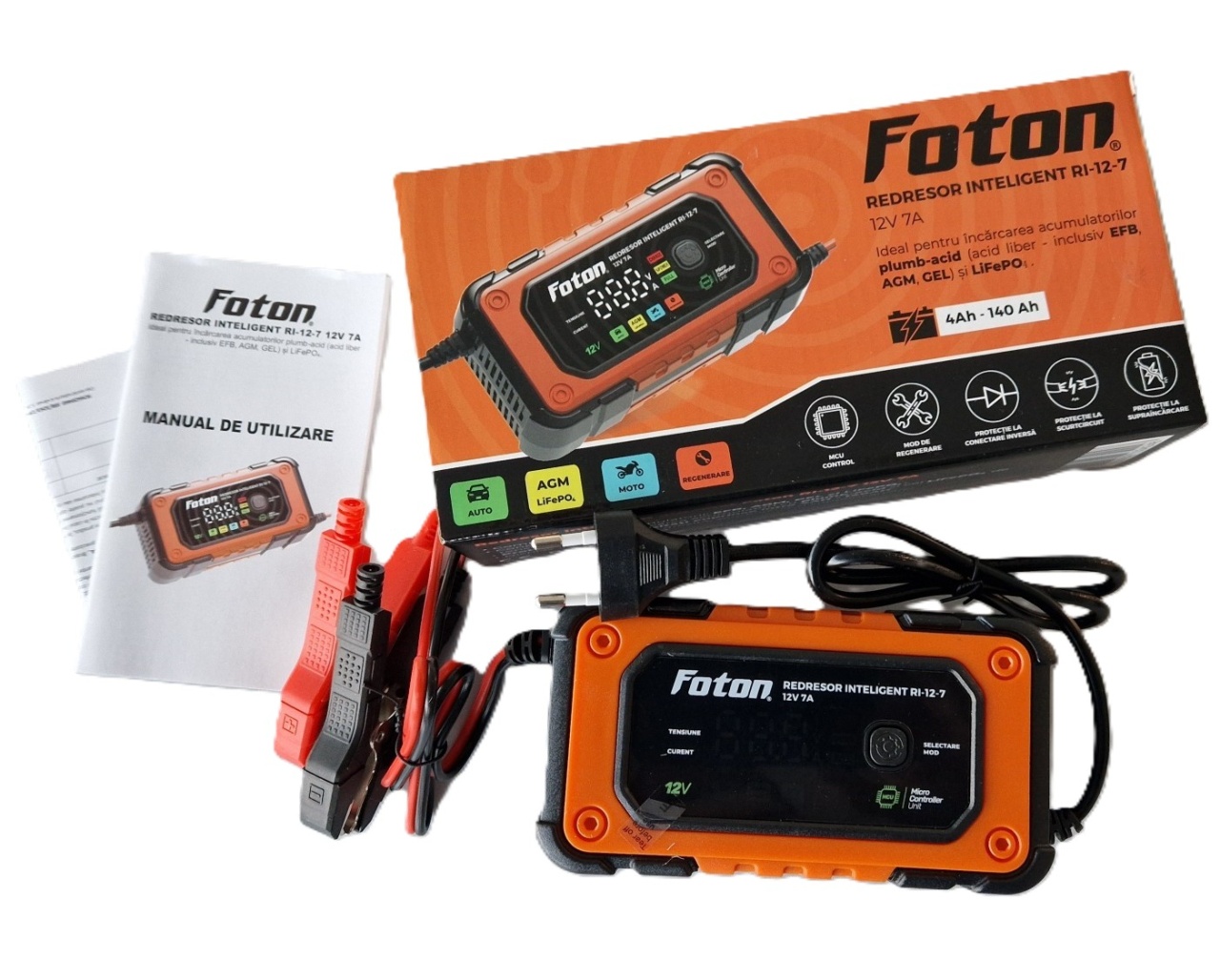

Package contents: Rectifier with cables included (NOT detachable) + Warranty certificate + Instructions (RO+EN+RU+HU)

Commercial warranty for individuals: 12 months from the date of purchase.
