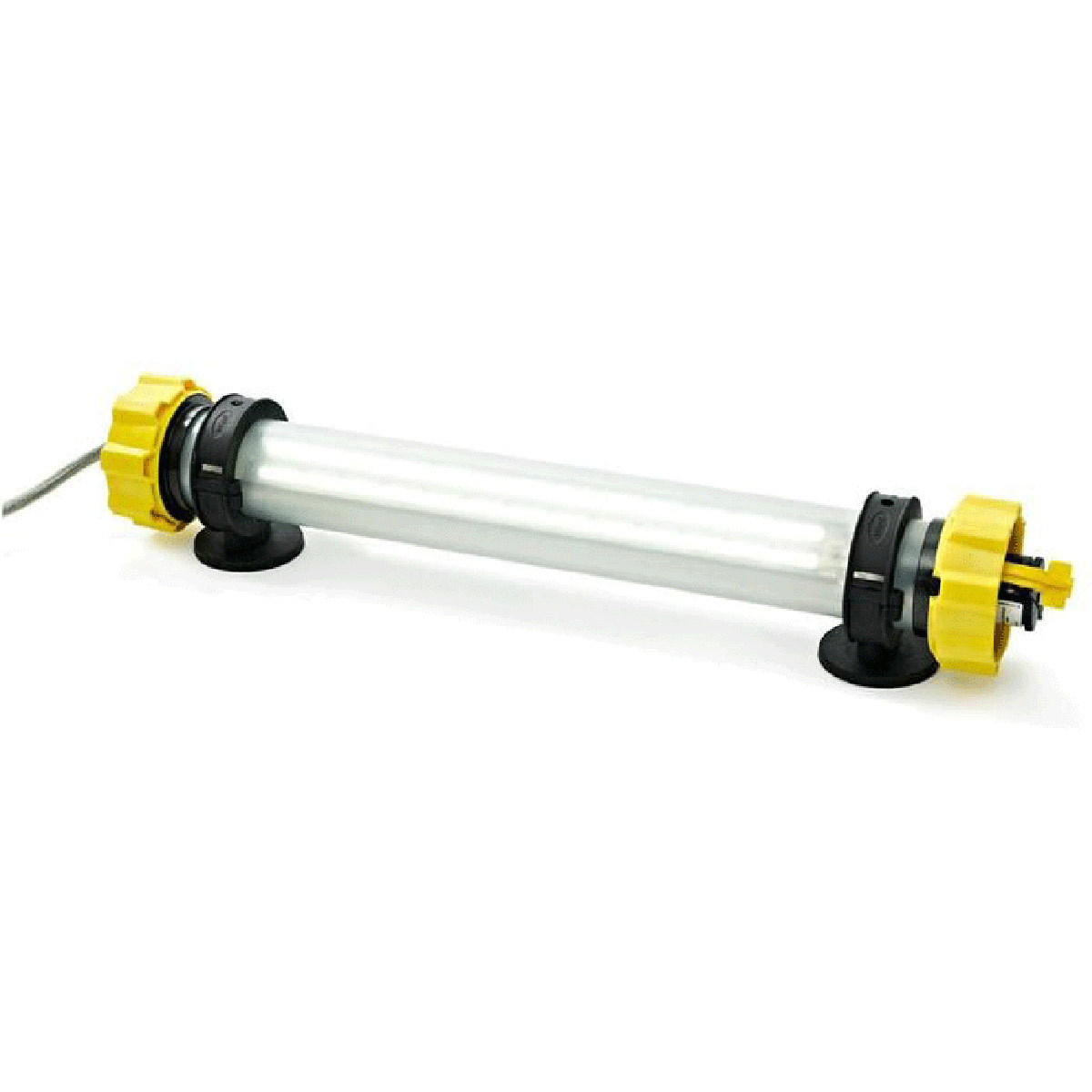

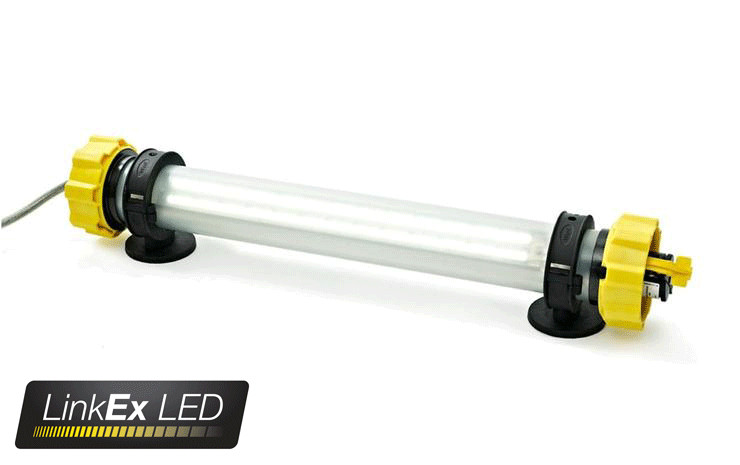

Temporary lighting lamp ATEX LinkEx™ LED LX-400
Description
The LINKEx™ LX-400 LED temporary lighting lamp is ATEX certified for use in potentially explosive atmospheres. The LED lamp is used in short-term lighting installations for maintenance tasks and is CE marked according to the ATEX Directive and IECEx certified for safe use in zones 1 and 2 with potentially explosive gas and dust atmospheres, where a temperature class T3/T4 (depending on the variant chosen) allows.
Available in two versions (choose the desired version when ordering; price varies depending on the version), with different brightness, power and temperature class:
- T4 Low and high voltage (LV and HV)
- T3 High Voltage (HV)
The LinkEx™ LED Temporary range offers high quality lighting. Each lamp uses two high-power LED arrays that provide bright white light, which are highly reliable and are a "lifetime" light source, with low maintenance, allowing for energy savings, longer cables and powering multiple similar lamps from a single source.

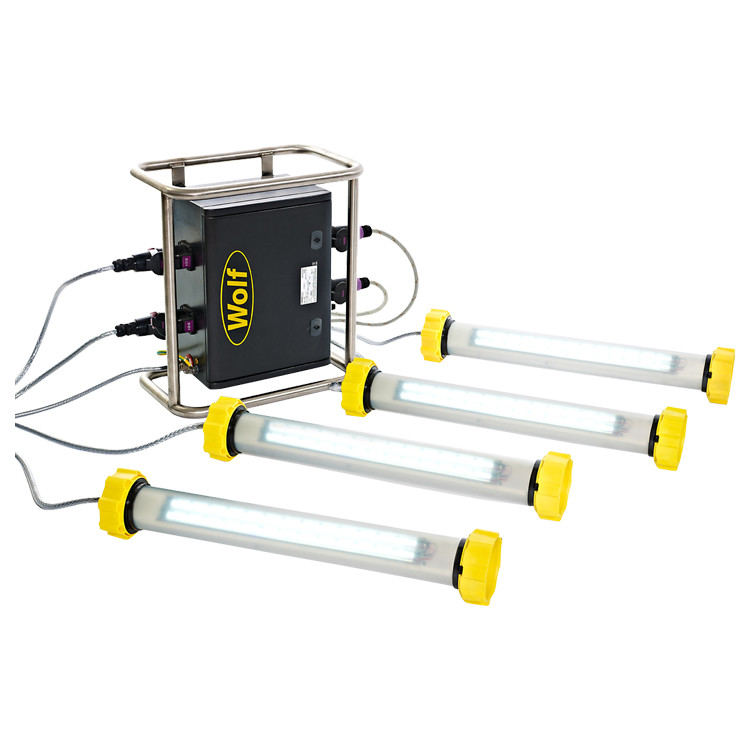

The luminaires are available as standard in 180° format (mounting in rows side by side) to provide efficient unidirectional lighting or optionally in 360° format (mounting in rows back to back), to provide efficient omnidirectional lighting. ATEX and IECEx certified for use in zones 1 and 2 (explosive gas and dust atmospheres), it features the unique SOVI™ (Safe Optimal Voltage Indicator) system:
- T4 - the beam will pulse to indicate if the lamp is not at optimum performance voltage. Safe for 0 volt supply.
- T3 HV - has a colored LED indicator to confirm that the lamp is operating safely
PRODUCT SPECIFICATION:
| Characteristic | LX-400 T4 |
LX-400 T3 |
| Variant description | T4 Low (LV) & High (HV) Voltage | T3 High Voltage (HV) |
| Supply voltage | LV 18-50V AC/DC HV 90-264V AC |
85-264V AC |
| Code |
NON-LINKABLE (No socket) II 2 GD Ex e mb op is IIC T4 Gb (-20°C to +55°C) Ex t IIIC T135°C Db IP67 LINKABLE (Socket fitted) II 2 GD Ex e mb opis IIC T4 Gb (-20°C to +55°C) Ex t IIIC T135°C Db IP66* |
NON-LINKABLE (No socket) II 2 GD Ex e mb op is IIC T3 Gb (-20°C to +40°C) Ex t IIIC T170°C Db IP67 LINKABLE (Socket fitted) II 2 GD Ex e mb op is d IIC T3 Gb (-20°C to +40°C) Ex t IIIC T170°C Db IP66* |
| Temperature class | T4 |
T3 |
| Material |
Polycarbonate with anti-static coating | |
| Protection type | "e" increased safety, "mb" encapsulation, "d" flameproof |
|
| Classification area (Gas) | Zone 1 & 2, Gas Groups IIA, IIB, IIC |
|
| Classification area (Dust) | Zones 21 and 22 | |
| Certified | SIRA12ATEX3177X, IECEx SIR 12.0070X | |
| Light source | LED |
|
| Beam type | Wide angle, 180° diffused light or optional 360° | |
| Average LED life span | > 60.000 hours |
> 60.000 hours |
| Power | 24VAC ≈27W (42VA) 48VAC ≈27W (51VA) HV ≈ 26W |
≈32W |
| LED brightness | 4000 lumens (at source) | 3250 lumens (at source) |
| Maximum surface temperature | 135°C |
170°C |
| Ambient temperature | from -20°C to +55°C | from -20°C to +40°C |
| Weight (Non-linkable) | 3 kg (without cable) | 3.6 kg (without cable) |
| Water protection | Non-linkable IP67 / Linkable IP66 |
|
| Included accessories | Lens protection film (LX-545), protective case kit (LX-621) and hanging straps (LX-654) | |
| Size |
706 x 128 mm (L x Ø) |
|
| Light beam angle | 180° / 360° |
|
