Name: Certified inspection lamp Wolf TY-300 ATEX
Brand: Wolf Safety Lamp

Description

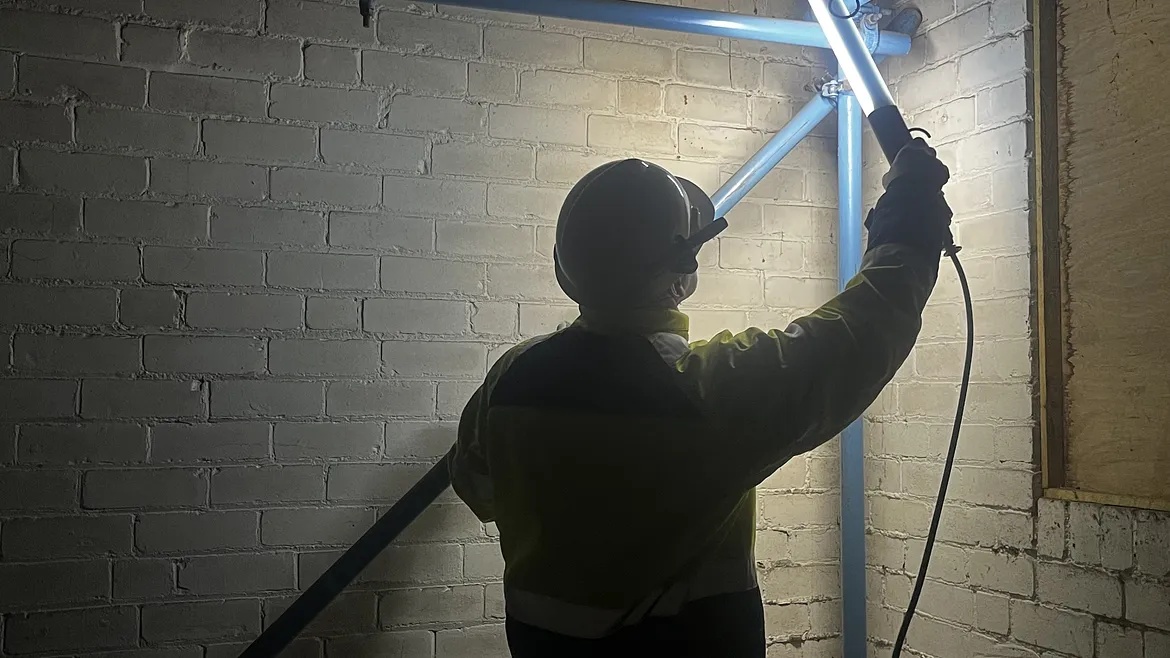

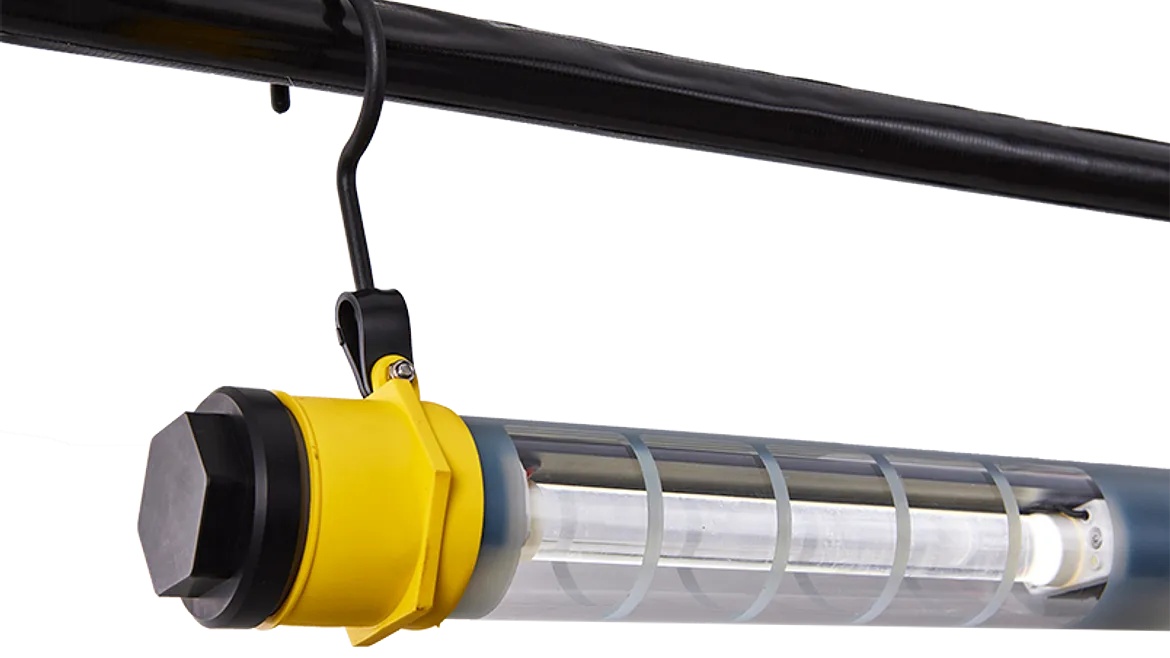

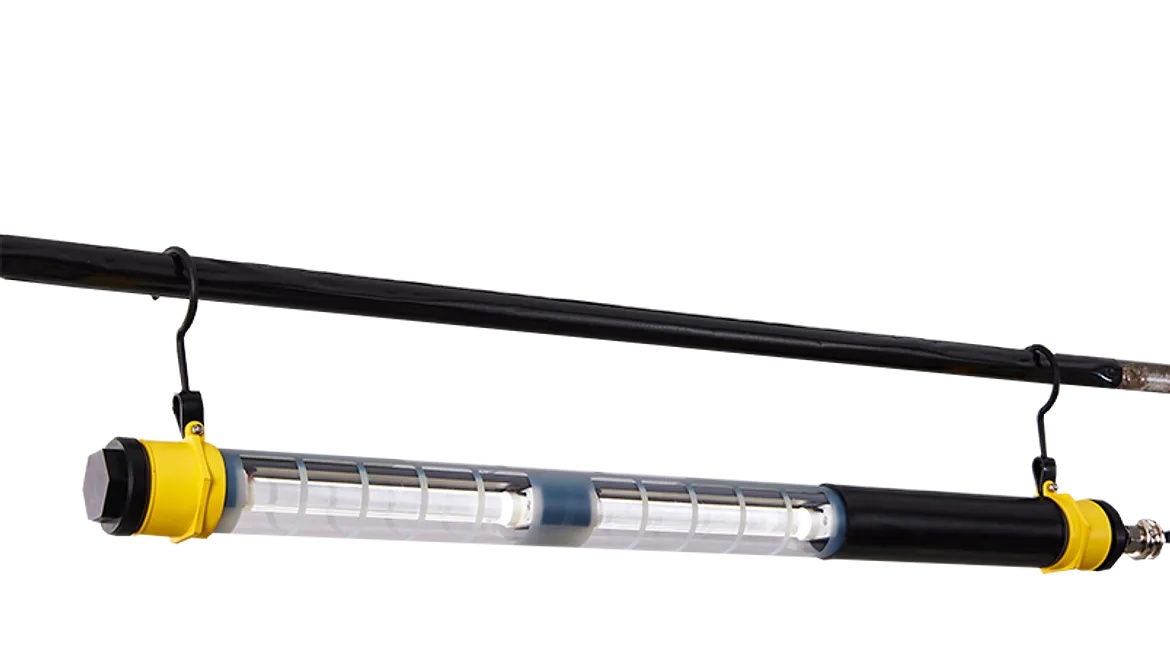

The Wolf TY-300 is a compact, lightweight, portable and ATEX Zone 1/21 certified lamp that can be used by professionals for inspection work, handheld or suspended with the integrated swivel hooks. Its engineering and low-maintenance design make it a practical choice for harsh environments.

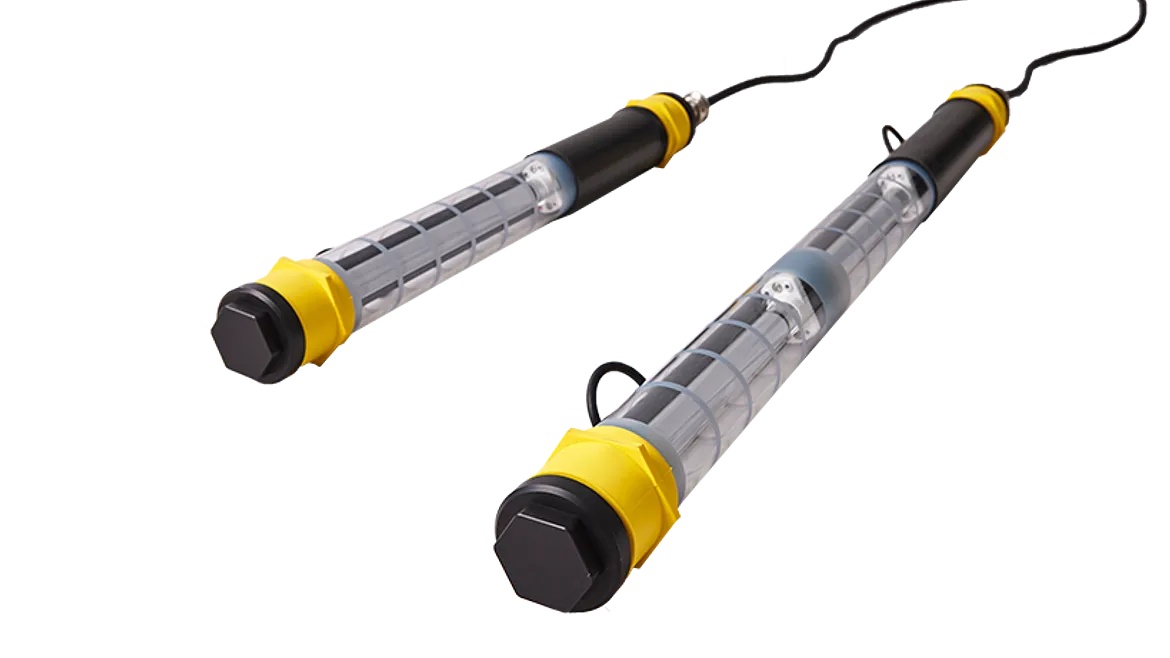

Available in two size options (choose the desired option when ordering; price differs depending on the option): 640 or 910 mm. As standard, we offer them with 230V power supply, but optionally they can also be offered in the 110V version - request a offer here.

TECHNICAL SPECIFICATION:

Model	TY-300 /18/H0FR10/ATX230	TY-300 /26/H0FR10/ATX230
Variant description	ATEX LED Portable Inspection Lamp
Supply voltage	180-277 Vac 50/60Hz
Code	II 2 G Ex eb mb IIC T4 Gb II 2 D Ex tb IIIC T80°C Db
Temperature class	T4
Material	Polycarbonate tube with anodized aluminum ends
Classification area (Gas)	Zone 1 & 2, Gas Groups IIA, IIB, IIC
Classification area (Dust)	Zones 21 and 22
ATEX certificate no.	ExVeritas 24ATEX1826X / IECEx EXV 24.0024X / ExVeritas 24 UKEX 1827X
Light source	LED 1 x DLO*	LED 2 x DLO*
Beam type	Wide angle, work light
Maximum input current	0.1 A	0.15 A
Input power	18W	26W
LED brightness	1005 lumen	1390 lumen
Maximum surface temperature (dust)	80°C	80°C
Ambient temperature	from -20°C to +40°C	from -20°C to +40°C
Weight	1.6 kg (without cable)	2.0 kg (without cable)
Water protection	IP66
Dimensions (with hooks extended)	640 x 171 mm	910 x 171 mm
Other	2 swivel hooks included / 10 m of 3-wire cable x1.5mm2 type H07RN-F included
