Submersible air compressed lamp Wolf ATEX Turbolite

De la RON 10,168^.06 / Buc. (VAT included)

Delivery costs are not included

How can we help?

Ask for details

Description

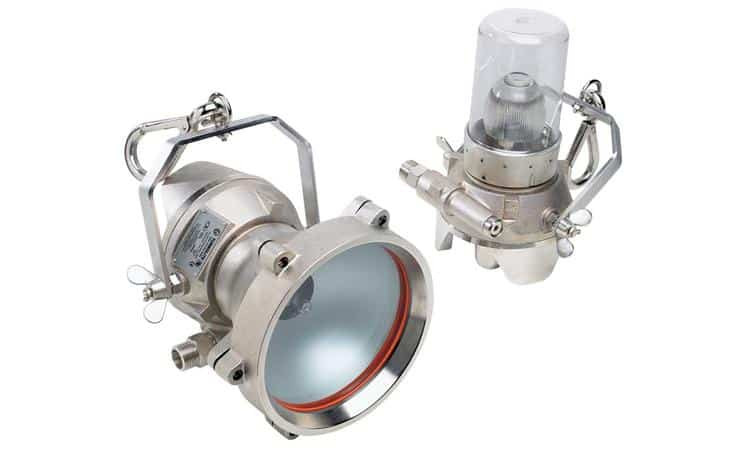

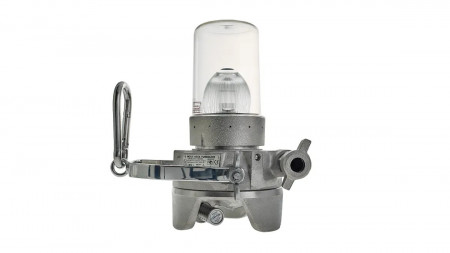

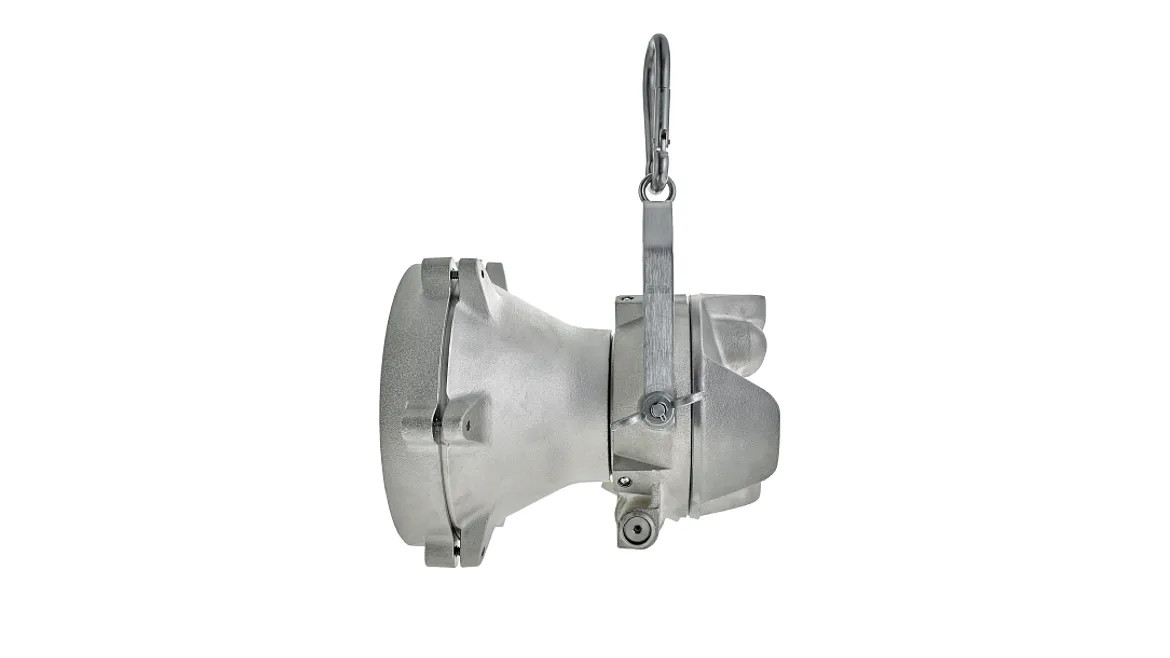

Wolf Turbolite (UK) air lamps provide illumination for blasting, cleaning and coating of tanks and vessels, oil tanks and pipelines and structural engineering activities, offering a safer alternative to mains and low voltage lighting where explosive atmospheres pose a serious risk to operators. Variants in this range include: Bay - provides a high level of general illumination, and Flood - has a matt reflector providing a wide angle diffused beam. Available in aluminium (A) or brass (B), suitable for use in gas mines, all lamps are nickel plated to protect against corrosion and are supplied with a safety clamp and hook.

The ATEX Turbolite is powered, purged, pressurized and cooled with compressed air controlled by an integrated regulator, which passes through the lamp head and drives the turbine wheel via three nozzle plates. The turbine drives a rotor, generating the 24 volt AC electrical source that powers the 250 watt halogen bulb. Major improvements over other models include sealed bearings, refined regulator, greater use of stainless steel components, bulb life extension device, and particulate filter muffler.

Special conditions of use, according to certification: clean and dry compressed air and antistatic air hose to minimize contamination inside the lamp and the dangerous accumulation of static electricity. A “remote exhaust” must be used to exhaust the air to a safe area. Available accessories include antistatic hoses, filters and holders, tripods, adjustment and testing devices.

Available in four variants (choose the desired variant when ordering; price differs depending on the variant)

PRODUCT SPECIFICATION:

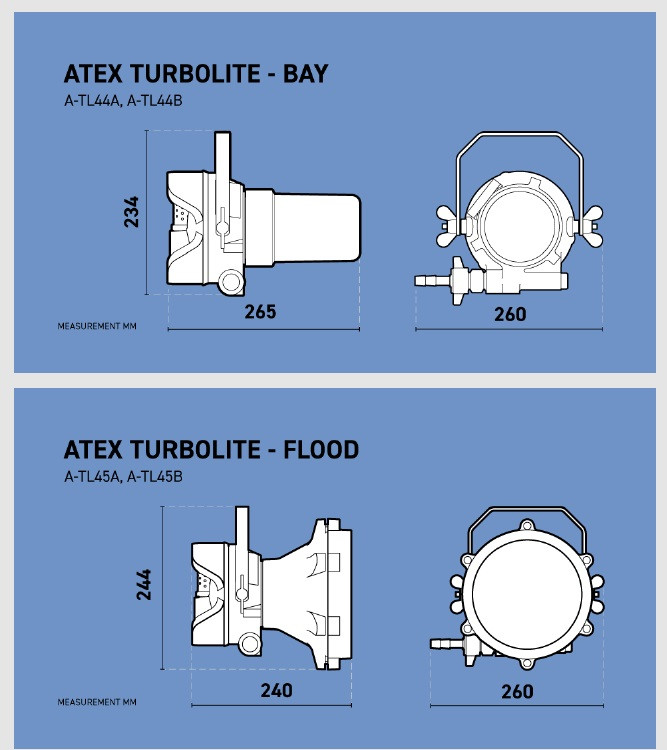

Feature/Model	A-TL44A	A-TL44B	A-TL45A	A-TL45B
Coding - ATEX	II 2 GD II T4 (Tamb = 55°C) T135°C
Coding - Mining	-	I M2	-	I M2
Device standard	EN1127-1:2011
Classification zone - Gas	Zones 1 and 2 (Z1 and Z2), gas groups IIA, IIB and IIC
Temperature class	T4
Classification zone - Dust	Zone 21 and 22
Max.surface temp.	T135°C
Ambient temperature	-20°C...+40°C
ATEX certificate	CML18ATEX9374X
Housing	Aluminum	Brass	Aluminum	Brass
Lens	Glass globe/Plastic dome	Glass globe/Plastic dome	15mm tempered glass	15mm tempered glass
Spot type	360°	360°	Flood/diffuse	Flood/diffuse
Light source	Halogen bulb with filament 24V 250W (code Wolf A-129 2000 hours/ alternative A-159 200 hours)
Luminosity	6000 lumens (9000 lumens with A-159 bulb)
Energy source	Turbo Alternator based on compressed air
Air pressure	5.0 - 8.0 bar
Consumption	0.75m³/min
Protection level	Once pressurized it can be used underwater. When using underwater, always turn on the lamp before diving and ensure that the lamp is working until it is removed from the water. An additional accessory can be fitted allowing an exhaust hose to be fitted, either to bring the exhaust air away from the lamps or through the pipe to the surface. Depth limitations of use must be taken into account in relation to water pressure.
Weight	5.5 kg	9.4 kg	7.1 kg	13.5 kg
