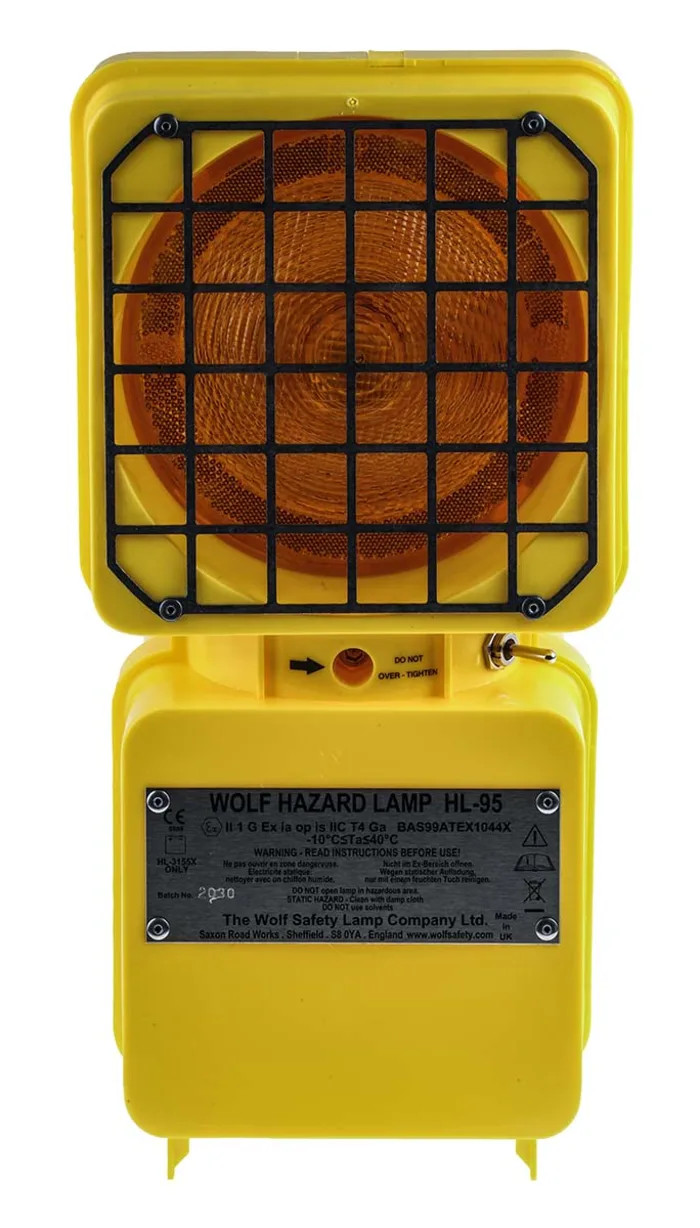

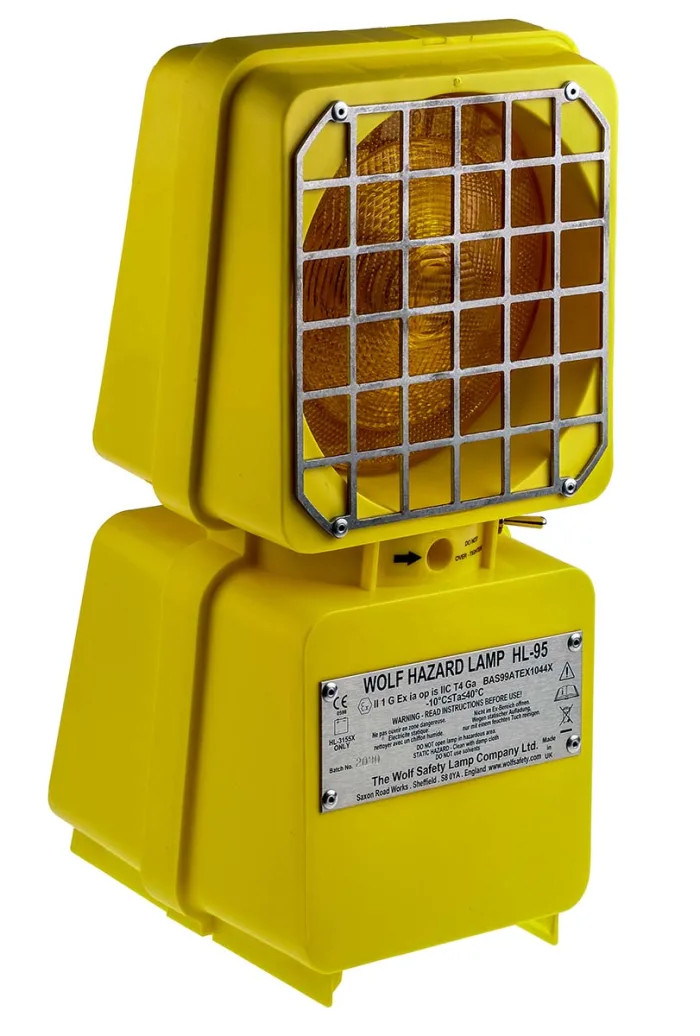

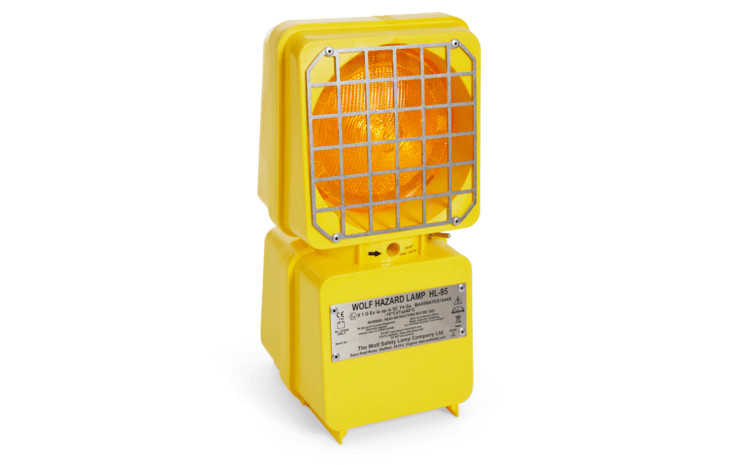

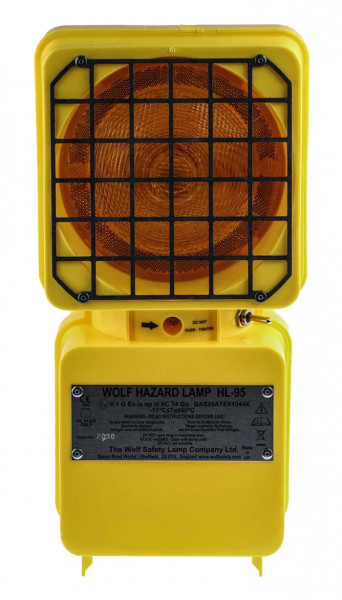

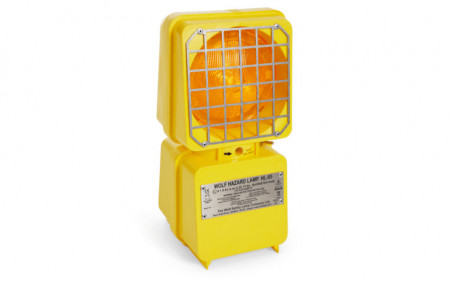

Warning lamp ATEX Wolf Hazard Lamp HL-95

Description

The professional signaling/warning lamp from the British manufacturer Wolf Safety Lamp, model Hazard Lamp HL-95 Zone 0, 1 and 2, is a semi-portable, freestanding lamp with light sensor, used to provide continuous or intermittent warning light and is CE marked according to the ATEX Directive for safe use in hazardous areas with a potential risk of explosion.

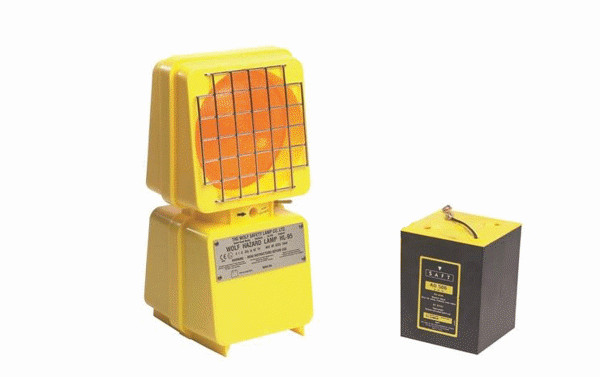

The HL-95 is powered by a primary battery, which has an exceptionally high capacity for a relatively light package size and weight. A single battery provides a continuous flashing light duration of up to 1500 hours or two months. In static mode, where the lamp is continuously on, the duration will be up to 500 hours.

The lamp's operation and selection of flashing or static mode is achieved by a single three-position switch mounted on the exterior of the lamp. A further extension of battery life can be achieved by selecting the "daylight off mode" via the selector mounted inside the switch. If the lamp is used outdoors, a light sensor detects when darkness falls and activates the lamp accordingly. Likewise, when the light level increases, it automatically turns off, saving battery life. It is estimated that a lamp that flashes on and off in daylight can operate for up to six months on a single battery.

The HL-95 has two lenses positioned "back to back" thus providing an intensity greater than 2cd. The light is provided by a pair of "eternal" light-emitting diodes. The use of such solid-state devices allows the lamp to be placed in explosion hazard zones 0, 1 or 2. The diode light is colored amber and is positioned behind a transparent plastic lens. The lens are protected from damage by a stainless steel guard mounted directly to the impact-resistant bracket on the static dissipative polypropylene lamp body.

PRODUCT SPECIFICATION:

Manufacturer: Wolf Safety Lamp Company - United Kingdom

Product type: ATEX certified warning light for use in areas with potential explosion risk

Model: HL-95 Hazard Lamp

Materials: Antistatic polypropylene with metal lens protection. Transparent plastic lens with light coloring at the source

Code: II 1 G Ex ia op is IIC T4 Ga

Protection type: "i" intrinsic safety

Classification zone: Zones 0, 1 and 2, Gas Groups IIA, IIB and IIC

Temperature class: T4

Ambient operating temperature: From -10°C to +40°C

Certificate: BAS 99 ATEX 1044X

Light source: Solid State LED, color "Amber" (amber-orange)

Light intensity: ≥ 2 cd

Lighting modes: Flashing / static (continuous)

Automation: Yes - automatic on/off with light sensor included

Power source: Primary depolarized air battery (non-rechargeable). Battery included. For separate purchase, request a quote here.

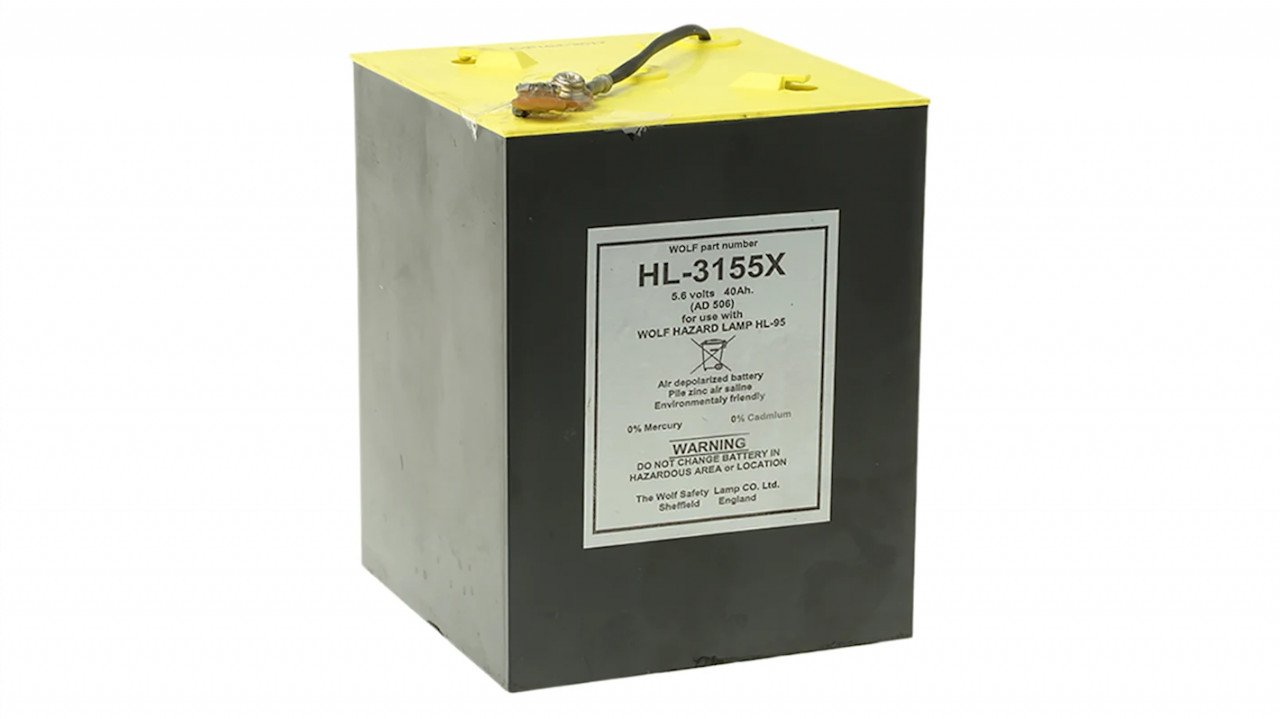

Replacement battery code: Wolf HL-3155X

Battery voltage: 5.6 V

Battery capacity: 40 Ah

Battery weight: 1.7 kg

Battery sizes: 110 x 110 x 140 (h) mm

Battery life: 1500 hours in intermittent mode / 500 hours in static mode

Water and dust protection/Sealing degree: IP21

Product sizes: 180 x 165 x 355 (h) mm

Product weight: 2.9 kg including battery / 1.2 kg without battery

Product certifications: ATEX Z0, Z1 and Z2 EX / IP21 / CE / NATO

Do not throw away used batteries. Please hand them over to authorized collection centers.
