Anti-ex lighting system Wolf ATEX Towerlite WTL-230V

Description

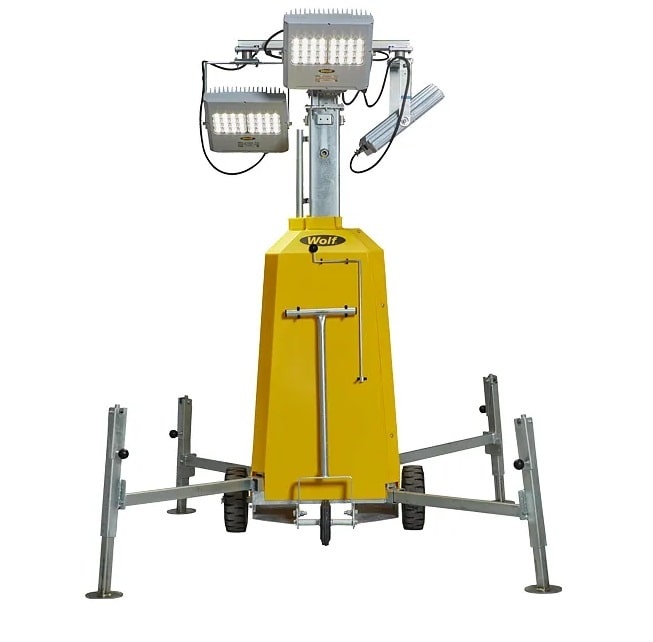

The WTL Wolf Atex Towerlite™ professional temporary lighting system is a powerful, robust solution and is ATEX, IECEX and UKEX certified for potentially explosive areas Zone 1, 2 / 21, 22. The system can extend up to 5.4 meters in height and is equipped with three LED projectors with independent and adjustable orientation, LFX2. The tower provides up to 78,000 lumens of intense, bright light for indoor or outdoor illumination of medium to large sized areas.

The WTL ATEX Towerlite™ is a fully certified light tower solution designed to provide a large and wide spread of bright light across medium to large sized hazardous (explosive gas risk) work spaces. Consistent and uniform light distribution, delivered from a height of up to 5.4 meters, reduces shadows and glare helping to reduce accidents and enable work tasks to be performed efficiently and effectively.

Features and benefits

A fully certified ATEX, IECEx and UKEX hazardous area lighting solution for gas zones 1 and 2 and dust zones 21 and 22, offering:

• A wide spread of bright, uniform light, providing consistent, even light distribution, reduces shadows and glare
• Improved safety: helps reduce accidents by providing better visibility and minimizing dark areas.
• Increased productivity: Clear vision allows for efficient and effective completion of work tasks
• Extendable to a height of 5.4 m for excellent high-level lighting
• Up to 78,000 lumens of high-quality, ultra-bright light from 3 x LFX2 Floodlites
• IP66 - ideal for both indoors and outdoors
• Fully adjustable with individual rotation and tilt
• Supplied with HO7RN-F cable for Towerlite™ input and output
• Supplied with ATX, CEAG, Marechal or Stahl Ex plug
• Available in 110V or 230V versions
• Easy to handle and set up in minutes by a single operator
• Approximate weight 320 kg
• Integrated fork truck pockets for easy on-site transport
• Suitable for use in winds up to 40 mph/64 km/h
• Socket options available for tower interconnection

Product country of origin: United Kingdom

TECHNICAL SPECIFICATION:

Brand and manufacturer: Wolf Safety Lamp Company - United Kingdom
Product range: ATEX Towerlite - towers for temporary lighting in potentially explosive areas (indoor and outdoor)
Product code: WTL-575/230 or WTL-230V

ATEX coding: II 2 G Ex eb mb IIC T4 Gb / II 2 D Ex tb IIIC T110°C Db

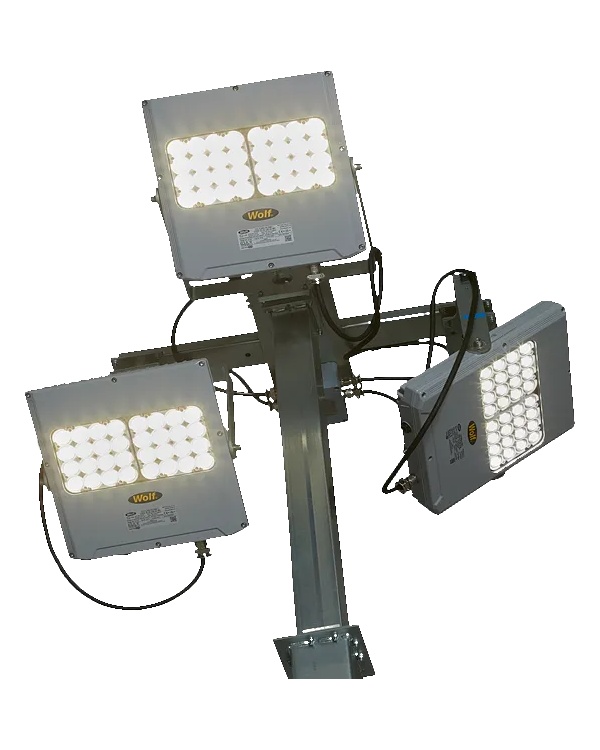

Number of floodlights: 3 x Wolf LFX2 Floodlites
Light source: LED, 32 LEDs per floodlight

Beam angle: 62° (for each reflector; reflectors can be oriented independently of each other)
Brightness: max. 78000 lumens
Light color: 5000K

Supply voltage: 180-277 Vac 50-60Hz (optionally, the WTL-110V model with 88-140Vac 50-60Hz power supply can also be offered - request a offer and delivery time indicating the desired option)
Input power: 3 x 180W

Connection options: ATX, CEAG, Marechal, Stahl

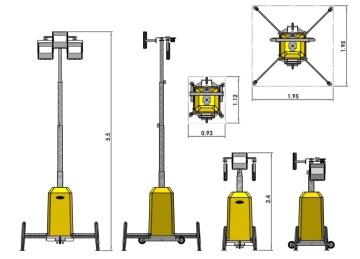

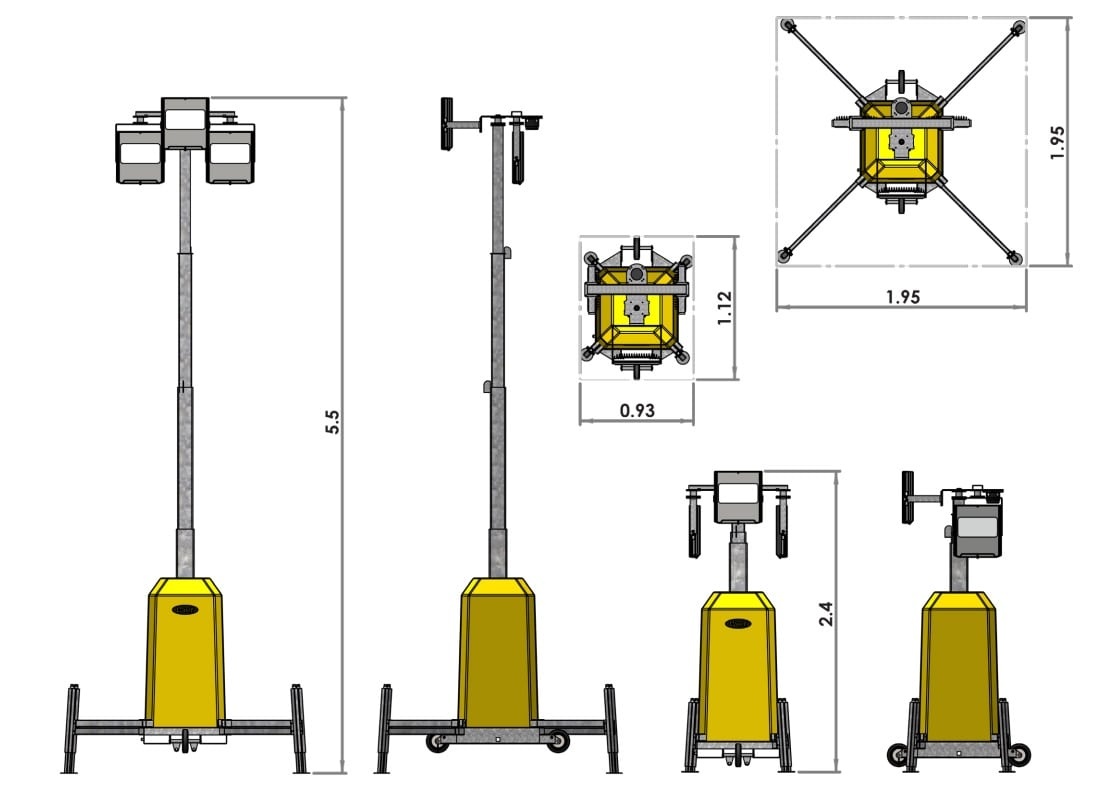

Height: 5.4 m extended / 2.4 m collapsed
Dimensions (extended): 1.95 x 1.95 x 5.4 m
Dimensions (collapsed): 0.93 x 1.12 x 2.4 m
Ambient temperature: -20°C ... +49°C

Water resistance: IP66 certified - weatherproof, can be used outdoors and can be extended in wind conditions up to 64 km/h if correctly fixed to flat surfaces
Weight: ~320 kg (including projectors)
Certifications: ATEX Z1, Z2, 21 and 22 / IECEx / UKEX / IP66
ATEX certificate: ExVeritas 19 ATEX 0586X / IECEx EXV 19.0079X / ExVeritas 21 UKEX 0939X
Example installation and operation mode:
