Professional mini flashlight WOLFLITE M-70 ATEX Z0

Description

The Wolf (UK) technical team has developed the new M-70 Mini LED flashlight to fully meet the latest and strictest safety standards, designed to protect people working in potentially explosive dust atmospheres. The latest harmonization of ATEX and IECEx standards means that it is now much more difficult for Ex-rated torches and flashlights to reach the highest and safest level of dust certification – Zone 20 – and almost all equipment previously certified as Zone 20 would not reach this rating if they were tested according to the new standards.

Our new mini LED flashlight for hazardous area inspections, the M-70, has been specially designed by the technical team in Sheffield to meet these requirements and has passed the necessary tests for this increased level of safety. Wolf CEO Alex Jackson is delighted with the new torch, saying: "It's the best certified product in the Wolf range and can be taken anywhere. It's waterproof, can be used in 0/20 areas with potential gas and dust explosives. In fact, it's the ideal flashlight to take anywhere."

The most significant change in the latest harmonized standard is the recognition of dust subgroups, where previously they did not exist. Are:

IIIA – Combustible powders

IIIB – Non-conductive dust

IIIC – Conductive dust

Other changes include a demand for improved mechanical protection in the case (to ensure that electrically conductive dust cannot enter the circuit with unwanted and potentially serious consequences) and a number of new requirements for the materials used in the case.
The new M-70 inspection torch provides that extra protection and gives users the peace of mind and safety they are looking for when working in potentially explosive atmospheres. Its mechanically protected housing prevents dust from entering the place where the batteries and the circuit are located - even if the flashlight is subjected to mechanical force or damage. This means that it can be taken into an atmosphere where electrically conductive dust is present. In common with all the flashlights in the Wolf Mini & Micro range, it is ergonomically designed and made of high quality thermoplastic resin, with excellent resistance to impact and chemicals.
The spotlight beam has a wider edge with CREE LEDs that emit a light output of up to 107 lumens, powered by 2 easily available AAA batteries. The duration is up to 7 hours. IP67 certified, the M-70's polycarbonate lens is recessed into the lens ring to minimize the risk of damage. Other features include a lanyard hole and a pocket clip for secure retention and to prevent rolling on a flat surface. Its switch is a button for one-handed use and is encased to protect against accidental operation.

SPECIFICATION:
Brand/Manufacturer: Wolf Safety Lamp Company - Great Britain

The range of flashlights: Minis and Micro - professional inspection lamps, Atex certified for use in areas with potential explosion risk

Field of use: Inspection in the field of refining, gas stations, mines, flour mills, sawmills, etc.

Flashlight model: M-70

Material: Impact-resistant thermoplastic, anti-static polycarbonate lens

Switch: tactical, in the tail of the flashlight, easy to use with one hand

Number of phases: 1

Light source: LED CREE High Power

Average life of the LED: 25000 hours (not designed to be replaced later)

Brightness: 107 lumens / 80 lux peak brightness at a distance of 2.5 m in the central spot with a diameter of 1 m

Spot type: Medium - angle of 74.5º for the total spot and 22.6º for the central spot that offers maximum brightness

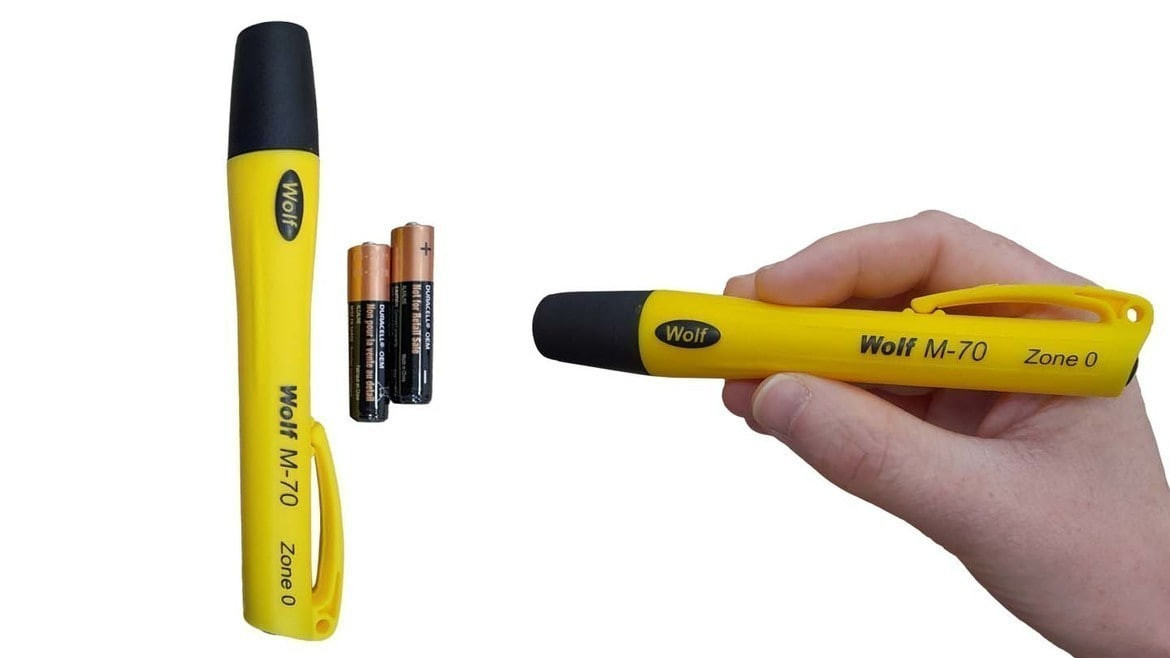

Power source: 2 x AAA alkaline battery (LR03), IEC60086. The batteries are included and can be replaced later with ones with the same specification (Wolf code for replacement batteries M-202)

Supply voltage: 2 x 1.5 V (3 V)

Battery autonomy: up to 7 hours (depends on environmental conditions)

High temperature resistance class: T4/ 160°C

Recommended temperature range: -20°C... +40°C

Sealing against water and dust: Yes, IP67 certified

Anti-explosion protection: ATEX I M1/II 1GD / Gas Ex ia IIC T4 Ga / Dust Ex ia IIIC T200 160°C Yes / Mining Ex ia I Ma

Type of protection: ia / ib

Protection zone: Gas Zones 0, 1 & 2, Gas group IIC / Dust 20, 21 & 22, Dust group IIIC

Certified codes: Baseefa06ATEX084 / IECEx BAS 06.0023 / BAS21UKEX0435

Other: pocket clip / cord hole

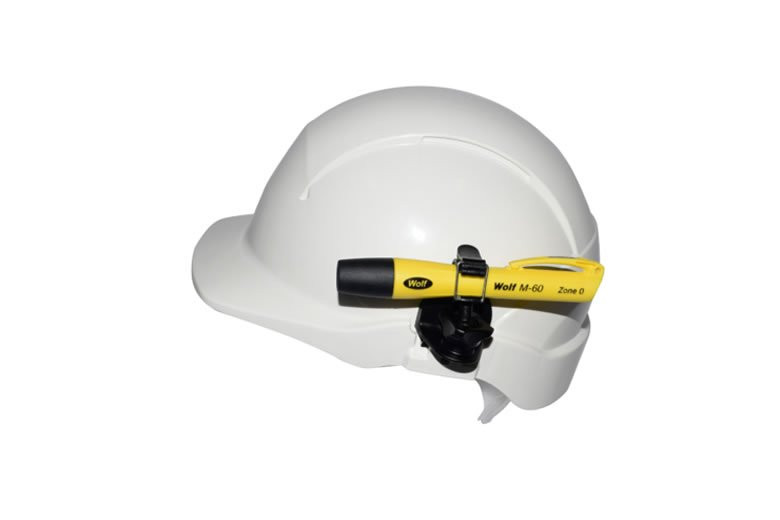

Optional accessories (to be purchased separately, additional cost): Helmet attachment support, Wolf code: M-660

Dimensions: 146 x 27 (Length x maximum width) / 22 mm reflector diameter

Weight: 50 grams (including batteries)

Certifications: Atex Z0 / Atex Z1 / Ex / IECEx / CE / IP67

 Do not throw away used batteries. Please hand them over to authorized collection centers.
