Lighting Kit ATEX LinkEx™ Tank 4xWF-300XL
Description
LinkEx™ tank lighting kits from Wolf Safey Lamp Company - UK, all ATEX certified, provide low voltage temporary lighting solutions for Zones 1 and 2 (Gas) and 21 and 22 (Dust), hazardous areas where explosive gases, vapours, mists and dusts may be present in an enclosed space.
The sets allow flexible configuration of high-quality task and ambient lighting to suit all working conditions in tanks and vessels and offer workers a high level of safety through a simple configuration of:
- 4 pieces of floodlights Linkex™ WF-300®XL LED Floodlite - is a high-performance, robust, lightweight and portable ATEX LED floodlight for use in potentially explosive atmospheres. With its innovative and patented light engine, it delivers a remarkable level of white light and is fully compliant with the latest ATEX and IECEx standards, including OP IS - optical intrinsic safety.
- ATEX transformer from 230 V to 24 V
- Cables and connectors
- Protection and mounting accessories
Recommended applications for these products include inspection of oil tanks, ships, tankers, rail cars, tank cleaning and routine inspection and preventive maintenance work encountered in the oil and gas, aircraft, petrochemical, dangerous goods transport (ADR) and utility networks.

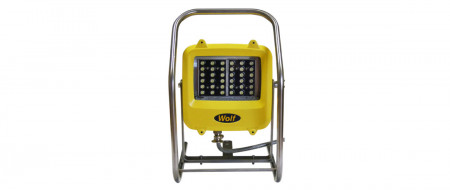

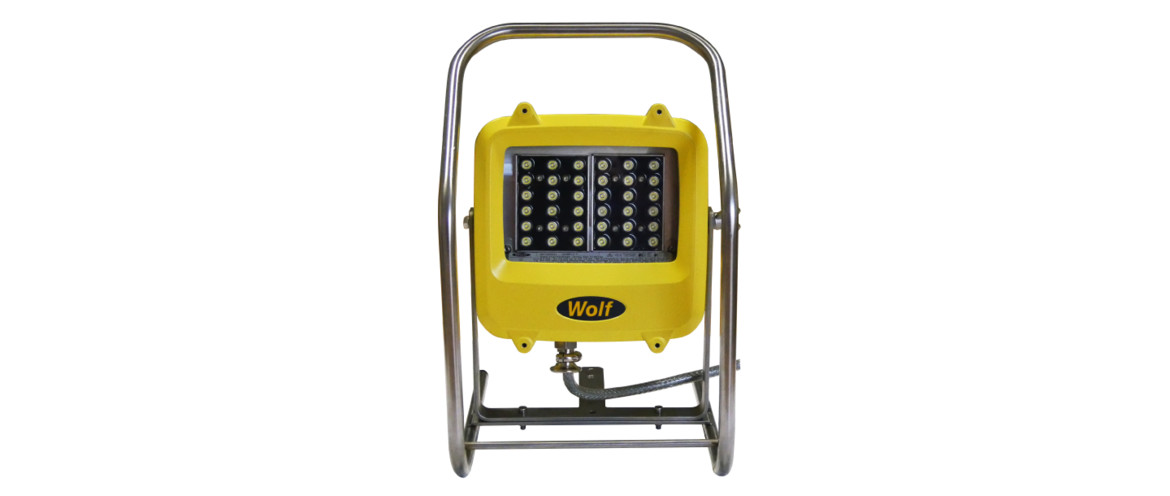

The LINKEx™ WF-300XL LED floodlight is designed to provide high levels of light for working in dark spaces in hazardous areas, with a risk of fire or explosion and is available in two power supply options: 18-50 V and 90-264 V. The projector is certified for use in Zone 1, T4, II 2 G D Ex eb mb op is IIC T4 Gb, between -40 °C and + 55 °C. in conditions of hazardous/explosive gases, vapors, mists or dusts.
A single WF-300®XL projector produces a class-leading 6378 lumens of bright white light that effectively illuminates your workspace, using a low power of 55 (LV) / 62 (HV) watts. Shading is reduced with multiple light sources – two independent drivers and two independent LED panels of 18 LEDs, each LED having an encapsulated optic. This patented design offers a 33-degree beam angle that provides long distances and wide area illumination. The highly reliable LEDs are designed to offer lifespans of over 100,000 hours, with the LED lifespan also being ensured by efficient heat dissipation through built-in fins and electronic thermal control.
PRODUCT SPECIFICATION:
Manufacturer: Wolf Safety Lamp Company - United Kingdom
Product Type: LinkEx™ Tank Lighting Kit
Product variant: 4 x WF-300XL / code LL-255/T3, with transformer from 230V to 24V / stainless steel
Transformer supply voltage: 230 V ac/dc
Transformer model included: SS 230V LL-233/T3 400VA with stainless steel housing, with 4 24V 2P outputs, transformer size 512 x 562 x 260 (h) mm, IP66 certificate for water and dust sealing
Lamp supply voltage: 18-50 V ac/dc
Kit contents: 4 LinkEx WF-300XL projectors each including stand / ATEX 230V to 24 V transformer / 20 m SY 2.5 mm2 cables (per lamp) / Stainless steel Splitter Box / ATEX cable reel with plug
Temperature class: T4 lamps, from -40°C to +55°C / T3 transformer, from -20°C to +30°C
Maximum temperature on the surface of the lamps: 118°C
Coding ATEX lamps: II 2 G D Ex eb mb op is IIC T4 Gb Ex tb op is IIIC T118°C Db T = -40°C to +55°C
ATEX zones: Zone 1, 2, gas groups IIA, IIB and IIC / Zone 21, 22 dust, IIIA, IIIB and IIIC
Lamp certificate: CML 18ATEX3372X / IECEx CML 18.0198X
Lamp material: Marine aluminum alloy, epoxy powder coated
Lens material: Resistant glass
Light source: 36 x High Power LED / per each lamp
Average lifespan: 100,000 hours
Power: 55 W / lamp
Brightness: 6129 lumens x 4 lamps
Weight: 7.3 kg / lamp (lamp only, excluding cables and transformer)
Water and dust sealing class: IP66 / IP67

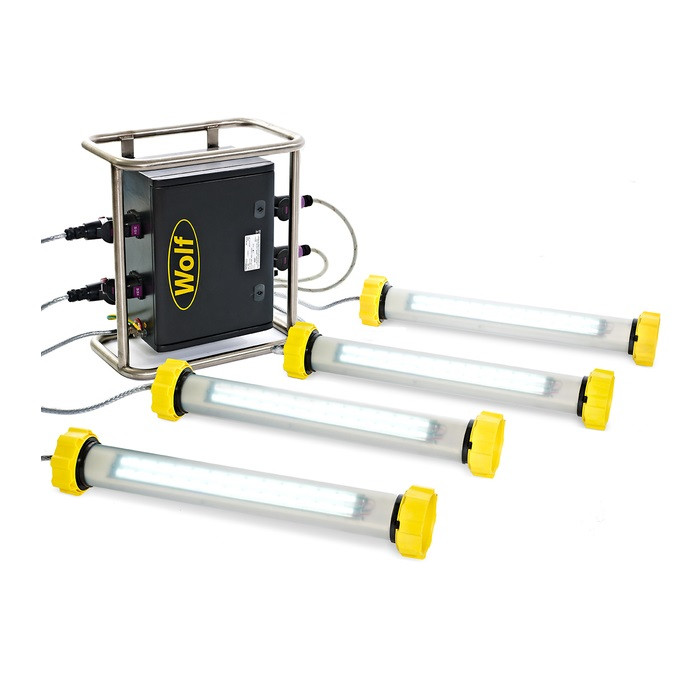

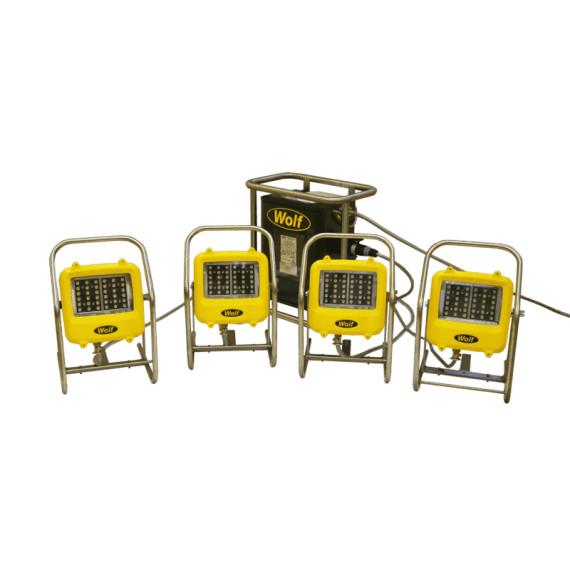

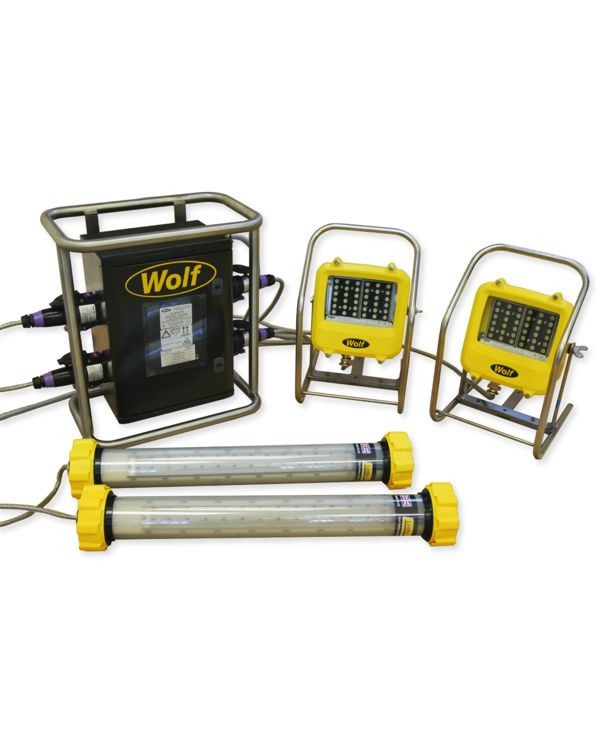

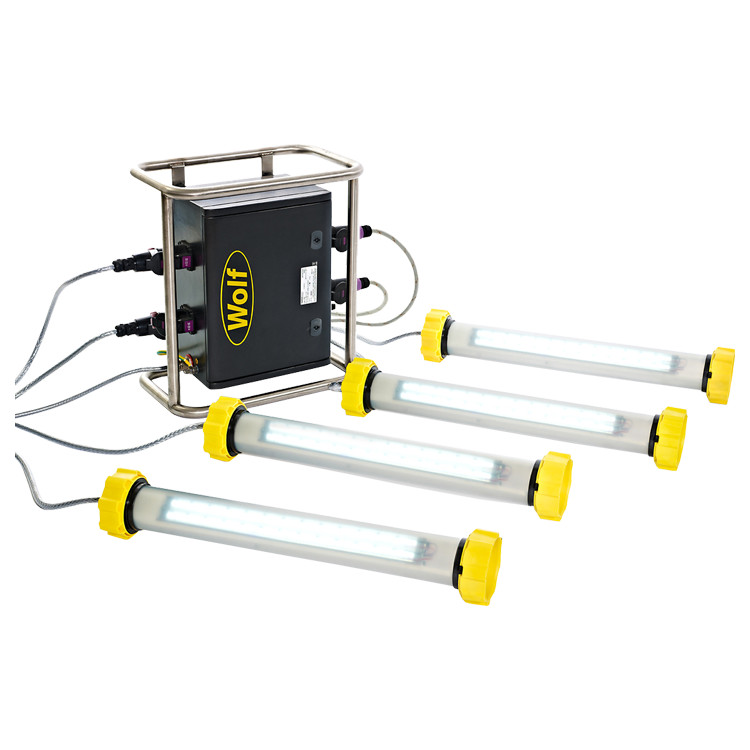

Exemplary photos of several available configurations. Kit contents vary depending on code and specification ordered.
Other available ATEX temporary lighting kit variants are (all kits include ATEX transformer and cables):
