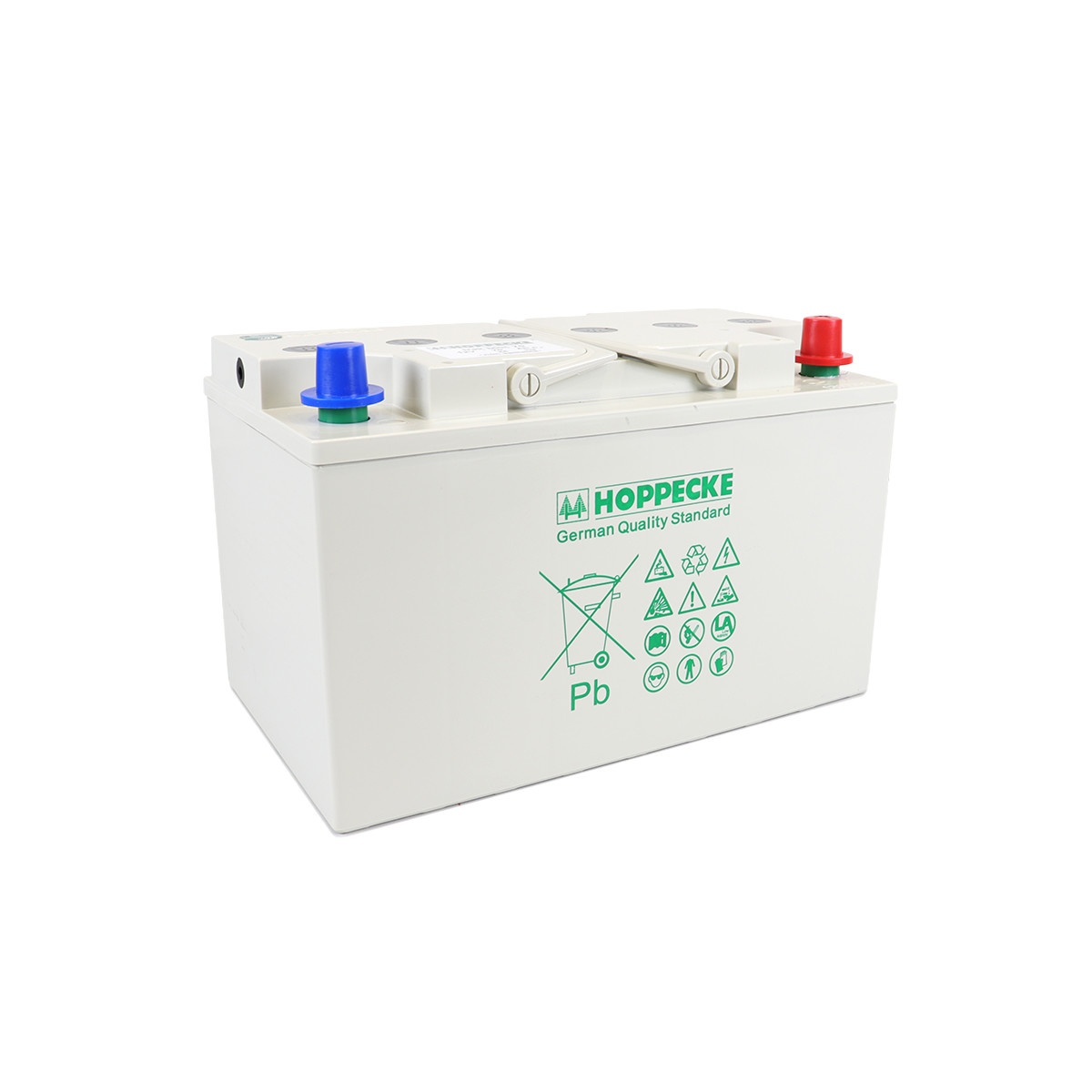

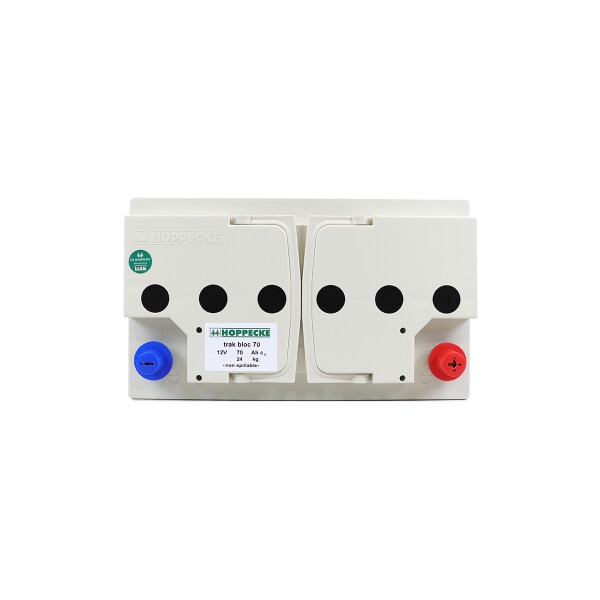

Hoppecke trak battery | block 12 TB 70 AGM

Description

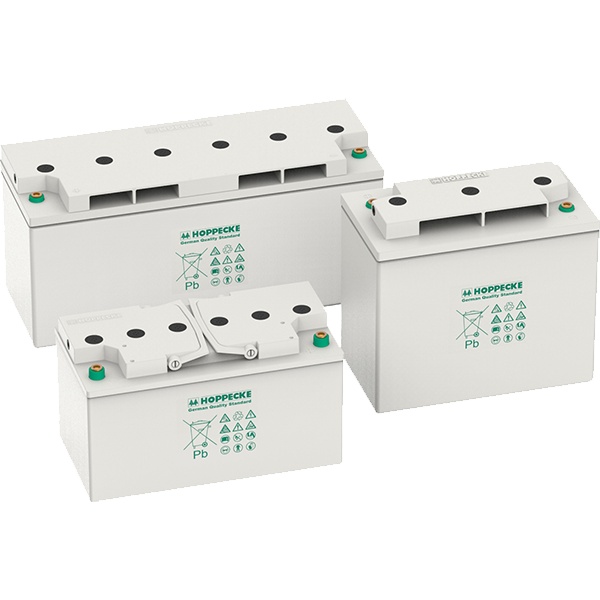

Hoppecke trak | block

Hoppecke's trak | block batteries are sealed batteries for traction applications. The compact design makes these batteries ideal for traction and semi-traction applications with limited space, such as cleaning machines, electric caddies and caravans. The use of AGM - Absorbent-Glass-Mat technology (microfiber fleece) means that the electrolyte is bound, making these batteries maintenance-free and leak-proof. Due to their high energy density, trak | block batteries have a very small footprint, allowing maximum use of the available space. The flat battery cover with integrated grip bar and the easy-to-clean surface allow safe and comfortable handling during installation. The features of trak | block make them versatile. Trak | block battery technology was developed by HOPPECKE at the turn of the century and still offers maximum reliability and a long service life for industrial applications. Benefit from the extensive trak | block product range with excellent high-current behavior and high performance, covering almost all common applications.

APPLICATIONS:

• electric utility vehicles
• industrial electric trucks
• special purpose vehicles
• cleaning machines
• wheelchairs (for people with disabilities)
• recreational vehicles
• platforms

ADVANTAGES:

• does not require refilling with electrolyte or water throughout its entire life (completely maintenance-free)
• are suitable for extreme operating conditions, especially in electric vehicles, patient lifts and cleaning machines
• Longer autonomy for vehicles with high energy consumption
• Flexible battery installation, suitable for position-independent operation

TECHNICAL SPECIFICATION:

Brand/Manufacturer: HOPPECKE Batterien GmbH & Co. KG, Bontkirchener Str. 1 59929 Brilon, Germany, info@hoppecke.com

EU Responsible Entity: HOPPECKE Batterien GmbH & Co. KG, Bontkirchener Str. 1 59929 Brilon, Germany, info@hoppecke.com

Battery Range: trak | block - AGM traction batteries

Model: 12 TB 70 / 3213387070

Housing: Impact-resistant polypropylene, UL 94 HB fire rating

Technology: AGM lead-acid, maintenance-free

Applications: Traction - electric cleaning machines, electric carts, wheelchairs, etc.

Nominal voltage: 12 V

Nominal capacity: 70Ah C5 / 80Ah C20 / 73Ah C10

Internal resistance: ~7.59mΩ

Maximum depth of discharge: 80%

Fast charging capability: Yes

Operating temperature: -20... +45°C

Number of cycles: up to 1000 cycles at 30°C and 80% DoD

Protection class: IP20 (according to DIN 40050)

Terminals: M8, 100% gas and electrolyte leak-proof terminals

Recommended charging procedure: IU, IUIa, according to DIN 41773 T1

Charging current: typical 15A/100Ah (highest current possible)

Dimensions: 302x178x190mm

Approximate weight: ~27 kg
