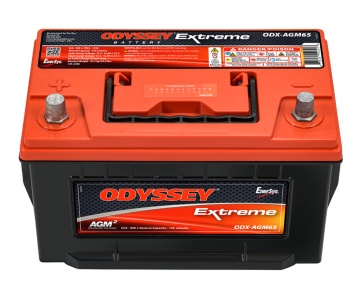

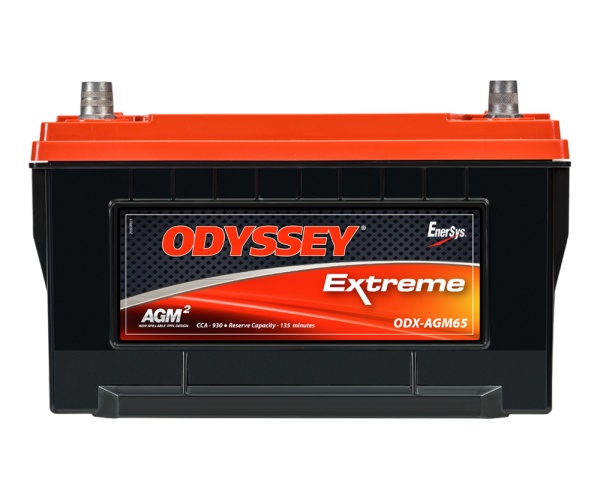

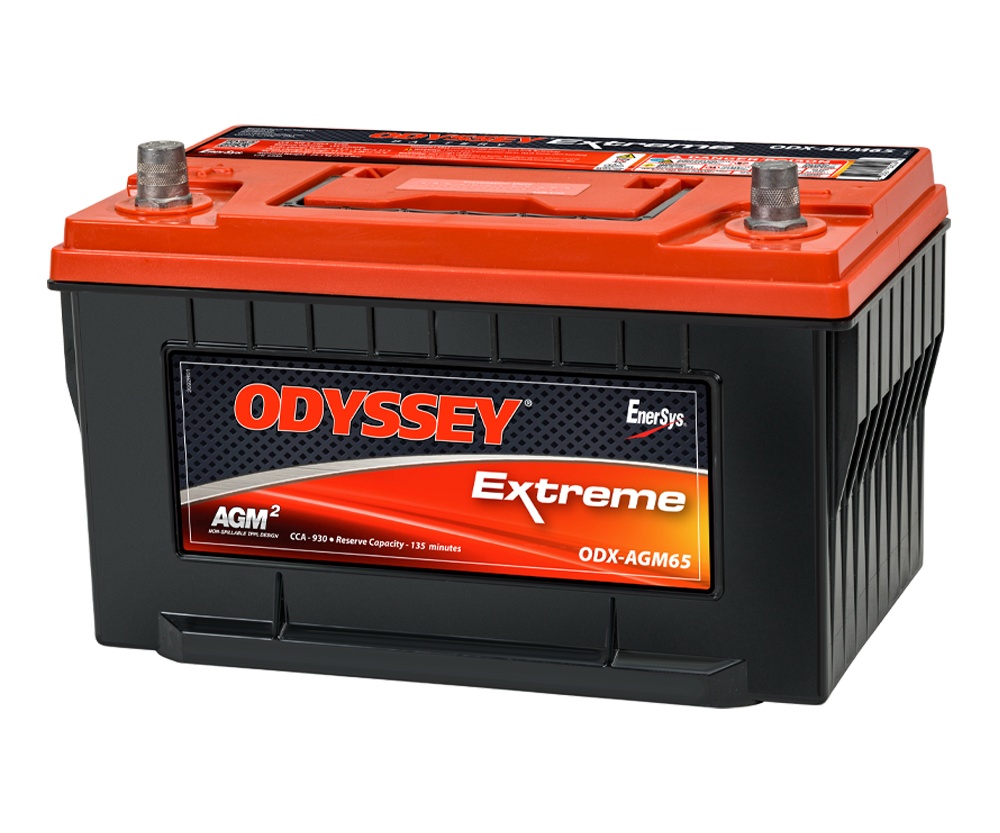

AGM Odyssey Extreme ODX-AGM65 12V 74Ah 950A car battery

Description

ODYSSEY BATTERY
For commercial vehicles with high starting power requirements.

Odyssey® batteries are manufactured by Enersys Energy Products Inc., a wholly owned subsidiary of Enersys. ENERSYS® is a global leader in stored energy solutions for automotive, military and industrial applications. With manufacturing facilities in 17 countries, sales and service locations worldwide and over 100 years of battery experience, Enersys is a strong partner for automotive, marine, heavy equipment and powersports parts suppliers and parts manufacturers.

ODYSSEY® AGM² Thin Plate Pure Lead (TPPL) batteries feature 99% pure lead plates that are extremely thin, so more plates fit into the battery. More plates means more power – ODYSSEY AGM² TPPL batteries deliver twice the power and three times the life of any conventional battery, outperforming standard AGM or SLI (flooded) batteries in terms of power density, fast charge acceptance, shelf life, durability and most importantly – value for money.

Today’s commercial vehicles need to power a range of accessories, both inside and outside the cab. On the road, on the farm or at the job site, Odyssey batteries have the power to start the job and the durability to last until it’s finished.

With a rugged construction with pure lead plates, the Odyssey AGM battery is designed to be highly resistant to shock and vibration that can quickly destroy other batteries. And pure lead plates mean up to 400 cycles at 80% depth of discharge!

Odyssey batteries deliver the massive starting power, fast recovery and extreme durability that heavy-duty and commercial vehicles demand.

TECHNICAL SPECIFICATION:

Brand/Manufacturer: Odissey / EnerSys Energy Products - EH Europe Gmbh, Baarerstrasse 18, 6300 Zug, Switzerland

Battery Range: Odissey Extreme (ODX) Battery - AGM Thin Plate Pure Lead

Model made in: U.S.A.

Product Type/Use: Lead-acid automotive battery used for starting commercial vehicles and agricultural and construction equipment. Dual-use battery - for starting engines but also for cyclic applications (deep cycle), such as lifting equipment (booms, winches, elevators), etc.

Technology: AGM, sealed, completely maintenance-free

Housing: ABS with high resistance to shocks, impacts and vibrations

Mounting position: In any position, exclusively upside down

Storage time: 2 years at +25°C, normally without the need for recharging (recharging is recommended only if the voltage drops below 12.2V (50% SOC) during storage)

Self-discharge rate: 1.25% per month at +25°C / 5% per month at +40°C

No. cycles at 80% depth of discharge: 400 cycles

Product code: ODX-AGM65 / 65-PC1750 / UPC: 635241140446 / EAN: 635241141313

Nominal voltage: 12V cc

Nominal capacity: 74Ah 20Hr / 65Ah 10Hr

Internal resistance: ~2mΩ

Starting current (cold start): 950A CCA (EN) / 1350A (HCA) / 1070 A (MCA)

Pulse current (5 seconds) hot start: 1750A (PHCA)

Short circuit current: 5000A

Charging parameters: Cyclic - 14.4 ...14.8V @ 25ºC / Float - 13.5 ... 13.8V @ 25ºC

Minimum recommended charging current: 6.5 A

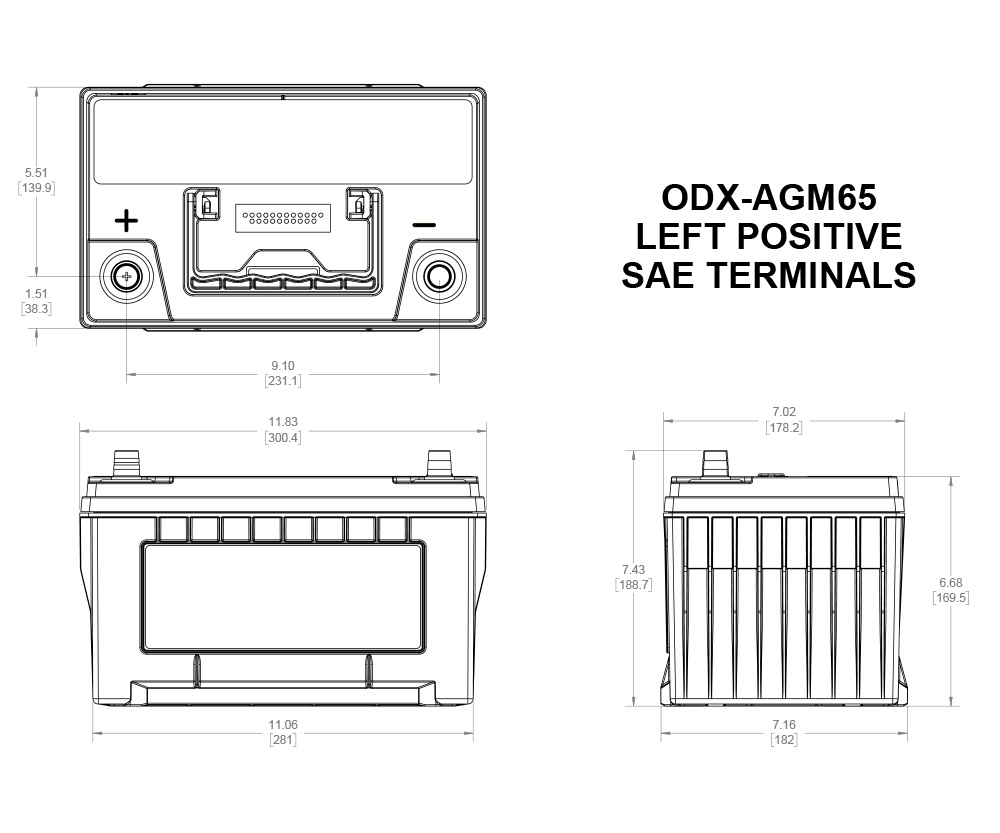

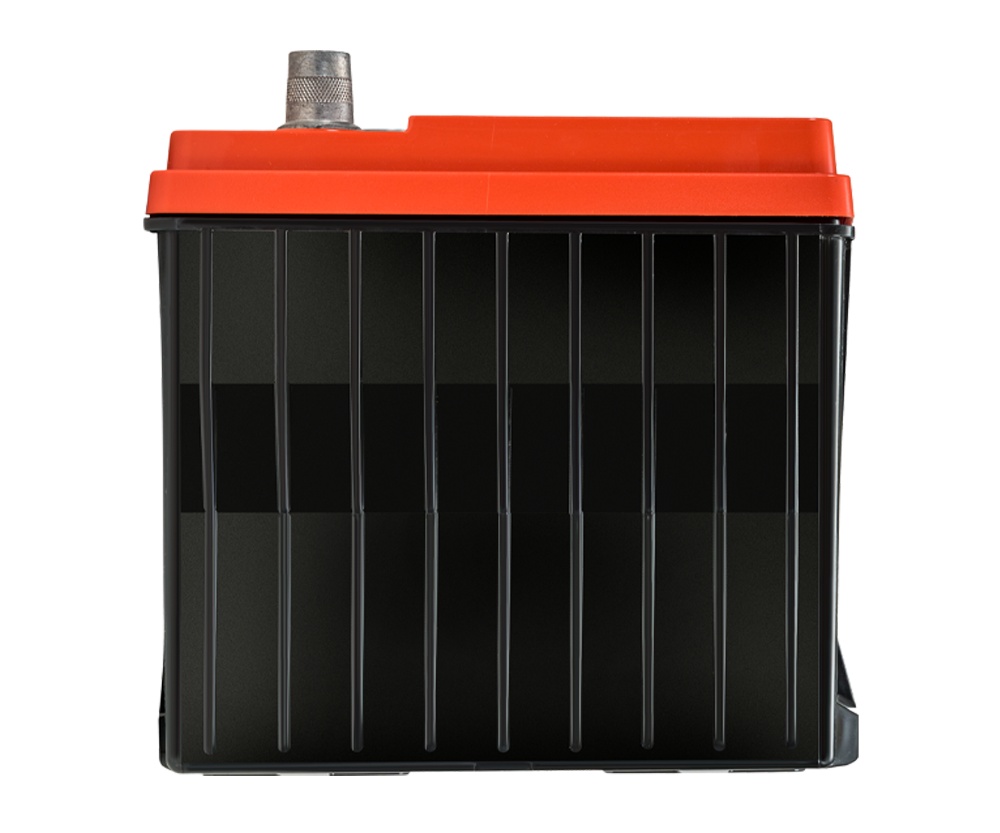

Dimensions: 300 x 183 x H191 mm (H=173 mm without terminals)

Weight: approximately ~24.5 kg

Terminals: SAE

Recommended operating temperature: -40°C...+80°C

Lifespan: Designed: 8-12 years / Effective 3-10 years (depending on usage - degree and frequency of discharge)

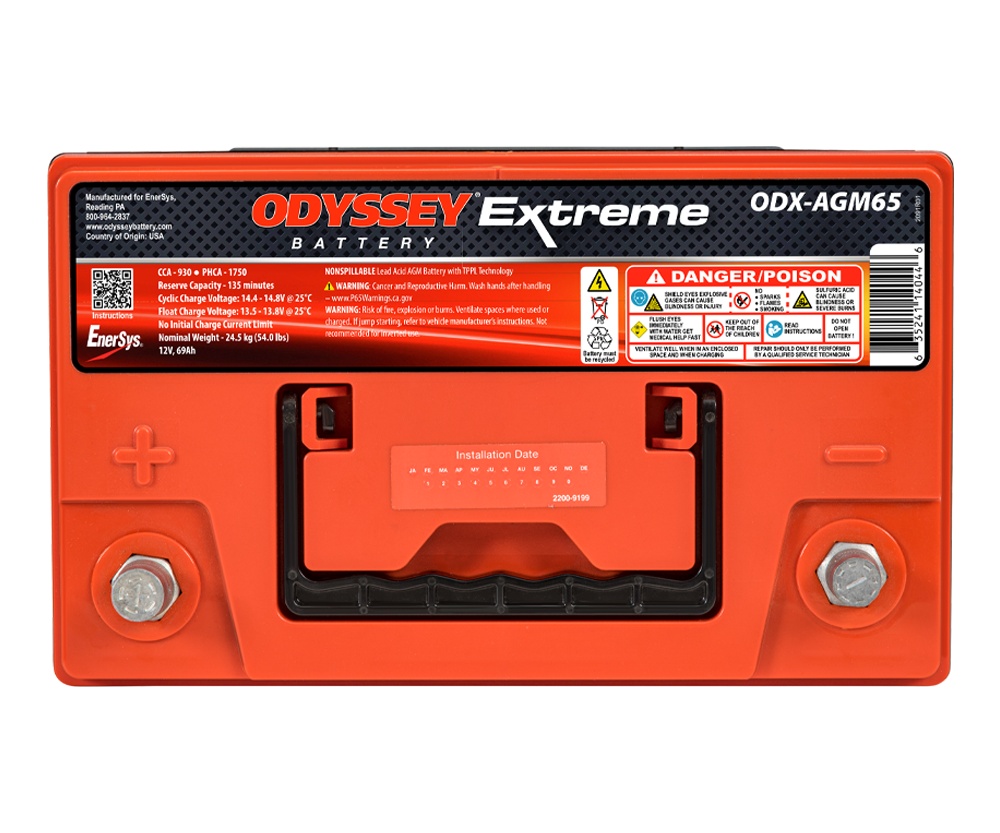

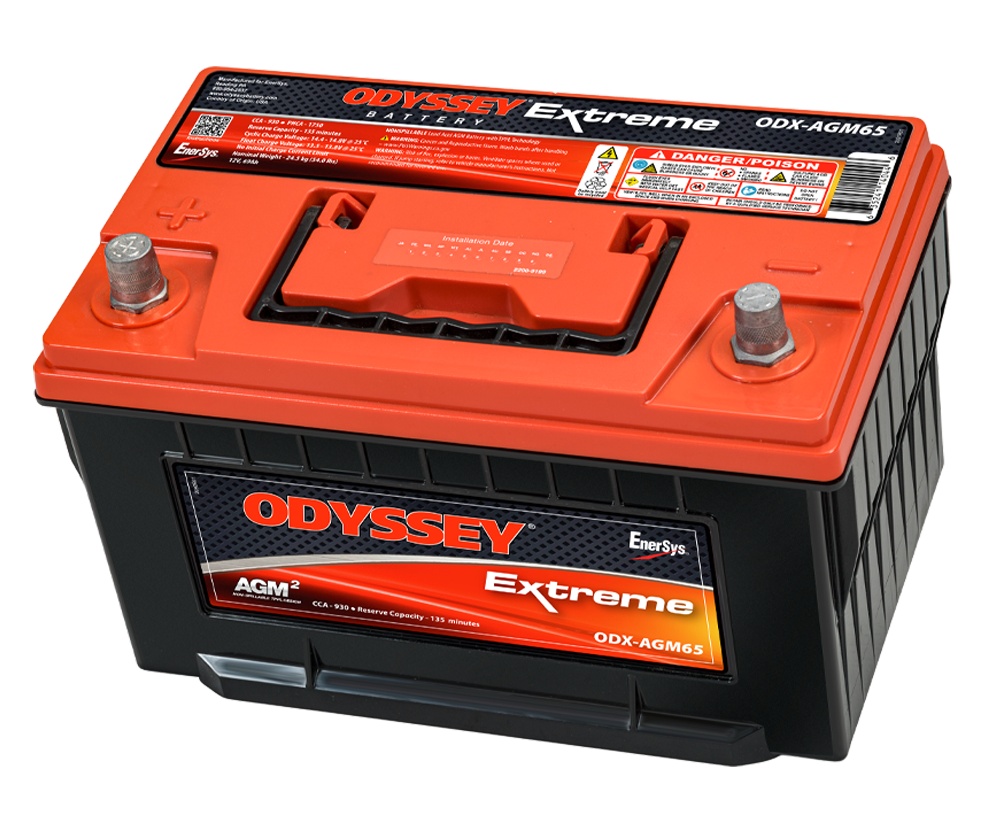

Terminal positioning:  (positive terminal positioned on the left)

Recommended uses: As a starter battery on commercial vehicles and agricultural and construction equipment

Compatible vehicles: trucks and equipment (agricultural, construction, military, etc.), lifting equipment, etc.

Assembly: Not included in the product price.

Commercial warranty for individuals: 24 months from purchase. The warranty is granted in compliance with the conditions of use in the specification.

Certifications: Manufacturer and seller with ISO9001 (quality) and ISO14001 (environment) certifications.

Barcode (EAN13): 635241140453

Customs tariff code/Intrastat: 85071020

CPV code: 31431000-6 (Batteries with lead and sulfuric acid plates)

 WARNING: Do not disassemble, short-circuit, or throw into fire.

 WARNING: Do not throw away in the trash, even after the end of their service life! Used batteries contain chemicals that are very dangerous to health and the environment! Hand over used batteries to authorized collection centers, to your dealer or to the collection bins for used batteries in large stores.
