Description

ODYSSEY BATTERY

High vibration resistance, for off-road or commercial vehicles

Odyssey® batteries are manufactured by Enersys Energy Products Inc., a wholly owned subsidiary of Enersys. ENERSYS® is a global leader in stored energy solutions for automotive, military and industrial applications. With manufacturing facilities in 17 countries, sales and service locations worldwide and over 100 years of battery experience, Enersys is a strong partner for automotive, marine, heavy equipment and powersports parts suppliers and parts manufacturers.

Designed to handle the increased use of on-board accessories in today's vehicles, the ODYSSEY Performance range of batteries combines long life, high reliability and deep cycle capabilities. The ODYSSEY Performance series batteries offer all the reliability of the ODYSSEY Extreme series batteries, but without the high cold cranking amps (CCA) or reserve capacity (RC) that many users may not necessarily need.

Odyssey batteries provide massive starting power, fast recovery, and extreme durability that heavy-duty and commercial vehicles demand.

TECHNICAL SPECIFICATION:

Brand/Manufacturer: Odissey / EnerSys Energy Products - EH Europe Gmbh, Baarerstrasse 18, 6300 Zug, Switzerland

Battery Range: Odissey Performance (ODP) Battery - AGM Thin Plate Pure Lead (TPPL)

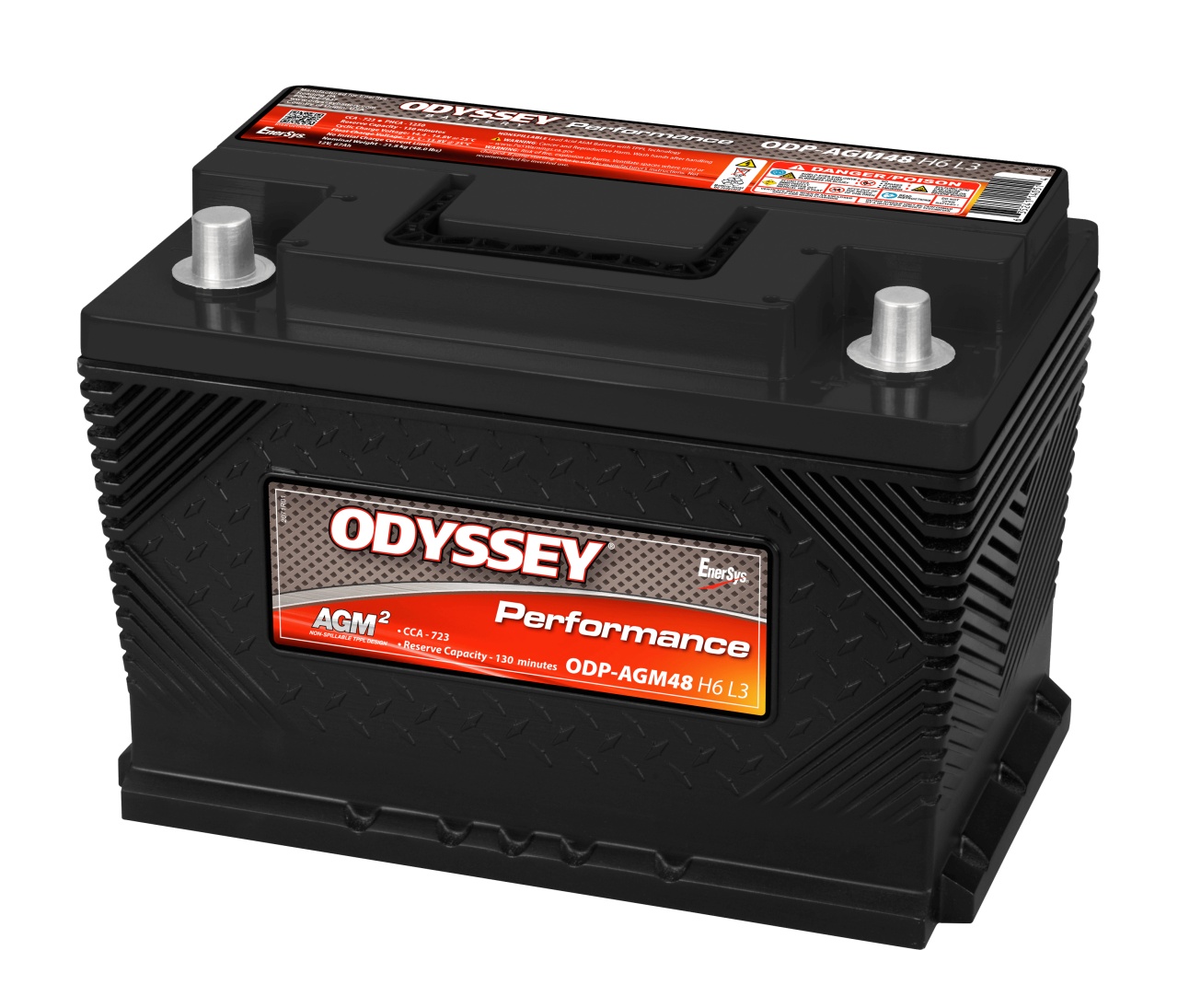

Product Code: ODP-AGM48 H6 L3 / ODP-AGM48/L3 / 48-720 (LN3-H6) / EAN: 635241141634 / UPC: 635241140514

Model made in: U.S.A.

Product Type/Use: AGM lead-acid automotive battery used for starting commercial vehicles, off-road vehicles and agricultural and construction equipment. Dual-use battery - for starting engines but also for cyclic applications (deep cycle), such as lifting equipment (booms, winches, elevators), etc.

Technology: AGM, sealed, completely maintenance-free

Housing: ABS with high resistance to shocks, impacts and vibrations

Mounting position: In any position, exclusively upside down

Storage time: 2 years at +25°C, normally without the need for recharging (recharging is recommended only if the voltage drops below 12.2V (50% SOC) during storage)

Self-discharge rate: 1.25% per month at +25°C / 5% per month at +40°C

No. cycles at 80% depth of discharge: 400 cycles

Nominal voltage: 12V cc

Nominal capacity: 70Ah 20Hr / 63Ah 10Hr

Internal resistance: ~2.8mΩ

Starting current (cold start): 760A CCA (EN) / 950A (HCA) / 840 A (MCA)

Pulse current (5 seconds) hot start: 1250A (PHCA)

Short circuit current: 2300A

Charging parameters: Cyclic - 14.4 ...14.8V @ 25ºC / Float - 13.5 ... 13.8V @ 25ºC

Minimum recommended charging current: 6.3 A

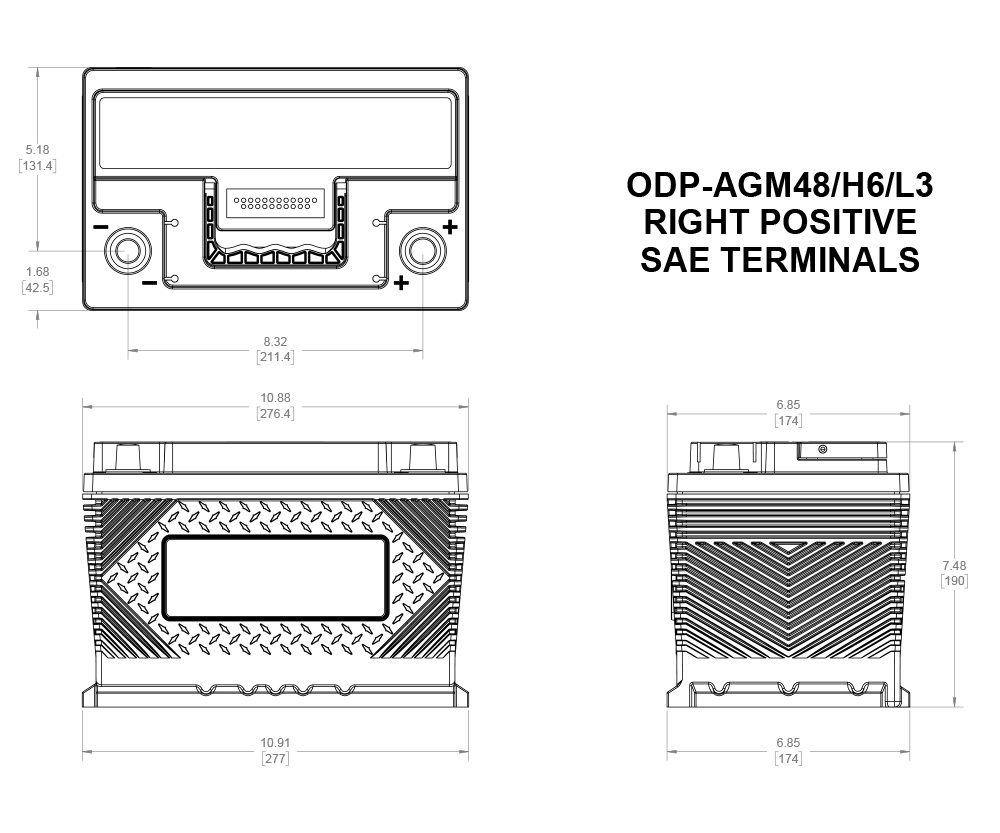

Dimensions: 277 x 175 x H191 mm - standard case L3 H6

Weight: approximately ~21.8 kg

Terminals: SAE

Recommended operating temperature: -40°C...+60°C

Optimal storage temperature: +20°C

Life span: Designed: 8-12 years / Effective 3-10 years (depending on usage - degree and frequency of discharge)

Terminal positioning:  (positive terminal positioned on the right)

Recommended uses: As a starter battery on commercial vehicles, off-road and agricultural and construction equipment

Compatible vehicles: off-road vehicles, cars and vans with or without Start&Stop technology, trucks and equipment (agricultural, construction, military, etc.), lifting equipment, etc.

Assembly: Not included in the product price.

Commercial warranty for individuals: 24 months from purchase. The warranty is granted subject to compliance with the conditions of use in the specification.

Certifications: Manufacturer and seller with ISO9001 (quality) and ISO14001 (environment) certifications.

Barcode (EAN13): 635241141634

Customs tariff code/Intrastat: 85071020

CPV code: 31431000-6 (Batteries with lead and sulfuric acid plates)

 WARNING: Do not disassemble, short-circuit, or throw into fire.

 WARNING: Do not throw away in the trash, even after the end of their service life! Used batteries contain chemicals that are very dangerous to health and the environment! Hand over used batteries to authorized collection centers, to your dealer or to the collection bins for used batteries in large stores.
