Description

ODYSSEY BATTERY - Advanced Dual-Purpose Technology

High vibration resistance, for commercial vehicles. Model with Odyssey Connect Battery Monitoring System monitoring application.

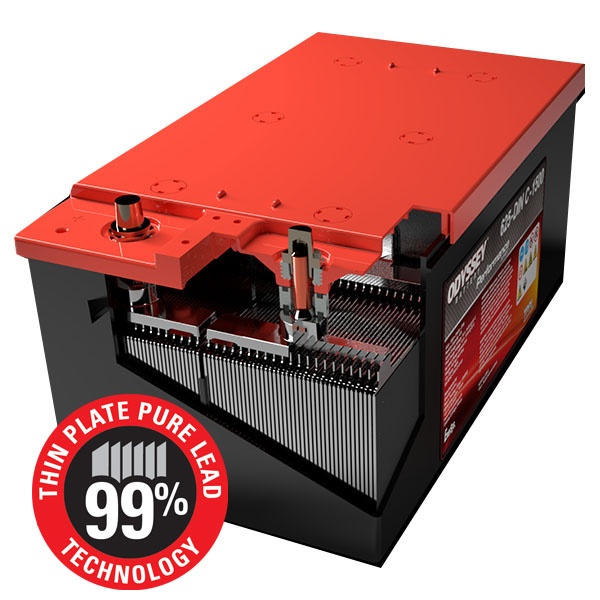

An ODYSSEY® battery ingeniously uses TPPL's ​​unique Absorbed Glass Mat (AGM) technology to deliver the performance of two separate batteries in one package. It delivers massive deep cycle performance (can be discharged over 60% more than any other battery), yet delivers exceptional starting power to beat any rival.

Traditional legacy (SLI) battery designs currently on the market either deep cycle to provide power for onboard loads or provide high amperage discharges for things like engine starting - they can't do both. That's why modern vehicles and cars struggle and fail. The ODYSSEY AGM-TPPL (99% pure lead) battery is the answer - a true dual-purpose battery!

This true dual-use battery delivers engine starting pulses of up to 2,700 A (625-DIN C-1500) for 5 seconds at 25°C and offers over 400 charge/discharge cycles to 80% depth of discharge (DOD) when properly charged! Truly exceptional performance!

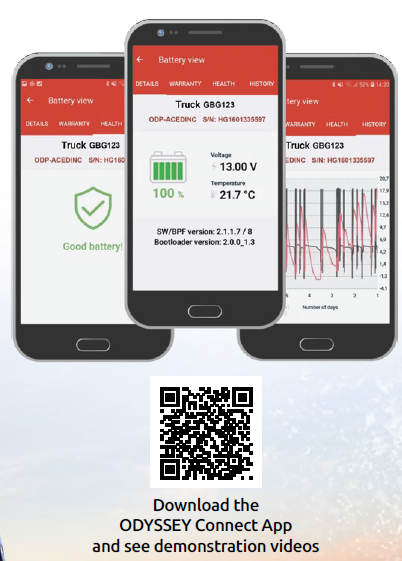

The ODP-ACEDINC model comes equipped with the built-in ACE chip, with Bluetooth 4.1 connectivity (via the Connect® app) that allows monitoring of voltage, temperature, charge status and operating status history.

Odyssey batteries provide massive starting power, fast recovery, and extreme durability that heavy-duty and commercial vehicles demand.

TECHNICAL SPECIFICATION:

Brand/Manufacturer: Odissey / EnerSys Energy Products - EH Europe Gmbh, Baarerstrasse 18, 6300 Zug, Switzerland

Battery range: Odissey Performance (ODP) Battery - AGM Thin Plate Pure Lead (TPPL)

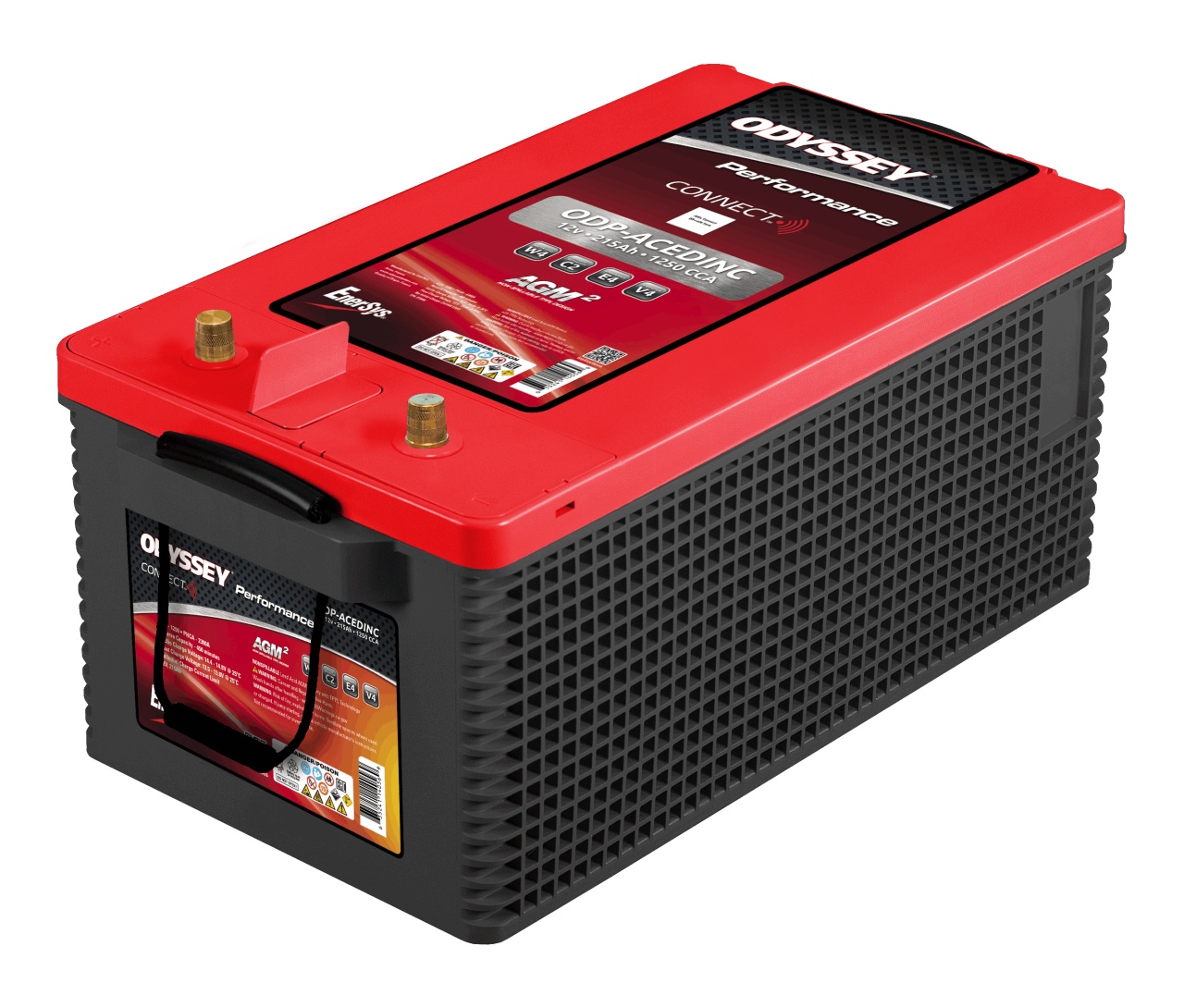

Product code: ODP-ACEDINC / EAN: 635241142037

Model made in: France

Product type/use: AGM TPPL lead-acid car battery used for starting commercial vehicles, large trucks (TIR), agricultural and construction equipment. Dual-use battery - for starting engines but also for cyclic applications (deep cycle), such as lifting equipment (booms, winches, elevators), etc.

Technology: AGM TPPL, sealed, completely maintenance-free. The built-in ACE chip with Bluetooth 4.1 connectivity (via the Connect® app) allows monitoring of voltage, temperature, charge status and operating status history.

Housing: ABS with high resistance to shocks, impacts and vibrations

Mounting position: In any position, except upside down

Storage time: 2 years at +25°C, normally without the need for recharging (recharging is recommended only if the voltage drops below 12.2V (50% SOC) during storage)

Self-discharge rate: 1.25% per month at +25°C / 5% per month at +40°C

No. cycles at 80% depth of discharge: 400 cycles

Nominal voltage: 12V cc

Nominal capacity: 215Ah 20Hr / 190Ah 10Hr

Capacity reserve: 450 minutes

Internal resistance: ~2.7mΩ

Starting current (cold start): 1250A CCA (EN) / 1750A (HCA) / 1500 A (MCA)

Pulse current (5 seconds) hot start: 2300A (PHCA)

Short circuit current: 4600A

Charging parameters: Cyclic - 14.4 ...14.8V @ 25ºC / Float - 13.5 ... 13.8V @ 25ºC

Recommended minimum charging current: 19 A

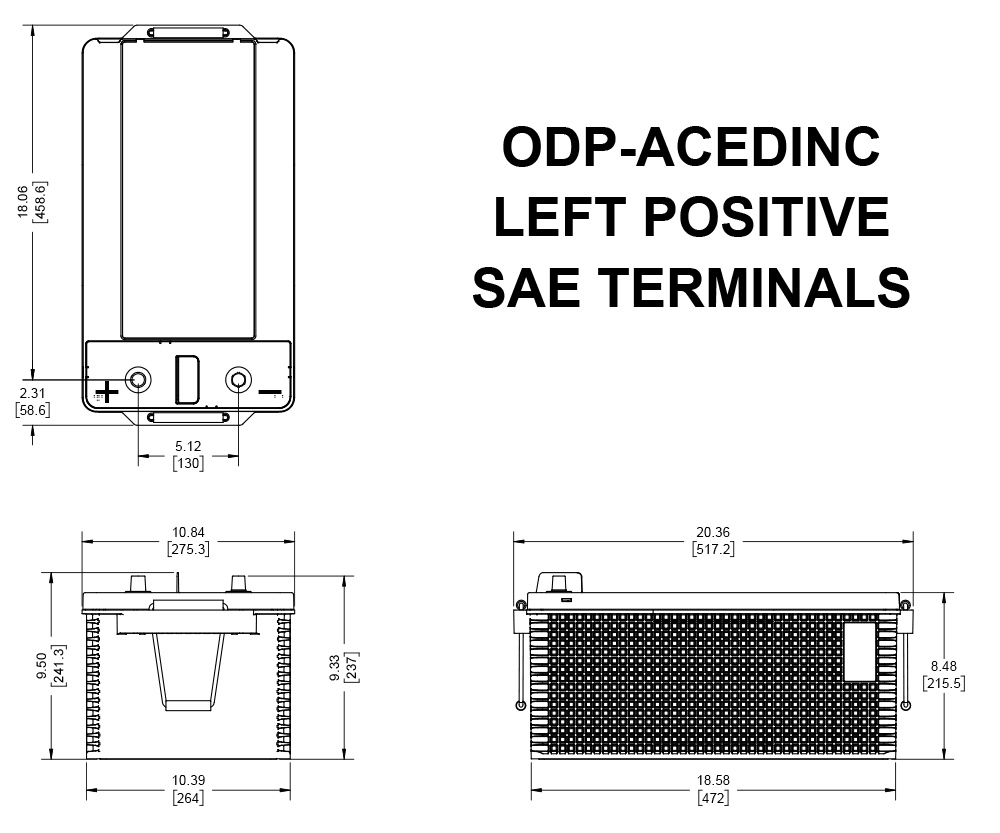

Dimensions: 518 x 274 x H241 mm

Weight: approximately ~64.9 kg

Terminals: SAE

Recommended operating temperature: -40°C...+60°C

Optimal storage temperature: +20°C

Life span: Designed: 8-12 years / Effective 3-10 years (depending on usage - degree and frequency of discharge)

Terminal positioning:  (plus terminal positioned on the left, terminals positioned on the short side)

Recommended uses: As a starter battery on commercial vehicles, off-road and agricultural and construction equipment

Compatible vehicles: off-road vehicles, cars and vans with or without Start&Stop technology, trucks and equipment (agricultural, construction, military, etc.), lifting equipment, etc.

Assembly: Not included in the product price.

Commercial warranty for individuals: 24 months from purchase. The warranty is granted subject to compliance with the conditions of use in the specification.

Certifications: Manufacturer and seller with ISO9001 (quality) and ISO14001 (environment) certifications.

Barcode (EAN13): 635241142037

Customs tariff code/Intrastat: 85071020

CPV code: 31431000-6 (Batteries with lead and sulfuric acid plates)

 WARNING: Do not disassemble, short-circuit, or throw into fire.

 WARNING: Do not throw away in the trash, even after the end of their service life! Used batteries contain chemicals that are very dangerous to health and the environment! Hand over used batteries to authorized collection centers, to your dealer or to the collection bins for used batteries in large stores.
