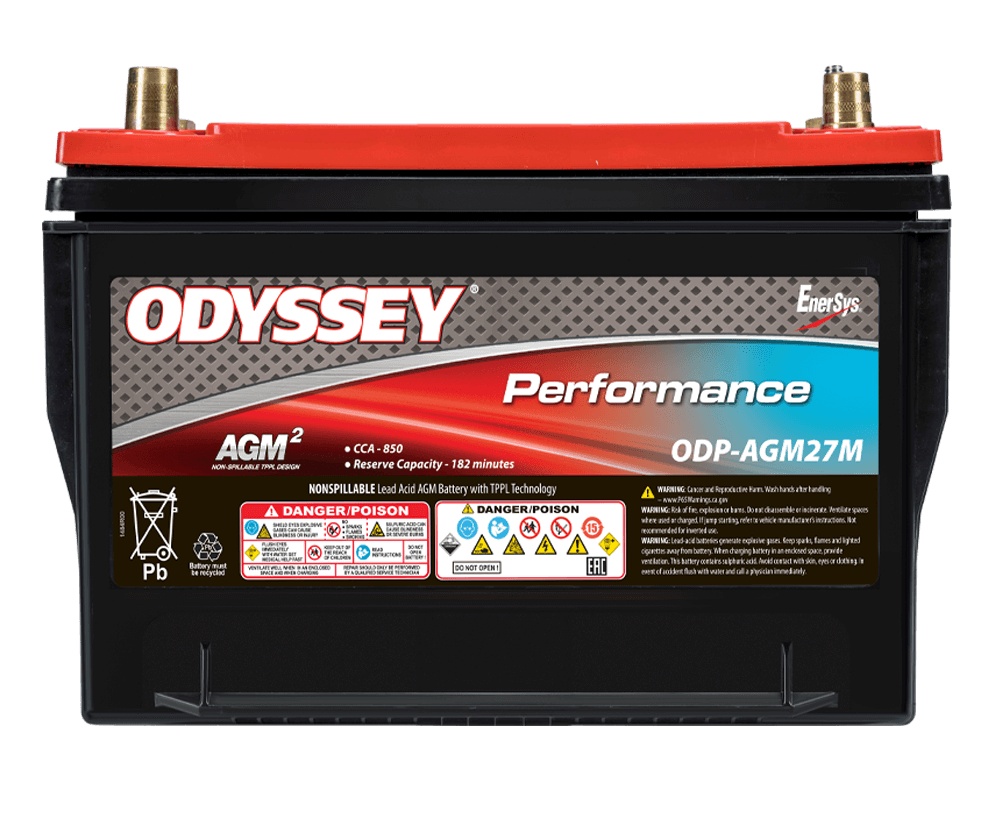

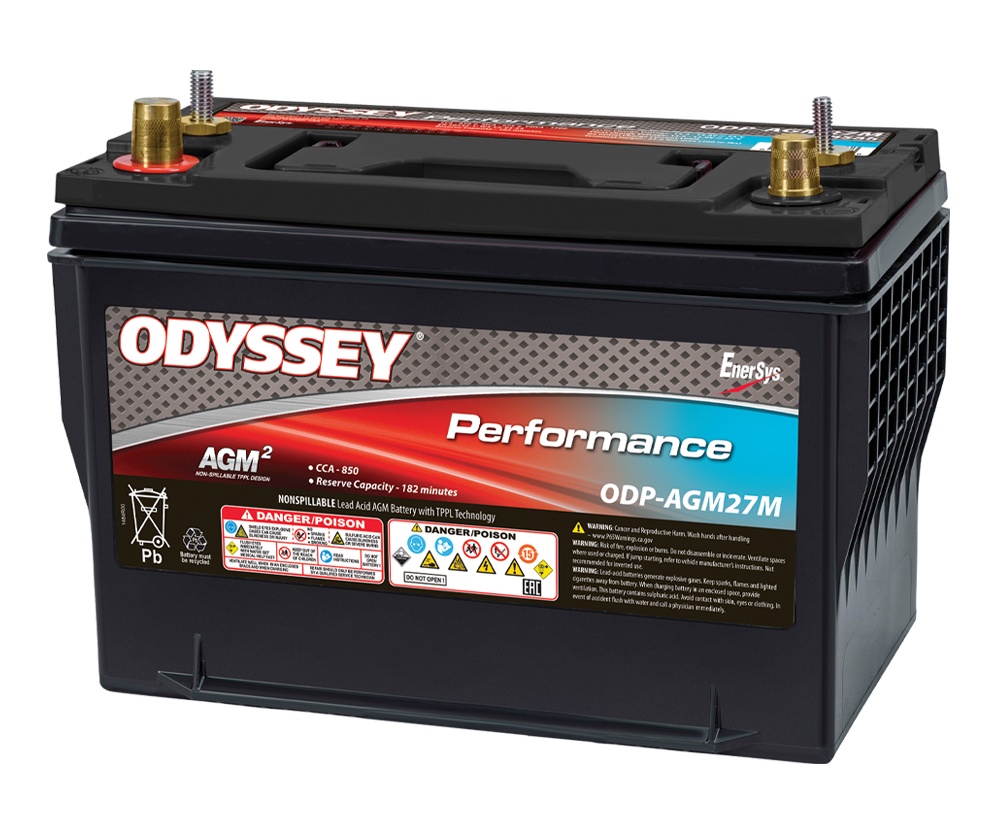

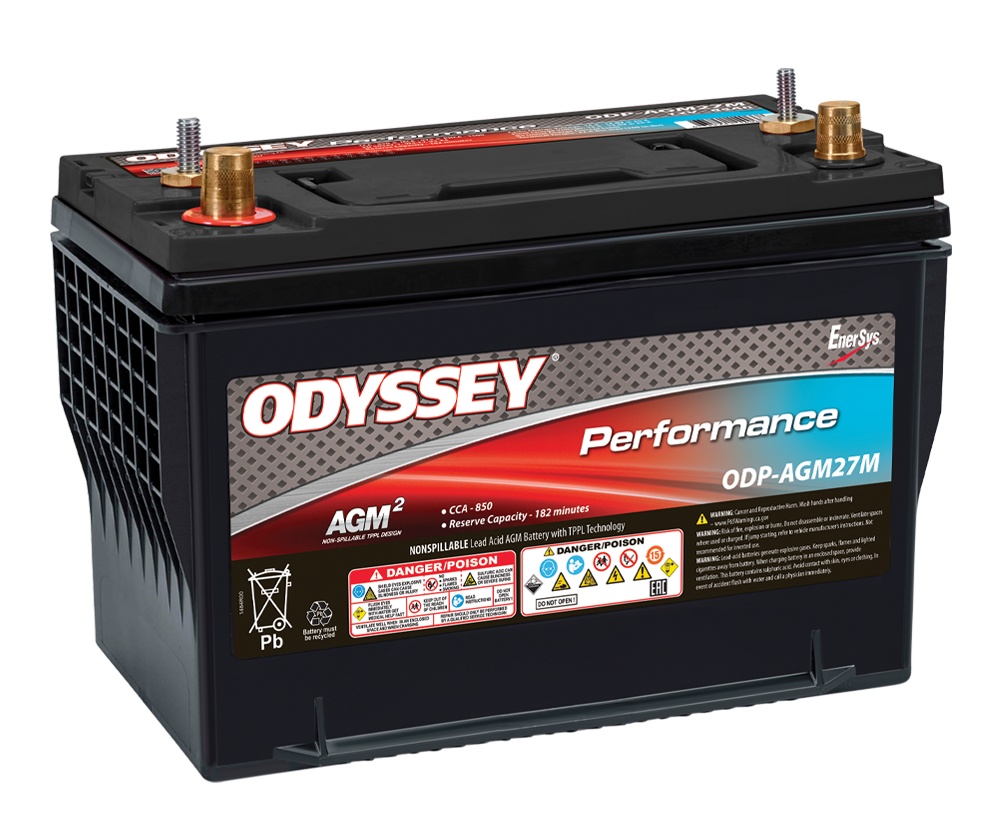

ODYSSEY PERFORMANCE BATTERY - FOR MARINE APPLICATIONS

Reliable energy for any vessel

Like an athlete who is both a sprinter and a long-distance runner, the ODYSSEY Marine Dual Purpose battery delivers both massive starting power and impressive deep-cycling capability—up to 400 cycles at 80% depth of discharge. Offering twice the total power and three times the service life of conventional marine batteries, the ODYSSEY battery is ideal for trolling, engine starting, and powering the many onboard electronic accessories common in today’s boats and recreational vehicles.

ODYSSEY Performance marine batteries excel in the high vibration resistance, cycle life, and reserve capacity required by marine vessels. Thin Plate Pure Lead (TPPL) AGM technology delivers excellent CCA ratings and reserve cycling capacity.

• Reliable starting power every time.
• Over 900 cycles at 50% depth of discharge.
• Faster recharging than conventional batteries.
• Proudly made in the USA at the state-of-the-art Odyssey battery plant.
• Guaranteed OEM fit – built to exact BCI standards.
• Housed in advanced plastic casings for durability, performance, and heat resistance.
• Advanced AGM construction means no need to check water levels or clean terminals.
• Approved as non-hazardous cargo for ground, sea, and air transport under DOT 49CFR173.159(d), (i), and (ii).

TECHNICAL SPECIFICATION:

Brand/Manufacturer: Odyssey / EnerSys Energy Products - EH Europe GmbH, Baarerstrasse 18, 6300 Zug, Switzerland

Battery Range: Odyssey Performance (ODP) Battery - AGM Thin Plate Pure Lead (TPPL)

Product Code: ODP-AGM27M / ELT-AGM27M (old code) / UPC: 635241140668 / EAN: 635241141795

Made in: USA

Product Type/Usage: Dual-purpose AGM TPPL battery: for starting marine vessels, industrial generators, and off-road or military vehicles. Also suitable for powering cyclic (deep-cycle) and semi-traction applications, such as lifting equipment (winches, hoists, lifts), emergency equipment, etc.

Technology: AGM TPPL, sealed, completely maintenance-free

Casing: High-impact, shock- and vibration-resistant ABS

Mounting Position: Any position, even completely upside down

Shelf Life: 2 years at +25°C, typically without requiring recharge (recharging is recommended only if voltage drops below 12.2V (50% SOC) during storage)

Self-discharge Rate: 1.25% per month at +25°C / 5% per month at +40°C

Number of cycles at 80% depth of discharge: 400 cycles

Nominal voltage: 12V DC

Nominal capacity: 85Ah (20Hr) / 79Ah (10Hr)

Internal resistance: ~3.8mΩ

Cold Cranking Amps (CCA): 850A (EN) / 1150A (HCA) / 975A (MCA)

Pulse Cranking Amps (5 seconds, hot start): 1500A (PHCA)

Short-circuit current: 2400A

Charging parameters: Cyclic - 14.4...14.8V @ 25ºC / Float - 13.5...13.8V @ 25ºC

Minimum recommended charging current: 7.9A (lower charging current shortens battery lifespan)

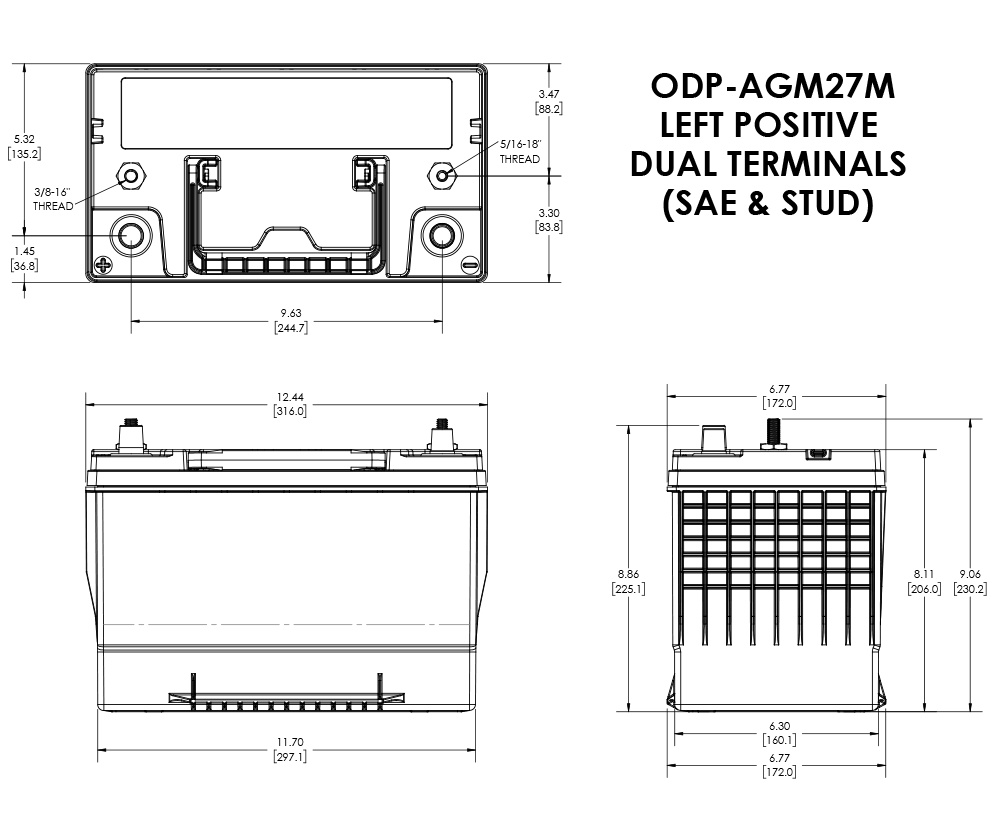

Dimensions: 318 x 173 x H224 mm (case height excluding terminals: 208 mm)

Weight: approx. 27.1 kg

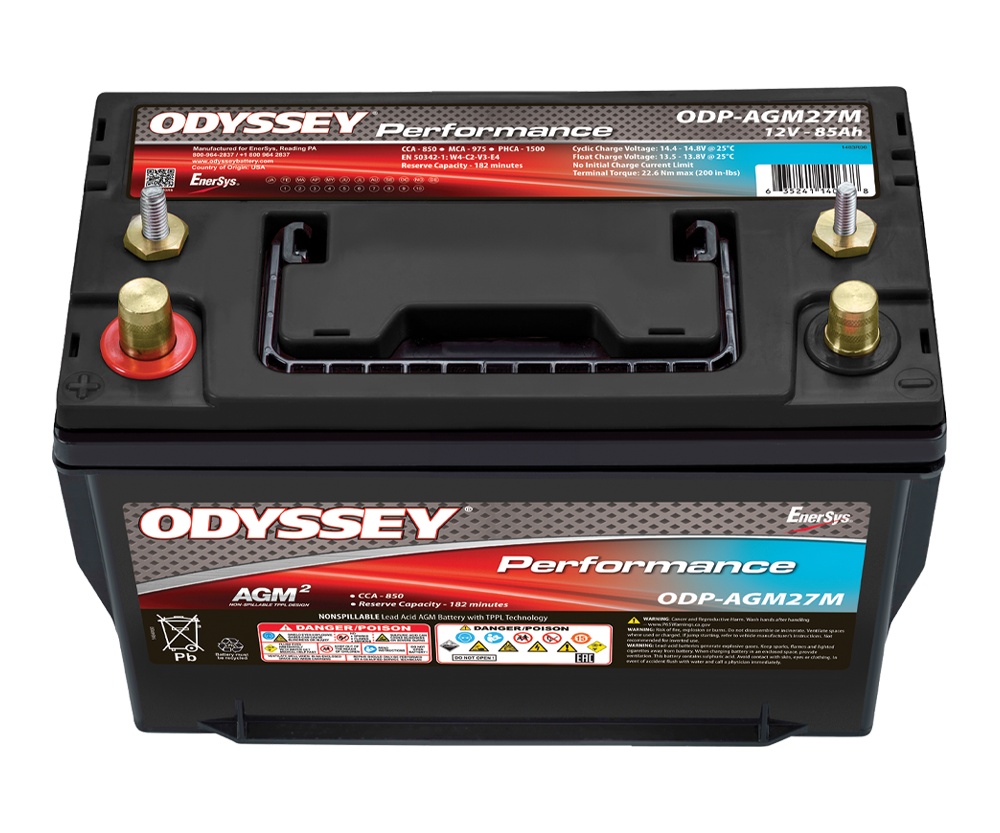

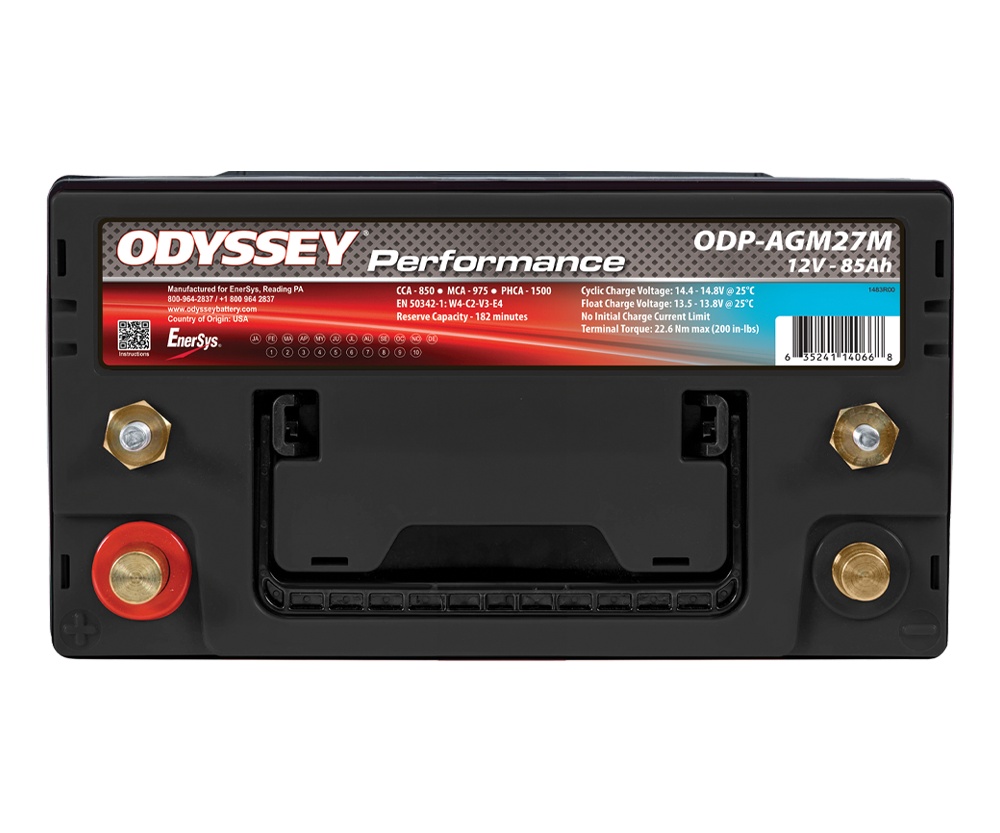

Terminals: Two pairs of terminals for various applications – one pair of SAE-type terminals (automotive style) + one pair of threaded stud terminals (3/8-16" stud for positive, 5/16-18" stud for negative). Positive terminals are positioned on the left.

Recommended operating temperature: -40°C to +60°C

Optimal storage temperature: +20°C

Terminal positioning: Positive terminal positioned on the LEFT

Recommended uses: As a starter battery or for dual-purpose use in marine vessels and boats, generators, machinery, military or off-road vehicles, and other vehicles.

Compatible vehicles: Marine vessels and boats, off-road vehicles, lifting equipment, industrial generators, and similar applications.

Installation: Not included in the product price.

Commercial warranty for private individuals: 24 months from the date of purchase. The warranty applies subject to adherence to the usage conditions specified in the product documentation.

Certifications: Manufacturer and seller hold ISO9001 (quality) and ISO14001 (environmental) certifications.

EAN Code: 635241141795

Customs Tariff/Intrastat code: 85071020

CPV code: 31431000-6 (Lead-acid accumulators)

WARNING: Do not disassemble, short-circuit, or throw into fire.

 ATTENTION: Do not dispose of in the trash, even after the end of their service life! Used batteries contain chemicals that are highly hazardous to health and the environment! Hand over used batteries to authorized collection centers, to your retailer, or to collection bins for used batteries found in large stores.
