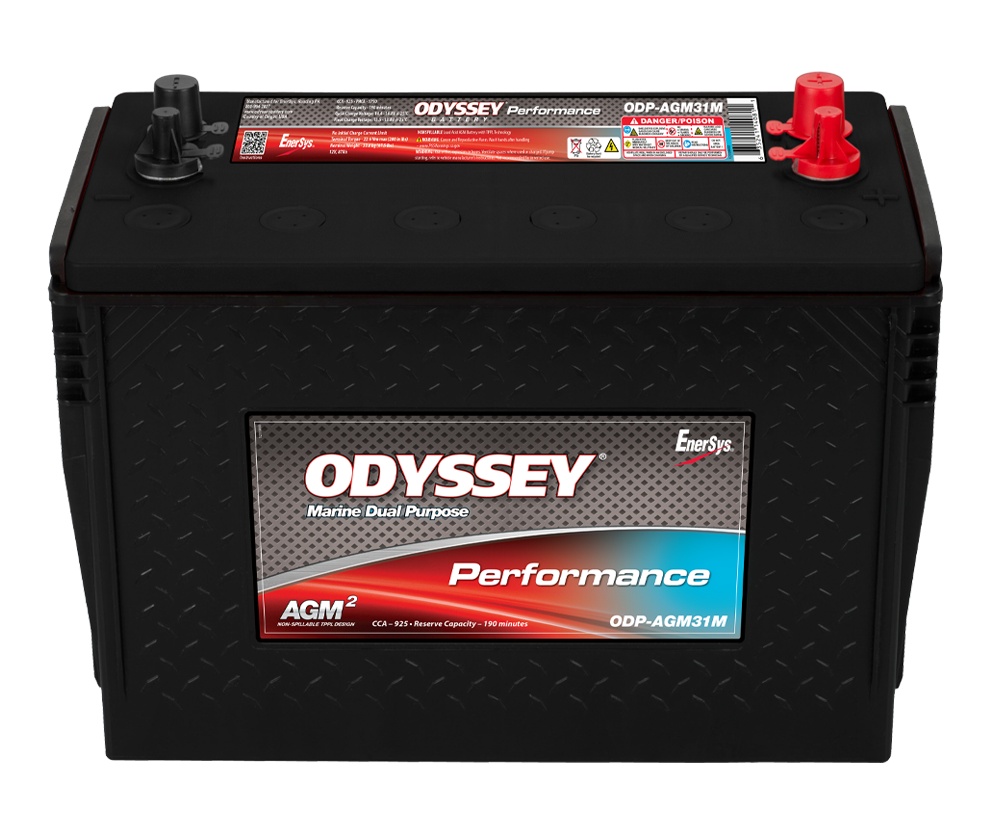

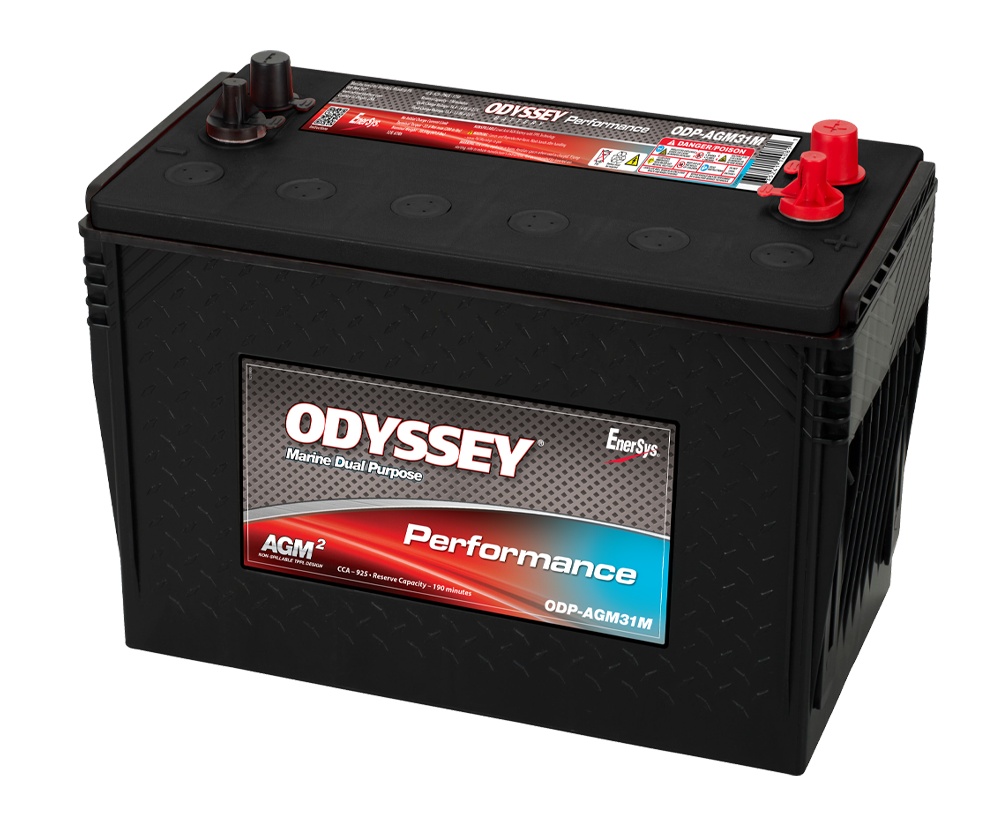

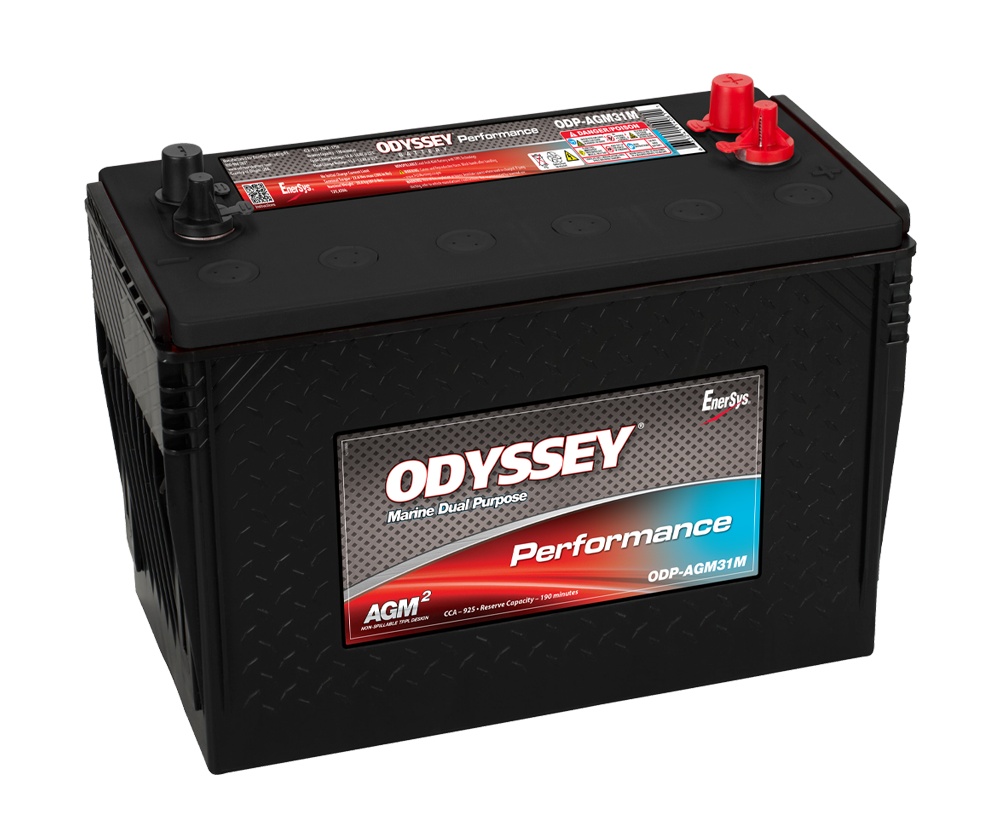

ODYSSEY PERFORMANCE BATTERY - FOR MARINE APPLICATIONS

Reliable energy for any vessel

Like an athlete who is both a sprinter and a long-distance runner, the ODYSSEY Marine Dual Purpose battery delivers both massive starting power and impressive deep-cycling capability—up to 400 cycles at 80% depth of discharge. Offering twice the total power and three times the service life of conventional marine batteries, the ODYSSEY battery is ideal for trolling, engine starting, and powering the many onboard electronic accessories common in today’s boats and recreational vehicles.

ODYSSEY Performance marine batteries excel in the high vibration resistance, cycle life, and reserve capacity required by marine vessels. Thin Plate Pure Lead (TPPL) AGM technology delivers excellent CCA ratings and reserve cycling capacity.

• Reliable starting power every time.
• Over 900 cycles at 50% depth of discharge.
• Faster recharging than conventional batteries.
• Proudly made in the USA at the state-of-the-art Odyssey battery plant.
• Guaranteed OEM fit – built to exact BCI standards.
• Housed in advanced plastic casings for durability, performance, and heat resistance.
• Advanced AGM construction means no need to check water levels or clean terminals.
• Approved as non-hazardous cargo for ground, sea, and air transport under DOT 49CFR173.159(d), (i), and (ii).

TECHNICAL SPECIFICATION:

Brand/Manufacturer: Odyssey / EnerSys Energy Products - EH Europe GmbH, Baarerstrasse 18, 6300 Zug, Switzerland

Battery range: Odyssey Performance (ODP) Battery - AGM Thin Plate Pure Lead (TPPL)

Product code: ODP-AGM31M / 31M-925 (old code) / UPC: 635241140811 / EAN: 635241141702

Product with Lloyd's certification according to standard EN50342-1:2021, for use in marine, offshore, and industrial applications, for use under environmental conditions ENV1 and ENV2, and for installation on ships, in accordance with "Rules and Regulations for the Classification of Ships, Part 6, Chapter 2, Section 12 (current edition, July 2021)" – certificate no. LR22169433TA / 09.05.2022, issued by Lloyd's Register Group Limited.

Model manufactured in: USA.

Product type/usage: Dual-purpose AGM TPPL battery: suitable for starting marine and river transport vessels, industrial generators, and off-road or military vehicles. Also suitable for powering deep-cycle and semi-traction applications, such as lifting equipment (winches, hoists, lifts), emergency equipment, etc.

Technology: AGM TPPL, sealed, completely maintenance-free

Casing: High-strength ABS (resistant to shock, impact, and vibration)

Mounting position: Any position, including completely upside down

Shelf life: 2 years at +25°C, typically without requiring recharge (recharging is recommended only if voltage drops below 12.2V (50% SOC) during storage)

Self-discharge rate: 1.25% per month at +25°C / 5% per month at +40°C

Cycle life (at 80% depth of discharge): 400 cycles

Nominal voltage: 12V DC

Nominal capacity: 100Ah (20Hr) / 92Ah (10Hr)

Internal resistance: ~2.6mΩ

Cold Cranking Amps (CCA): 925A CCA (EN) / 1325A (HCA) / 1150 A (MCA) / 1400 A (MHPCA) / 1300 (MPCA). MPCA standards are marine cranking amp standards.

Pulse current (5 seconds) hot start: 1750 (PHCA)

Short-circuit current: 2600A

Charging parameters: Cyclic - 14.4 ... 14.8V @ 25ºC / Float - 13.5 ... 13.8V @ 25ºC

Minimum recommended charging current: 9.2 A (a lower charging current shortens the battery's lifespan)

Dimensions: 330 x 173 x H254 mm (case height excluding terminals: H226 mm)

Weight: approximately ~31.5 kg

Terminals: two pairs of different terminals for various applications - one pair of SAE-type terminals (automotive style) + one pair of threaded terminals (3/8-16" stud for positive and 5/16-18" stud for negative). Positive terminals are positioned on the right.

Recommended operating temperature: -40°C...+60°C

Optimal storage temperature: +20°C

Terminal positioning: Positive terminal on the RIGHT

Recommended uses: Starter battery or dual-purpose use for marine vessels and boats, generators, machinery, military or off-road vehicles, and other vehicles

Compatible vehicles: Marine vessels and boats, off-road vehicles, lifting equipment, industrial generators, and similar applications.

Installation: Not included in the product price.

Commercial warranty for private individuals: 24 months from the date of purchase. The warranty applies subject to adherence to the usage conditions specified.

Certifications: Manufacturer and seller hold ISO9001 (quality) and ISO14001 (environmental) certifications.

EAN Code: 635241141702

Customs Tariff/Intrastat code: 85071020

CPV code: 31431000-6 (Lead-acid accumulators)

WARNING: Do not disassemble, short-circuit, or throw into fire.

 ATTENTION: Do not dispose of in the trash, even after the end of their service life! Used batteries contain chemicals that are highly hazardous to health and the environment! Hand over used batteries to authorized collection centers, to your retailer, or to collection bins for used batteries found in large stores.
