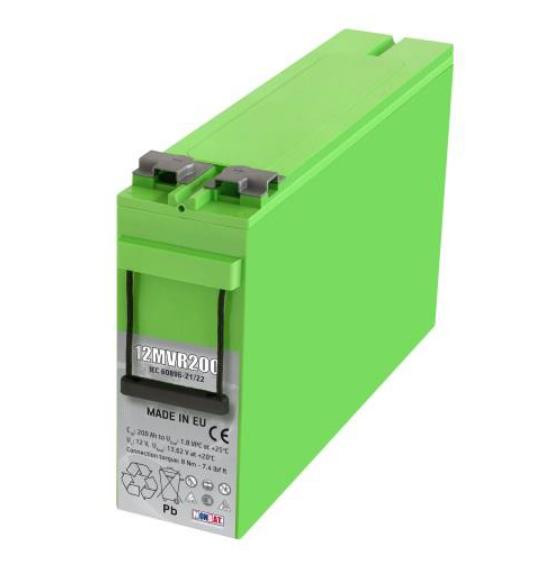

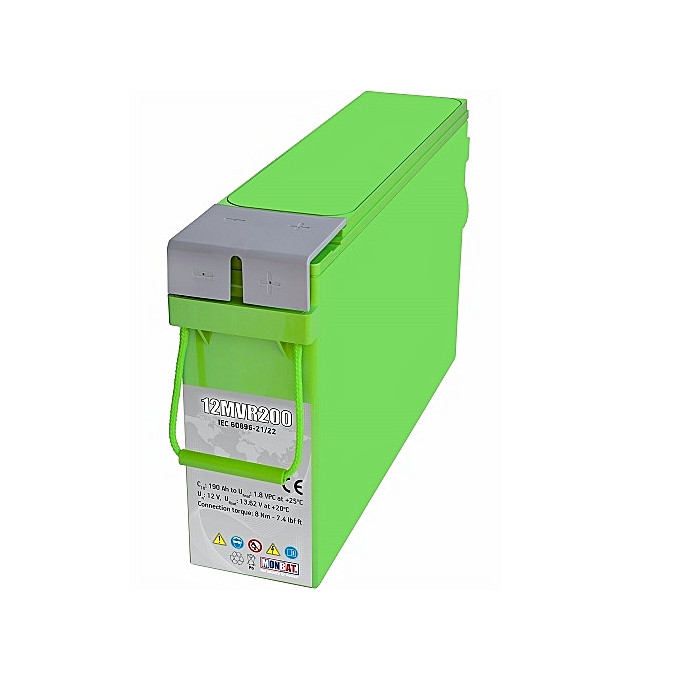

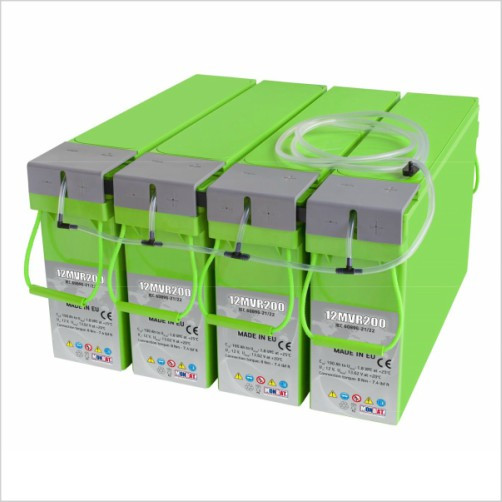

AGM Battery Monbat 12MVR200 12V 190Ah

Description

VRLA AGM Monbat 12MVR200 battery - in Front Terminal format, is an industrial battery from the Very Long Life range (over 12 years projected life), therefore a Lead battery intended for professional applications. It is mainly used in telecommunications (telephone exchanges) or high-capacity UPS, but also in massive energy storage solutions such as micro-photovoltaic or wind power plants.

Brand/Manufacturer: Monbat / Monbat Group

Battery type/Technology: Front Terminal / VRLA AGM (lead acid with regulating valve and AGM separators; maintenance-free)

Model: 12MVR200

Equivalent codes: 12V190F (from EnerSys), FT12-200 (from Foton ProCycle), etc.

Housing: ABS FR shock resistant, UL94 V0 class

Gas recombination efficiency: >99%

Special features: Pressure regulating valve / Central degassing system / Flame arrester / AGM separators

Nominal voltage: 12 V

Nominal capacity: 190 Ah @ 10Hr up to 1.8 Vpc at 20°C

Internal resistance: 3.9 mΩ (IEC 60896-21/22)

Short circuit current: 3150 A (IEC 60896-21/22)

Optimal charging parameters: 13.62 V at 20°C (float)

Designed life: Very Long Life, 12+ years at +20°C

Applications: telecommunications, UPS, generators, starting robots, photovoltaic plants

Operating temperature working: Maximum range -20 : +60°C / Recommended range +15...+25°C

Storage temperature: -20°C... +40°C

Self-discharge rate: <2% per month at +20°C

Storage time without recharging: Recommended - up to 6 months at +20°C / Maximum - 12 months

Rack compatible: ETSI

Terminals: 2 x M8 F (front terminal) - front terminals ensure much faster and easier connection canbd are placed in the rack

Tightening torque: 7 Nm

Applicable standards: IEC 60896-21/22 / IEC-61427-1/2 / IEEE 1184 / EN 50272-2 / IEC 61056-1 / IEEE 1187/1188

Manufacturer certifications: ISO 9001 / ISO 14001 / OHSAS 18001 / AQAP 2110

Online store/merchant certifications: ISO 9001 / ISO 14001 / ISO 27001 / NATO

Dimensions: 316 x 555 x 125mm (hxwxd)

Weight: 59.2 kg

Commercial warranty for individuals: 24 months from date of purchase.

 Warnings: Do not short-circuit, do not throw into fire or disassemble even after use. Hand over used batteries only to authorized collection centers. Contains chemicals hazardous to the environment and health (especially lead and sulfuric acid).
