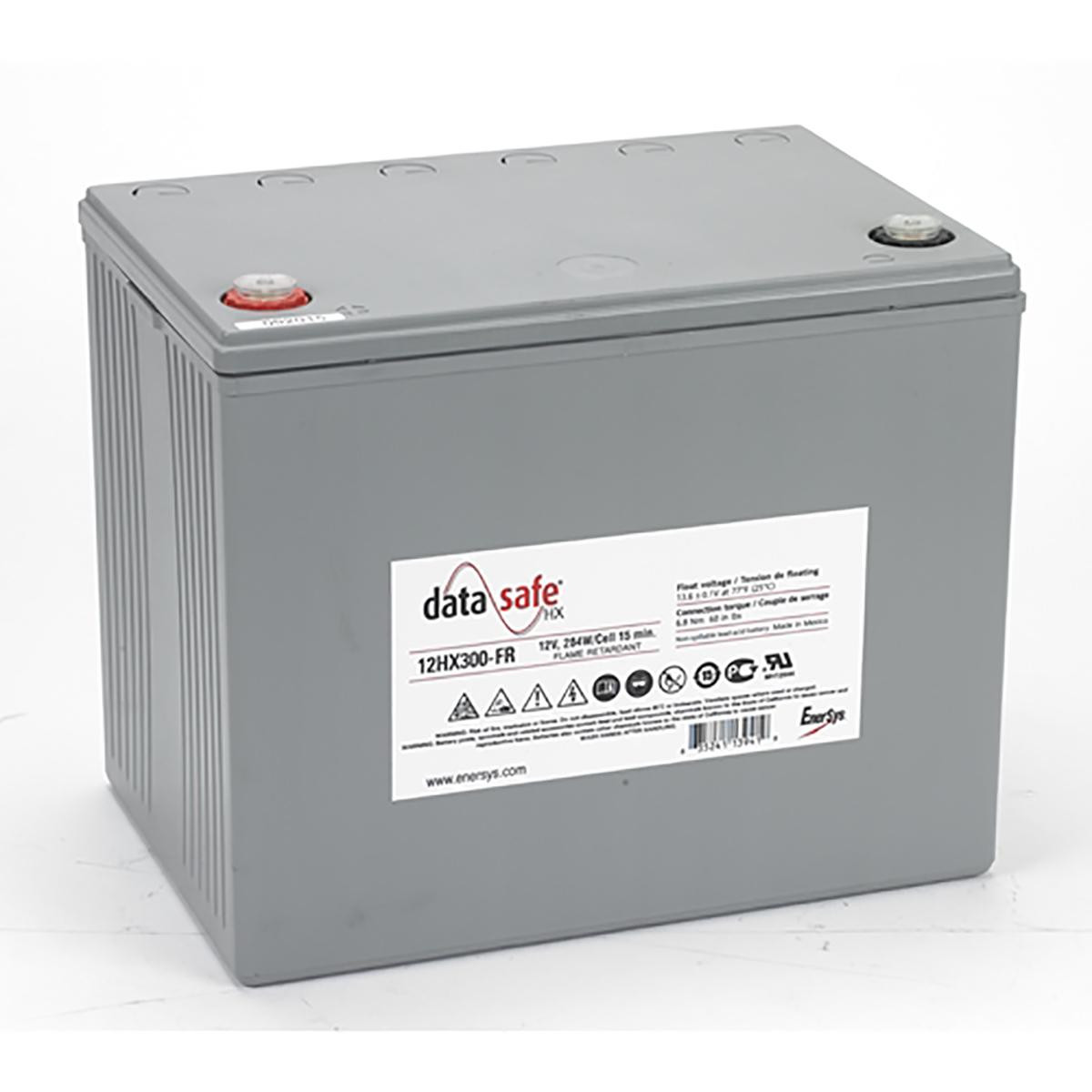

Enersys battery DataSafe 12HX300FR 12V 71Ah

Description

The DataSafe® HX top terminal battery range is comprised of valve-cycled lead acid (VRLA) batteries that have been designed to provide superior solutions for uninterruptible power supplies (UPS) that power high-performance and mission-critical servers. DataSafe HX top terminal are the ideal batteries for protecting vital systems.

The Enersys DataSafe 12HX300FR Top Terminal battery is an AGM technology battery with flame arrester and valve, with optimized electrochemistry to provide increased power up to 1.67 volts per cell (VPC) for 15 minutes.

Manufacturer/Brand: EnerSys / DataSafe

Battery range: DataSafe HX - AGM batteries for telecommunications and server UPS

Nominal voltage: 12 V

Nominal capacity: 71 Ah @8 Hr rates up to 1.75 V/cell at +25°C

Power delivered: 284 W/cell (total 1704 W/block) for 15 minutes, up to 1.67 V/cell at +25°C

Internal resistance: ~3.9 mΩ

Short circuit current: 3175 A (IEC)

Dimensions: 259 x 175 x 208 mm (L x W x H)

Applications: UPS servers

Working temperature: -40 : +50 degrees Celsius

Terminals: M6 - top terminal; terminals located on the cover, plus on the right.

Weight: 27.2 kg (of which 5.45 kg electrolyte)

Warranty: 24 months from the date of purchase. The warranty is provided directly by the online store (product imported directly by Sprinter2000.ro)

 Warnings: Do not short-circuit, do not throw into fire or disassemble even after use. Hand over used batteries only to authorized collection centers. Contains chemicals hazardous to the environment and health (especially lead and sulfuric acid)
