Description

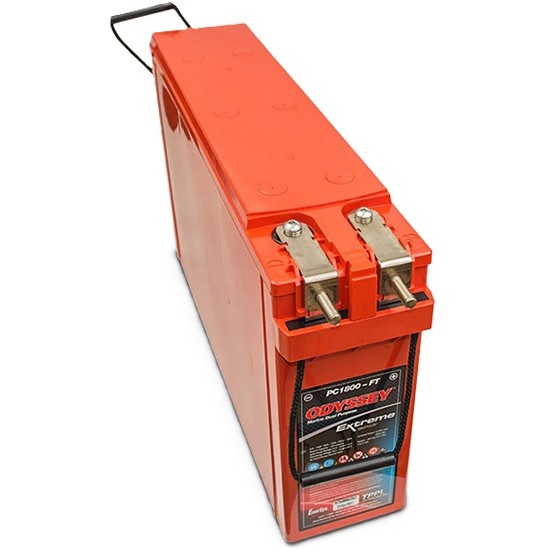

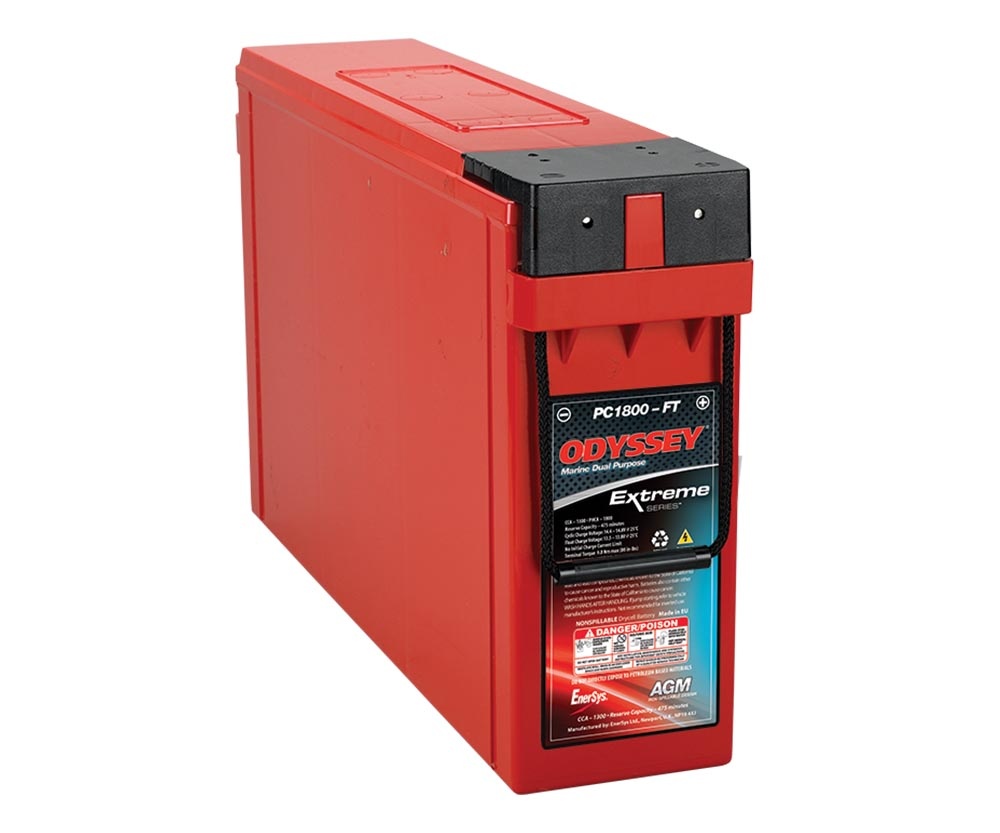

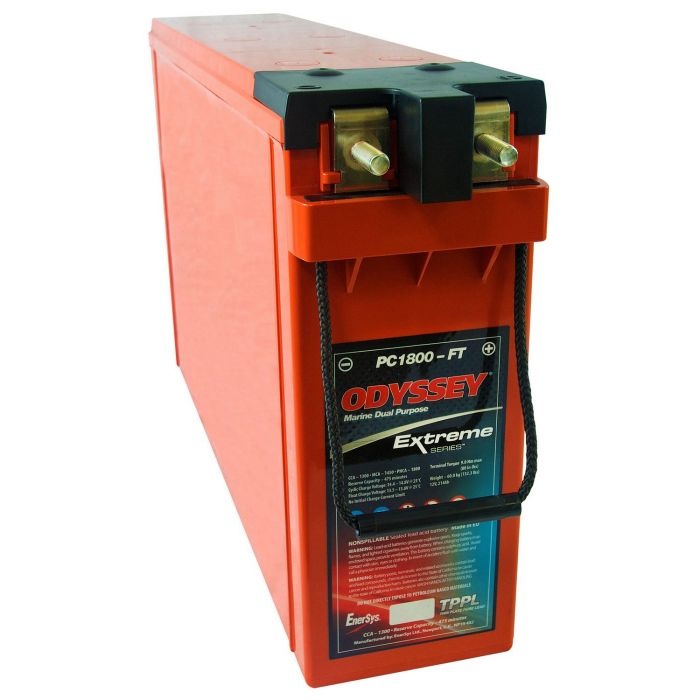

ODYSSEY BATTERY - Advanced Dual-Purpose Technology

High vibration resistance, for commercial vehicles and ships, allows dual use (equipment drive or storage and engine starting).

An ODYSSEY® battery ingeniously uses TPPL's ​​unique Absorbed Glass Mat (AGM) technology to deliver the performance of two separate batteries in one package. It delivers massive deep cycle performance (can be discharged over 60% more than any other battery), yet delivers exceptional starting power to beat any rival.

Reliable power for any vessel! In today's marine applications, the range of standard equipment continues to expand and can now include everything from lights and navigation systems to electric furnaces and air conditioning. But one thing that will never change is how quickly conditions on the water can change.

Like an athlete who is both a sprinter and a long-distance runner, the ODYSSEY Marine Dual Purpose battery has both massive starting power and amazing deep cycle capability - up to 400 cycles at an 80% depth of discharge. With twice the power and three times the life of conventional marine batteries, the ODYSSEY battery is ideal for trolling, starting, and powering the many onboard electronics common in today's boats and recreational vehicles.

Traditional legacy (SLI) battery designs currently on the market either deep cycle to provide power for onboard loads or provide high amperage discharges for things like engine starting - they can't do both. That's why modern vehicles and cars struggle and fail. The ODYSSEY AGM-TPPL (99% pure lead) battery is the answer - a true dual-purpose battery!

Odyssey batteries offer massive starting power, fast recovery and extreme durability demanded by heavy-duty and commercial vehicles, as well as ships or special equipment, including military.

 NOTE: Due to the large weight and format of the product, it is very likely that delivery by regular courier will not be possible! For this reason, each order will be confirmed individually and may be subject to special conditions of price, method and duration of transport - please keep this in mind and order only with full knowledge of the facts. We reserve the right not to deliver orders for reasons of method and cost of delivery (especially orders of only 1-2 pieces). Thank you for your understanding.

TECHNICAL SPECIFICATION:

Brand/Manufacturer: Odissey / EnerSys Energy Products - EH Europe Gmbh, Baarerstrasse 18, 6300 Zug, Switzerland

Battery Range: Odissey Extreme Marine Dual Purpose Battery - AGM Thin Plate Pure Lead (TPPL)

Product Code, Codes, Equivalents: ODS-AGM470FTT / PC1800-FT (old code) / UPC: 635241140859 / EAN: 635241142198

Model Made in: United Kingdom

Product Type/Use: Dual Purpose AGM TPPL Lead Acid Battery Used for Starting Commercial Vehicles, Large Trucks (TIR), Agricultural and Construction Machinery, Ships and Military Vehicles. Dual Purpose Battery - For Starting Engines but Also for Deep Cycle Applications, Such as Lifting Equipment (Platforms, Cranes, Elevators), etc.

Technology: AGM TPPL, sealed, completely maintenance-free.

Housing: ABS with high resistance to shocks, impacts and vibrations

Mounting position: In any position, except completely upside down

Storage life: 2 years at +25°C, normally without the need for recharging (recharging is recommended only if the voltage drops below 12.2V (50% SOC) during storage)

Self-discharge rate: 1.25% per month at +25°C / 5% per month at +40°C

No. of cycles at 80% depth of discharge: ~400 cycles

Nominal voltage: 12V cc

Nominal capacity: 214 Ah 20Hr / 190 Ah 10Hr

Capacity reserve: 475 minutes

Internal resistance: ~3.3mΩ

Starting current (cold start): 1300A CCA (EN) / 1600A (HCA) / 1450 A (MCA)

Pulse current (5 seconds) hot start: 1800A (PHCA)

Short circuit current: 3800A

Charging parameters: Cyclic - 14.4 ...14.8V @ 25ºC / Float - 13.5 ... 13.8V @ 25ºC

Recommended minimum charging current: 19 A

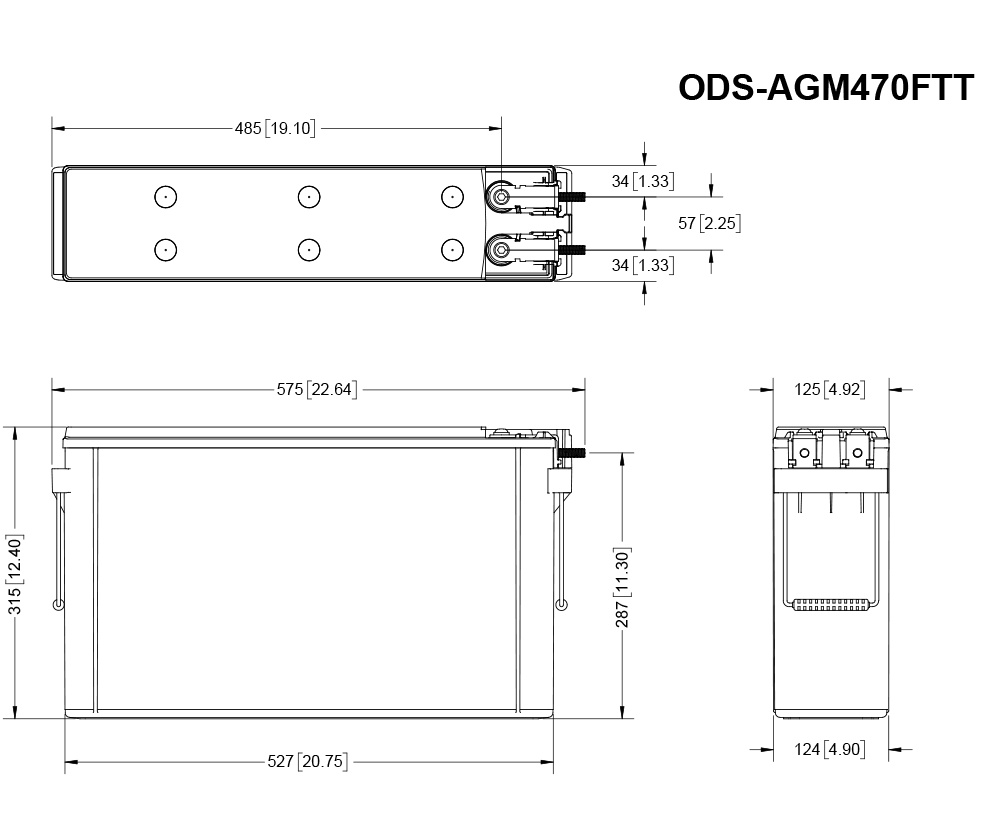

Dimensions: 582 x 124 x H318 mm (height includes terminals)

Weight: approximately ~59.9 kg

Terminals: 3/8-16" Stud (marine type terminal)

Recommended operating temperature: -40°C...+45°C

Optimum operating temperature storage: +20°C

Lifespan: Designed: 8-12 years / Effective 3-10 years (depending on the mode of use - degree and frequency of discharge)

Terminal positioning: on the short side, in the front (front terminal = FT)

Recommended uses: As a starting or dual-use battery on boats, commercial vehicles, off-road, agricultural and construction equipment, military vehicles, high-power generators, etc. Given the front terminal format, it can also be used with exceptional results in backup applications in telecommunications.

Compatible vehicles: boats, off-road vehicles, cars and vans with or without Start&Stop technology, trucks and equipment (agricultural, construction, military, etc.), lifting equipment, etc.

Assembly: Not included in the product price.

Commercial warranty for individuals: 24 months from upon purchase. The warranty is granted subject to the conditions of use in the specification.

Certifications: Manufacturer and seller with ISO9001 (quality) and ISO14001 (environment) certifications.

Barcode (EAN13): 635241142198

Customs tariff code/Intrastat: 85071020

CPV code: 31431000-6 (Batteries with lead and sulfuric acid plates)

 WARNING: Do not disassemble, short-circuit, or throw into fire.

 WARNING: Do not throw away in the trash, even after the end of their service life! Used batteries contain chemicals that are very dangerous to health and the environment! Hand over used batteries to authorized collection centers, to your dealer or to the collection bins for used batteries in large stores.
