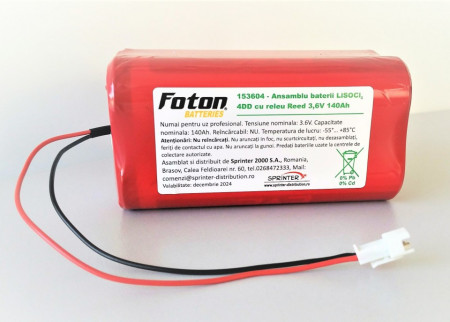

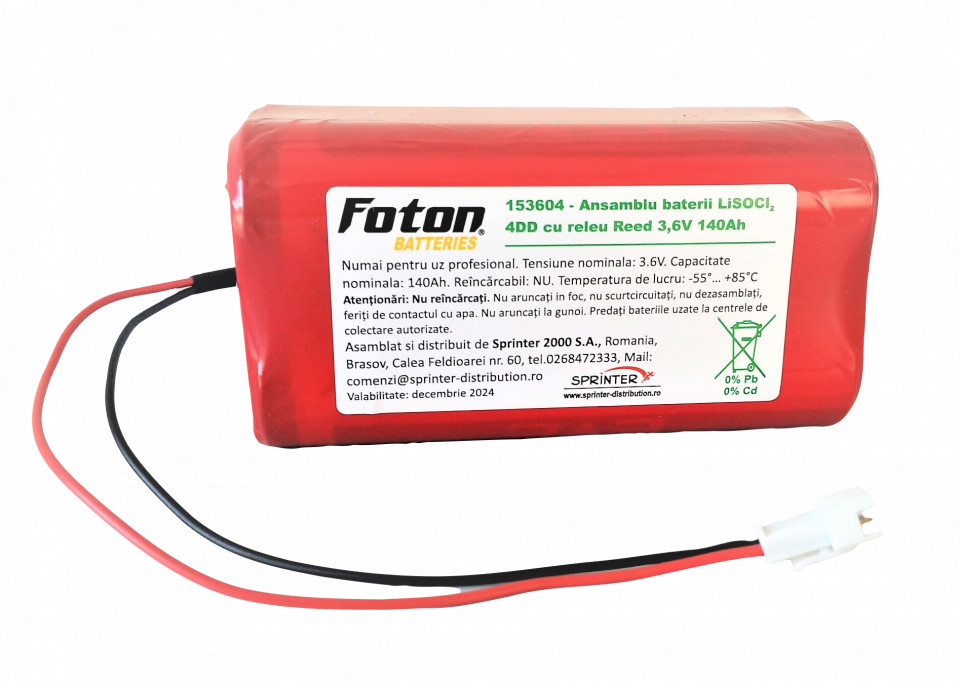

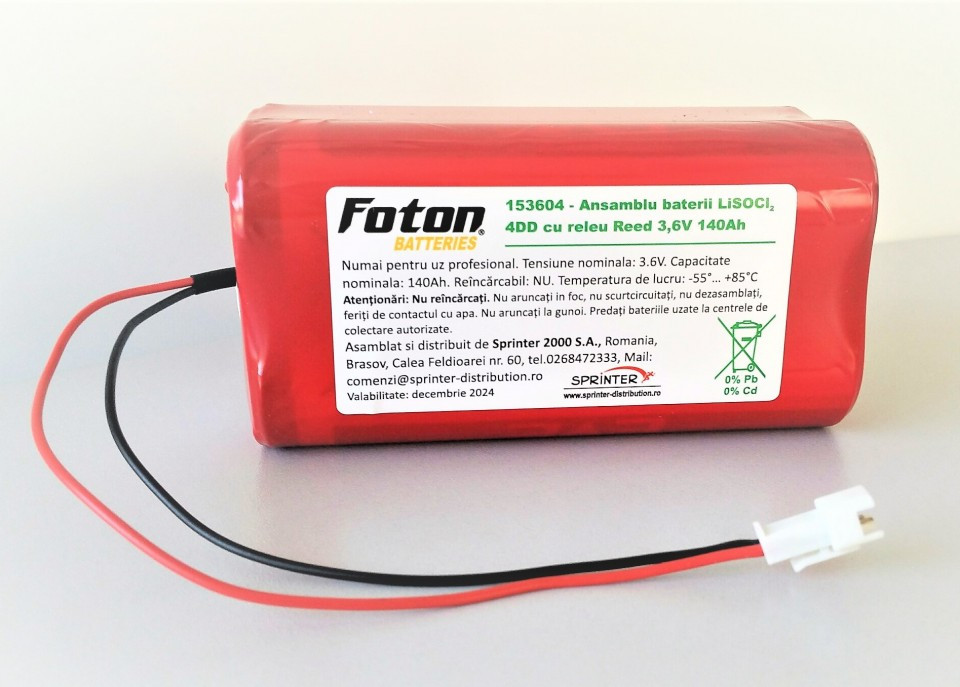

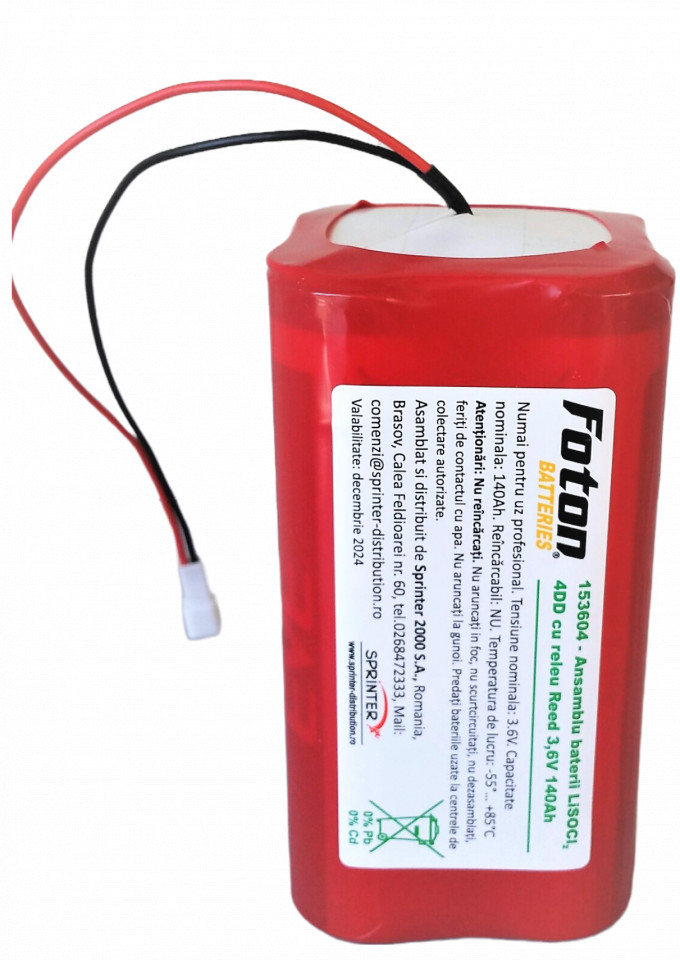

Gas converter battery 4DD LiSoCl2 of 3.6V and 140Ah

De la RON 489^.99 / Buc. (VAT included)

Delivery costs are not included

How can we help?

Ask for details

Description

NON-rechargeable battery of 4 DD size LiSOCl2 cells (cell code ER341245) connected in parallel, ASSEMBLED IN ROMANIA by Sprinter 2000 SA under the FOTON™ brand, which offers an exceptional capacity of 140Ah in a very compact form. It is used in gas converters, offering a long duration of use.

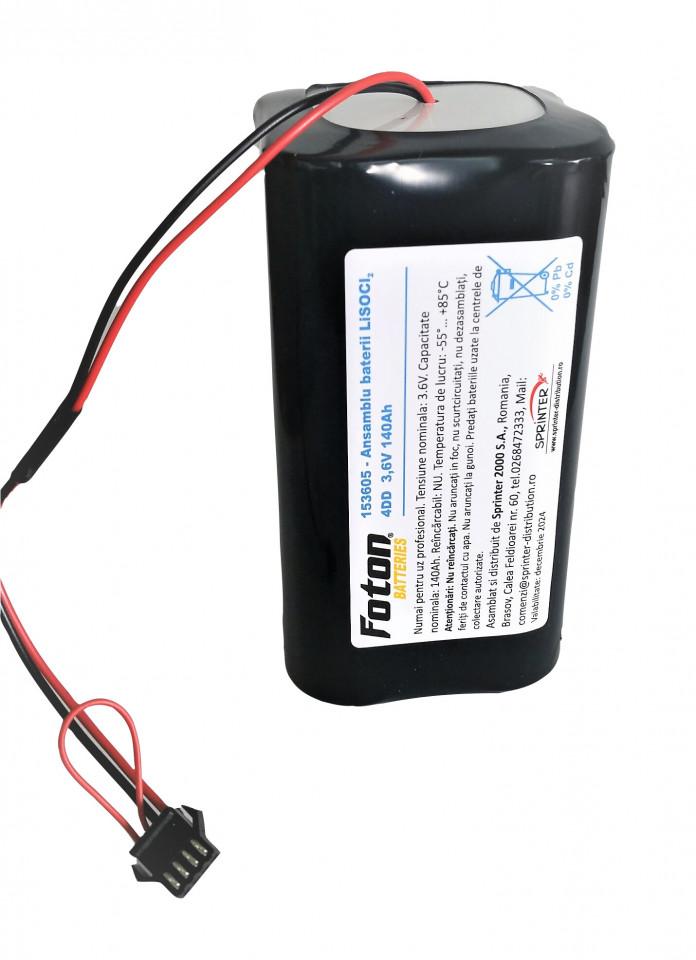

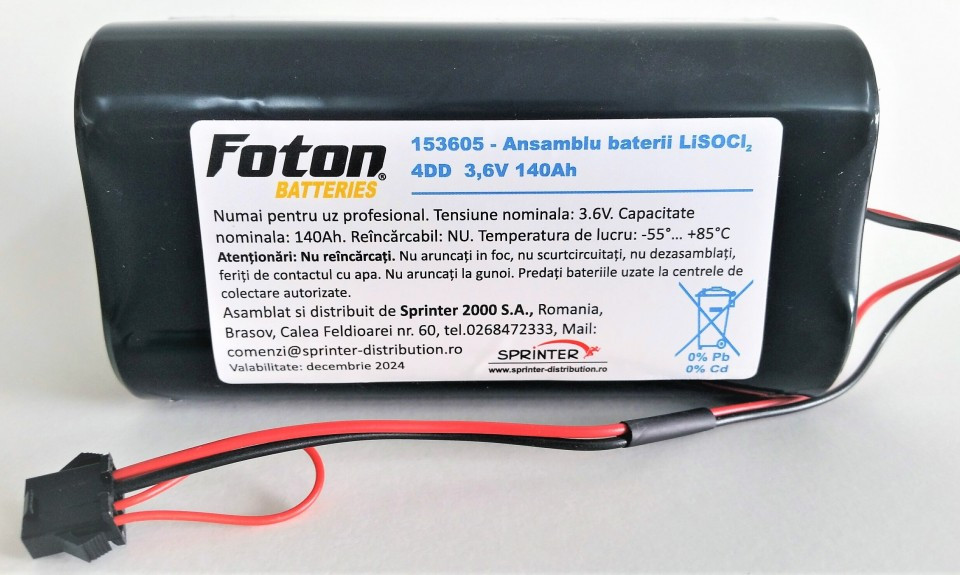

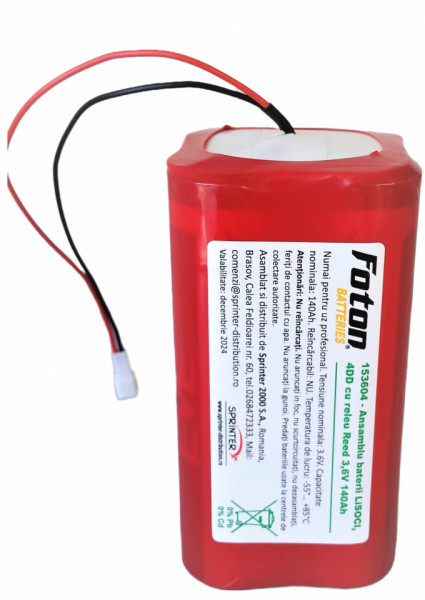

The assembly is available in two versions: with REED (protection relay) and two-pin connector or without REED and 4-pin connector. Carefully choose the desired option when ordering.

TECHNICAL SPECIFICATION:

Manufacturer: Sprinter2000

Cell brand/manufacturer: Eve Energy

Product type: Set of non-rechargeable batteries

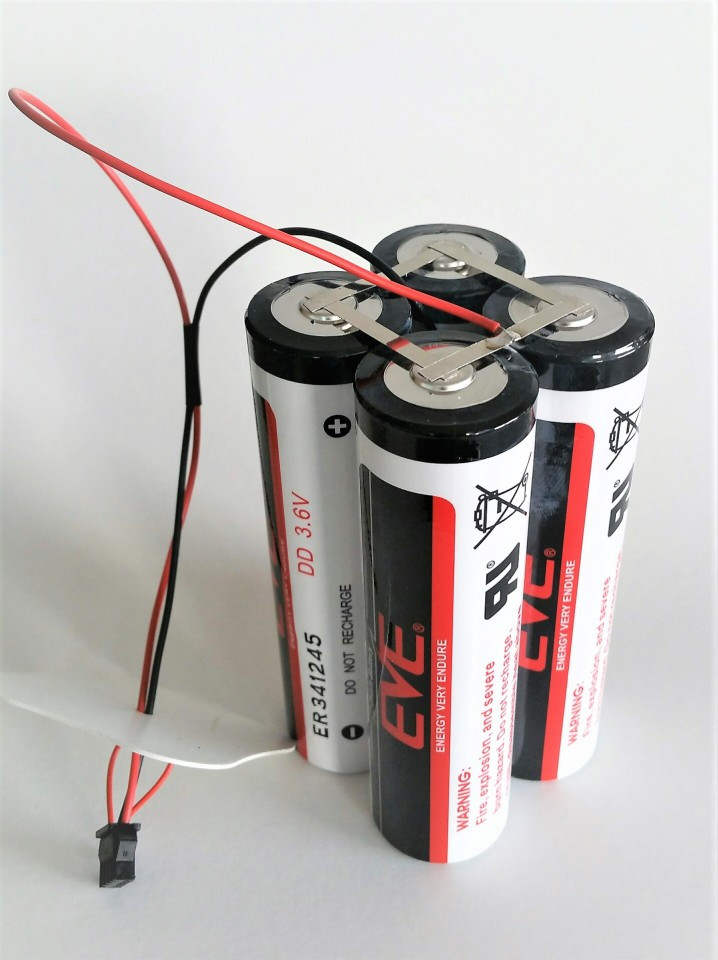

Top mounting: Cells with bridges made of Nickel plates, welded in spots. The assembly is stiffened with heat-shrinkable film (PVC), has prespan insulators at the ends and is equipped with red/black LIY (VLPY) connectors with a thickness of 0.5mm and a specific plug. The photos are of the actual product, made by Sprinter2000. In one of the photos you can see the bridges made of spot-welded nickel plates.

Chemistry: LiSOCl2 (lithium-thionyl)

Nominal assembly voltage: 3.6V

Overall nominal capacity: 140Ah

Protection relay: Version with REED - equipped with relay KSK-GP501-1015 (KSK-1A06/2-1015)

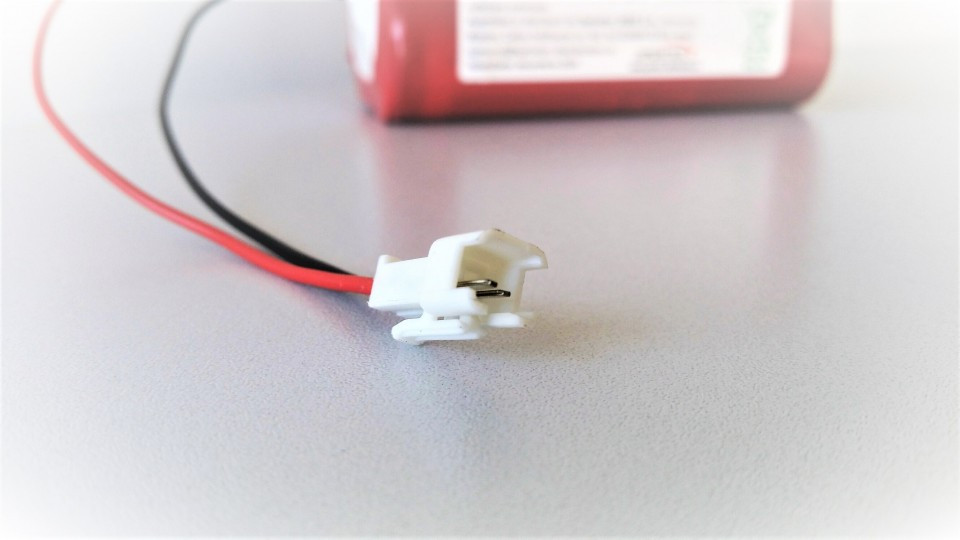

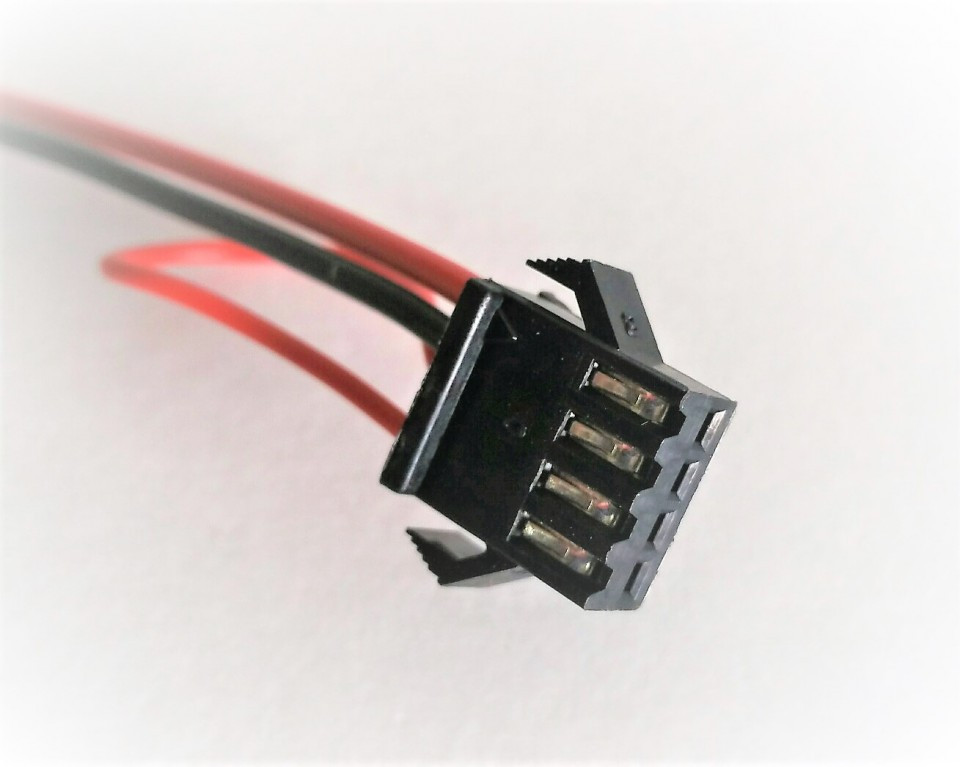

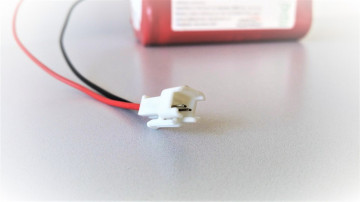

Connector: Variant with REED - connector 2601-02W (2 pins); version without REED - connector 2602-04 (4 pins)

Storage period: max. 10 years (optimal up to 8 years)

Overall dimensions: 125(h) x 60(w) mm

Overall weight: 780 grams

Operating temperature: -55°C ... +85°C

Warnings: DO NOT RECHARGE - DANGER OF EXPLOSION. Do not throw away, do not short-circuit, do not disassemble. Hand over used batteries only to authorized collection centers or to the distributor.
