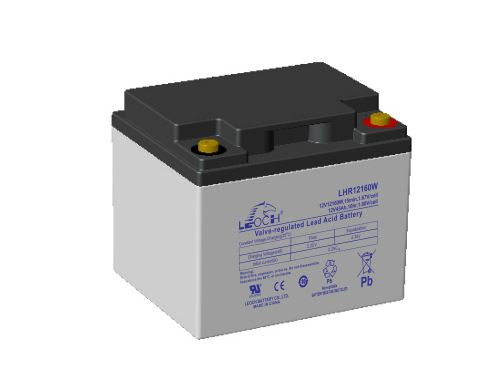

VRLA battery Leoch LHR12160W of 12V and 45Ah

Description

Maintenance-free lead-acid battery Leoch LHR12160W, VRLA AGM (Valve Regulated Lead Acid Battery - Absorbed Glass Mat) of 12 V and 45 Ah capacity, which offers a high power of up to 160W. It is a sealed battery used for UPS backup for servers, energy backup in the medical system, banking and laboratories, emergency systems, surveillance and alarm systems and other similar applications.

Classified as HR (High Rate), it provides energy to systems with high currents for short periods of time. And the Long Life classification according to EUROBAT norms reflects an extended life span (8-10 years).

Another advantage of this model is the specification that provides for use in a very wide range of temperatures, so operation even at extreme temperatures.

SPECIFICATION:

Brand/Manufacturer: Leoch® Battery

Battery type: VRLA AGM - with lead acid absorbed in glass fiber (can be placed in any position except upside down). It does not require maintenance and the electrolyte does not leak.

Battery range: LHR (Long Life High Rate) - batteries dedicated to applications with high currents and extended life

Fields of use: UPS servers, energy backup systems in safety systems, hospitals, banks, industry, etc.

Housing: ABS (UL 94 HB)

Nominal voltage: 12 V

Nominal capacity: 45 Ah @ 10 hours PV (1.8 V/cell)

Nominal power: 160 W @ W15 1.67 V / cell

Internal resistance: ≤ 9.0 mΩ (fully charged at 25°C)

Maximum discharge current: 540 A (maximum 5 seconds)

Maximum charging current: 11.25 A at 25°C

Recommended operating temperature: Charging -20 ... +40°C / Discharging -20 ... +55°C / Storage -15 ... +50°C

Effect of temperature on capacity: 100% of capacity at +25°C / 106% of capacity at +40°C / 86% of capacity at 0°C

Self-discharge: ≤ 3% / month at +25°C

Terminals: M6 (terminals with metric internal thread 6)

Dimensions: 197 x 165 x 170 mm (L x W x H), with a tolerance of ± 2 mm / side

Weight: 14.2 kg

Commercial warranty for natural persons: 12 months from the purchase, in compliance with the fields of use and the instructions

Applicable standards and certifications: IEC 60896 / CE / UL / IEC / IATF 16949 / ISO 45001 / ISO 9001 / ISO 14001

Do not throw away used batteries. Hand over to authorized collection centers.
