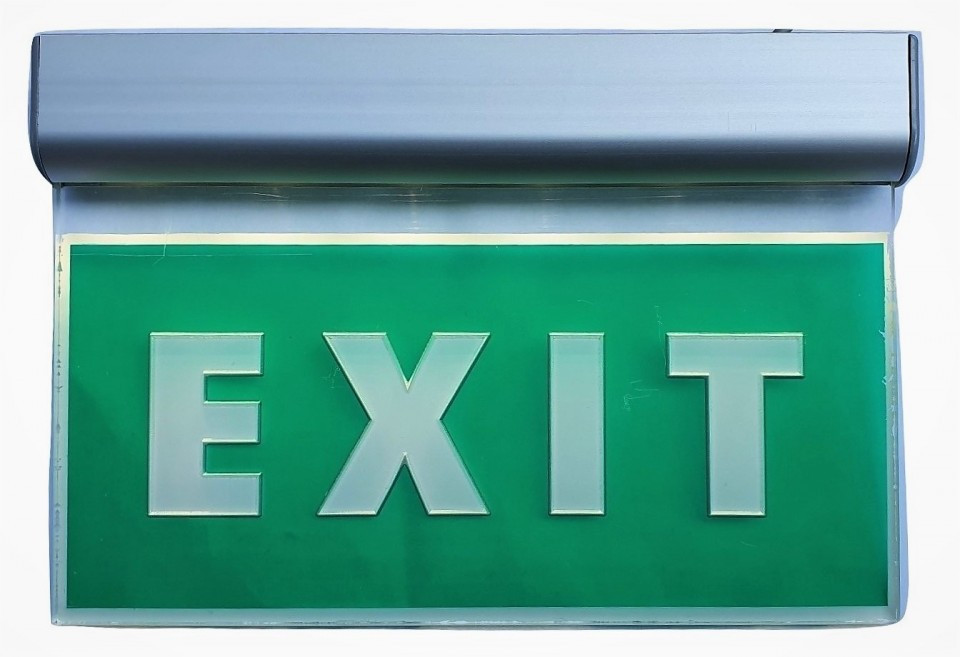

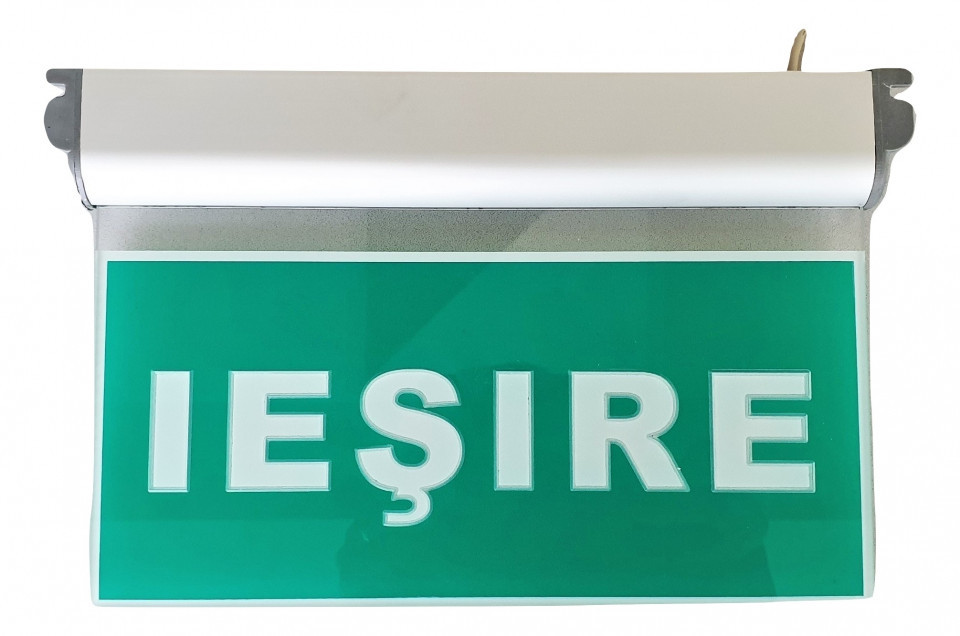

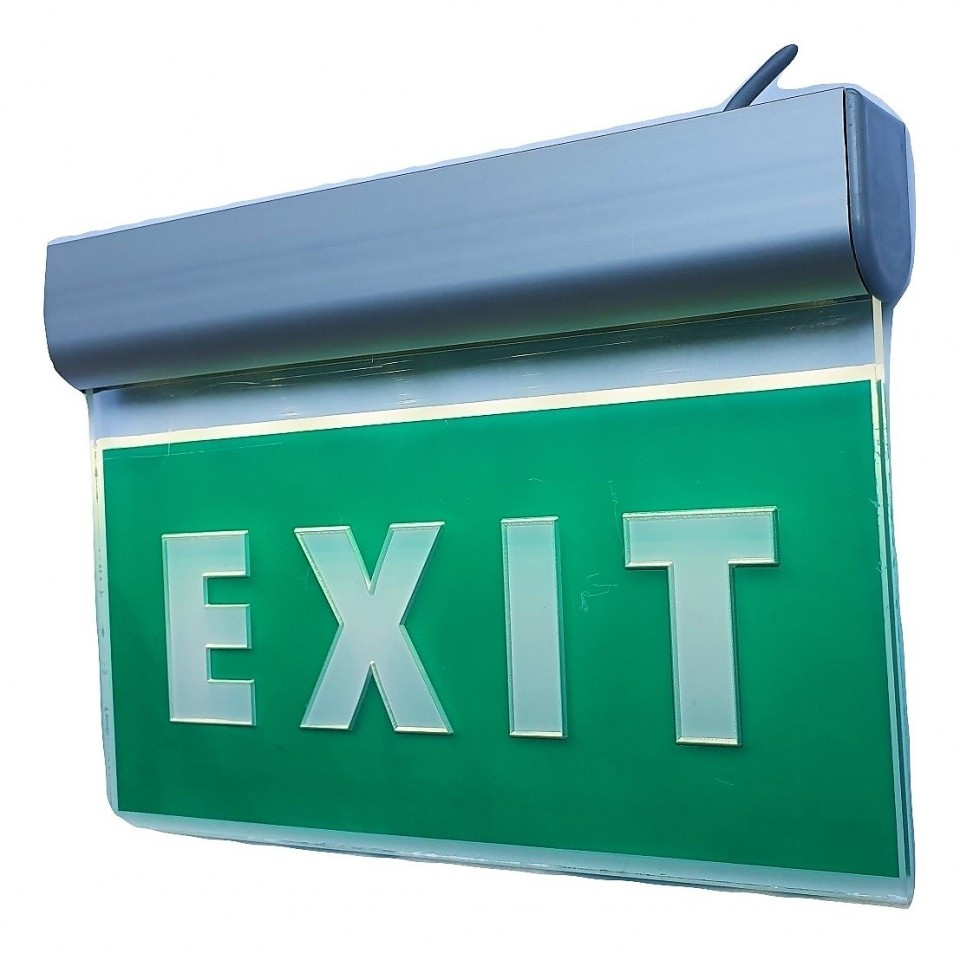

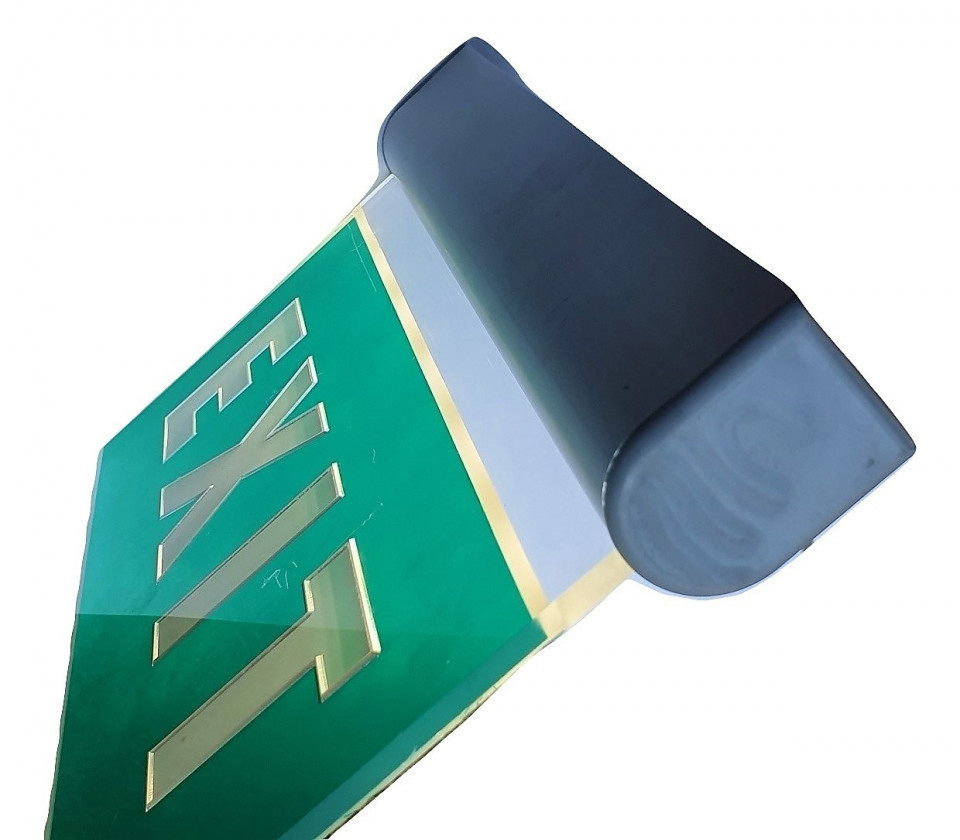

LED safety lighting fixture ESCAPE CIS-L02

Description

ESCAPE™ safety lighting fixture with increased energy efficiency thanks to the 6 Long Life LEDs from Osram. Pleasant design, with aluminum housing and light effect on the engraved stiplex.

Designed and manufactured in Romania under its own brand Escape™. They are made to order in our workshop in Rasnov (Brasov county), with the desired standard icons (choose the desired version at the time of ordering - selection from the predefined list).

The electronic board is designed and produced in Romania. The stiplex plate is imported from Germany, but silk-screened and then engraved in Romania. The aluminum profile (case) is also cut and finished by us, and the plastic end caps are injected/produced by us, also at Rasnov. The LEDs come from Osram Germany, and the batteries are produced by Arts in France.

Available in 10 versions of standardized icons that can indicate the evacuation routes or the hydrant. It ensures the brightness and visibility of the escape routes in the event of a power outage, having an autonomy of at least 2 hours.

Ideal for hotels, guesthouses, restaurants, cinemas, theater and conference halls, malls, banks and other public buildings.

Energy consumption of only 2.8 W (maximum), which will ensure significant savings considering that such a product is powered permanently, 7/7 and 24/24 hours. The electronics are designed for maximum efficiency: while powered from the mains it offers very low consumption - drops to 1.1 W - but when disconnected it will automatically switch to maximum brightness. In this way, an excellent ratio between energy saving in permanent mode and visibility when it is really needed is ensured.

Battery life about 500 charge/discharge cycles (estimated 10 years), LED life about 10 years (continuous operation). It has the possibility of testing operation in a non-mains powered mode by touching it with a magnet (any type of magnet).

TECHNICAL SPECIFICATION:

Product type: Emergency exit direction indicator lamp

Power supply: permanent 230 Vac ±10% 50/60 Hz

Lighting mode: Permanent with LED (lighting <50% of intensity in standby / maximum when the mains power is cut off)

Power switching mode: Automatic, when the power is cut off (after the power is restored, it automatically switches to battery recharge mode and then standby)

Test button: Reed-switch (self-test with magnetically activated relay)

Rated power: max. 2.8 W / ~1.1 W in standby

Built-in battery: 3 x VST AA Arts (France), NiCd 3.6V 800mAh (specially designed for permanent power supply)

Battery autonomy: 2 hours (influenced by environmental conditions and number of cycles)

Battery recharge time: 24 hours (full charge)

Average number of battery cycles: 500 cycles, average 10 years

Battery recharge time: 24 hours for full recharge

Light source: 6 Osram Long Life LEDs

Average LED life: 10 years, continuous operation

Brightness: 180 lumens / ≥ 2 cd/m²

Visibility distance: from 30 meters

Material: Aluminum housing, ABS/PP covers, silkscreened and engraved stiplex plate - all processed in Romania.

Design: Ultra slim, only 30 mm thick

Mounting: On the wall, ceiling or in the console (two sets of covers to cover all mounting needs)

Battery operation indicator: red LED on; testing is done by bringing a magnet close to the pictogram on the housing

Battery switching time: <1 second after mains power failure

Dimensions: 265 x 168 x 30 mm (with wall mounting covers) / 245 x 168 x 30 mm (with console mounting covers)

Weight: Net 450 grams (50% lighter than the previous version CIS-L01 which had a stainless steel housing). Gross 500 grams (with accessories included)

Usage temperature: 0-50 ºC (optimum 10-40ºC for increased battery life)

Water and dust protection: IP50 - dust protected, not water protected (request the offer for the water protected version here)

Battery protections: Short circuit, overheating and battery overcharging protection

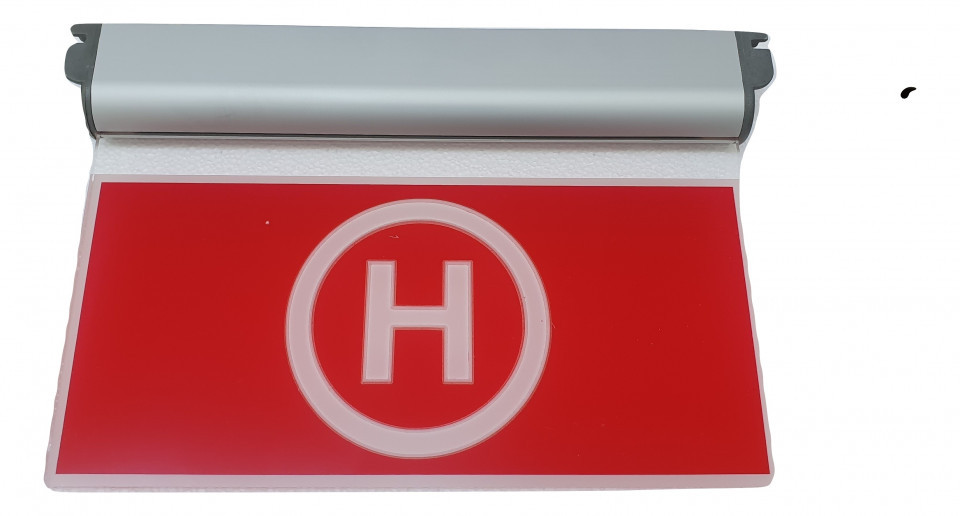

Standard pictograms: EXIT, EXIT, ARROW UP STAIRS, ARROW DOWN STAIRS, DOOR FORWARD, DOOR LEFT/RIGHT, HYDRANT (choose the desired pictogram when ordering; the price may differ depending on the selected model)

Picto color: Green Background RAL 6032 / White Symbol RAL 9003 (Red for the Hydrant version)

Project version: Escape CIS L-02

Applicable standards and certifications: EN60598-1 / EN60598-2 / IP53 / EN50015 / EN6157 (electromagnetic compatibility) / CE / ISO 7010 (internationally standardized graphic symbols) / ISO 3864 (colors and shapes used in safety signaling)

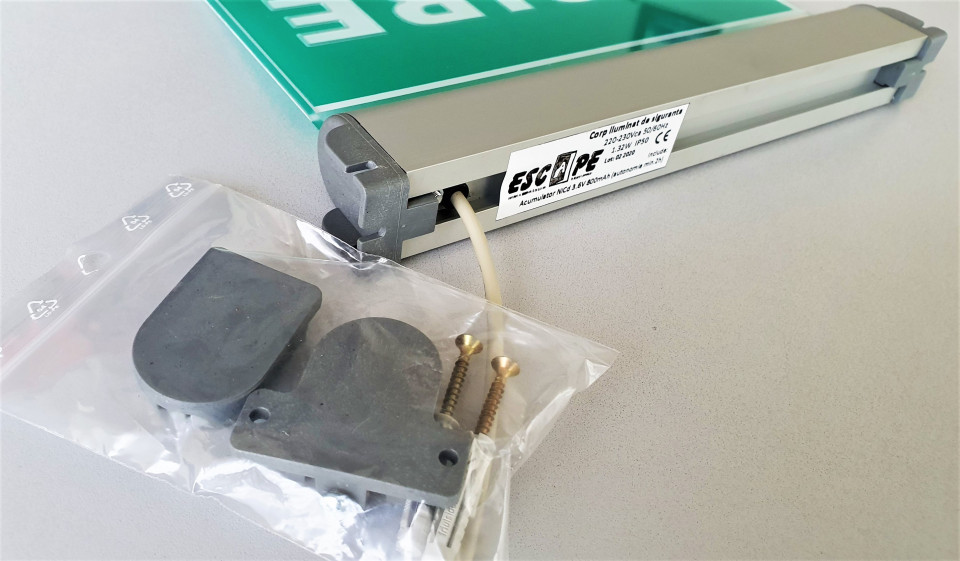

Included accessories: set of 2 ceiling mounting caps and set of 2 console mounting caps, set of universal dowels and screws, instructions for use and assembly and warranty certificate in Romanian.

Commercial warranty for individuals: 2 years

Brand details: ESCAPE™ - registered and protected trademark, all rights reserved by Sprinter 2000 SA. The use of this trademark in any form, without the consent of Sprinter 2000 SA, is subject to criminal sanctions.

ATTENTION: Lamps are made to order - delivery time varies depending on the quantity ordered and the workshop's workload at the time. For quantities greater than 10 pieces, request a special offer and delivery time here.

(the price includes green stamp for electrical and electronic equipment according to the legislation in force)

 Do not disassemble, short-circuit or throw away electrical and electronic equipment that you no longer use in fire or trash. Hand it over to an authorized collector or to the WEEE collection bins in large stores.

 Batteries are recycled together with the equipment. WEEE and used batteries may contain substances hazardous to health and the environment.
