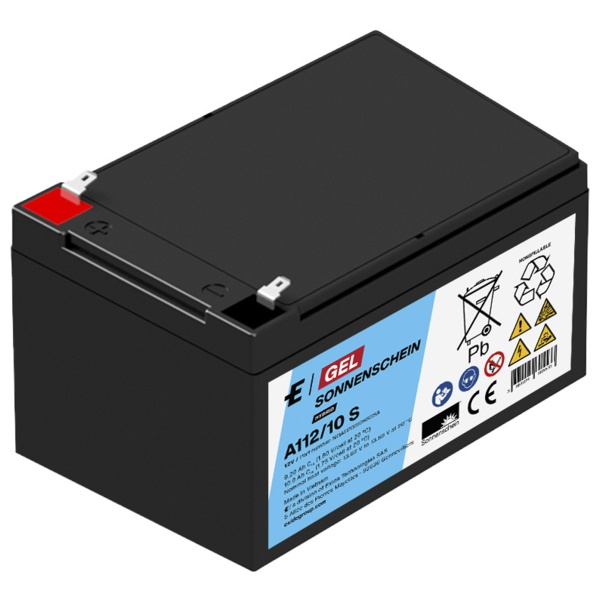

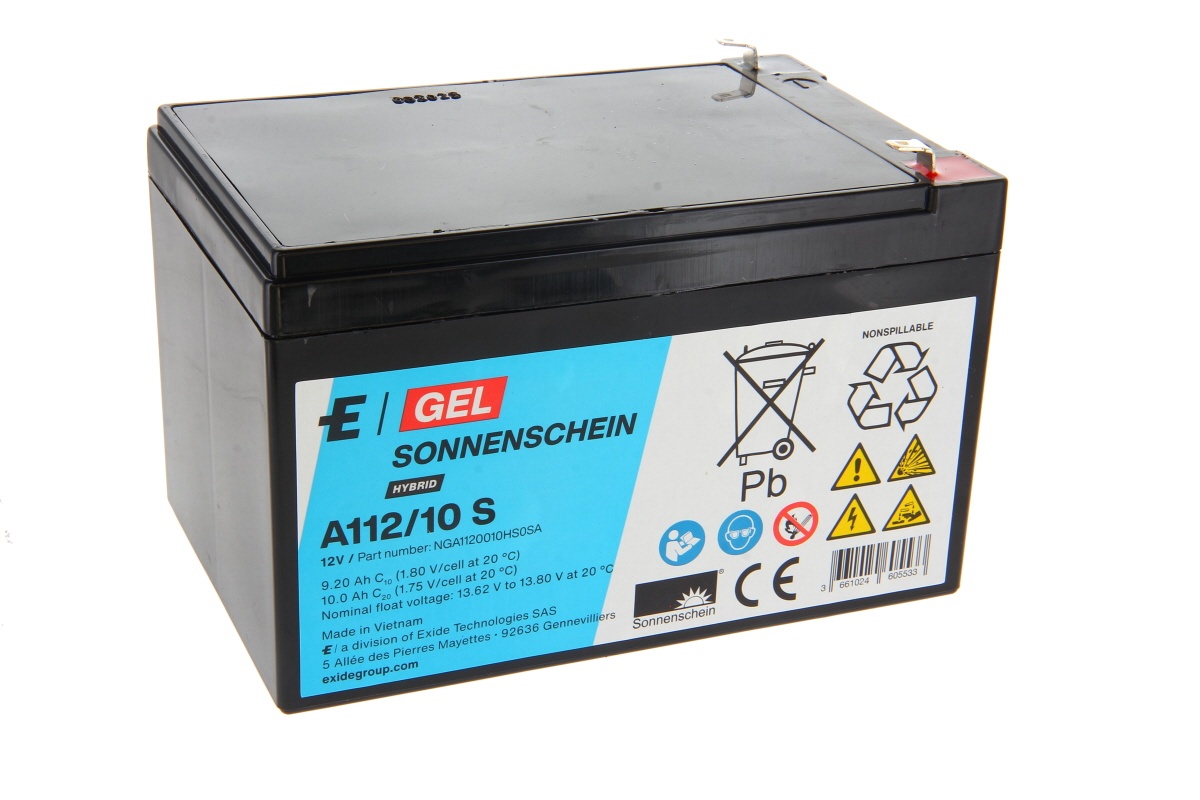

Gel Battery 12V 10Ah Sonnenschein Dryfit A112/10 S

Description

The batteries in the Sonnenschein A500 range offer high capacities for many different applications. This range has been used successfully for over twenty years in many installations around the world. The success of the A500 batteries comes from superior dryfit technology, available in a wide range of models to provide a solution for every energy need.

It is a GEL battery, which offers savings in maintenance costs and a longer lifespan, increased resistance in difficult operating conditions and deep discharges. Sonnenschein is proud to be the inventor of rechargeable gel batteries!

PRODUCT SPECIFICATION:

Brand/manufacturer: Sonneschein® brand / produced in Europe by GNB® Industrial Power

Battery range: Dryfit A 100 (previously A500) - industrial gel battery range

Battery model: Dryfit A112 10 S / NGA1120010HS0SA (equivalent model A512 10S)

Housing: PP (polypropylene) block, approved UL (Underwrites Laboratories U.S.A.)

Nominal voltage: 12 V

Nominal capacity: 10 Ah (C₂₀ 1.75 Vpc at 20°C)

Internal resistance: 12.5 mΩ

Maximum discharge current 5 seconds: 150 A

Average life: 10-12 years (Long Life according to EUROBAT 2015 classification)

Storage life (without recharging): up to 2 years at 20°C, due to extremely low self-discharge rate

Dimensions: 151 x 98.5 x 101 mm (L x W x H).

Applications: UPS, solar/wind backup, medical equipment, electric and hybrid vehicles, telecommunications, garden equipment, etc.

Terminals: T1 / S-4.8 type terminals (Faston F 4.8 mm)

Applicable standards and norms: IEC 60896-21/-22 / UL / no restrictions on transport / ISO9001

Weight: ~3.7 kg

Warranty: 24 months from the date of purchase. The warranty is provided by Sprinter2000.ro

 Warnings: Do not short-circuit, do not throw into fire or disassemble even after use. Hand over used batteries only to authorized collection centers. Contains chemicals hazardous to the environment and health (especially lead and sulfuric acid).

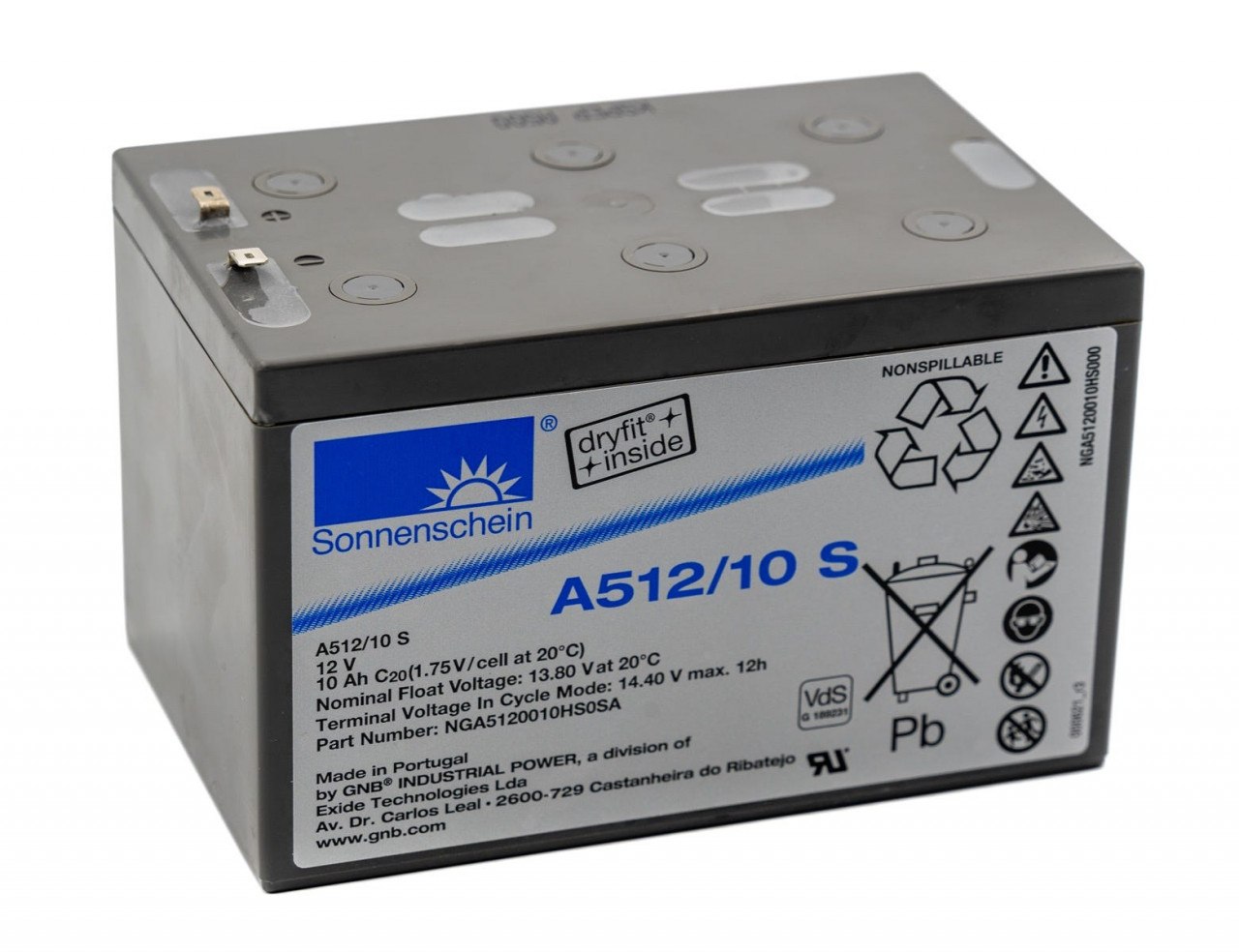

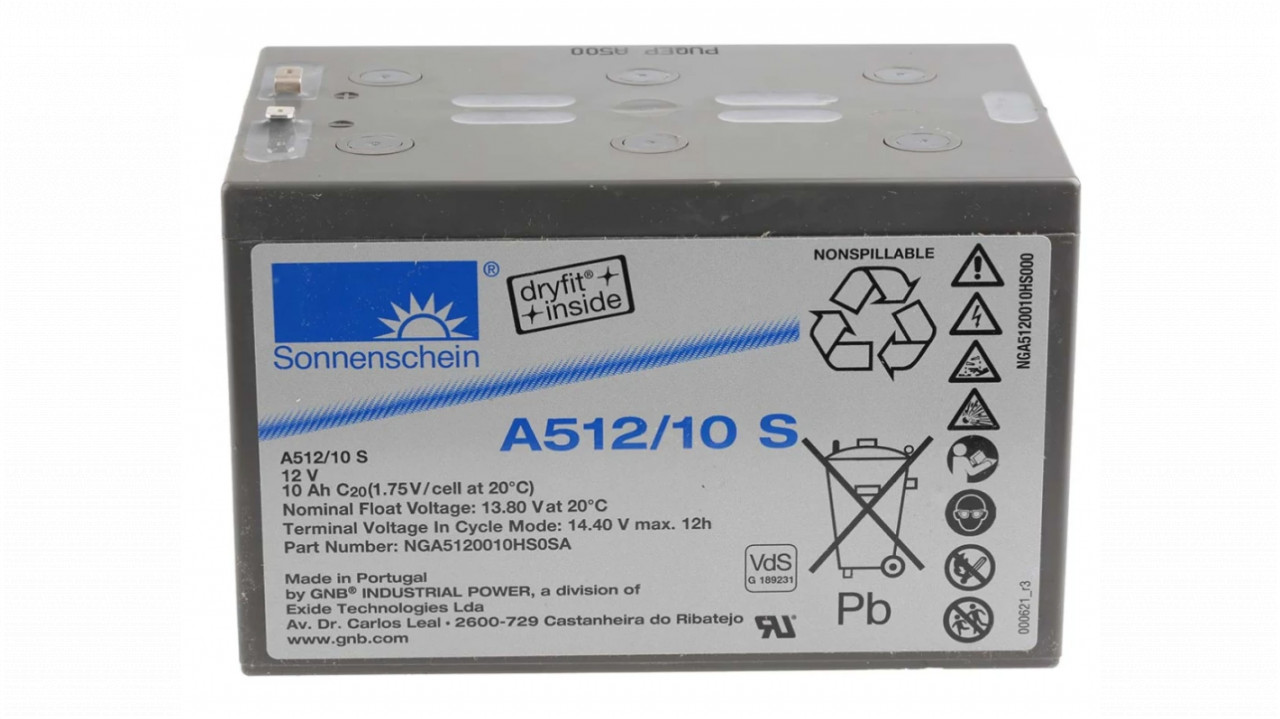

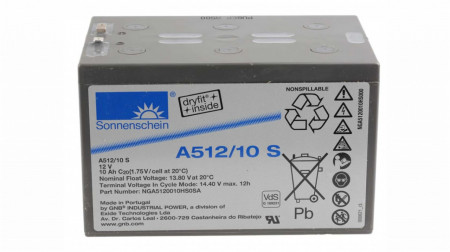

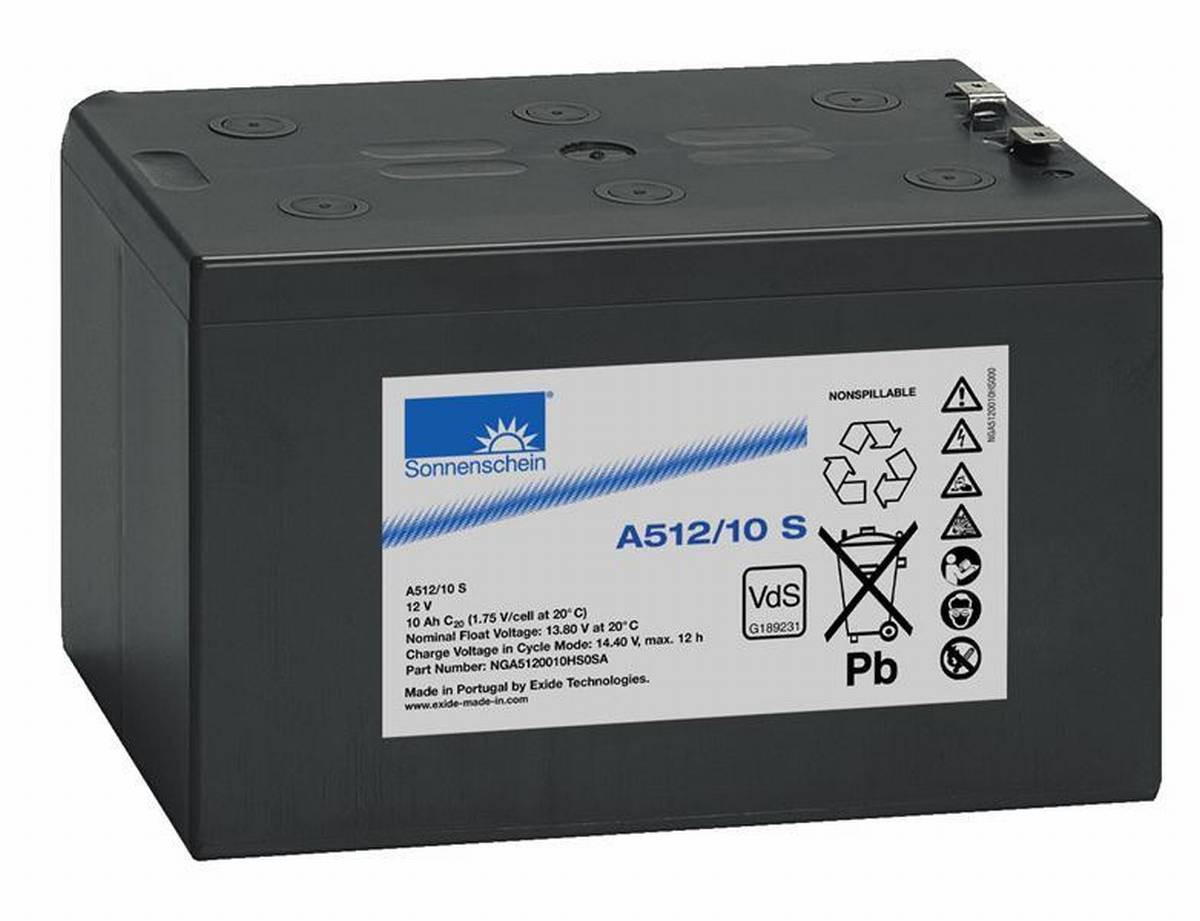

 The photos with the previous model A512 10S are for comparison.
