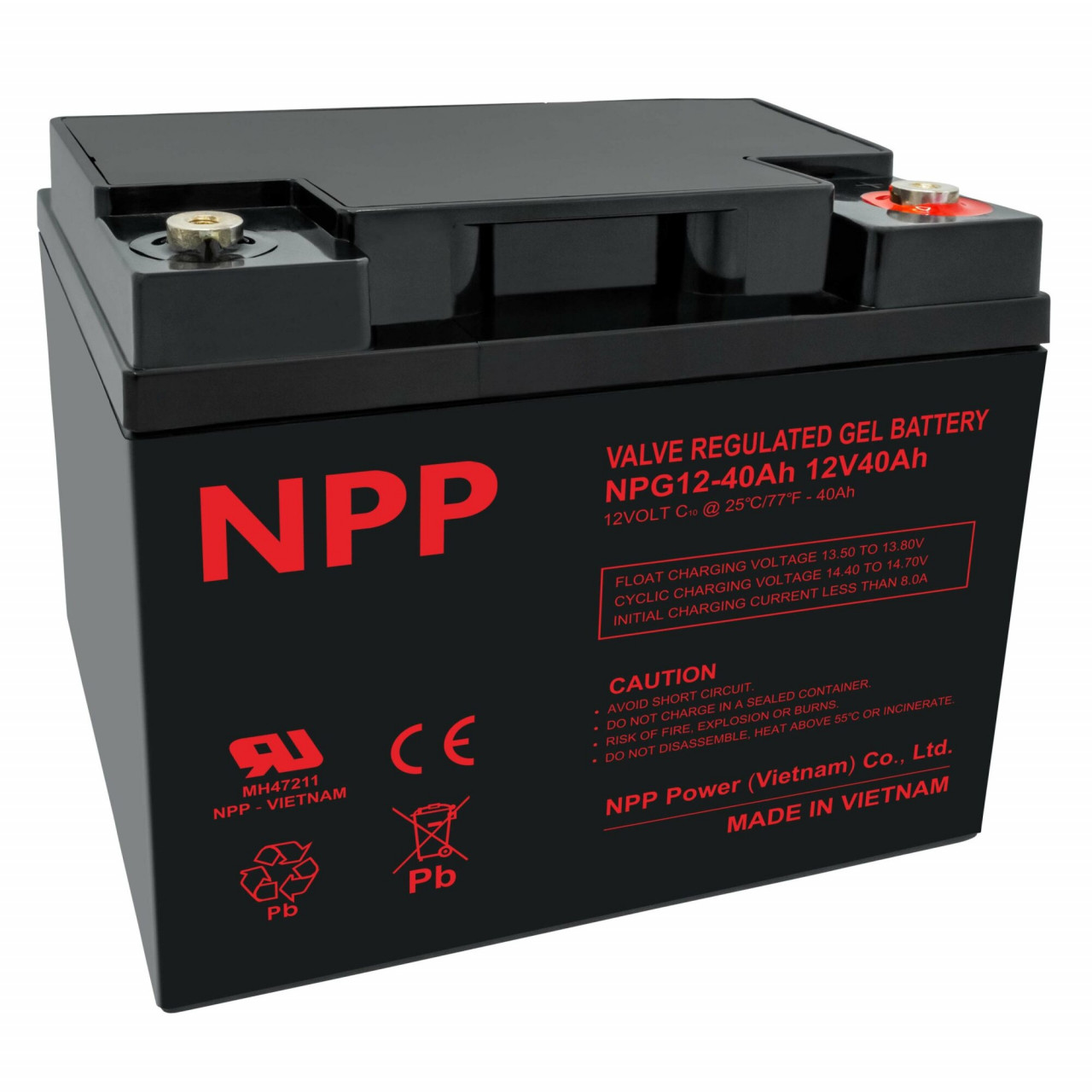

Gel battery NPG12-40Ah

Description

The NPP Power AGM GEL series are manufactured to meet the toughest requirements in deep cycle and renewable energy applications. The batteries use foamed or colloidal silica gel to immobilize the electrolyte, which further improves stability in cyclic applications.

PRODUCT SPECIFICATION:

Brand/ Manufacturer: NPP / NPP Power (Vietnam) Co.Ltd.- ISO9001, ISO14001 and OHSAS 18001 certified manufacturer

Technology: AGM VRLA with gel.

Range: Deep Cycle - for high cyclic and deep discharge applications

Coding: NPG12-40Ah

Designed life-span: 12 years JIS at +25°C / EUROBAT classification at +20°C: 10/12 years

Nominal voltage: 12 V

Nominal capacity: 40 Ah @10Hr at 1.8 Vpc at 25°C / 42.4 Ah @20Hr at 1.8Vpc at 25°C

Maximum discharge current: 400A (maximum 5 seconds)

Internal resistance: ~8.5 mΩ

Charging voltage: 13.5-13.8V in buffer mode / 14.5-14.7V in cyclic mode

Charging current: ≤ 8 A

Nominal operating temperature: +25°C

Operating temperature ranges: discharge -15°C...+50°C / charge -10°C...+50°C / storage -20°C...+50°C

Temperature influence on capacity: 102% of capacity at +40°C / 100% of capacity at +25°C / 85% of capacity at 0°C

Self-discharge: ≤ 3% / month

Terminals/Tightening torque: FM6-T16, with M6x16 screws / 5.1 ± 0.6 Nm

Dimensions: 197 x 165 x 170 mm (L x W x h); height including terminals 170 mm; dimensional tolerance ± 2 mm

Weight: 13.5 kg ± 3%

Standards and certifications: ISO 9001 / ISO 14001 / OHSAS 18001 / UL / IEC / CQC / TLC / IEC 60896-21/22 / EUROBAT

 Do not throw away after use - only hand over to authorized collection centers.
