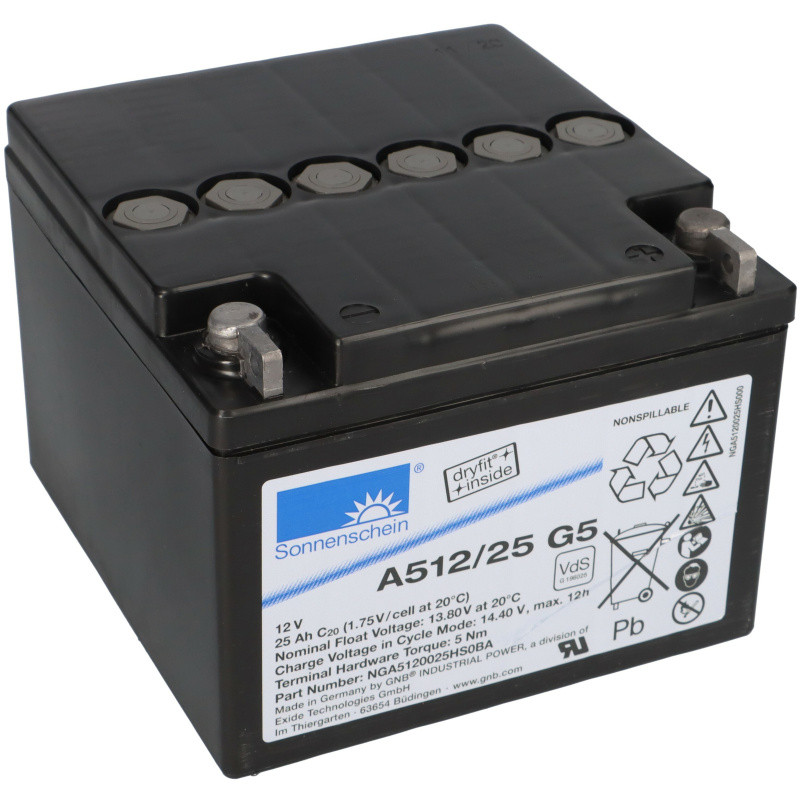

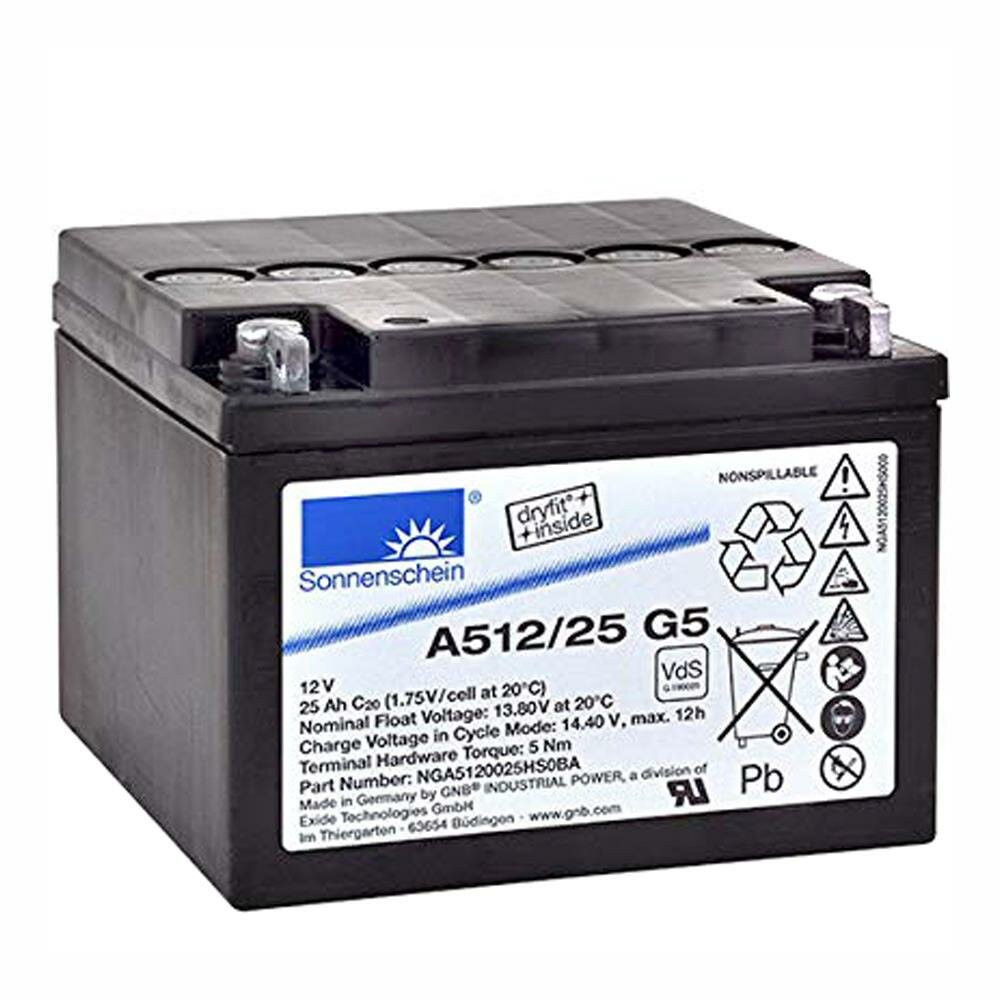

Gel battery Sonnenschein Dryfit A 512/25 G5

Description

The batteries in the Sonnenschein A500 range offer large capacities for many different applications. This range was
successfully used for over twenty years in many installations around the world. The success of the A500 batteries comes from
superior dryfit technology, available in a wide range of models to offer a solution for every energy need.

It is a battery with GEL, which offers an economy of maintenance costs and a longer life, increased resistance in difficult operating conditions and deep discharges. Sonnenschein is proud to be the inventor of rechargeable gel batteries!

TECHNICAL SPECIFICATION:

Brand/manufacturer: Sonneschein® brand / produced in Europe by GNB® Industrial Power

Battery range: Dryfit A 500 - range of industrial gel batteries

Battery model: Dryfit A 512 / 25 G5 (part number NGA5120025HS0BA)

Housing: PP (polypropylene) block, UL approved (Underwrites Laboratories U.S.A.)

Nominal voltage: 12 V

Nominal capacity: 25 Ah (C₂₀ 1.75 Vpc at 20°C)

Internal resistance: 21.3 mΩ

Short circuit current: 583 A

Average lifespan: 10-12 years (Long Life according to EUROBAT 2015 classification)

Storage life (without recharging): up to 2 years at 20°C, due to the extremely low rate of self-discharge

Dimensions: 167 x 176 x 126 mm (L x W x H). Height with all terminals 126 mm.

Applications: UPS, solar/wind energy backup, medical equipment, electric and hybrid vehicles, telecommunications, garden equipment, etc.

Terminals: terminals type G-M5 (with M5 thread, tightening 5 Nm)

Applicable standards and norms: IEC 60896-21/-22 / UL / without transport restrictions / ISO9001

Weight: 9.65 kg

Warranty: 24 months from the date of purchase. The warranty is provided by Sprinter2000.ro

 Warnings: Do not short-circuit, do not throw into fire and do not disassemble even after use. Hand over used batteries only at authorized collection centers. Contains chemicals dangerous for the environment and health (especially lead and sulfuric acid)
