Description

The ODYSSEY 5 Amp Charger is designed to efficiently charge ODYSSEY and other brands of premium quality 12 Volt AGM batteries, lead-acid batteries and 12 Volt Lithium batteries (LiFePO4, Li-Fe, Li-iron, LFP). The 5 Amp Charger is a good choice for charging smaller capacity batteries and is lightweight and compact for easy portability. The world's first combined AGM and Lithium battery charger!

ADVANTAGES:

• Fast, fully automatic charging after battery type selection
• Lightweight and highly portable
• Built-in temperature control
• Battery status indicator
• Compatible with most 12 volt battery types
• 3 year warranty

PRODUCT SPECIFICATION:

Product type: Professional rectifier for 12Vdc batteries

Brand/Manufacturer: Oddysey© Battery / EnerSys 2366 Bernville Road, Reading, Pennsylvania, 19605

Model designed in: Sweden

Model manufactured in: China

Model and equivalent codes: OBC-5 / 1090 / OBC-5A / OBC-5E (European plug version) / OBC-5U (UK plug version) / UPC code: 635241142457

Field of use: Car, truck and commercial vehicle services, small and medium boats

Compatible battery types: Lead-acid, EFB, Gel, AGM, VRLA, Spiral, MF, Start&Stop, LiFePO₄

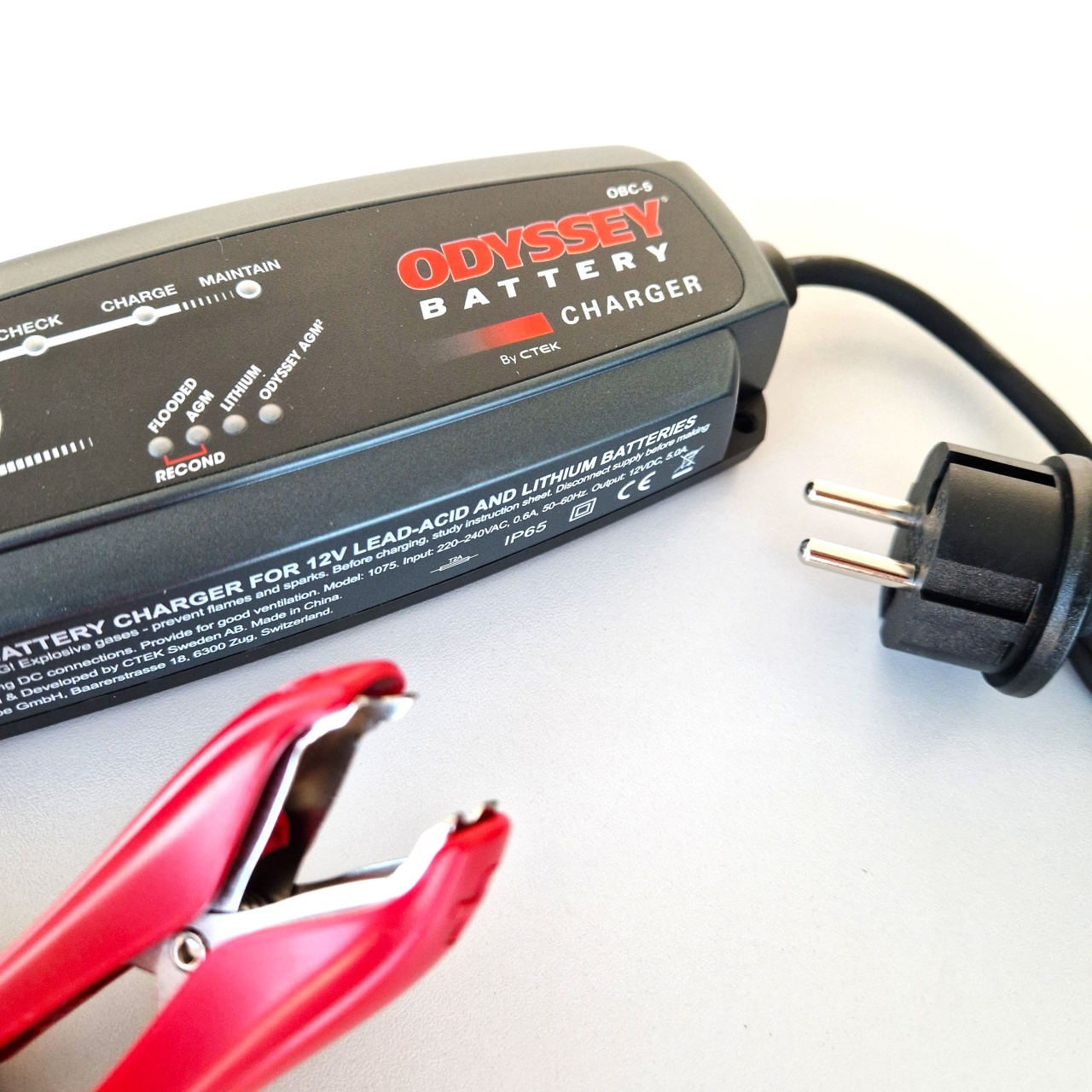

Modes: Flooded - for classic Pb-acid batteries / AGM - for AGM or Gel batteries / RECOND - for trying to recondition deeply discharged batteries / Odyssey AGM Mode - specifically for charging and optimizing Odyssey TPPL AGM batteries / Lithium - for Li-Fe-PO4 batteries

Functions (automatic): automatic voltage compensation depending on temperature

Supply voltage: 220-240VAC, 50-60Hz, max 1.8A

Recommended capacity for batteries-charge: 5-50Ah (can also charge larger capacity batteries, but the recharge time becomes long)

Nominal output voltage: 12Vdc

Charging current: 4.3A

Jump start/robot start function: Not applicable, does not offer this function

Input power: 75W

Number of charging and analysis phases: 3: Verification / Automated charging / Maintenance

Charging time: depending on the capacity of the battery to be charged (~10 hours for a 12V 50Ah battery)

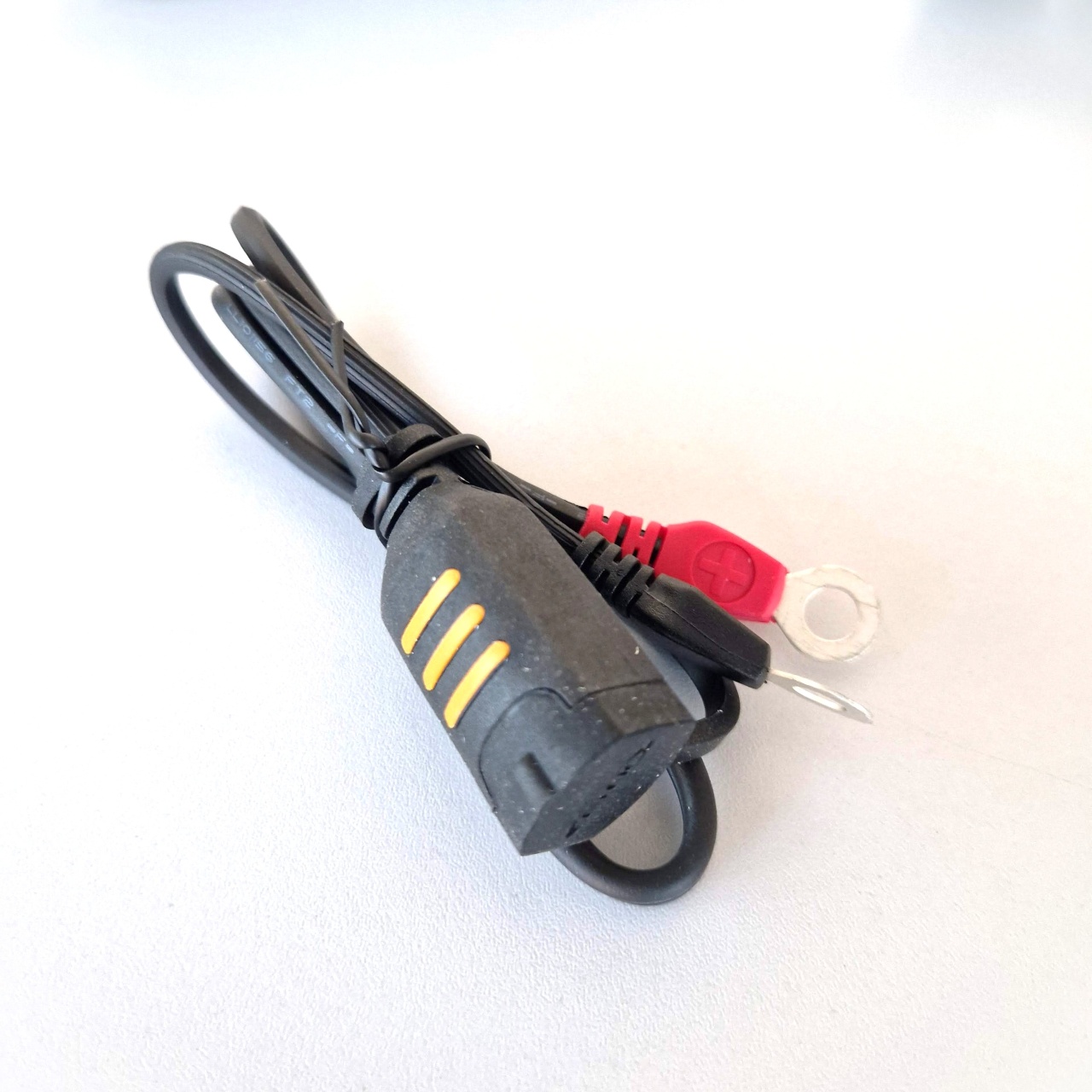

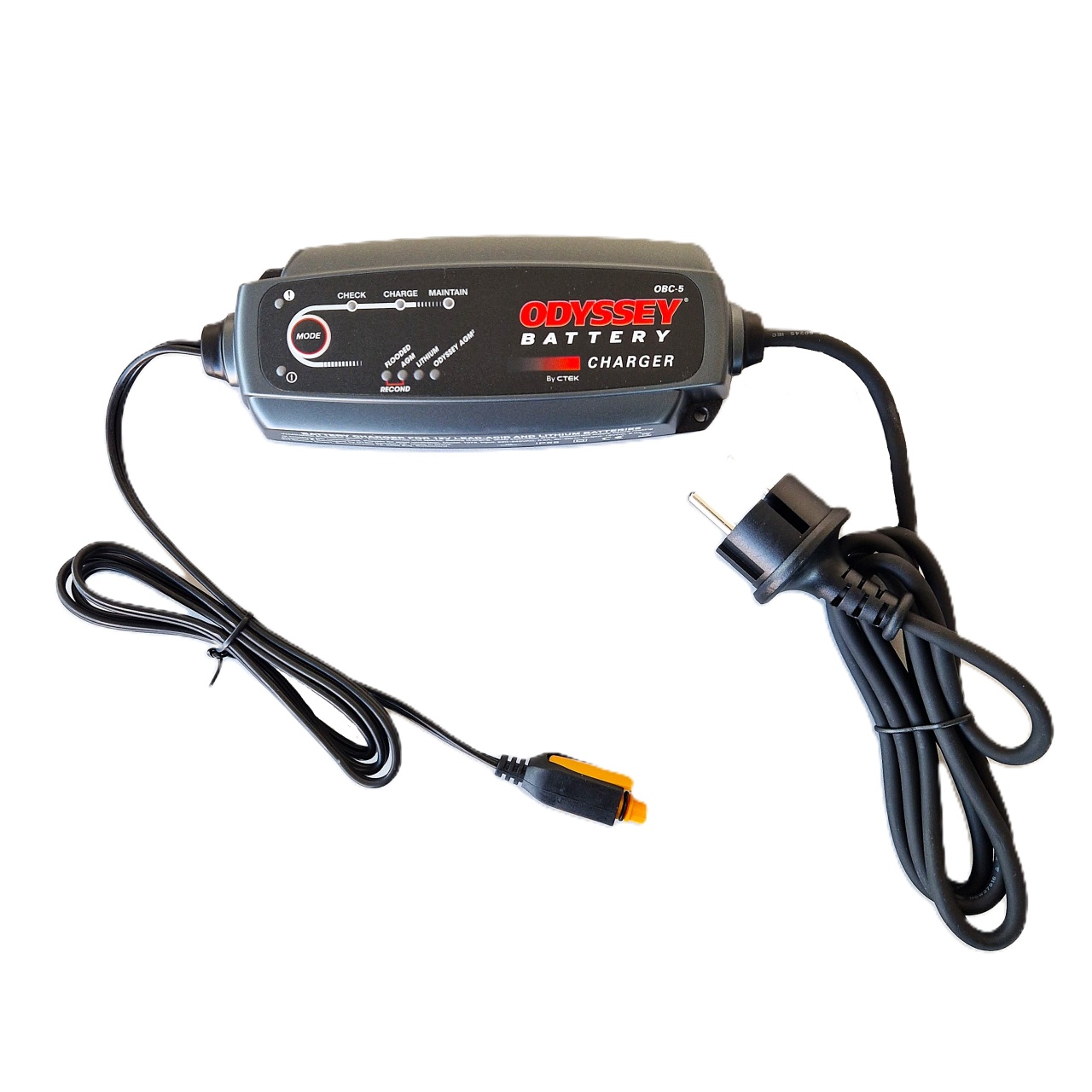

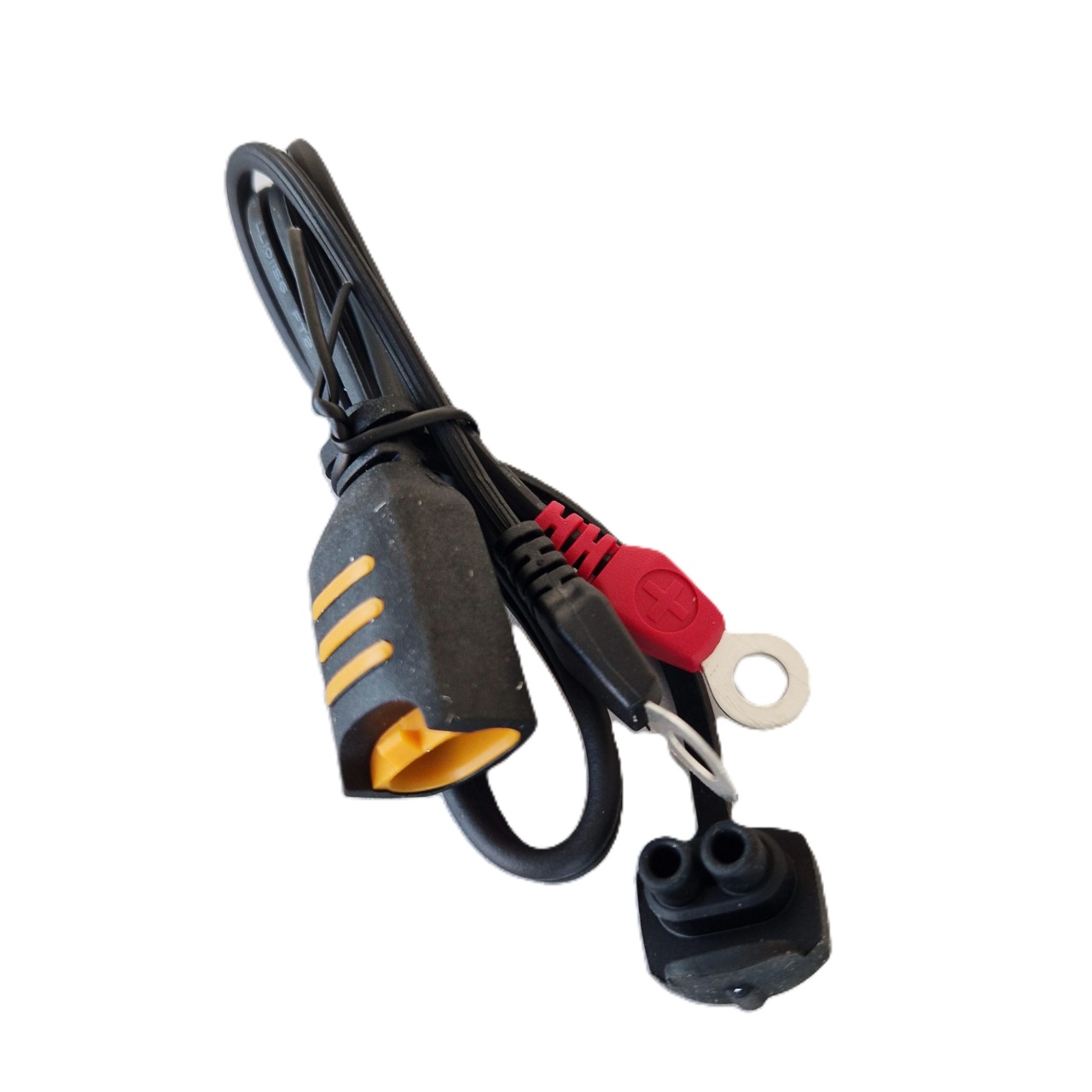

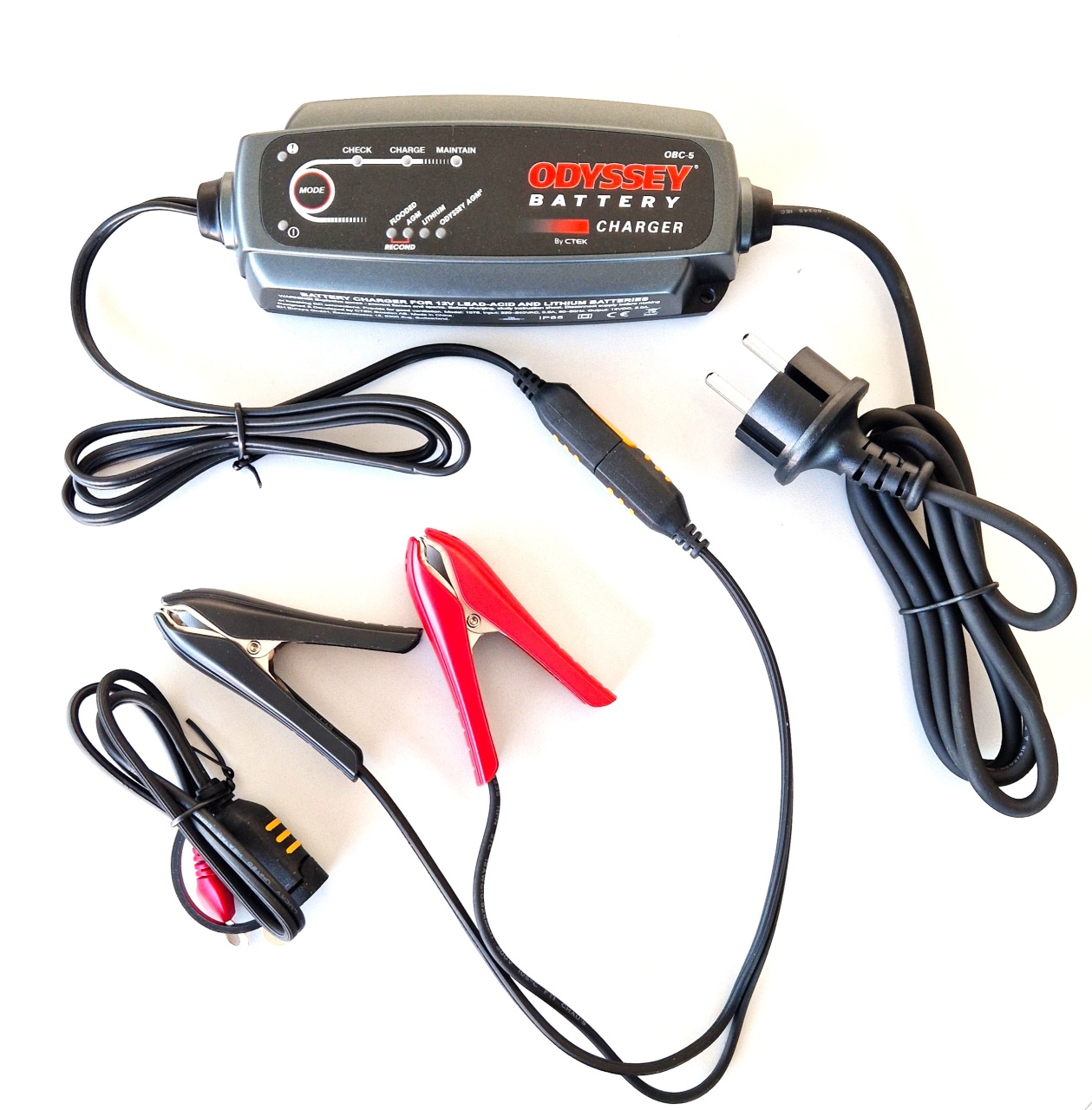

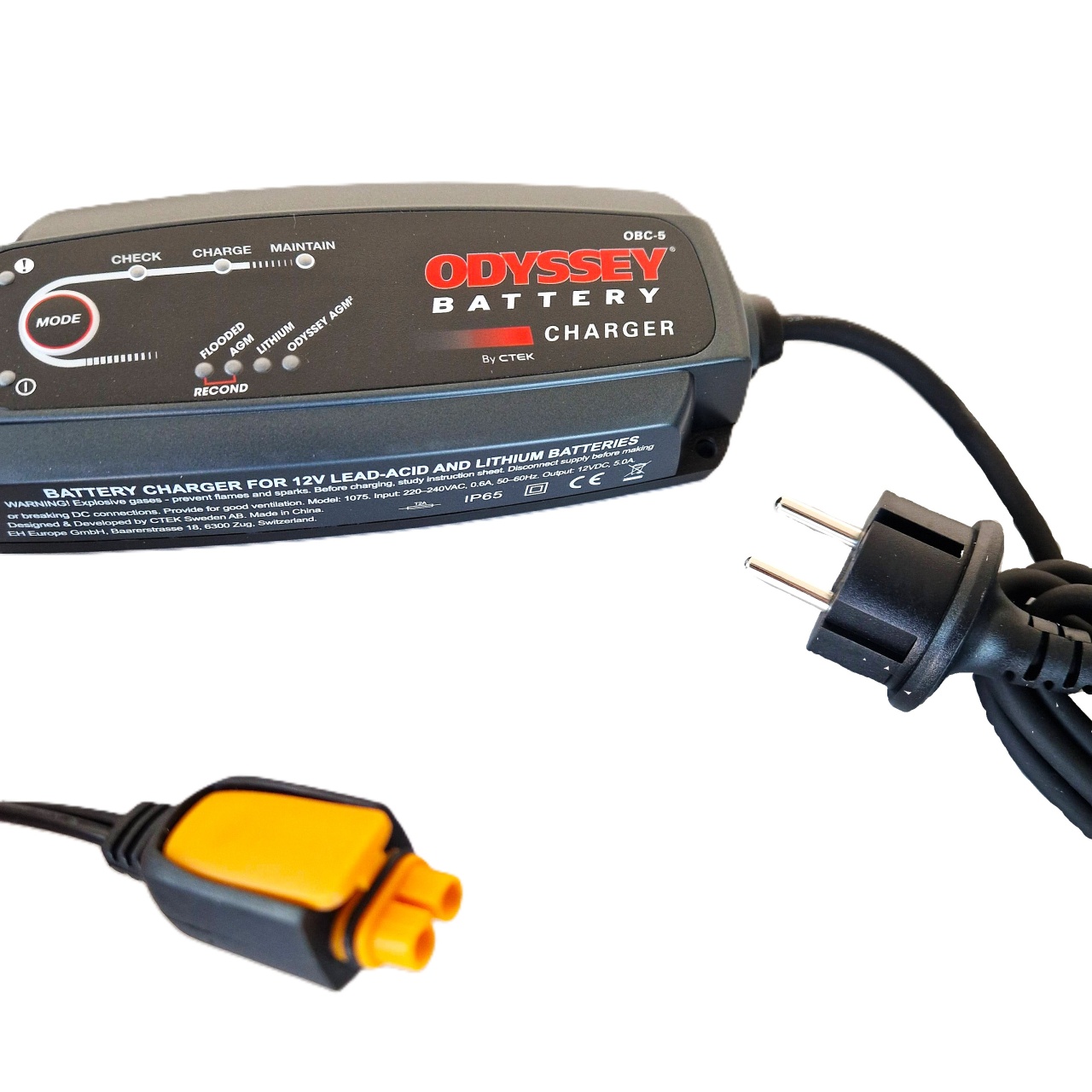

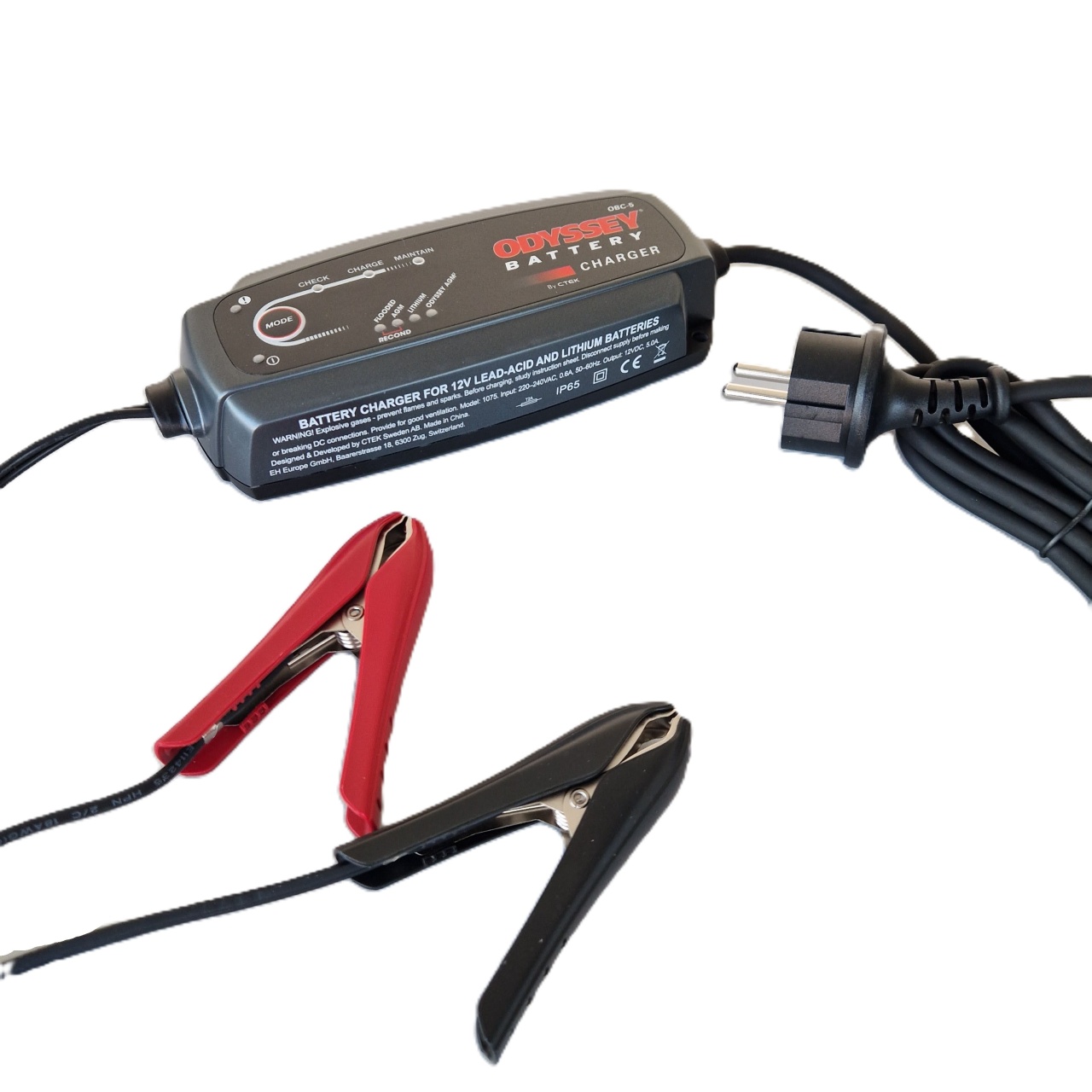

Cables: includes charging cables with clamps, charging cables with round clamps and power cable with stecker

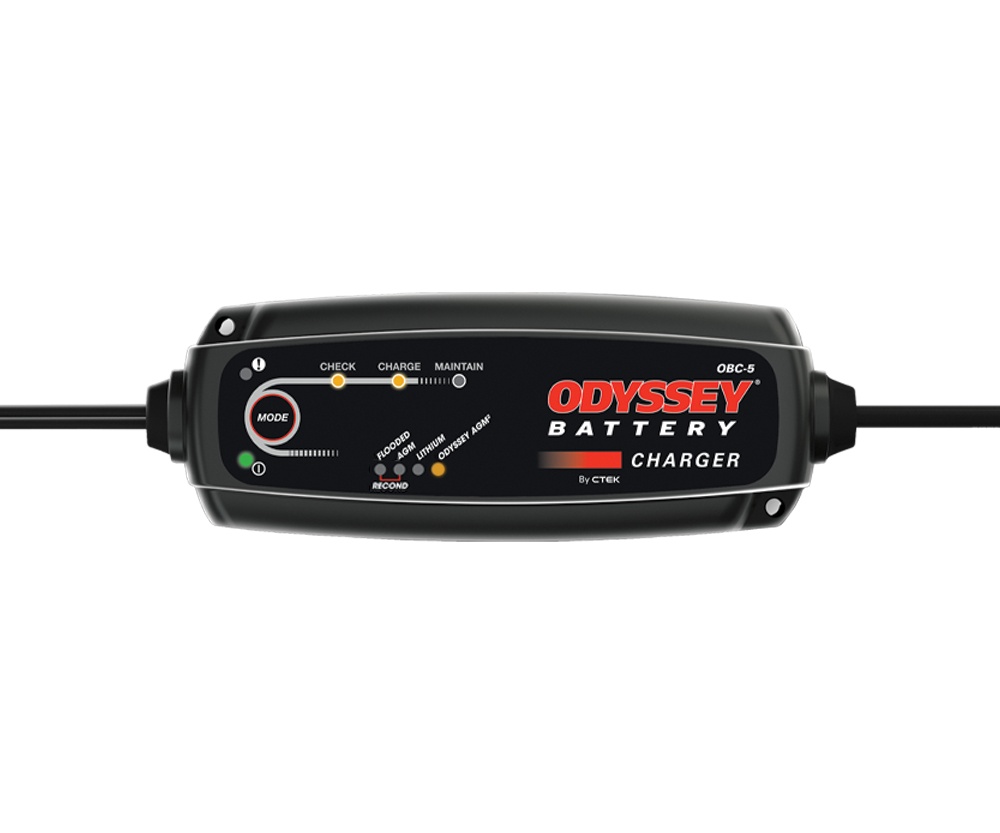

Display and keys: LED indicator and touch button for selecting battery type.

Operating temperature: -20°C... +50°C

Water and dust resistance: IP65 - resistant to water splashes and dust

Dimensions: product 168 x 66 x 38 mm

Weight: approx. 0.6 kg

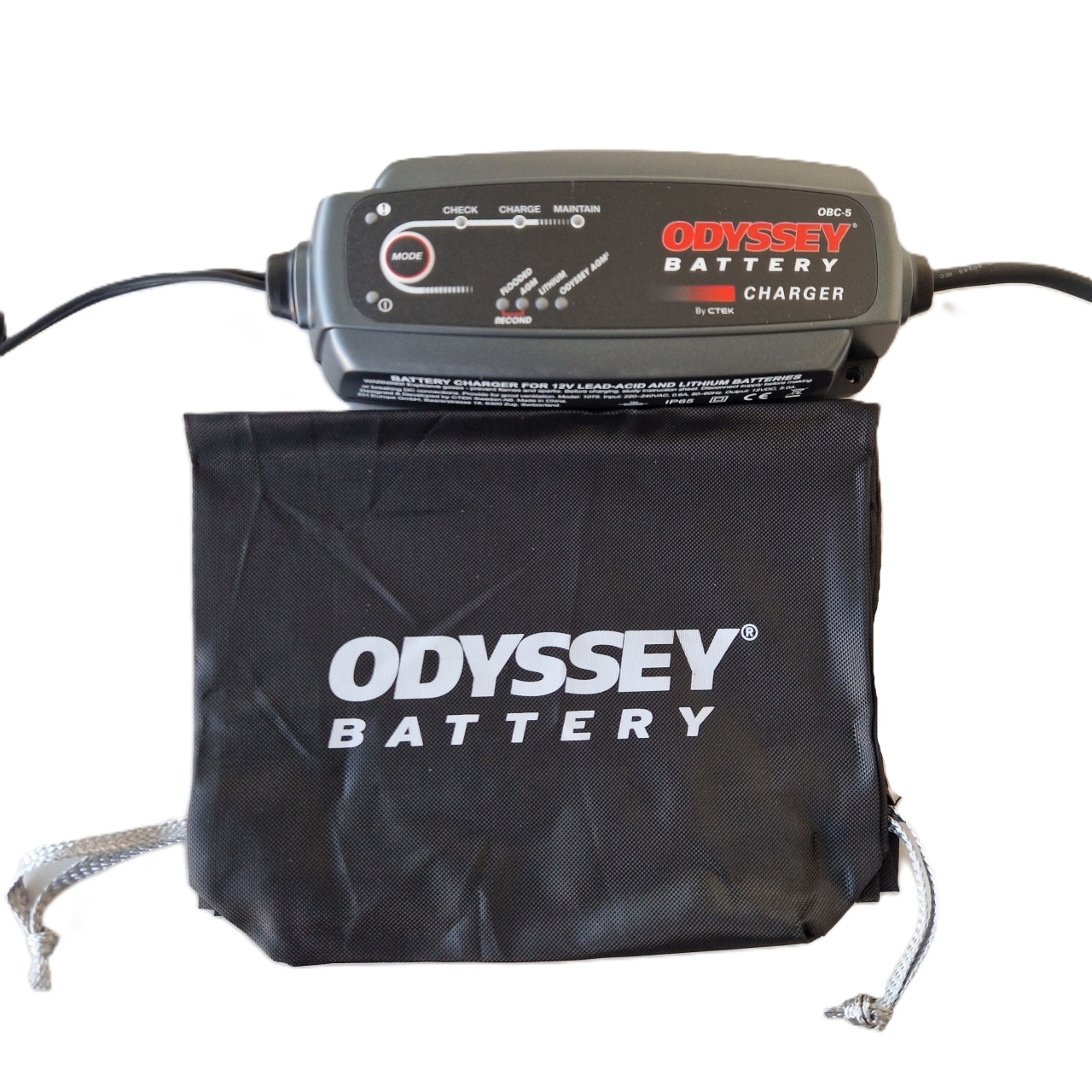

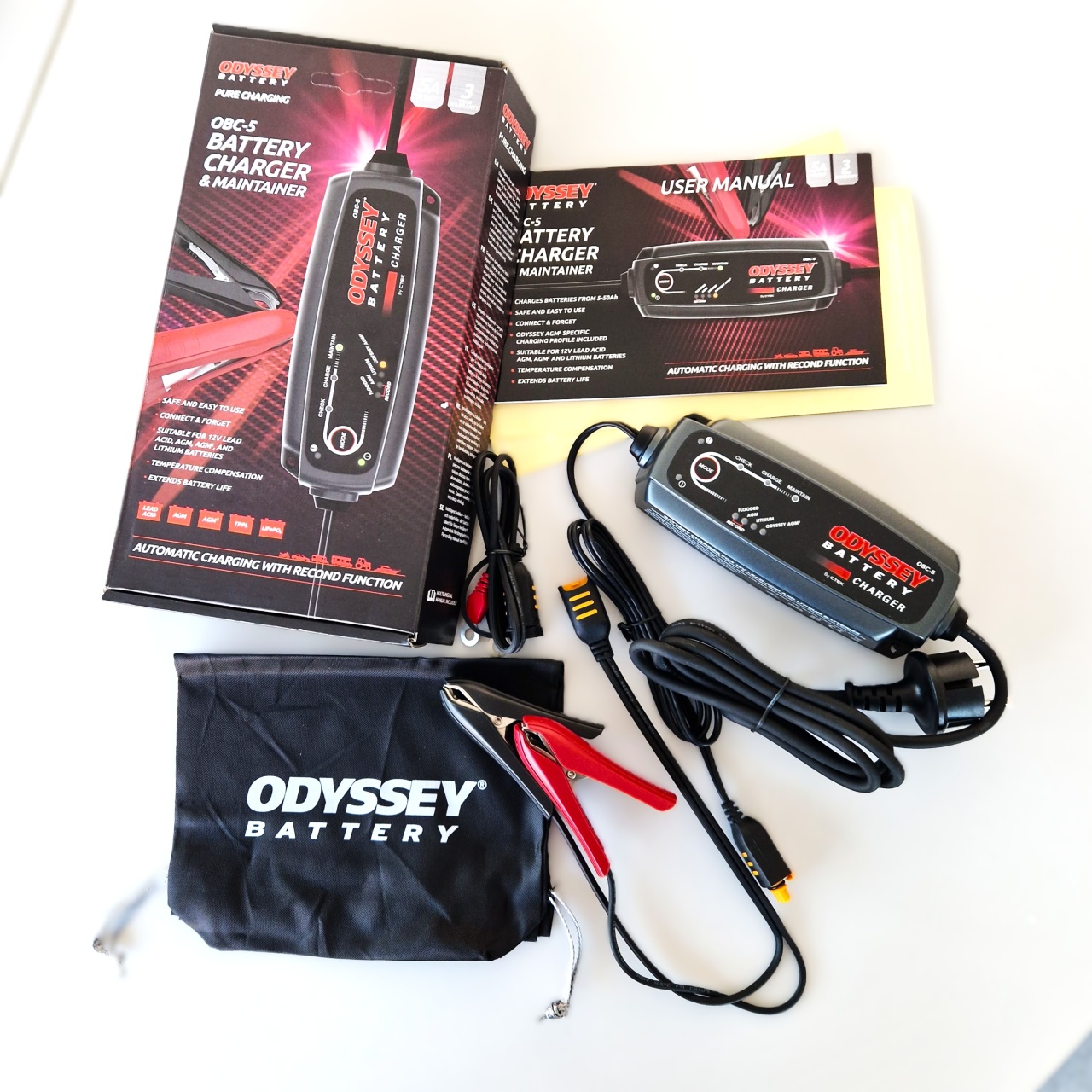

Package contents: OBC-5 rectifier, cable set with pliers, cable set with eyes, operating manual, carrying bag with drawstring

Certifications: CE / IP65 / UKCA

Commercial warranty for individuals: 36 months from the date of purchase. Warranty provided by sprinter2000.ro as a direct importer.

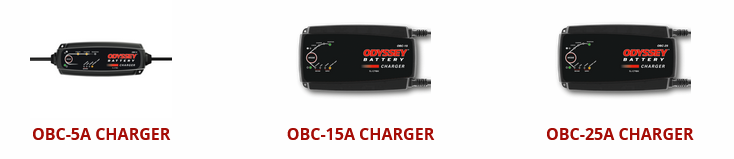

Other models in the range:
