Description

grid | Xtreme VR (green series)

The Pure Lead AGM batteries of the grid | Xtreme VR “Green Series” range produced by Hoppecke Batterien GmbH - Germany, are based on the same construction principles as the premium grid | Xtreme VR product range. In contrast, however, special attention was paid to the cost-benefit factor during development, in order to make the advantages of pure lead technology more easily accessible to cost-conscious customers. The result is a product that is slightly inferior to the premium version in terms of its technical features and symbolizes the economical idea with its completely green coloring. The Top and Front Terminal versions are ideal for use as UPS batteries in data centers and as backup batteries in telecommunications applications.

The advantages of the product are:

-High power and energy density

-Classified as "Very Long Life" according to Eurobat 2015 - 15 years design life!

-Extended storage life - up to 2 years storage allowed before installation

-Low lifetime costs (energy efficiency, maintenance, reduced air conditioning requirements)

-High process stability and consistent quality. The number of parallel strings can be increased

-Applications also possible at high temperatures. The costs for installing air conditioning equipment are reduced or non-existent.

PRODUCT SPECIFICATION:

Brand/Manufacturer: HOPPECKE Batterien GmbH & Co. KG (Germany)

Range: grid / Xtreme VR (green series)

Construction: Waterproof / Sealed, with regulating valve

Technology: AGM lead-acid, completely maintenance-free

Performance class: X - extra-high current discharge

Recommended applications: Data center, Telecommunications, Industrial applications DC/AC

Housing: ABS-PC, flame retardant UL94 V-0

Available code and models: grid | Xtreme 121000 FT 19'' / 121000 FT 23'' / 121500 FT / 121800 FT / 122000 FT - choose the desired model and the price will be updated automatically. The price and delivery time may differ depending on the selected model.

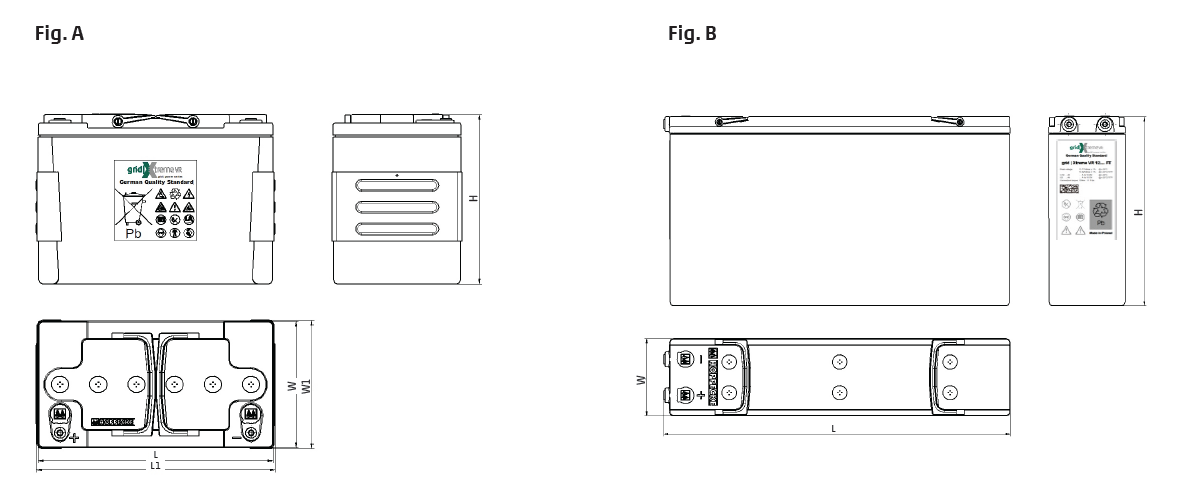

Case Format: Front Terminal (Figure B above)

Nominal Voltage: 12 V

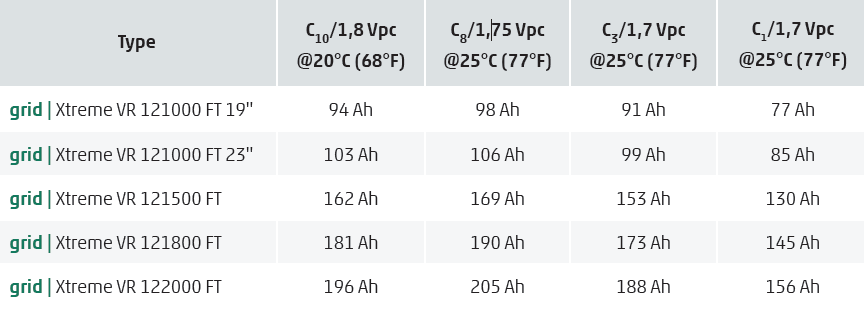

Nominal Capacity (depending on model):

Recommended load: Float 2.3 Vpc @ 20°C / 2.288 Vpc @25°C

Designed life: 15 years of use, "Very Long Life" classification according to EUROBAT 2015

Recommended maximum storage time: 2 years

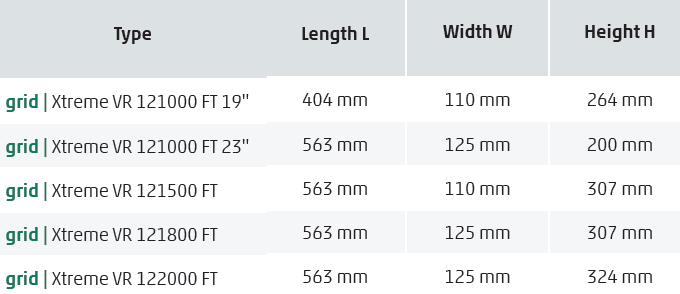

Dimensions (depending on model): L x W x H:

Working temperature: -35 : +50 degrees Celsius

Terminals: M8-F - top terminal; terminals located on the cover, with internal thread / 15 Nm; "plus" terminal positioned on the left

Applicable standards: IEC 60896-21/22 / ISO 9001/ ISO14001 / ISO 50001 / ISO 45001 certified manufacturer / ISO 9001 / ISO14001 / ISO 27001 certified importer and seller

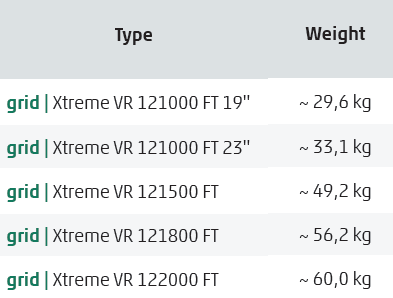

Weight (depending on model):

Commercial warranty for individuals: 24 months from the date of purchase. The warranty is provided directly by the online store.

 Warnings: Do not short-circuit, do not throw into fire or disassemble even after use. Hand over used batteries only to authorized collection centers. Contains chemicals hazardous to the environment and health (especially lead and sulfuric acid)
